1. Produit terminéview
The ZUMIMALL P8 is a 2K wireless video doorbell camera designed for home security. It features a rechargeable battery for flexible placement, 2.4 GHz Wi-Fi connectivity, and comes with a chime. Key features include 2K 3MP high-resolution monitoring with superior night vision, AI human detection, two-way audio with optional voice changers, anti-theft alarm, and IP66 weatherproof rating. It supports both local storage (up to 128GB via SD card, sold separately) and cloud storage options.

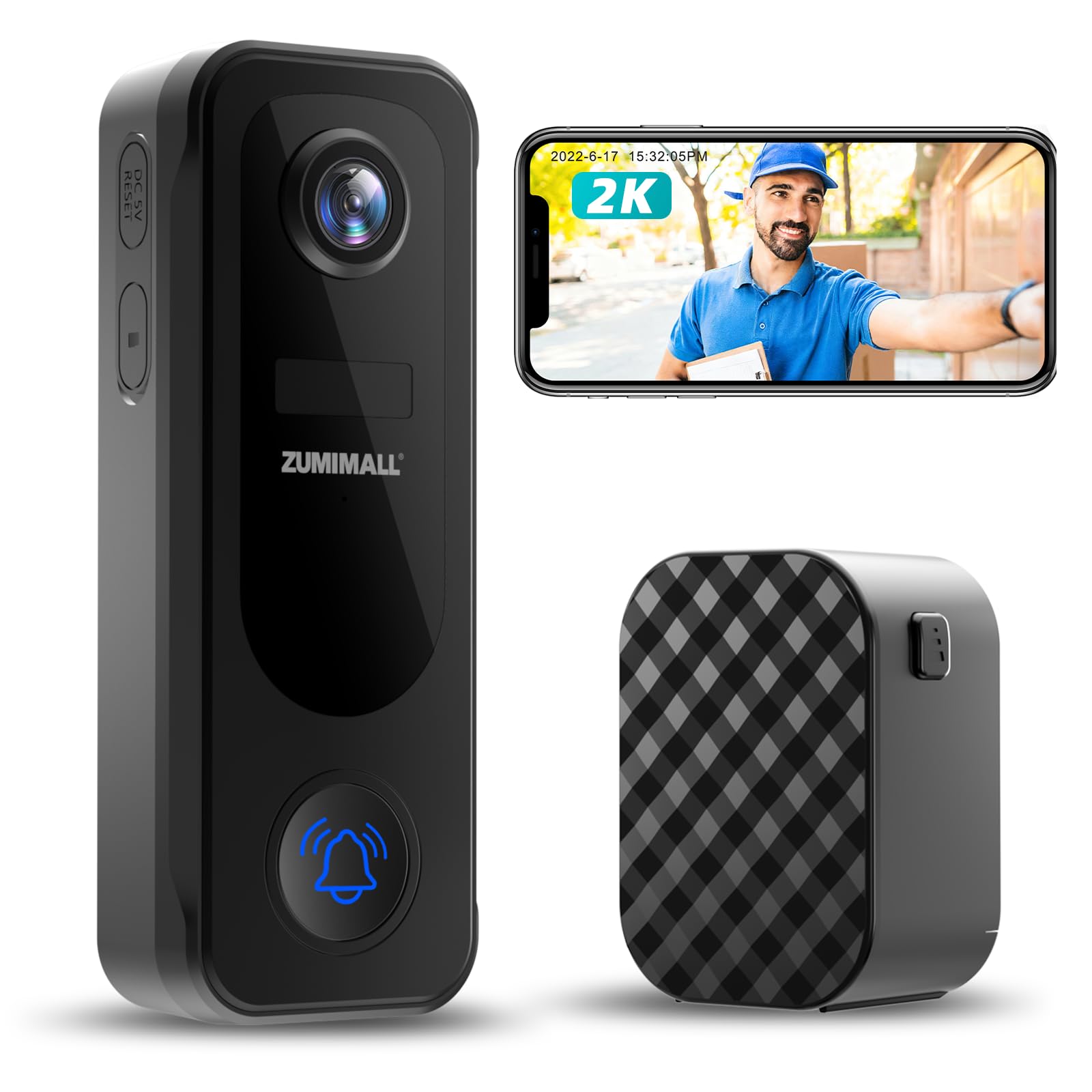

Figure 1: ZUMIMALL P8 2K Wireless Video Doorbell Camera and Chime.
2. Contenu de la boîte
Upon opening your ZUMIMALL P8 package, you should find the following items:
- Caméra de sonnette
- Carillon
- Câble de chargement
- Manuel d'instructions
- Vis de montage
Figure 2 : Contenu de l'emballage.
Vidéo de déballage
Video 1: This video demonstrates the unboxing process of the ZUMIMALL P8 Doorbell Camera, showing all included components.
3. Installation
3.1 Identification des composants
Figure 3: ZUMIMALL P8 Doorbell Camera Components.
3.2 Installation
The ZUMIMALL P8 doorbell camera offers two installation methods: screw-in or adhesive tape. Choose the method best suited for your mounting surface.
- Choisissez un emplacement : Select a suitable location, ideally around 1.4 meters (4.6 feet) from the ground for optimal viewing.
- Montage de la plaque arrière :
- Screw-in Installation: Use the provided screws to fix the camera back plate to the wall.
- Installation du ruban adhésif : Use the provided tape to attach the camera back plate to the mounting location.
- Fixez la caméra : Mount the doorbell camera onto the secured back plate.
- Sécurisez la caméra : Tighten the fixing screws on the back plate to secure the camera.
Figure 4: Easy Installation Options.
Installation and Removal Video
Video 2: This video provides a step-by-step guide on how to install and remove the ZUMIMALL P8 doorbell camera.
3.3 Connexion à l'application
To connect your ZUMIMALL P8 doorbell camera to the ZUMIMALL App, follow these steps:
- Mise sous tension : Press and hold the doorbell button for 5 seconds until you hear a ringtone, indicating the doorbell is on.
- Réinitialiser (si nécessaire) : If this is the first time or you are having issues, reset the camera. Wait for the indicator light to turn red and flash slowly.
- Ouvrir application: Open the ZUMIMALL App on your smartphone.
- Ajouter un appareil : Tap 'Add Device' and follow the on-screen network setting tips.
- Se connecter au Wi-Fi : Select your 2.4 GHz Wi-Fi network and enter the correct password.
- Scannez le code QR : Scan the QR code displayed in the App with your doorbell camera. You will hear a 'beep' sound upon successful scan.
- Confirmation de connexion : Wait for the doorbell to connect. The doorbell light will turn blue, indicating successful addition.
- Configuration complète : Tap 'Next' to continue with installation suggestions and start using your doorbell.
Figure 5: App Connection Steps.
Vidéo de connexion à l'application
Video 3: This video demonstrates how to connect the ZUMIMALL P8 doorbell camera with the ZUMIMALL App.
3.4 Connexion de la sonnette
To connect the wireless chime to your doorbell camera:
- Insérez les piles : Load the batteries into the chime until you hear a 'ding dong' sound.
- Enable Chime Reminder: Open the ZUMIMALL App, go to the 'Chime Setting' and ensure the 'Chime Reminder' is turned on.
- Connect Chime: Hold the connect button on the chime until you hear a 'tick'.
- Test de connexion : Press the doorbell button. If both the doorbell and chime ring simultaneously, the connection is successful.
Chime Connection Video
Video 4: This video guides you through the process of connecting the doorbell chime to your ZUMIMALL P8 camera.
4. Mode d'emploi
4.1 Surveillance vidéo
The ZUMIMALL P8 provides clear 2K 3MP high-resolution video monitoring, day and night. Its superior night vision ensures sharp images even in low-light conditions.
Figure 6 : Vision de jour et de nuit.
4.2 Détection de mouvement et alertes
The doorbell camera features PIR human/AI detection, sending instant alerts to your smartphone when movement is identified. You can customize detection zones to reduce false alarms.
Figure 7: Smart AI Analysis & Instant Notification.
Figure 8: Customize Detection Zone.
Figure 9: PIR Motion Detection & Instant Notification.
4.3 Audio bidirectionnel
Communicate in real-time with visitors using the two-way talk feature. The ZUMIMALL App also allows you to leave voice messages up to 30 seconds long (up to 3 messages).
Figure 10: Two-Way Audio & Optional Sounds.
4.4 Options de stockage
Choose between local storage (up to 128GB via a memory card, sold separately) or 6-second cloud storage options. The device supports 7-day loop recording without a subscription when using local storage.
Figure 11: No Subscription Fees - Local or Cloud Storage.
4.5 Anti-Theft Feature
The doorbell camera is equipped with advanced anti-theft measures to deter tampering or theft. If the doorbell is forcibly removed, an alarm will be triggered.
Figure 12: Anti-theft Alert.
4.6 Conception résistante aux intempéries
With an IP66 rating, the ZUMIMALL P8 is designed to withstand various weather conditions, ensuring durability and reliable operation year-round.
Figure 13: IP66 Weatherproof.
4.7 Partage multi-utilisateurs
The ZUMIMALL P8 supports unlimited sharing and allows up to 4 users to watch live videos simultaneously, enabling multiple family members to monitor the entrance.
Figure 14: Multi-people Sharing.
5. Entretien
The ZUMIMALL P8 is battery-powered. Ensure the battery is regularly charged to maintain continuous operation. The battery life will vary based on usage and environmental conditions.
- Chargement : Connect the doorbell camera to a power source using the provided charging cable when the battery level is low.
- Nettoyage: Periodically clean the camera lens and the doorbell surface with a soft, dry cloth to ensure clear video quality and proper functionality.
- Mises à jour du micrologiciel : Check the ZUMIMALL App regularly for any available firmware updates to ensure optimal performance and access to new features.
6. Dépannage
If you encounter issues with your ZUMIMALL P8 doorbell camera, refer to the following common troubleshooting steps:
- Problèmes de connectivité : Ensure your Wi-Fi network is 2.4 GHz and the signal strength is adequate at the doorbell's location. Try resetting your router and the doorbell camera.
- Sonnette ne répondant pas : Check the battery level. If the battery is low, recharge the device. If the device is powered on but unresponsive, try resetting it.
- Video Playback Problems: Ensure a compatible SD card (up to 128GB) is inserted correctly for local storage, or verify your cloud storage subscription is active.
- Fausses alarmes : Adjust the motion detection sensitivity settings in the ZUMIMALL App. Utilize the customizable detection zones to focus on specific areas and reduce unwanted alerts.
- Carillon non sonnant : Ensure the chime has fresh batteries and is successfully paired with the doorbell camera (refer to Section 3.4). Check the 'Chime Reminder' setting in the app.
Resetting the Doorbell Camera Video
Video 5: This video demonstrates how to reset your ZUMIMALL P8 doorbell camera.
7. Spécifications
| Fonctionnalité | Spécification |
|---|---|
| Marque | ZUMIMALL |
| Nom du modèle | P8 |
| Technologie de connectivité | Sans fil (Wi-Fi 2.4 GHz, Bluetooth) |
| Résolution de capture vidéo | 2K |
| Résolution fixe efficace | 3 MP |
| Caractéristiques spéciales | 2-Way Audio, HD Resolution, Local Recording, Night Vision, Weather Proof |
| Utilisation intérieure/extérieure | Intérieur, extérieur |
| Appareils compatibles | Smartphone (ZUMIMALL APP, Amazon Alexa, Google Assistant) |
| Source d'énergie | Alimenté par batterie |
| Max Flash Memory Supported Size | 128 Go |
| Niveau de résistance à l'eau | Imperméable à l'eau (IP66) |
| Dimensions de l'article | 2.04 x 1.18 x 4.62 pouces |
| Poids de l'article | 0.48 kilogrammes |
8. Garantie et assistance
ZUMIMALL is committed to providing high-quality products and customer satisfaction. For any issues or inquiries, please refer to the following:
- Informations sur la garantie : Specific warranty details are typically provided with your product packaging or can be found on the official ZUMIMALL website.
- Assistance clientèle : ZUMIMALL offers one-on-one online support to assist with setup, troubleshooting, and any other product-related questions. You can usually find contact information (email, phone, or live chat) on the ZUMIMALL website or within the ZUMIMALL App.
- Ressources en ligne : Visit the official ZUMIMALL webSite regroupant les FAQ, les manuels mis à jour et des ressources d'assistance supplémentaires.
