HP OMEN 16 MAX Gaming Laptop User Manual

1. Introduction

This manual provides essential information for setting up, operating, maintaining, and troubleshooting your HP OMEN 16 MAX Gaming Laptop. Please read this guide thoroughly to ensure optimal performance and longevity of your device.

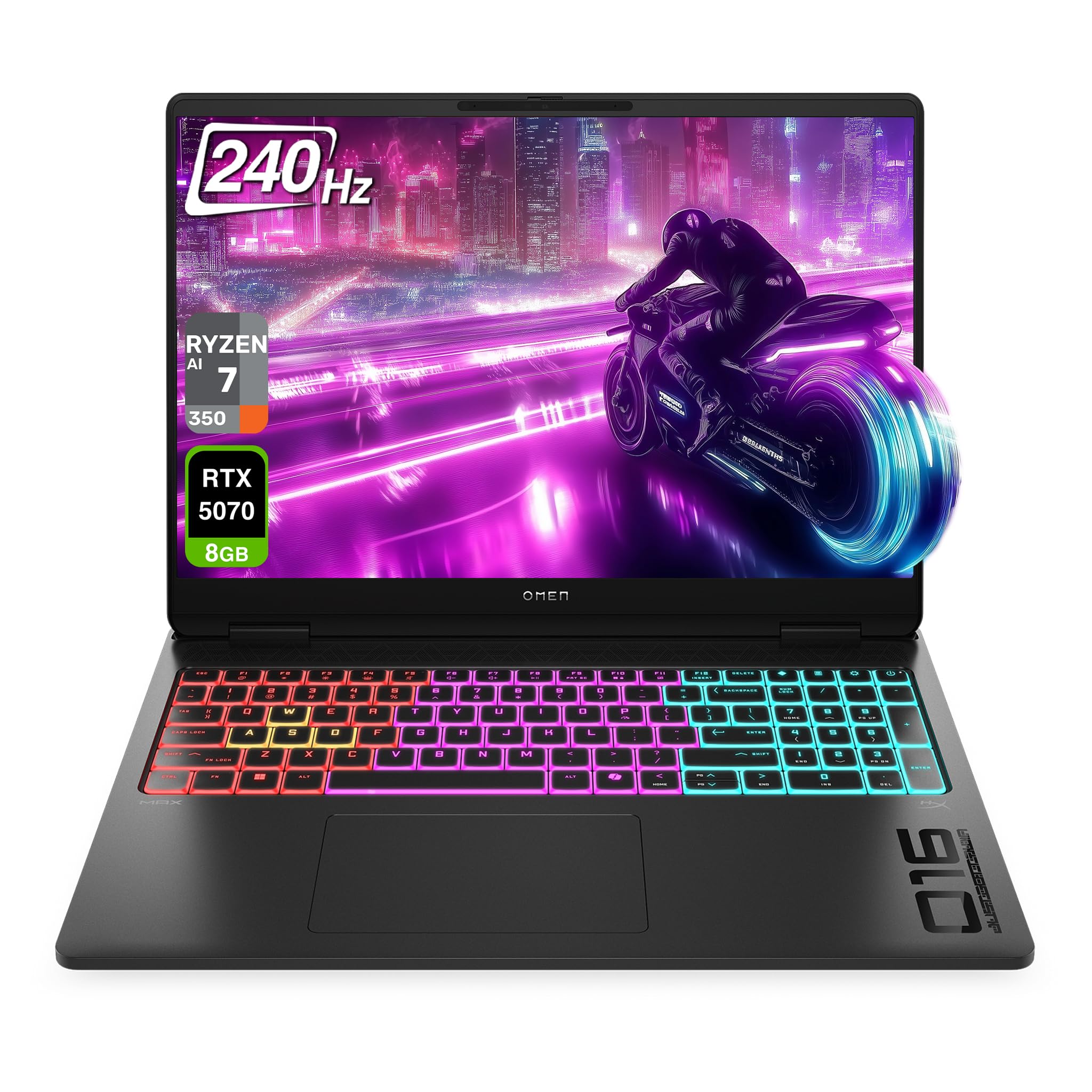

Figure 1.1: HP OMEN 16 MAX Gaming Laptop, showcasing its sleek design and RGB backlit keyboard.

2. Configuration initiale

2.1 Unpacking and First Boot

1. Retirez soigneusement l'ordinateur portable et tous ses accessoires de leur emballage.
2. Connect the AC adapter to the laptop's AC smart pin port and then to a power outlet.
3. Ouvrez le couvercle de l'ordinateur portable et appuyez sur le bouton d'alimentation pour allumer l'appareil.
4. Follow the on-screen instructions to complete the Windows 11 Home setup. This includes selecting your region, connecting to a network, and creating a user account.

2.2 Connexion de périphériques

The HP OMEN 16 MAX offers various ports for connecting external devices:

Figure 2.1 : Côté view of the laptop highlighting the USB Type-A, HDMI, RJ-45, AC Smart pin, USB Type-C, and headphone/microphone combo ports.

• USB Type-A (débit de signalisation de 10 Gbit/s) : Connect external storage, mice, or other USB accessories.
• HDMI 2.1: Connect to an external display or TV for high-resolution video output.
• RJ-45 : Pour les connexions réseau filaires.
• USB Type-C (40Gbps signaling rate, USB Power Delivery 3.1, DisplayPort 2.1, HP Sleep and Charge): Versatile port for data transfer, charging, and video output.
• Combinaison casque/microphone : Connect a headset for audio input and output.

3. Principales caractéristiques

Affichage 3.1

The laptop features a 16-inch WQXGA (2560 x 1600) display with a 60–240 Hz refresh rate and 3 ms response time. It utilizes an IPS panel with micro-edge design, anti-glare coating, and Low Blue Light technology. The display offers 500 nits brightness and 100% sRGB color gamut for vibrant and accurate visuals.

Figure 3.1: The 16-inch WQXGA display provides crisp images and a high refresh rate for smooth visuals.

3.2 Matériel de performance

• Processeur: AMD Ryzen AI 7 H 350 (up to 5.0 GHz max boost clock, 16 MB L3 cache, 8 cores, 16 threads).
• Graphique: NVIDIA GeForce RTX 5070 Laptop GPU (8 GB GDDR7 dedicated).
• BÉLIER: 32 GB DDR5 RAM.
• Stockage: 2 TB PCIe SSD.

3.3 Système de refroidissement

The OMEN Tempest Cooling PRO architecture is designed to maintain optimal temperatures for all components, even under heavy load, preventing thermal throttling. This system includes:

• Fan Cleaner: Self-cleaning fan technology to reduce performance degradation and minimize maintenance.
• OMEN Cryo Compound: An upgraded hybrid material applied to the CPU and GPU for enhanced heat dissipation and extended device longevity.
• OMEN IR Sensor: Dynamically adjusts and optimizes thermal and acoustic performance in real-time.

3.4 Keyboard and Connectivity

• Clavier: 4-Zone RGB Backlit Keyboard for customizable lighting.
• Sans fil: Wi-Fi 7 BE200 (2x2) and Bluetooth 5.4 wireless card for high-speed and reliable connections.

Figure 3.2: The 4-Zone RGB backlit keyboard offers customizable lighting effects.

4. Mode d'emploi

4.1 OMEN Gaming Hub

The OMEN Gaming Hub is your central control panel for optimizing your laptop's performance and customizing settings. It includes features such as:

• Mode déchaîné : Allows manual overclocking of your device beyond factory limits, leveraging OMEN Tempest Cooling PRO for stable performance. Access this mode under Performance Control.
• Contrôle de l'éclairage : Customize the 4-Zone RGB backlit keyboard and other lighting elements.
• System Vitals: Monitor CPU, GPU, and RAM usage, along with temperature readings.
• Booster de réseau : Prioritize network traffic for gaming applications.

Figure 4.1: OMEN Gaming Hub interface, demonstrating the Unleashed Mode for performance tuning.

4.2 Connectivité sans fil

The laptop supports Wi-Fi 7 and Bluetooth 5.4. For seamless wireless gaming with compatible HyperX peripherals, Instant Pair technology allows direct connection without dongles, reducing clutter and ensuring full-speed performance.

Figure 4.2: Instant Pair technology simplifies connecting HyperX peripherals for a clutter-free gaming experience.

5. Entretien

5.1 Nettoyage de votre ordinateur portable

• Utilisez un chiffon doux non pelucheux pour nettoyer l'écran et les surfaces extérieures.
• Pour les taches tenaces, légèrement dampNettoyez le chiffon avec de l'eau ou un nettoyant adapté aux écrans.
• Évitez de vaporiser des liquides directement sur l'ordinateur portable.
• Regularly clean the keyboard with compressed air to remove dust and debris.

5.2 Mises à jour logicielles

Keep your operating system, drivers, and OMEN Gaming Hub software updated to ensure optimal performance, security, and access to the latest features. Windows Update will handle most system updates, while OMEN Gaming Hub can manage specific HP and gaming-related software.

5.3 Entretien du ventilateur

The OMEN Tempest Cooling PRO system includes a Fan Cleaner feature. While designed to be self-cleaning, occasional checks for excessive dust buildup in the vents are recommended. If significant dust is observed, use compressed air to clear the vents. Do not attempt to disassemble the laptop for fan cleaning unless you are a qualified technician.

6. Dépannage

6.1 Problèmes courants et solutions

• L'ordinateur portable ne s'allume pas : Assurez-vous que l'adaptateur secteur est bien branché à la fois à l'ordinateur portable et à une prise de courant fonctionnelle. Essayez une autre prise si nécessaire.
• L'écran est vide : Check if the laptop is powered on. If connected to an external display, ensure the correct input source is selected on the external display. Try pressing Fn + F4 (or the corresponding display toggle key) to switch display outputs.
• Performance issues (lag, low frame rates):
  • Verify that the laptop is connected to power and running in a high-performance power plan.
  • Check OMEN Gaming Hub for Unleashed Mode activation and monitor system vitals for overheating.
  • Assurez-vous que vos pilotes graphiques sont à jour.
  • Fermez les applications d’arrière-plan inutiles.
• Problèmes de connectivité Wi-Fi :
  • Redémarrez votre routeur et votre modem.
  • Ensure Wi-Fi is enabled on the laptop (check Windows settings).
  • Mettez à jour les pilotes de votre carte réseau sans fil.

7. Spécifications

8. Garantie et assistance

Pour obtenir des informations détaillées sur la garantie et l'assistance technique, veuillez consulter le site officiel HP. webLe site ou la documentation fournie avec votre produit. Vous pouvez également consulter le Boutique HP sur Amazon pour des ressources supplémentaires.

Contenu de la boîte :

• HP OMEN 16 MAX Gaming Laptop
• Adaptateur secteur
• Clavier (intégré)

9. Ressources vidéo

9.1 A Deep Dive on the HP OMEN MAX 16
