Yofidra 4-in-1 Cordless Pole Pruner and Chainsaw Kit Instruction Manual

Introduction

Thank you for choosing the Yofidra 4-in-1 Cordless Pole Pruner and Chainsaw Kit. This versatile tool is designed for efficient garden and tree maintenance, offering the functionality of a handheld cordless pruner, an 8-inch mini chainsaw, a telescopic pole chainsaw, and a telescopic pole pruner. Please read this manual carefully before operation to ensure safe and effective use of the product.

Consignes de sécurité importantes

Suivez toujours les précautions de sécurité de base pour réduire le risque d'incendie, de choc électrique et de blessures.

• Lisez le manuel en entier : Veuillez prendre connaissance de toutes les instructions et avertissements avant d'utiliser l'outil.
• Portez un équipement de protection individuelle (EPI) approprié : Cela comprend des lunettes de sécurité, des gants, une protection auditive et des chaussures robustes.
• Gardez votre zone de travail dégagée : Ensure the area is free from obstacles, children, and bystanders.
• Inspectez l'outil avant utilisation : Check for damaged parts, loose connections, or any other condition that may affect safe operation.
• Utilisez l'outil approprié à la tâche : Do not force the tool or use it for purposes for which it was not intended.
• Sécurité de la batterie : Utilisez uniquement les piles et le chargeur spécifiés. N’exposez pas les piles à des températures extrêmes ni à l’humidité.
• Maintenez une prise ferme : Always hold the tool securely with both hands when operating the chainsaw or pole attachments.
• Évitez les pots-de-vin : Be aware of the chainsaw's tip and avoid contact with objects that could cause kickback.
• Lubrification: Ensure the chainsaw chain is properly lubricated before and during use.
• Stockage: Rangez l'outil et les piles dans un endroit sec et sûr, hors de portée des enfants.

Produit terminéview et contenu

The Yofidra 4-in-1 kit provides versatile solutions for various pruning and cutting tasks. It includes the following components:

• 8-inch Brushless Chainsaw (x1)
• Brushless Pruning Shears (x1)
• High Telescopic Rod (x1)
• 3000mAh 20V Battery (x2)
• EU Charger (x1)
• Accessory Kit (x6 items, including tools for maintenance)
• Insulating Tape (x1)

Figure 1 : All components included in the Yofidra 4-in-1 Cordless Pole Pruner and Chainsaw Kit. This image displays the 8-inch chainsaw, pruning shears, telescopic pole, two batteries, charger, accessory kit, and insulating tape.

Figure 2 : The four different configurations of the Yofidra tool: handheld pruner, handheld mini chainsaw, telescopic pole pruner, and telescopic pole chainsaw, demonstrating its versatility.

Configuration et assemblage

1. Chargement et installation de la batterie

1. Charger les batteries : Before first use, fully charge both 20V 3000mAh batteries using the provided EU charger. Insert the battery into the charger and plug the charger into a suitable power outlet. The indicator light on the charger will show the charging status.
2. Installer la batterie: Align the battery with the battery slot on the desired tool (pruner or chainsaw) or the telescopic pole handle. Slide the battery firmly until it clicks into place. Ensure it is securely fastened.
3. Retirer la batterie : Appuyez sur le bouton de déverrouillage de la batterie et faites glisser la batterie hors de l'outil.

2. Assemblage de la perche télescopique

The telescopic pole allows for extended reach up to 4.2 meters (maximum working height). The pole itself has adjustable lengths of 100 cm, 133 cm, and 177 cm.

1. Attach Tool Head: Connect either the chainsaw or the pruning shears to the top end of the telescopic pole. Ensure the connection is secure and locked.
2. Ajuster la longueur du poteau : Loosen the locking mechanism on the telescopic pole. Extend the pole to the desired length and then securely tighten the locking mechanism.
3. Attach Handle/Battery Unit: Connect the handle unit (with battery installed) to the bottom end of the telescopic pole.

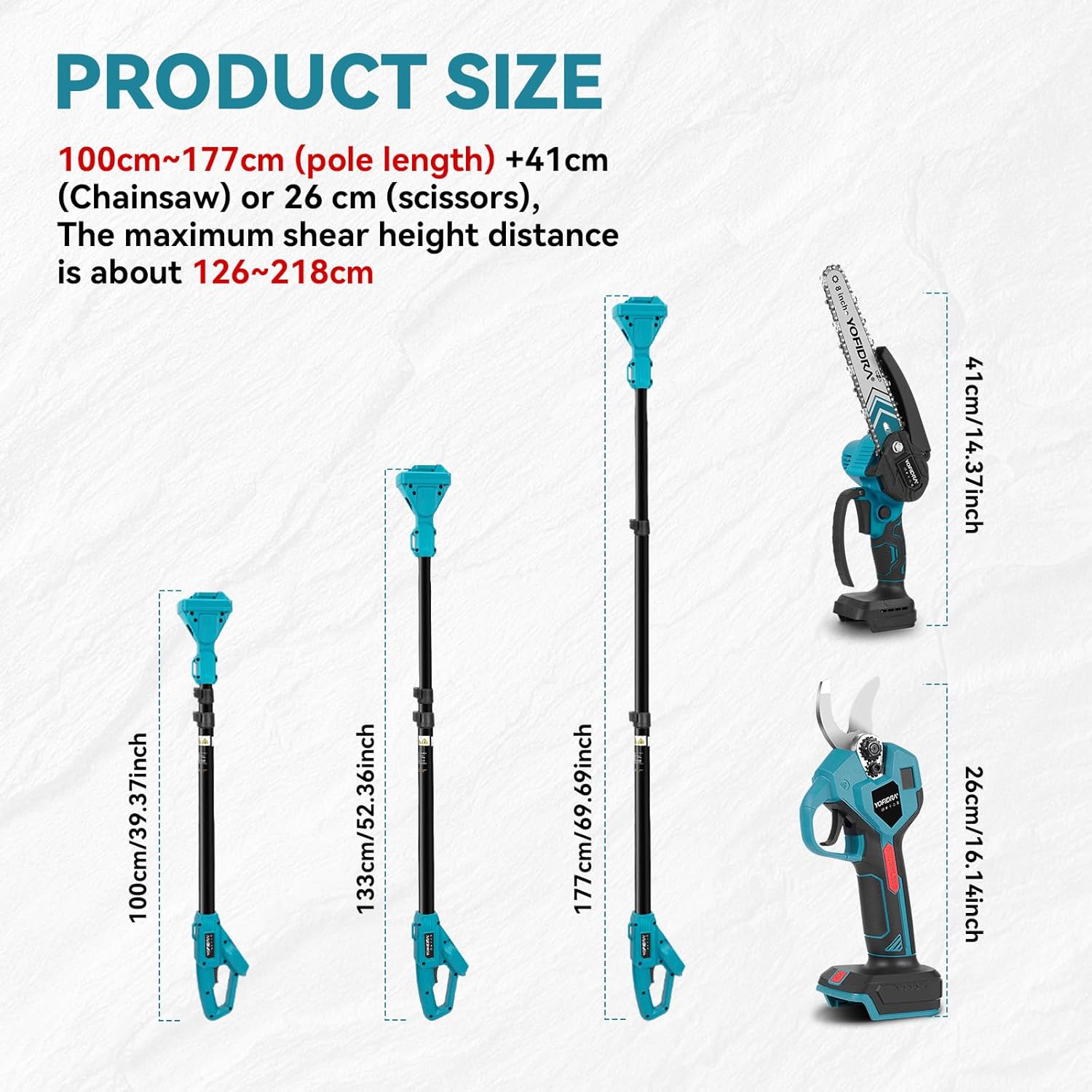

Figure 3 : Illustration of the product dimensions, including the adjustable lengths of the telescopic pole (100cm, 133cm, 177cm) and the dimensions of the chainsaw and pruner heads.

Mode d'emploi

1. Using the Cordless Pruning Shears

• Mise sous tension : Ensure the battery is installed. Press and hold the power button until the LED display activates.
• Ajuster le diamètre de coupe : The pruning shears feature 2 adjustable opening positions, allowing for cuts up to 30mm in diameter. Use the adjustment mechanism to select the appropriate opening for the branch size. The LED screen displays operational information.
• Opération: Position the branch between the blades. Press the trigger to close the blades and make the cut. Release the trigger to open the blades.
• Verrouillage de sécurité : Always engage the safety lock when not actively cutting or when storing the tool.

Figure 4 : Close-up of the cordless pruning shears demonstrating the maximum cutting diameter of 28mm and the adjustable cutting diameter feature.

2. Using the 8-inch Mini Chainsaw

• Lubrification de la chaîne : Before each use, ensure the chainsaw chain is adequately lubricated. The chainsaw features a manual pressure lubrication system. Apply chain oil as directed in the Maintenance section.
• Mise sous tension : Ensure the battery is installed. Hold the chainsaw firmly with both hands. Press the safety lock button and then squeeze the trigger to start the chain.
• Coupe: Allow the chain to reach full speed before contacting the branch. Apply steady, even pressure. Avoid cutting with the tip of the guide bar to prevent kickback.
• Éteindre: Relâchez la gâchette pour arrêter la chaîne.

Figure 5 : The 8-inch mini chainsaw in operation, demonstrating its high-efficient cutting capability with a chain speed of 16.4 ft/s.

3. Using the Telescopic Pole Attachments

• Assemblage sécurisé : Ensure the desired tool (pruner or chainsaw) is securely attached to the telescopic pole and the pole is extended and locked at the appropriate length.
• Ajuster l'angle : The tool head can be adjusted from 30° to 150° to facilitate cutting at various angles for high branches. Loosen the angle adjustment knob, set the desired angle, and tighten the knob securely.
• Maintenir l’équilibre : When operating with the telescopic pole, always maintain a stable stance and a firm grip on the handle. Be aware of the tool's extended reach and potential for imbalance.
• Travaux aériens : Exercise extreme caution when working overhead. Be aware of falling branches and debris.

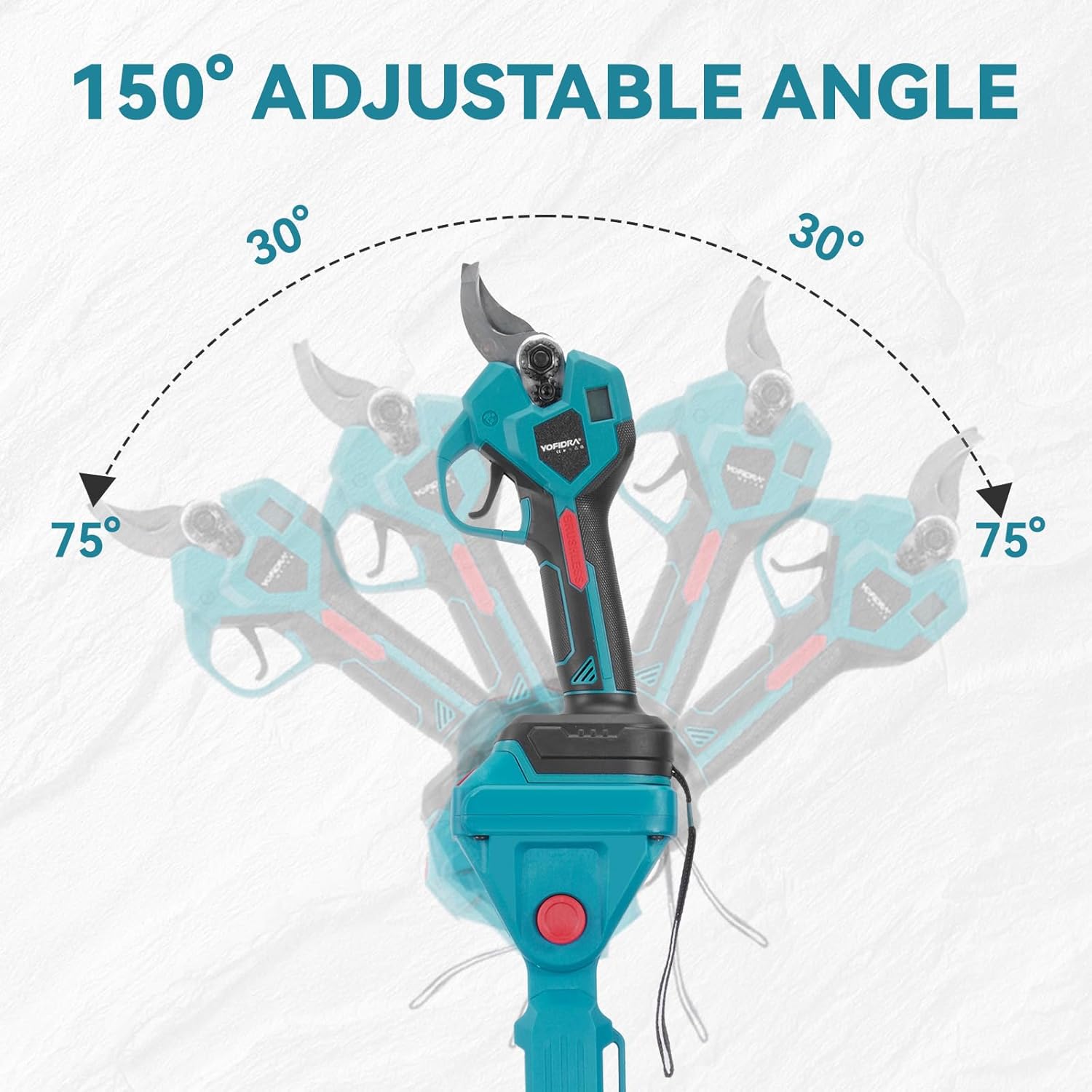

Figure 6 : The adjustable angle feature of the telescopic pole attachment, allowing for head rotation from 30° to 150° for optimal cutting positions.

Entretien

Regular maintenance ensures the longevity and optimal performance of your Yofidra tool.

• Nettoyage: After each use, remove the battery and clean the tool thoroughly. Use a dry cloth to wipe down the housing. Remove any sap, wood chips, or debris from the blades, chain, and ventilation openings.
• Chainsaw Chain Lubrication: Regularly apply chain oil to the chainsaw chain using the manual pressure lubrication system. Proper lubrication reduces friction, prevents overheating, and extends chain life.
• Blade Sharpening (Pruner): Keep the pruning shear blades sharp for clean cuts. Sharpen them with a suitable sharpening tool as needed.
• Chain Tension (Chainsaw): Periodically check and adjust the chainsaw chain tension. A properly tensioned chain should be snug but still allow for manual movement around the guide bar. Refer to the accessory kit for adjustment tools.
• Stockage: Store the tool, batteries, and charger in a clean, dry place away from direct sunlight and extreme temperatures. Ensure batteries are partially charged for long-term storage.

Dépannage

Caractéristiques

Figure 7 : Détaillé view of the powerful brushless motor technology integrated into the Yofidra tools, highlighting its efficiency and durability.

Garantie et assistance

For warranty information, technical support, or service inquiries, please contact Yofidra customer service through your purchase platform or the official Yofidra website. Please have your model number (sku4G6426Y) and purchase date available when contacting support.

The product is manufactured by Nantong Qizao Electric Tools Co., Ltd in China.
