Manuel d'utilisation de l'imprimante thermique Bluetooth Phomemo M834

Introduction

This manual provides instructions for the setup, operation, and maintenance of your Phomemo M834 Bluetooth Thermal Printer. Please read this manual thoroughly before using the device to ensure proper function and longevity.

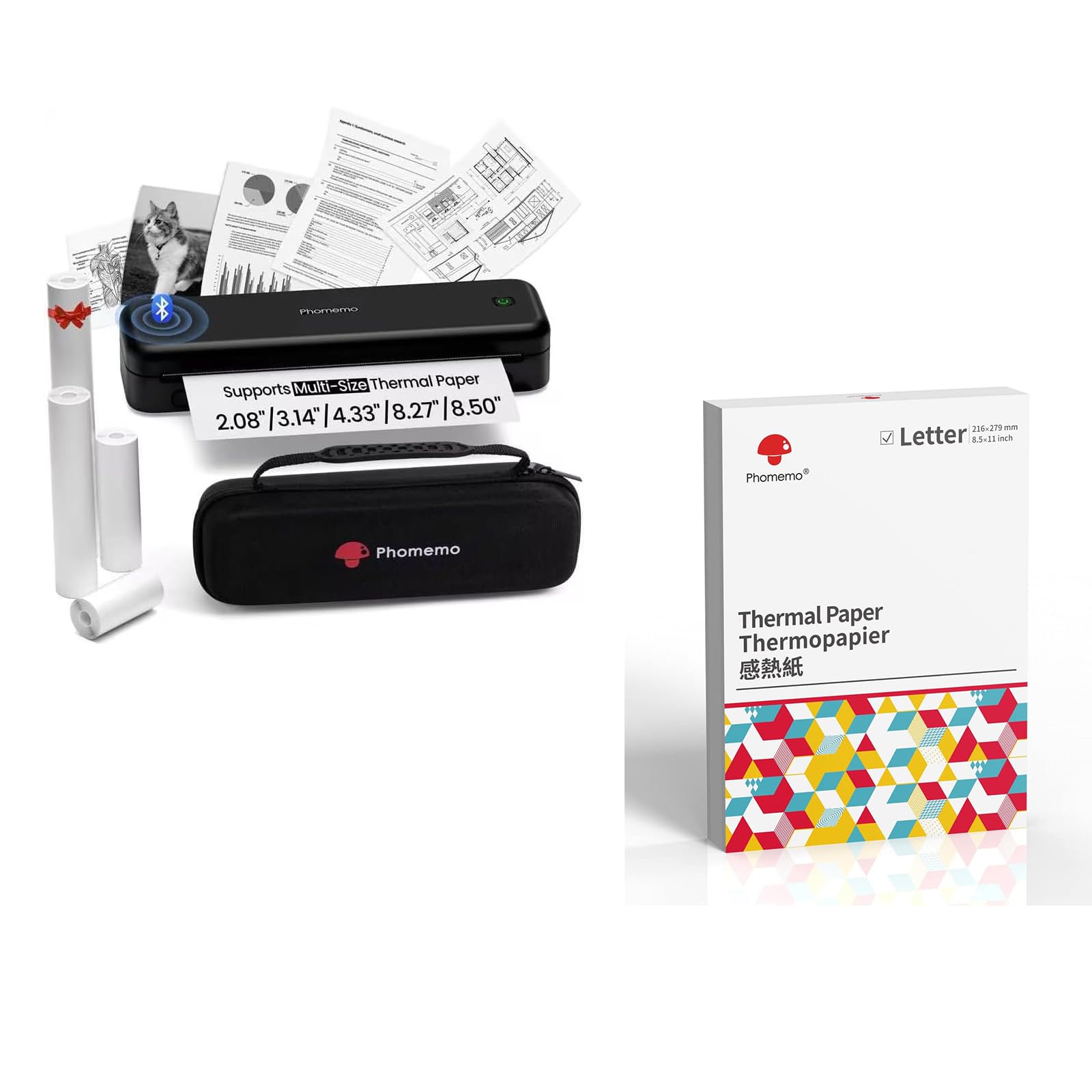

Image: The Phomemo M834 thermal printer, demonstrating its compatibility with multiple paper sizes and including its dedicated carry case.

Contenu du colis

Vérifiez que tous les éléments sont présents dans le colis :

• 1 x Imprimante portable Phomemo M834
• 1 x Housse de transport
• 1 x Roll of 8.5" Thermal Paper
• 1 x Roll of 4.33" Thermal Paper
• 1 x Roll of 3.14" Thermal Paper
• 1 x Roll of 2.08" Thermal Paper

Guide d'installation

1. Chargement de l'imprimante

The M834 printer is equipped with a 2600mAh rechargeable battery. Before initial use, fully charge the printer using the provided charging cable. A full charge allows for over 160 pages of continuous printing.

2. Chargement du papier thermique

The Phomemo M834 supports various thermal paper sizes, including US Letter, A4, 4.33'', 3.14'', and 2.08''. It is compatible with roll, fold, and ordinary thermal paper types. Important: This printer is designed exclusively for thermal paper and is not compatible with standard laser or inkjet printer paper.

1. Ouvrez le couvercle du compartiment à papier.
2. Insert the thermal paper roll or stack, ensuring the printable side faces the print head.
3. Refermez bien le couvercle du compartiment à papier.

Image: A box of Phomemo Letter size thermal paper, indicating its 8.5 x 11 inch dimensions.

3. Connexion de l'imprimante

The M834 printer offers both Bluetooth and USB connectivity.

Connexion Bluetooth:

• Assurez-vous que l'imprimante est sous tension.
• Enable Bluetooth on your mobile device (iOS, Android, Tablets) or computer.
• Open the Phomemo app or your device's Bluetooth settings and select "M834" to pair.

Connexion USB :

• Connect the printer to your computer (Windows, macOS, Chrome OS, Linux) using a USB cable.
• Installez les pilotes nécessaires si votre système d'exploitation vous y invite.

Image: The Phomemo M834 printer connected to various devices, illustrating its compatibility with iOS, Android, Tablets via Bluetooth, and Windows, macOS, Chrome OS, Linux via USB.

Mode d'emploi

Impression de documents

Once connected, you can print documents from your device. The M834 printer offers a print resolution of 300 dpi, providing clear and sharp prints for various uses.

1. Ouvrez le document ou l'image que vous souhaitez imprimer sur votre appareil connecté.
2. Sélectionnez l'option d'impression dans votre application.
3. Choose "Phomemo M834" as your printer.
4. Ajustez les paramètres d'impression selon vos besoins (par exemple, le format du papier, l'orientation).
5. Lancer l'impression.

Image: A visual comparison highlighting the enhanced print clarity of 300 DPI output from the Phomemo M834 compared to a 203 DPI printer.

Supported Paper Types and Sizes

The M834 is versatile in its paper support:

• Tailles : US Letter (8.5" x 11"), A4, 4.33'', 3.14'', 2.08''
• Types: Roll thermal paper, Fold thermal paper, Ordinary thermal paper

Ensure you use only Phomemo thermal paper for optimal results. Thermal prints are quick-drying, allowing for immediate handling and writing.

Image: A hand writing on a document printed with the Phomemo M834, demonstrating the quick-dry nature of thermal prints.

Entretien

Nettoyage de la tête d'impression

Pour préserver la qualité d'impression, nettoyez régulièrement la tête d'impression. Utilisez un chiffon doux non pelucheux et essuyez-le délicatement.ampNettoyez la surface de la tête d'impression avec de l'alcool isopropylique. Essuyez délicatement. Assurez-vous que l'imprimante est éteinte et débranchée avant le nettoyage.

Entretien de la batterie

To prolong battery life, avoid fully discharging the printer frequently. If storing the printer for an extended period, charge it to approximately 50% and store it in a cool, dry place.

Dépannage

If you encounter issues with your Phomemo M834 printer, refer to the following common solutions:

• L'imprimante ne s'allume pas : Assurez-vous que la batterie est chargée. Branchez l'imprimante à une source d'alimentation et laissez-la charger pendant au moins 30 minutes avant de tenter de la rallumer.
• Mauvaise qualité d'impression : Check if the thermal paper is loaded correctly with the printable side facing the print head. Clean the print head as described in the Maintenance section. Ensure you are using genuine Phomemo thermal paper.
• Connexion impossible via Bluetooth : Make sure Bluetooth is enabled on both the printer and your device. Ensure the printer is within range. Try restarting both the printer and your device.
• Bourrage papier: Turn off the printer and carefully open the paper compartment. Remove any jammed paper. Ensure paper is loaded correctly and not creased or bent.
• Imprimante non reconnue par l'ordinateur (USB) : Verify the USB cable is securely connected. Try a different USB port or cable. Ensure necessary drivers are installed for your operating system.

Caractéristiques

Garantie et assistance

The Phomemo M834 printer comes with a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included in your package or visit the official Phomemo website.

For technical support or customer service inquiries, please contact Phomemo customer support through their official channels.
