SONGMICS Umbrella Drying Rack Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your SONGMICS Umbrella Drying Rack, Model ULLR301E01. Please read this manual thoroughly before use to ensure safe and efficient operation.

Image: The SONGMICS Umbrella Drying Rack, Model ULLR301E01, shown fully assembled in an outdoor setting, ready for use.

Consignes de sécurité

• Ensure the ground spike is securely installed in stable soil to prevent tipping.
• Do not overload the drying rack. The maximum static load capacity is 61.7 lb (28 kg).
• Retract the drying rack and cover it during strong winds or adverse weather conditions to prevent damage.
• Keep children and pets away from the drying rack during assembly and operation.
• Vérifiez régulièrement l'état de tous les composants. Remplacez immédiatement les pièces endommagées.

Contenu du colis

Vérifiez que tous les éléments énumérés ci-dessous sont inclus dans votre colis :

• 1 x Umbrella Drying Rack
• 1 x piquet de terre
• 1 x Ground Spike Cap
• 1 x housse de protection
• 1 x Accessory Kit (including 12 small clothespins)
• 1 x Manuel d'instructions (ce document)

Image: All components of the drying rack, including the main pole, arms, ground spike, and accessories, laid out for inspection.

Instructions d'installation

Follow these steps to assemble your umbrella drying rack:

Step 1: Install the Ground Spike

1. Select a suitable location in your garden with stable soil and ample space for the fully opened drying rack.
2. Insert the metal spiral ground spike into the ground. Use the provided bar (if applicable) through the holes in the spike to twist it clockwise until it is firmly embedded and stable.
3. Ensure the ground spike is level to prevent the drying rack from leaning.

Image : Une image détaillée view of the ground spike being screwed into the earth, showing its spiral design for secure installation.

Step 2: Assemble the Drying Rack Pole

1. Connect the upper part of the drying rack pole to the lower part. Ensure the spring button engages securely.
2. Insert the assembled pole into the installed ground spike. The pole should fit snugly and stand upright.

Step 3: Unfold the Drying Rack

There are two methods to unfold the drying rack:

1. Method 1 (Upright Unfolding):
   • Before unfolding, gently straighten any tangled clotheslines on all four sides of the rack.
   • Hold the central pole and push the sliding connector upwards until the arms fully extend and lock into place.
2. Method 2 (Upside-Down Unfolding):
   • Turn the rack upside down. Straighten all clotheslines on all four sides to prevent tangling.
   • Carefully flip the rack upright and insert it into the ground spike.
   • Push the sliding connector upwards until the arms fully extend and lock into place.

Image: A person carefully untangling and straightening the clotheslines on the drying rack before extending the arms.

Step 4: Adjust Clothesline Tension (if needed)

If clotheslines appear loose after unfolding, they can be tightened at the end points of the arms.

Image: Hands demonstrating how to tighten a clothesline by adjusting the knot at the end of an arm.

Guide vidéo de configuration

Video: An official SONGMICS video demonstrating the assembly and unfolding process of the umbrella drying rack, including ground spike installation and clothesline management.

Mode d'emploi

Hanging Laundry

The drying rack offers 164 feet of clothesline, suitable for up to 5 loads of laundry. Use the provided clothespins to secure garments.

Image: The drying rack fully loaded with various items of clothing, demonstrating its large capacity.

Image : Un gros plan view of a clothespin holding a piece of laundry on the drying line.

Réglage de la hauteur

The central pole features 2 sliding connectors, allowing height adjustment from 47.6 inches (121 cm) to 72 inches (183 cm). This feature accommodates different garment lengths and user heights.

1. Locate the button on the central pole.
2. Press the button and slide the connector up or down to the desired height.
3. Release the button to lock the rack at the chosen height.

Image: A visual guide illustrating the minimum and maximum height settings of the drying rack, with a person demonstrating adjustment.

Pliage et rangement

To fold the drying rack for storage:

1. Remove all laundry from the lines.
2. Press the button on the central pole and gently push the sliding connector downwards until the arms fold completely.
3. Once folded, place the protective cover over the rack to shield it from dust and elements.
4. Remove the pole from the ground spike and store both components in a dry, protected area.
5. Place the ground spike cap into the ground spike opening to prevent debris from entering.

Image: The green protective cover being placed over the folded umbrella drying rack for storage.

Entretien

• Nettoyage: Wipe down the aluminum frame and PVC clotheslines with a damp Utiliser un chiffon au besoin. Éviter les produits chimiques agressifs.
• Tension de la ligne : Periodically check the clotheslines for sagging. If loose, re-tighten the knots at the arm ends.
• Stockage: Always use the protective cover when the rack is not in use, especially during off-seasons or strong winds, to extend its lifespan.
• Inspection: Regularly inspect the ground spike and pole connections for stability.

Dépannage

Caractéristiques

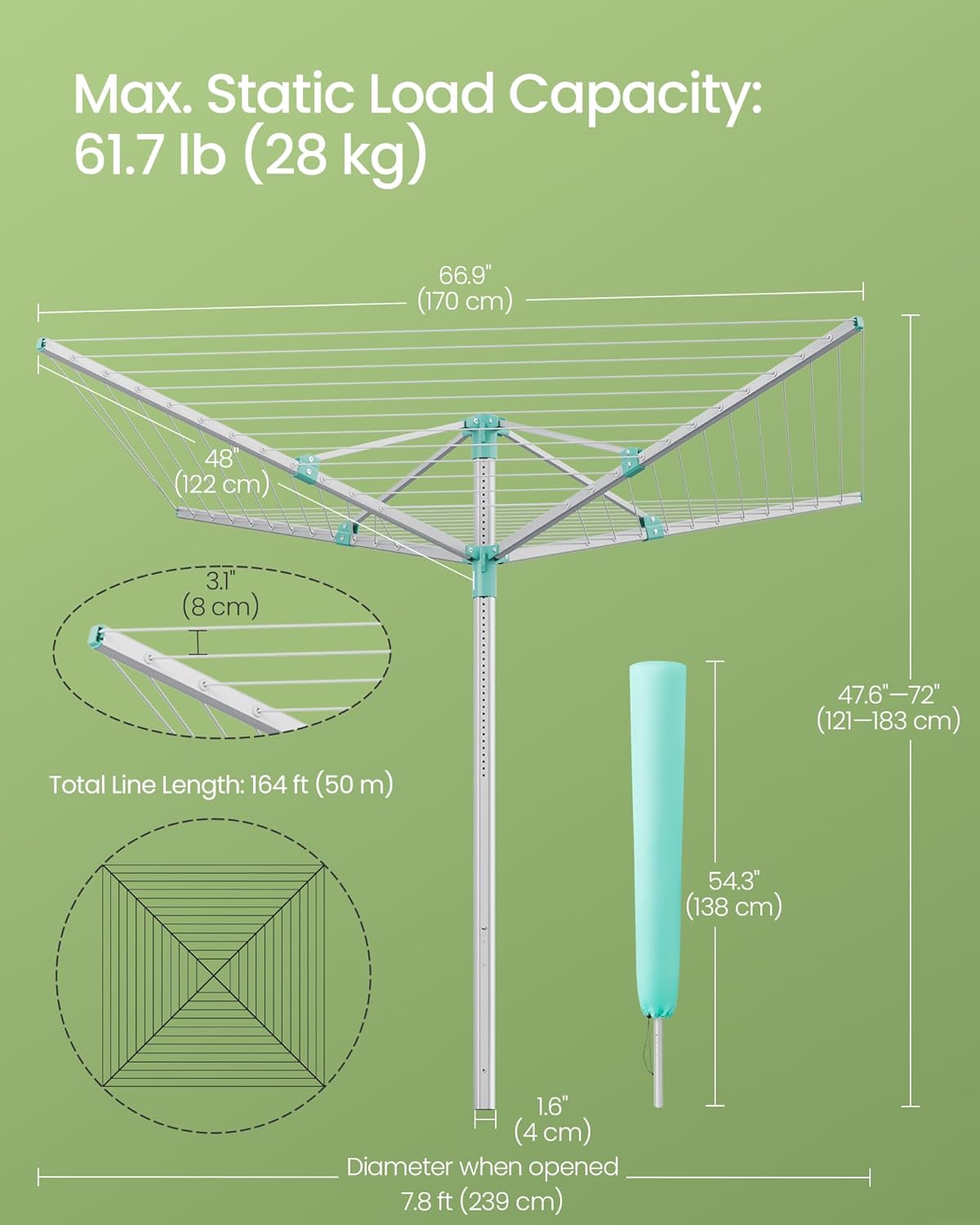

Image: A graphic displaying the key dimensions and load capacity of the drying rack.

Garantie et assistance

Pour obtenir des informations sur la garantie, l'assistance produit ou pour acheter des pièces de rechange, veuillez consulter le site officiel de SONGMICS. website or contact customer service through your retailer. Please have your model number (ULLR301E01) ready when contacting support.
