1. Informations importantes sur la sécurité
Before operating your AMIGO E-Lagos T3 electric bicycle, please read and understand all instructions and safety warnings. Failure to follow these instructions may result in serious injury or damage to the bicycle.
- Porter un casque: Portez toujours un casque de vélo approuvé lorsque vous roulez.
- Vérification avant le départ : Before each ride, inspect the brakes, tires, lights, and ensure all quick releases and fasteners are secure.
- Code de la route: Obey all local traffic laws and regulations. Ride defensively and be aware of your surroundings.
- Conditions météorologiques : Soyez prudent lorsque vous roulez par temps de pluie, car la distance de freinage peut augmenter. Évitez de rouler sous une forte pluie ou en cas de neige abondante.
- Limite de poids: Do not exceed the maximum load capacity of the bicycle.
- Composants électriques : Keep electrical components dry. Do not submerge the bicycle or battery in water.
- Enfants: This electric bicycle is intended for adult use.
2. Mise en place et préparation initiale
Your AMIGO E-Lagos T3 electric bicycle may require some minor assembly and preparation before its first use.

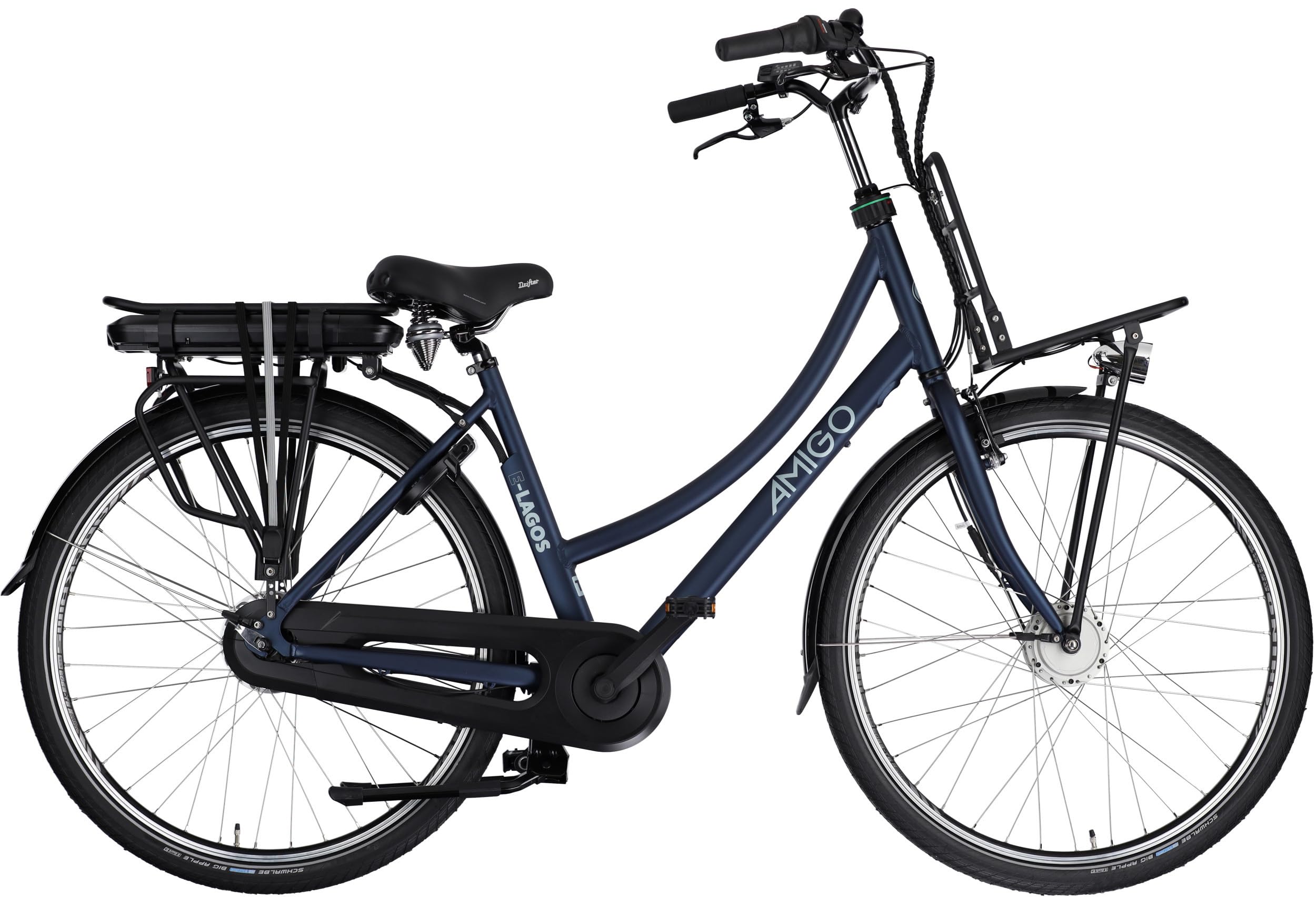

Figure 2.1: The AMIGO E-Lagos T3 Electric Bicycle, ready for use.
2.1 Déballage et montage
- Retirez soigneusement le vélo de son emballage.
- Install the pedals: Ensure pedals are threaded correctly (L for left, R for right) and tightened securely.
- Adjust the handlebar and saddle height for a comfortable and safe riding position. Ensure all quick-release levers are firmly closed.
2.2 Chargement de la batterie
The battery is integrated into the rear rack and is removable for charging.
- Repérez le port de chargement sur la batterie.
- Branchez le chargeur à la batterie, puis branchez le chargeur à une prise murale standard.
- Le temps de charge est d'environ 5.5 à 7.5 heures pour une charge complète.
- Ne laissez pas la batterie en charge sans surveillance pendant des périodes prolongées.
2.3 Gonflage des pneus
Ensure tires are inflated to the recommended pressure, typically found on the tire sidewall. Proper inflation improves ride quality and prevents punctures.
3. Mode d'emploi
Familiarize yourself with the controls and functions of your E-Lagos T3 electric bicycle for an optimal riding experience.
3.1 Mise sous tension/hors tension et affichage
Figure 3.1: The Ananda D15 LED display on the left handlebar, showing battery level and assistance mode.
- Pour allumer : Press and hold the power button on the Ananda D15 LED display (located on the left handlebar).
- Assistance Levels: Use the '+' and '-' buttons on the display to select one of the 5 available pedal assistance levels. Level 1 provides minimal assistance, while Level 5 provides maximum assistance.
- Pour éteindre : Maintenez le bouton d'alimentation enfoncé jusqu'à ce que l'écran s'éteigne.
- The display shows battery charge status and current assistance level.
3.2 Changement de vitesse
Figure 3.2: The Shimano Nexus 7-speed grip shifter on the right handlebar.
Your E-Lagos T3 is equipped with a Shimano Nexus 7-speed internal gear hub. Shift gears using the grip shifter on the right handlebar. Shift to a lower gear for easier pedaling on inclines and a higher gear for faster speeds on flat terrain.
3.3 Système de freinage
The bicycle features a V-Brake on the front wheel and a coaster brake (backpedal brake) on the rear wheel.
- Frein avant : Operated by the lever on the left handlebar. Use for controlled stopping power.
- Rear Brake (Coaster Brake): Activated by pedaling backward. Provides reliable stopping for the rear wheel.
- Always apply both brakes simultaneously for effective and safe stopping.
3.4 Verrouillage du guidon
Figure 3.3: The handlebar lock mechanism, used to stabilize the front wheel when parked.
The integrated handlebar lock helps stabilize the front wheel when the bicycle is parked, especially when loaded with items on the front rack. Rotate the mechanism to 'LOCK' to secure the handlebar, and to 'FREE' to allow steering.
3.5 Système d'éclairage
The E-Lagos T3 is equipped with LED lights for both front and rear visibility.

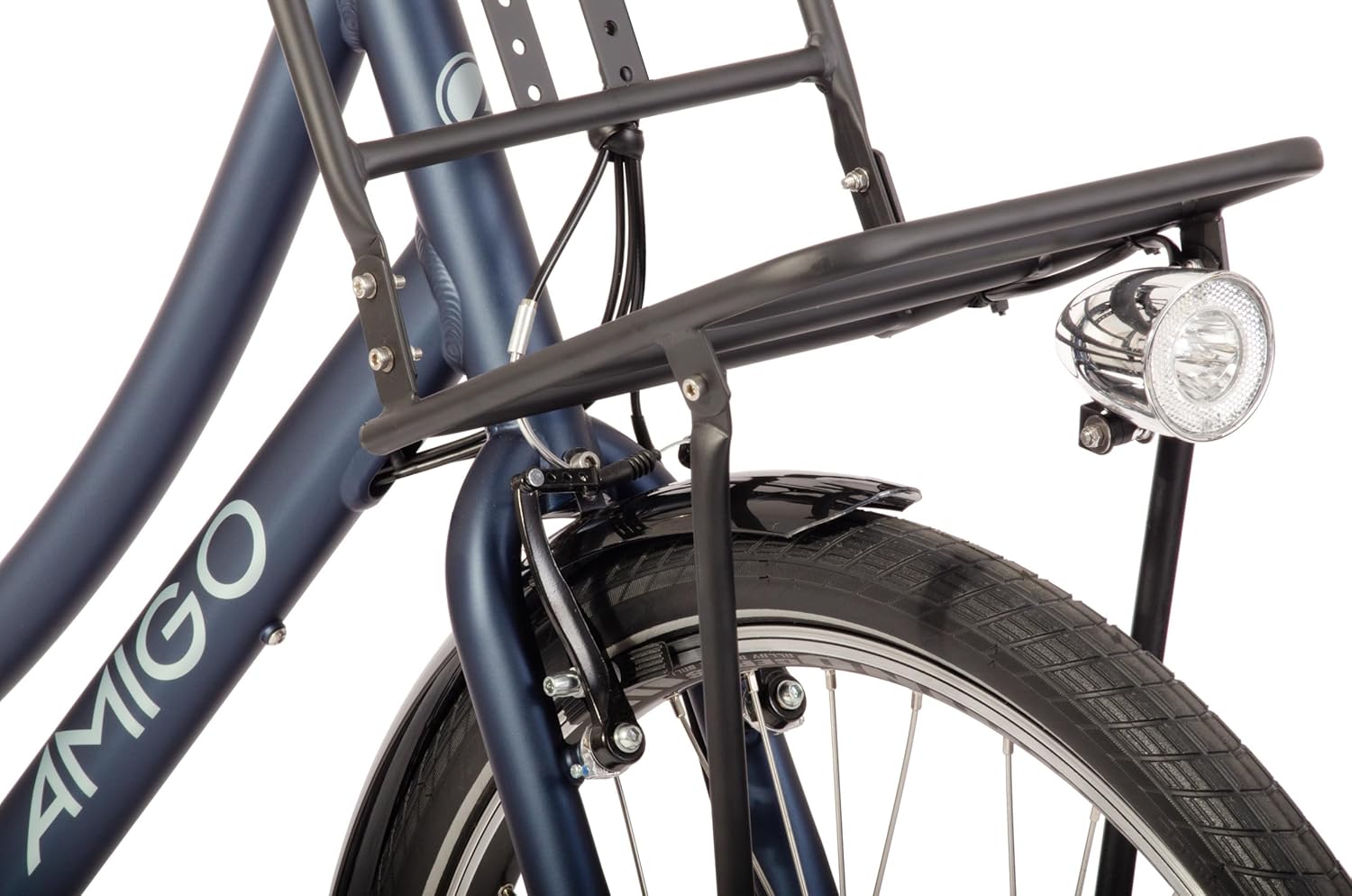

Figure 3.4: The front rack with the integrated LED headlight for improved visibility.
- The lights are powered by the main battery.
- Turn on the lights using the dedicated button on the display or as instructed by the display manual.
- Vérifiez le bon fonctionnement de vos feux avant de rouler dans des conditions de faible luminosité.
4. Entretien
Un entretien régulier garantit la longévité et le fonctionnement sûr de votre vélo électrique.
4.1 Entretien de la batterie
- Rechargez régulièrement la batterie, même si elle n'est pas utilisée, afin de préserver sa durée de vie.
- Conservez la batterie dans un endroit frais et sec, à l'abri de la lumière directe du soleil et des températures extrêmes.
- Évitez de décharger complètement la batterie avant de la recharger.
4.2 Nettoyage
Nettoyez le vélo avec de la publicitéamp Nettoyer avec un chiffon et du savon doux. Éviter d'utiliser un nettoyeur haute pression directement sur les composants électriques ou les roulements.
4.3 Freins et pneus
- Vérifiez régulièrement l'usure des plaquettes de frein et remplacez-les si nécessaire.
- Ensure brake cables are not frayed and are properly adjusted.
- Maintenez la pression des pneus correcte, telle qu'indiquée sur le flanc du pneu.
4.4 Chaîne et transmission
Keep the chain clean and lubricated for smooth operation and to prevent premature wear. The Shimano Nexus internal gear hub requires minimal maintenance but should be checked periodically by a professional.
Figure 4.1: The AXA Solid Plus ring lock provides integrated security for the rear wheel.
5. Dépannage
This section addresses common issues you might encounter with your AMIGO E-Lagos T3 electric bicycle.
| Problème | Cause possible | Solution |
|---|---|---|
| Moteur non assisté | Battery low or depleted; System not powered on; Assistance level set to 0. | Charge battery; Power on the system via display; Increase assistance level. |
| Les lumières ne fonctionnent pas | Lights turned off; Battery low. | Turn on lights via display; Charge battery. |
| Les freins semblent faibles. | Brake pads worn; Cables loose; Improper adjustment. | Inspect and replace brake pads; Adjust brake cables; Consult a bicycle mechanic. |
| Bruits inhabituels provenant de la transmission | Dry or dirty chain; Loose components. | Clean and lubricate chain; Check for loose bolts or components. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact customer support or a qualified bicycle mechanic.
6. Spécifications
Detailed technical specifications for the AMIGO E-Lagos T3 Electric Bicycle.
Figure 6.1: The Ananda M129 front hub motor provides pedal assistance.
| Fonctionnalité | Spécification |
|---|---|
| Nom du modèle | E-Lagos T3 |
| Taille du cadre | 50 cm |
| Taille de la roue | 28 pouces (71 cm) |
| Matériau du cadre | Aluminium |
| Engrenages | 7-speed Shimano Nexus (internal gear hub) |
| Type de moteur | Ananda M129 Front Hub Motor |
| Capteur d'aide à la pédale | Rotational sensor |
| Capacité de la batterie | 468 Wh (36V, 13Ah) Greenway YJ-145 Lithium-ion |
| Emplacement de la batterie | Integrated into rear rack, removable |
| Temps de charge | 5.5 à 7.5 heures |
| Gamme | 45 - 120 km (approx. 65 km average) |
| Vitesse maximale (assistée) | 25 km/h |
| Afficher | Ananda D15 LED (5 assistance levels) |
| Frein avant | Frein V-Brake |
| Frein arrière | Coaster Brake (backpedal brake) |
| Lumières | LED avant et arrière |
| Accessoires | Double kickstand, closed chain guard, front and rear luggage racks, luggage straps, handlebar lock, bell, AXA Solid Plus ring lock |
| Poids | Environ 29 kg |
Figure 6.2: The Shimano Nexus 7-speed internal gear hub and coaster brake on the rear wheel.
7. Garantie et assistance
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or spare parts, please contact the AMIGO customer service department or your authorized dealer.
