DMASUN Silent Magnetic Resistance Stationary Exercise Bike

Introduction

Thank you for choosing the DMASUN Silent Magnetic Resistance Stationary Exercise Bike, Model 8732C. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your exercise bike. Please read this manual thoroughly before use and retain it for future reference.

Consignes de sécurité importantes

• Consultez un médecin avant de commencer tout programme d'exercice.
• Assurez-vous que toutes les pièces sont bien fixées avant chaque utilisation.
• Placez le vélo d'exercice sur une surface plane et stable.
• Gardez les enfants et les animaux domestiques éloignés de l'équipement pendant son fonctionnement.
• Le poids maximal supporté par l'utilisateur pour ce vélo est de 158.76 kg (350 lb). Ne dépassez pas cette limite.
• Portez une tenue et des chaussures de sport appropriées.
• Arrêtez immédiatement l'exercice si vous vous sentez faible, étourdi ou si vous ressentez une douleur.
• Ne placez pas vos mains ni vos pieds à proximité des pièces mobiles.

Image: The DMASUN exercise bike demonstrating its robust construction and 350 lbs load capacity, featuring a 2.0mm thickened frame for stability.

Instructions de montage

The DMASUN Exercise Bike is designed for quick assembly, with approximately 70% of the unit pre-assembled at the factory. The remaining components can typically be installed within 30 minutes. Necessary tools are included.

Required Components for Assembly:

• Guidon
• Siège
• Front Stability Tube
• Rear Stability Tube
• Pédales

Étapes d'assemblage :

1. Attach the Front and Rear Stability Tubes to the main frame using the provided bolts and washers. Ensure they are securely tightened.
2. Install the Seat onto the seat post, then insert the seat post into the main frame. Adjust to your desired height and secure.
3. Attach the Handlebar to the handlebar post, then insert the handlebar post into the main frame. Adjust to your desired height and secure.
4. Identify the Left (L) and Right (R) pedals. Thread the Left pedal counter-clockwise and the Right pedal clockwise into their respective crank arms. Tighten firmly with a wrench.

Image: The DMASUN exercise bike with its main frame assembled and individual components (handlebar, seat, pedals, stability tubes) ready for final installation, illustrating the ease of assembly.

Mode d'emploi

Réglage du siège et du guidon

The seat can be adjusted in four ways (up/down, forward/backward) and the handlebars in two ways (up/down) to accommodate users from 4.8 ft to 6.3 ft in height. Loosen the adjustment knobs, move to the desired position, and tighten securely.

Image: The exercise bike highlighting its adjustable seat and handlebar features, suitable for a wide range of user heights.

Réglage de la résistance

The bike features magnetic resistance with a wide adjustable range. Turn the red knob clockwise to increase resistance and counter-clockwise to decrease it. Press the knob down to engage the emergency brake.

• Résistance de 0 à 20 % : Suitable for warm-up.
• Résistance de 20 % à 50 % : Ideal for running simulations.
• Résistance de 50 % à 80 % : Recommended for fat burning.
• Résistance de 80 % à 100 % : For muscle strengthening.

Image: The resistance adjustment knob with indicators for various intensity levels and corresponding exercise goals.

Utilisation de l'affichage numérique

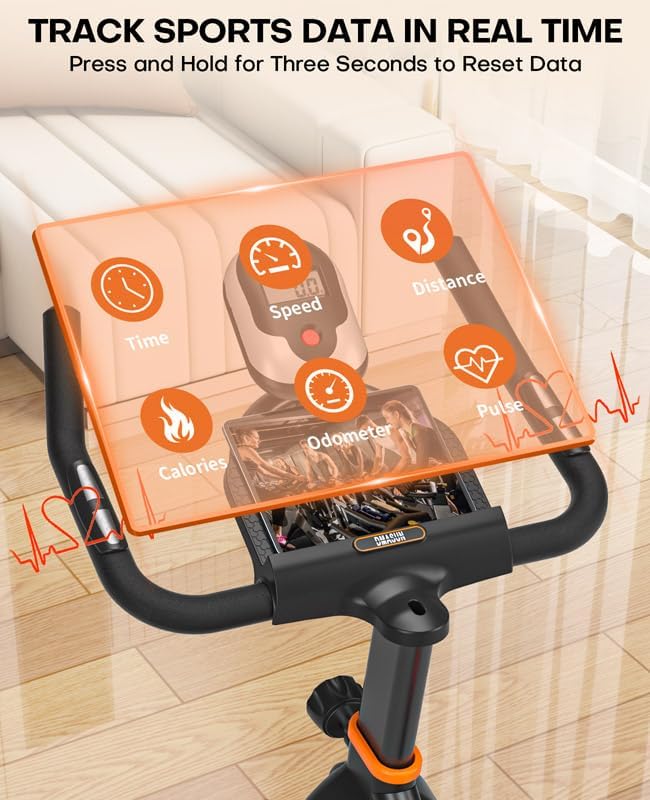

The integrated digital display monitors real-time exercise data including time, speed, distance, calories burned, and pulse. To reset the data, press and hold the button for three seconds.

Image: The digital display unit showing real-time exercise metrics and the reset function.

Pedal Usage

The non-slip caged pedals are designed to keep your feet secure during your workout. Ensure your feet are properly placed and the straps are tightened before starting.

Transporting the Bike

The exercise bike is equipped with transport wheels for easy relocation. Tilt the bike forward onto its front wheels and roll it to your desired location.

Image: A user demonstrating how to easily move the exercise bike using its integrated transport wheels.

Entretien

The DMASUN exercise bike features a magnetic resistance system and a smooth belt drive, requiring minimal maintenance.

• Nettoyage: Essuyez régulièrement le vélo avec un produit nettoyant pour vélos.amp Chiffon pour enlever la transpiration et la poussière. Éviter les nettoyants abrasifs.
• Inspection: Vérifiez régulièrement tous les boulons et les fixations pour vous assurer qu'ils restent bien serrés.
• Ceinture de sécurité: The rugged ABS pulley ensures smooth belt transmission and is designed for long-term use without breakage or wear. No lubrication is required for the belt drive.

Image: The exercise bike's internal belt drive system, illustrating its smooth and quiet operation, which contributes to low maintenance.

Dépannage

If you encounter any issues with your DMASUN exercise bike, please refer to the following common solutions:

• Le vélo est instable : Ensure the bike is on a flat surface. Adjust the level adjustment knobs on the stability tubes to compensate for uneven floors.
• Bruit inhabituel pendant le fonctionnement : Check all assembled parts, especially the pedals, seat, and handlebars, to ensure they are securely tightened.
• L'affichage numérique ne fonctionne pas : Vérifiez que les 2 piles AAA sont correctement installées et suffisamment chargées. Remplacez-les si nécessaire.
• Résistance inchangée : Ensure the resistance knob is functioning correctly and is not stuck. If the issue persists, contact customer support.

Caractéristiques

Garantie et support client

DMASUN fournit un Garantie de 12 mois for this exercise bike. We are committed to optimizing our products and providing professional guidance. If you have any questions or require assistance, please contact DMASUN customer support. Your inquiries will typically be addressed within 18 hours.

For warranty claims or technical support, please refer to the contact information provided with your purchase documentation or visit the official DMASUN website.
