Introduction
The TOWILD Urban Mini is an 800-lumen bicycle headlight designed for urban commuting and night riding, offering enhanced visibility and safety. This light is specifically compatible with Brompton bikes and features a durable, waterproof design with USB-C recharging capabilities. This manual provides essential information for the proper installation, operation, and maintenance of your Urban Mini headlight.

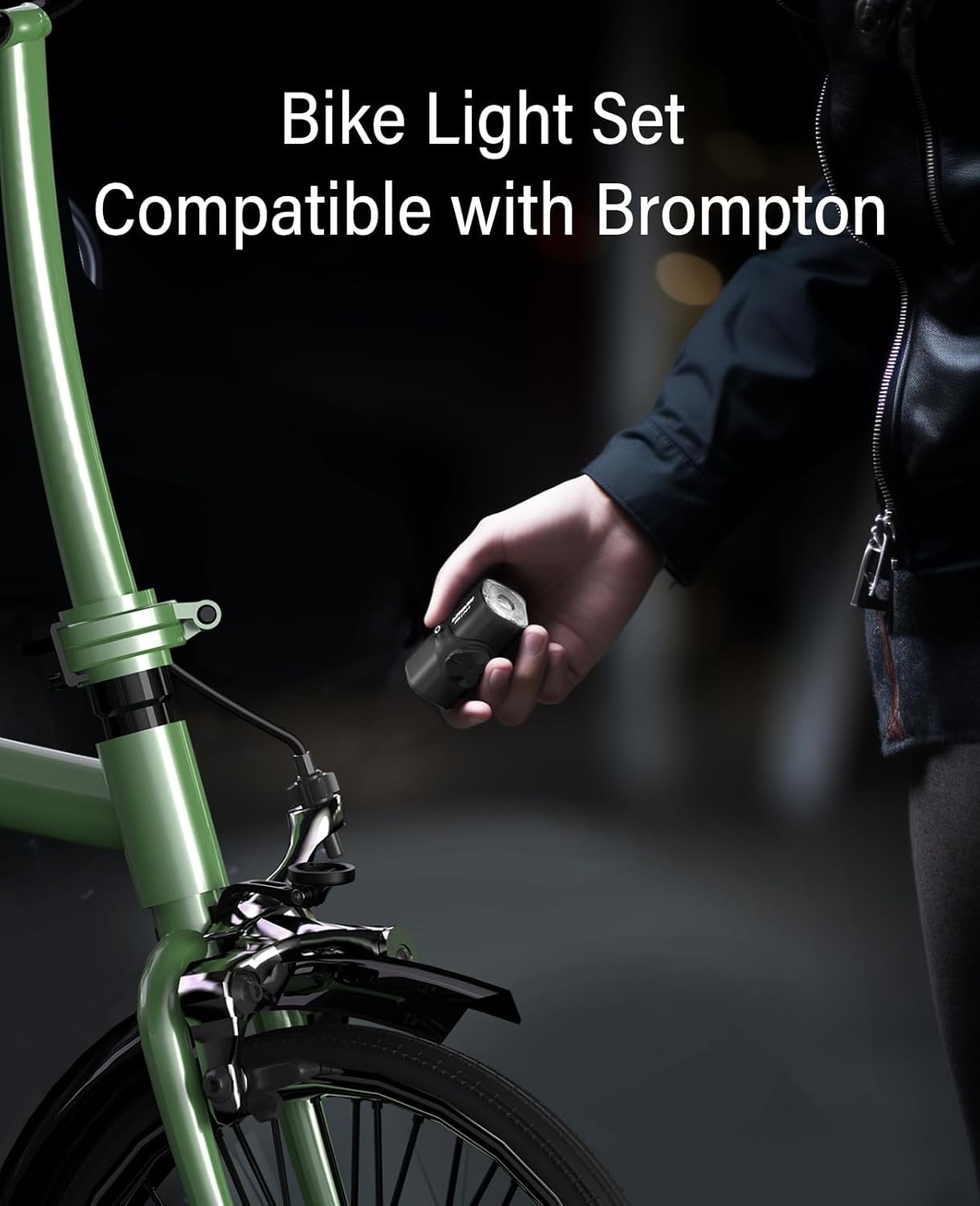

The TOWILD Urban Mini headlight securely mounted on a bicycle, providing illumination.
Qu'y a-t-il dans la boîte
Avant de procéder à l'installation, veuillez vérifier que tous les composants sont présents dans votre colis :
- Bike Light (Urban Mini Headlight)
- Out Front Mount
- Télécommande
- Câble de chargement USB-C
- Mounting Hardware (screws, gaskets, nuts, Allen keys)
- Manuel d'utilisation
Contents of the TOWILD Urban Mini package, including the headlight, mount, remote, and tools.
Configuration et installation
The Urban Mini headlight is designed for easy installation, particularly on Brompton bikes, using the provided front fork mount. The installation process typically takes about 10 minutes.
Montage du phare
- Identify the front fork mounting point on your Brompton bicycle.
- Attach the 'Out Front Mount' to the fork using the provided screws, gaskets, and nuts. Ensure the mount is securely fastened and does not obstruct any moving parts or cables. The high-quality aluminum alloy mount provides a secure, vibration-free installation.
- Slide the Urban Mini headlight onto the mount until it clicks into place. Ensure it is firmly seated.
- Réglez l'angle du phare pour assurer un éclairage optimal de la route sans éblouir les véhicules venant en sens inverse.
The Urban Mini headlight installed on a bicycle's front fork.
Detailed diagram illustrating the installation of the front fork mount.
Mode d'emploi
The Urban Mini headlight features multiple lighting modes and can be controlled directly on the unit or via the included remote control for convenient operation.
Charger la batterie
The light is equipped with an 1100mAh rechargeable battery. To charge:
- Repérez le port de chargement USB-C sur la lampe.
- Connect the provided USB-C cable to the light and a suitable USB power source (e.g., computer, wall adapter).
- Le voyant lumineux indiquera l'état de charge (par exemple, rouge pendant la charge, vert lorsque la charge est complète).
- A full charge provides up to 6 hours of high brightness or 20 hours on low brightness.
Mise sous/hors tension et sélection du mode
The light can be operated using the button on the unit or the wireless remote control.
- Marche/Arrêt : Press and hold the main button on the light or the power button on the remote control for 2 seconds.
- Changer de mode : Short press the main button on the light or the mode button on the remote control to cycle through the available brightness modes: High (500LM), Medium (200LM), Low (100LM), Night Warning (200LM), Day Warning (400LM).
- Mode Turbo: The 800LM Turbo mode is accessible when using the remote control. Refer to the remote control instructions for specific activation.
The Urban Mini headlight and its remote control for convenient mode adjustments.
Brightness modes and approximate runtimes for the Urban Mini headlight.
Entretien
To ensure the longevity and optimal performance of your TOWILD Urban Mini headlight, follow these maintenance guidelines:
- Nettoyage: Wipe the light and mount with a soft, damp Chiffon. Évitez d'utiliser des nettoyants abrasifs ou des solvants qui pourraient endommager la finition ou les composants internes.
- Chargement : Recharge the battery regularly, especially if the light will not be used for an extended period. Store the light with a partial charge (around 50%) if storing for several months.
- Résistance à l'eau : The light has an IPX6 waterproof rating, meaning it is protected against high-pressure water jets. While it can withstand rain, avoid submerging it in water. Ensure the USB-C port cover is securely closed when not charging to maintain water resistance.
- Stockage: Conservez la lampe dans un endroit frais et sec, à l'abri de la lumière directe du soleil et des températures extrêmes.
Dépannage
If you encounter issues with your Urban Mini headlight, refer to the following common solutions:
| Problème | Cause possible | Solution |
|---|---|---|
| La lumière ne s'allume pas. | La batterie est épuisée. | Rechargez la lampe à l'aide du câble USB-C fourni. |
| La lumière s'éteint de manière inattendue. | Batterie faible. | Rechargez la batterie. |
| La télécommande ne fonctionne pas. | Télécommande non appariée ou batterie faible. | Ensure the remote control is paired with the light according to its specific instructions. Check or replace the remote's battery if applicable. Note that the light may still require manual power on/off even after remote pairing. |
| La luminosité est faible. | Low battery or lens is dirty. | Rechargez la batterie. Nettoyez la lentille avec un chiffon doux. |
Caractéristiques
| Fonctionnalité | Détail |
|---|---|
| Nom du modèle | Urban Mini |
| Marque | TOSAUVAGE |
| Matériel | Aluminium |
| Source d'énergie | Alimenté par batterie |
| Niveau de résistance à l'eau | Étanche (IPX6) |
| Type de montage | Handlebar Mount (Out Front Mount) |
| Nombre de paramètres | Multiple (High, Medium, Low, Warning, Turbo) |
| Lumens max. | 800 lumens |
| Capacité de la batterie | 1100mAh |
| Composants inclus | Bike Light, Out Front Mount, Remote Controls |
Informations sur la garantie
The TOWILD Urban Mini Bicycle Headlight comes with a Garantie de 2 ans À compter de la date d'achat, cette garantie couvre les défauts de fabrication et les vices de matériaux dans des conditions normales d'utilisation. Veuillez conserver votre preuve d'achat pour toute réclamation au titre de la garantie. La garantie ne couvre pas les dommages causés par une mauvaise utilisation, un accident, des modifications non autorisées ou l'usure normale.
Soutien
For further assistance, technical support, or warranty claims, please contact TOWILD customer service. Refer to the contact information provided on the product packaging or the official TOWILD website.
