1. Introduction
This manual provides instructions for the assembly, operation, and maintenance of your GIANTEX Outdoor Rattan Daybed, Model KZ03951ZK. Please read this manual thoroughly before assembly and use to ensure safe and correct operation.

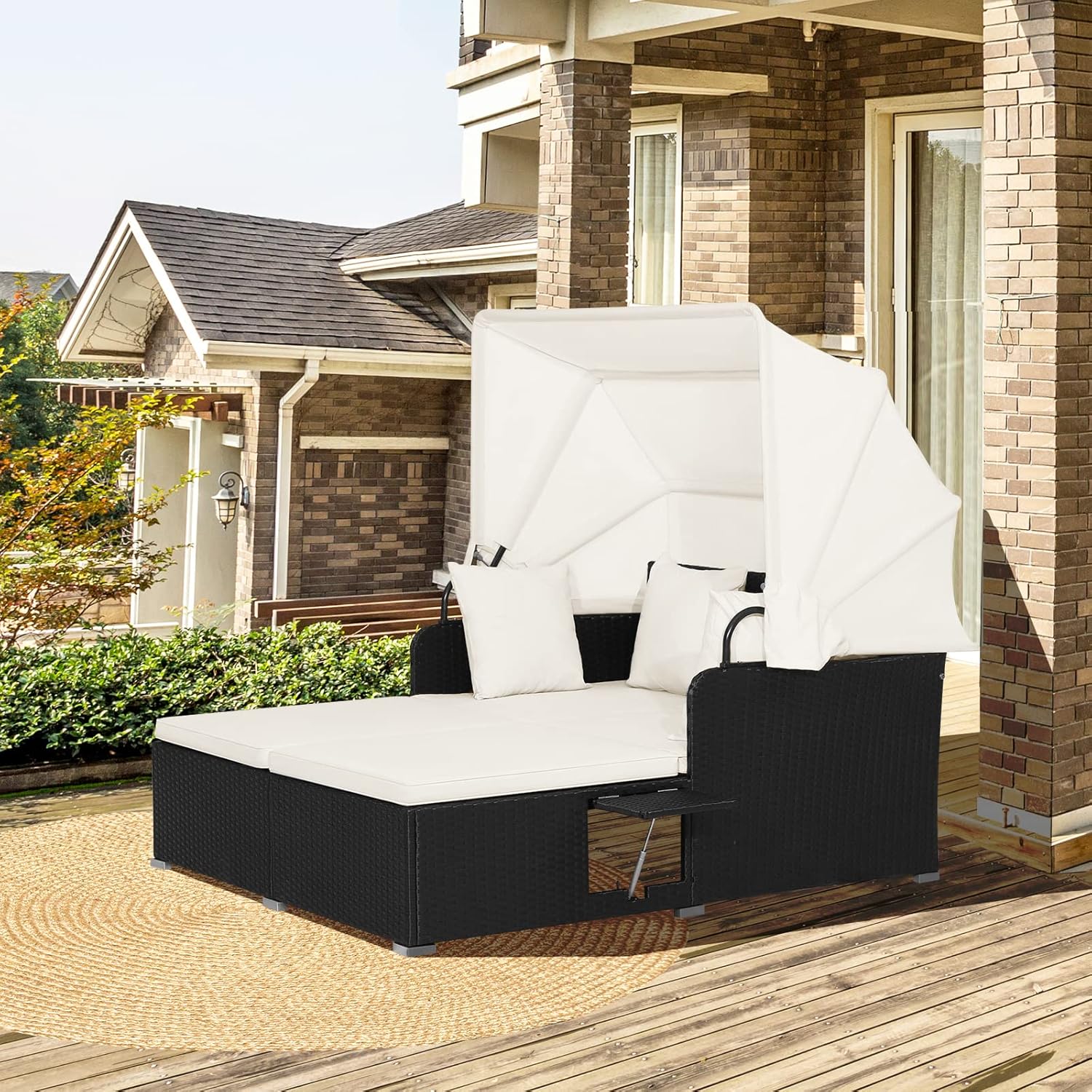

Image 1: The GIANTEX Outdoor Rattan Daybed with its retractable canopy extended, shown in an outdoor patio setting.
2. Avertissements de sécurité
- Store this outdoor furniture in a dry, covered area when not in use to prevent material damage.
- Assurez-vous que le produit est correctement assemblé avant utilisation.
- Supervise children and pets around the furniture to avoid potential hazards.
- Do not exceed the maximum weight capacity of 360 kg (793 lbs) for the daybed and 5 kg (11 lbs) for each side table.
3. Contenu du colis
Avant de commencer l'assemblage, veuillez vérifier que tous les composants sont présents. Si des pièces sont manquantes ou endommagées, veuillez contacter le service client.
- 1 x Cadre de lit de jour
- 2 x Seat Cushions (147 x 59 x 5 cm each)
- 4 x Throw Pillows (40 x 40 x 12 cm each)
- Ensemble de quincaillerie d'assemblage
- 1 x Manuel d'instructions
4. Configuration et assemblage
Assembly is required for this product. Detailed instructions and all necessary accessories are included. Please follow the steps carefully.
- Déballez tous les composants et disposez-les sur une surface propre et douce pour éviter les rayures.
- Identify all parts against the provided parts list in the included instruction manual.
- Begin assembling the main frame structure. Do not tighten all screws completely until all holes are aligned and components are loosely fitted.
- Attach the retractable canopy mechanism. Use the pneumatic rod for safe and smooth adjustment.
- Install the two retractable side tables.
- Once all components are in place and aligned, gradually tighten all screws securely.
- Place the seat cushions and throw pillows onto the daybed.
Image 2: Assembly diagram showing key dimensions and weight capacity of the daybed. Note: Do not tighten screws until all holes are aligned.
5. Mode d'emploi
5.1 Retractable Canopy
The daybed features a retractable canopy for sun protection or open-air lounging.
- To extend the canopy: Gently pull the canopy forward until fully extended. The pneumatic rod assists in smooth movement.
- To retract the canopy: Push the canopy backward. When fully retracted, secure it in place using the fixed ropes provided to prevent accidental opening.
Image 3: Detail of the retractable canopy mechanism, highlighting the pneumatic rod for adjustment and fixed ropes for securing the canopy when retracted.
5.2 Retractable Side Tables
Two retractable side tables are integrated into the design for convenient access to personal items.
- To deploy a side table: Gently pull the table outwards from the side of the daybed.
- To store a side table: Push the table back into its compartment until it is flush with the daybed's side.
Image 4: A retractable side table extended, demonstrating its use for holding small items like a phone, drink, or magazine.
6. Entretien
6.1 Entretien général
- Regularly wipe down the PE rattan and steel frame with a damp Nettoyer avec un chiffon et du savon doux. Rincer abondamment et sécher complètement.
- Évitez d'utiliser des produits chimiques agressifs ou des nettoyants abrasifs, car ils peuvent endommager les matériaux.
- Inspect all screws and connections periodically and tighten if necessary to maintain stability.
6.2 Entretien des coussins
- The cushion and pillow covers feature a zippered design for easy removal and cleaning.
- Hand wash or machine wash covers on a gentle cycle with cold water and mild detergent. Air dry only; do not tumble dry.
- Important: Always keep cushions and pillows dry to prolong their service life. Store them indoors during inclement weather or when not in use for extended periods.
- Note: Due to light exposure and avoidance, the color of the cushions may appear slightly different in various lighting conditions.
Image 5: Close-up of the high-density sponge cushions and their zippered covers, illustrating the ease of removal for cleaning.
7. Dépannage
| Problème | Cause possible | Solution |
|---|---|---|
| Le lit de jour semble instable ou bancal. | Les vis ne sont pas complètement serrées. Surface irrégulière. | Ensure all assembly screws are securely tightened. Move the daybed to a flat, level surface. Check non-slip foot pads. |
| Canopy difficult to retract/extend. | Mechanism obstruction. Pneumatic rod issue. | Check for any debris or obstructions in the canopy's path. Ensure the pneumatic rod is clean and functioning smoothly. Do not force the canopy. |
| Side table does not retract/deploy smoothly. | Obstruction in the track. | Inspect the table's track for any foreign objects or damage. Clean the track if necessary. |
| Cushions becoming damp ou moisis. | Exposure to moisture. Improper storage. | Always store cushions in a dry, covered area, especially during rain or high humidity. Ensure they are completely dry before storing. |
8. Spécifications
| Fonctionnalité | Détail |
|---|---|
| Numéro de modèle | KZ03951ZK |
| Marque | GIANTEX |
| Dimensions hors tout (L x l x H) | 165 x 153 x 138 cm (65 x 60.2 x 54.3 pouces) |
| Hauteur du siège par rapport au sol | 32 cm (12.6 pouces) |
| Dimensions de la table d'appoint (L x l x H) | 25 x 19.5 x 30 cm (9.8 x 7.7 x 11.8 pouces) |
| Seat Cushion Dimensions (L x W x D) | 147 x 59 x 5 cm (57.9 x 23.2 x 2 pouces) |
| Throw Pillow Dimensions (L x W x D) | 40 x 40 x 12 cm (15.7 x 15.7 x 4.7 pouces) |
| Poids net | 27 kg (59.5 lb) |
| Weight Capacity (Daybed) | 360 kg (793 lb) |
| Weight Capacity (Each Side Table) | 5 kg (11 lb) |
| Matériels | PE Rattan, Steel, Polyester, Sponge |
| Couleur | Black (Rattan), Off-white (Cushions) |
| Assemblage requis | Oui |
Image 6 : Détail view of the product's construction, showing fade-resistant black PE wicker, extra support legs for stability, and non-slip foot pads.
9. Informations sur la garantie
Ce manuel ne contient pas de détails sur la garantie. Veuillez consulter votre documentation d'achat ou contacter directement le revendeur/fabricant pour connaître les conditions de garantie.
10. Assistance clientèle
For assistance with assembly, missing parts, or any other inquiries, please contact GIANTEX customer service through the retailer where the product was purchased or visit the official GIANTEX website pour les options de support.
Fabricant: GIANTEX
Pays d'origine : Vietnam
