KEMIMOTO 4ft Bluetooth LED Whip Lights User Manual

1. Produit terminéview

The KEMIMOTO 4ft Bluetooth LED Whip Lights are designed to enhance visibility and aesthetics for off-road vehicles. These lights feature app and RF remote control, multiple lighting modes, and integrated turn signal and brake light functions. They are built with durable, waterproof materials suitable for various outdoor conditions.

Image: KEMIMOTO LED Whip Lights installed on a UTV, illuminating the vehicle during a night ride.

2. Contenu du colis

Assurez-vous que tous les éléments sont présents avant de commencer l'installation :

• Two 4ft KEMIMOTO whip lights
• One RF remote control
• Two USA flags
• Flag mounting hardware
• Instructions d'installation (ce manuel)

Image: Contents of the KEMIMOTO LED Whip Lights package, showing the two whip lights, remote control, two American flags, and mounting hardware.

3. Configuration et installation

Follow these steps for proper installation of your KEMIMOTO LED Whip Lights:

1. Montage de la base : The whip lights feature a quick-release mounting base. Secure the base to your vehicle using appropriate mounting clamps (not included, but compatible with most whip mounts). The aluminum base has a 12mm diameter.
2. Connecting the Whip Light: Before plugging the whip lights into the connectors, ensure proper alignment of the holes (one end convex, the other concave) to prevent damage.
3. Wiring for Power: Connect the black and red wires from the controller to the power wires on your vehicle's battery.
4. Turn Signal and Brake Light Function: For turn signal and brake light functionality, connect the whip lights to your vehicle's taillights and turn signals. Refer to your vehicle's wiring diagram for specific connections.
5. Installation du drapeau : Use the provided flag mounting hardware to attach the American flags to the whip light poles. Adjustable clamps help prevent the flag from tangling, allowing it to wave freely.

Image: Visual guide demonstrating the quick-disconnect installation process for the whip lights.

4. Mode d'emploi

4.1 Options de contrôle

Your KEMIMOTO LED Whip Lights can be controlled via a smartphone application (Bluetooth) or the included RF remote control.

Smartphone App Control (Bluetooth)

• Download the 'PRO RGB' app by scanning the QR code on the controller or searching your app store.
• Connect to the whip lights via Bluetooth through the app.
• The app offers 212 light mode settings, a music sync mode, a schedule timing function, 100 light speed adjustable levels, and 100 light brightness adjustable levels.

Télécommande RF

• The RF remote control provides access to 366 light modes, 10 solid color modes, 6-speed adjustable levels, and 10 brightness adjustable levels.
• Use the remote to power the lights on/off, change modes, adjust speed, and brightness.

4.2 Turn Signal and Brake Light Functionality

When correctly wired, the whip lights integrate with your vehicle's turn signals and brake lights, providing enhanced visibility and safety.

Image: Demonstrates control of the whip lights using both a smartphone application and the included RF remote control.

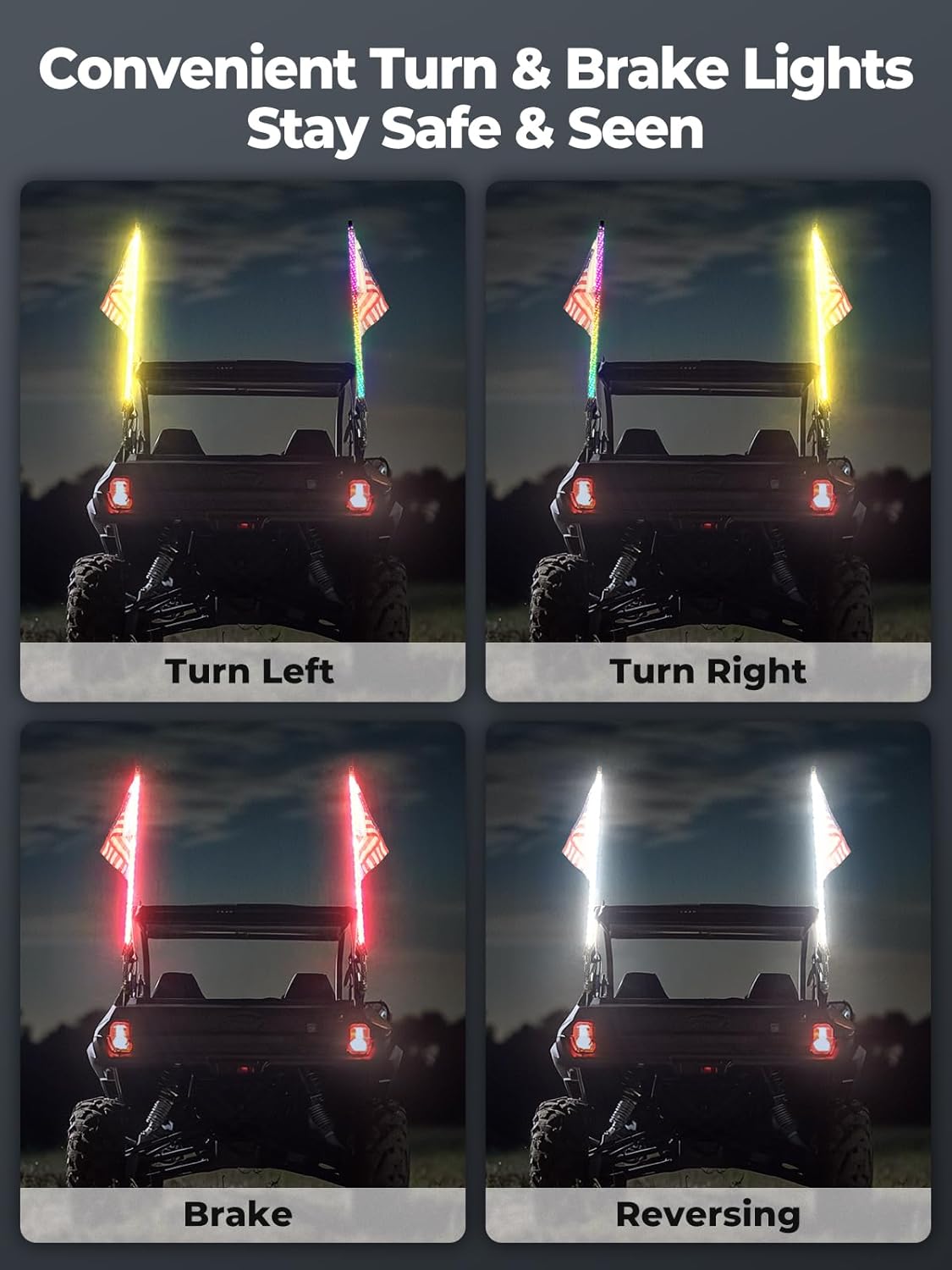

Image: Illustrates the whip lights functioning as turn signals (left/right), brake lights (red), and reversing lights (white).

5. Maintenance et entretien

To ensure the longevity and optimal performance of your KEMIMOTO LED Whip Lights, follow these maintenance guidelines:

• Conception imperméable à l'eau: The whip lights are IP67 Waterproof rated. They are covered by transparent heat-shrinkable tubes made of EVA and high-toughness silicone, protecting the 5050 SMD chips from water and dust.
• Durabilité: The lights have passed 55,000+ hours of durability tests. While designed to be bendable, avoid excessive force or sharp bends that could damage the internal components.
• Nettoyage: Clean the whip lights with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the protective tubing.
• Stockage: When not in use for extended periods, store the whip lights in a dry, cool place. The quick-release base allows for easy removal.

Image : Gros plan view of the whip lights in a water splash, illustrating their IP67 waterproof rating.

Image : détaillée view of the whip light's construction, highlighting the built-in spring for flexibility and the spiral LED arrangement.

6. Dépannage

If you encounter issues with your KEMIMOTO LED Whip Lights, consider the following:

• Lumières non allumées :
  • Check all power connections to ensure they are secure and correctly wired to the vehicle's battery.
  • Verify that the whip light connectors are properly aligned and fully inserted. There is a tab for correct clocking; ensure it is engaged. Incorrect connection can prevent illumination.
  • Confirm the remote control or app is powered on and correctly paired with the lights.
• Éclairage irrégulier/scintillement :
  • Inspect wiring for any loose connections or damage.
  • Ensure the power source is stable and providing adequate voltage (12 Volts DC).
• Remote Control/App Issues:
  • For RF remote, check battery.
  • For Bluetooth app, ensure Bluetooth is enabled on your device and the app has necessary permissions. Try restarting the app or your device.

7. Spécifications

8. Garantie et assistance

Specific warranty details for this product are not provided in the available information. For warranty claims, technical support, or further assistance, please contact KEMIMOTO customer service directly through their official website ou le détaillant où le produit a été acheté.
