Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your LoraTap WIFI Smart Roller Shutter Timer. Please read this manual carefully before installation and use to ensure proper function and safety.
Consignes de sécurité
- Veillez à débrancher l'alimentation électrique avant toute installation ou opération de maintenance afin d'éviter tout risque d'électrocution.
- L'installation doit être effectuée par un électricien qualifié ou conformément aux normes électriques locales.
- N'utilisez pas l'appareil avec les mains mouillées.
- Tenez l'appareil à l'écart de l'eau et des environnements à forte humidité.
- N’essayez pas de démonter ou de réparer l’appareil vous-même. Contactez l’assistance en cas de problème.
- Cet appareil est conçu pour une utilisation en intérieur uniquement.
Caractéristiques du produit
- Contrôle intelligent: Upgrade traditional electric roller shutters or awnings for smart control via smartphone app or voice commands.
- Remote Access & Scheduling: Control your blinds from anywhere and set custom schedules for automatic opening and closing.
- Contrôle de groupe et partage familial : Group multiple roller shutters for simultaneous control and share access with family members.
- Conception durable : Features a scratch-resistant tempered crystal glass panel, safe to touch with wet hands and easy to clean.
- Adjustable Motor Run Time: Configure the motor's operating time for precise control over shutter position (e.g., 50% open/close).
- Compatibilité de la commande vocale : Works with Google Home and Amazon Alexa for hands-free operation.
Contenu du colis
Vérifiez que tous les éléments sont présents dans le colis :
- 1 x LoraTap WIFI Smart Roller Shutter Timer
- 1 x User Manual (German/English)
- 1 x tournevis
- 4 x vis
- 1 x Wiring Clamp
Caractéristiques
| Paramètre | Valeur |
|---|---|
| Dimensions | 86 x 86 x 34 mm (with cover frame) |
| Matériau du panneau | Verre en cristal trempé |
| Matériel inférieur | Fire-retardant Polycarbonate (Plastic) |
| Vol d'exploitationtage | CA 100-250 V 50/60 Hz |
| Rated/Maximum Current | 3 A / 10 A |
| Power per Speed | 300 W |
| Wi-Fi standard | 2.4 GHz, 802.11b/g/n |
| Courant de veille | 0.001 A |
| Consommation en veille | 0.25 W |
| Méthode d'installation | Screw-mounted, fits standard 60mm flush-mounted box |
| Logiciels compatibles | Smart Life App (Android 4.4+, iOS 8+) |
| Certifications | CE |
Configuration et installation
1. Schéma de câblage
The smart roller shutter timer requires a neutral conductor for proper operation. Ensure your existing wiring includes a neutral wire. This switch is suitable for already motorized roller shutters.
Image: Detailed wiring diagram showing connections for Live (L), Neutral (N), and motor control wires (L1 for Up, L2 for Down). The diagram also indicates the input voltage gamme de 100-250VAC.
- Saisir: Connect the Neutral (N) and Live (L) wires from your power supply to the corresponding terminals on the switch.
- Output to Motor: Connect the motor's Neutral (N), Up (L1), and Down (L2) wires to the respective terminals on the switch.
- Remarque importante : A neutral conductor must be present.
2. Installation physique
- Débrancher l'alimentation : Before starting, turn off the main power supply to the circuit where you will install the switch.
- Prepare Mounting Box: The switch fits a standard 60mm diameter flush-mounted box.
- Connecter les fils : Follow the wiring diagram carefully. Use the provided wiring clamp si nécessaire.
- Montez le commutateur : Secure the switch into the flush-mounted box using the two provided screws (one on the left, one on the right).
- Panneau d'attachement : Carefully attach the crystal glass panel to the switch module.
- Restaurer l'alimentation : Once installation is complete and secure, restore power to the circuit.
3. Installation et appairage de l'application
- Téléchargez l'application: Download the "Smart Life" application from the App Store (iOS 8 or higher) or Google Play Store (Android 4.4 or higher).
- S'inscrire/Se connecter : Ouvrez l'application et créez un nouveau compte ou connectez-vous avec un compte existant.
- Ajouter un appareil : In the Smart Life app, tap the "+" icon to add a new device. Select "Curtain Switch" or a similar category.
- Entrez les détails du Wi-Fi : Follow the on-screen instructions to connect the switch to your 2.4 GHz Wi-Fi network. Ensure your phone is connected to the same 2.4 GHz network during pairing.
- Confirmation: Once successfully paired, the device will appear in your app, ready for control.
Mode d'emploi
1. Contrôle manuel
The touch panel allows for direct control of your roller shutters:
- Flèche vers le haut: Tap to open the roller shutter.
- Flèche vers le bas: Tap to close the roller shutter.
- Stop Button (Circle): Tap to pause the roller shutter at its current position.
Image : Avant view of the LoraTap Smart Roller Shutter Timer showing the touch-sensitive Up, Stop, and Down buttons. Also displays product dimensions (86x86x34mm) and a detailed wiring diagram on the back of the unit.
2. App Control (Smart Life)
After successful pairing, you can control your roller shutters via the Smart Life app:
- Ouvrir fermer: Use the virtual buttons in the app to open, close, or stop the roller shutter.
- Set Motor Run Time: The latest version of the switch allows you to set the motor's operating time. This enables partial opening or closing (e.g., 50%).
Image: Screenshot of the Smart Life app interface demonstrating the new function to set the motor's operating time in seconds (e.g., 10s, 120s) for precise control of roller shutter position.
3. Planification et minuteries
Set up automated schedules for your roller shutters:
- In the Smart Life app, navigate to the device settings and select "Schedule" or "Timer."
- Add new schedules by specifying the time, action (open/close), and repetition days.
- This feature allows for automatic operation, such as opening blinds in the morning.
Image: Demonstrates the Smart Life app's scheduling feature with various set times for opening and closing. Also highlights voice control compatibility with Amazon Alexa and Google Assistant.
4. Commande vocale
Integrate your LoraTap switch with voice assistants:
- Amazon Alexa : Enable the "Smart Life" skill in the Alexa app and link your account. You can then use commands like "Alexa, open the roller shutter" or "Alexa, close the roller shutter."
- Google Home : Link your Smart Life account in the Google Home app. Use commands such as "Hey Google, open the blinds" or "Hey Google, close the blinds."
5. Group Control and Family Sharing
- Contrôle de groupe : In the Smart Life app, you can create groups of multiple LoraTap roller shutter timers to control them simultaneously with a single command.
- Partage familial : Share control of your devices with family members through the Smart Life app, allowing everyone in the household to manage the roller shutters.

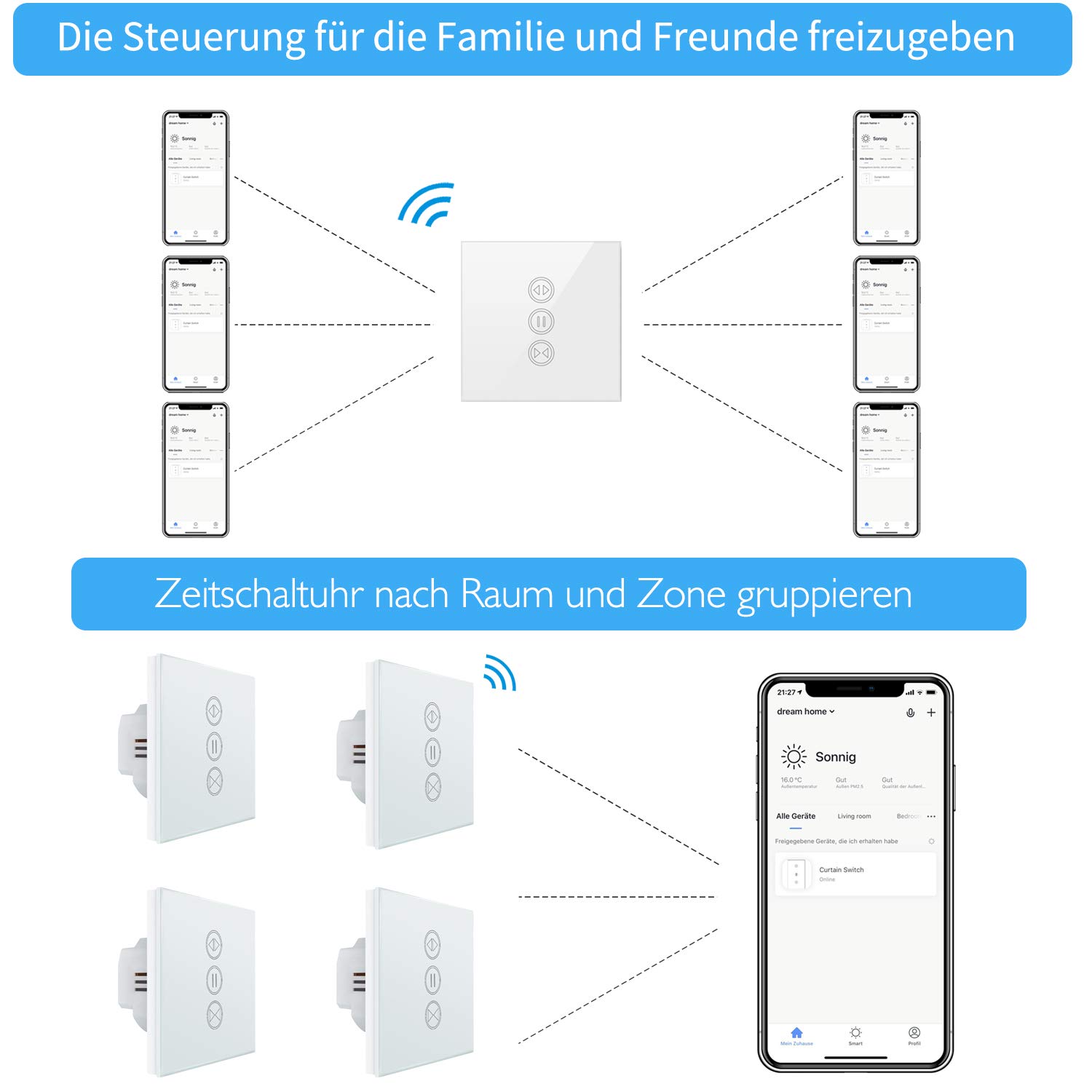

Image: Illustration of how multiple users can control the LoraTap Smart Roller Shutter Timer via the Smart Life app, demonstrating family sharing and the ability to group devices by room or zone for unified control.
Entretien
- Nettoyage: The crystal glass panel is easy to clean. Use a soft, damp Utilisez un chiffon pour essuyer la surface. Évitez les nettoyants abrasifs et les produits chimiques agressifs.
- Contrôles réguliers : Vérifiez périodiquement les connexions de câblage pour vous assurer qu’elles sont sécurisées.
Dépannage
- L'appareil ne répond pas :
- Vérifiez si l'alimentation électrique du commutateur est active.
- Ensure the switch is properly connected to your Wi-Fi network (2.4 GHz only).
- Réinitialisez l'interrupteur en coupant puis en remettant le disjoncteur.
- Verify that the Smart Life app is up to date.
- Volet roulant bloqué :
- Confirm that the motor is receiving power and is functioning correctly.
- Check the motor wiring connections to the switch.
- Ensure the motor run time is correctly configured in the app if using partial open/close functions.
- La commande vocale ne fonctionne pas :
- Ensure your Smart Life account is correctly linked to Alexa or Google Home.
- Vérifiez votre connexion internet et l'état de votre assistant vocal.
- Try re-discovering devices in the Alexa or Google Home app.
- Automatic Stop Issue: This issue has been resolved in newer versions. If you experience unexpected stops, ensure your device firmware is updated via the Smart Life app.
Garantie et assistance
LoraTap specializes in the research, development, and manufacturing of wireless switches. All LoraTap products are CE certified, ensuring compliance with European safety, health, and environmental protection requirements.
For technical support or warranty inquiries, please contact your retailer or visit the official LoraTap website for further assistance. Please have your product model number (5d4cddd3-8a52-4746-8937-9fbf21a20273) ready when contacting support.
