Manuel d'utilisation de la caméra de recul pour poignée de hayon ECOCONUT Chevy Silverado et GMC Sierra 2007-2013

1. Introduction

Thank you for choosing the ECOCONUT Tailgate Handle Backup Camera. This product is designed to enhance your vehicle's safety by providing a clear rear view, assisting with parking and reversing maneuvers. This manual provides detailed instructions for installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your camera system.

2. caractéristiques du produit

• Good Quality Backup Camera: Features a waterproof design and a wide-angle lens for comprehensive rear visibility.
• Vision nocturne améliorée: Provides improved performance in low-light conditions.
• Lignes de stationnement réglables : Includes a switch to turn parking lines "ON" or "OFF" according to user preference.
• Integrated Tailgate Handle: Designed as a direct replacement for the original tailgate handle, maintaining the vehicle's aesthetic and original trunk switch function.
• Amélioration de la sécurité : Offers valuable assistance for safer driving and parking.

3. Compatibilité avec les véhicules

This Tailgate Handle Backup Camera is specifically designed to fit the following vehicle models and years:

• Chevy Chevrolet Silverado (2007, 2008, 2009, 2010, 2011, 2012, 2013)
• GMC Sierra (2007, 2008, 2009, 2010, 2011, 2012, 2013)

Note: This camera system is intended for use with an aftermarket display. A monitor or navigation unit is not included. Additional adapters or interfaces may be required to connect to a factory radio, which are not supplied with this product.

4. Contenu du colis

Veuillez vérifier que tous les éléments énumérés ci-dessous sont inclus dans votre colis :

• Tailgate Handle with Integrated Backup Camera
• Video Extension Cable (RCA connector)
• Câble d'alimentation

Image: The complete ECOCONUT tailgate handle backup camera unit, including the integrated camera and coiled wiring harness.

Image : Une image détaillée view of the coiled video and power cables, showing the RCA connector and exposed power wires for connection.

5. Consignes de sécurité

Please read and understand all safety instructions before installing or operating this product. Failure to do so may result in injury or damage to your vehicle.

• Débranchez toujours la batterie du véhicule avant de commencer toute installation électrique.
• Veillez à ce que tous les câbles soient correctement isolés et fixés afin d'éviter les courts-circuits ou les dommages.
• Route cables away from hot engine parts, sharp edges, and moving components.
• This backup camera is an aid and should not replace careful driving and direct observation of surroundings.
• Consultez un professionnel si vous avez des doutes concernant une quelconque étape du processus d'installation.

6. Guide d'installation

6.1 Plus deview of Product and Connections

Video: A brief demonstration of the tailgate handle camera, showing its physical appearance and how the wiring connects to a display unit.

6.2 Installation étape par étape

The installation involves replacing your existing tailgate handle with the new camera-integrated handle and connecting the wiring to your aftermarket display.

1. Préparez le véhicule : Assurez-vous que le véhicule est éteint et que le frein de stationnement est serré. Débranchez la borne négative de la batterie du véhicule.
2. Remove Original Tailgate Handle: Access the inside of the tailgate. Carefully unbolt and remove the existing tailgate handle. Disconnect any existing wiring or linkages.
3. Install New Tailgate Handle: Insert the ECOCONUT tailgate handle with the integrated camera into the opening. Secure it with the original or provided fasteners. Ensure the camera is facing outwards and the handle operates correctly.
4. Câblage de l'itinéraire : Carefully route the camera's video and power cables through the tailgate, along the vehicle's chassis, and into the cabin towards your aftermarket display unit. Ensure cables are secured with zip ties and protected from heat, sharp edges, and moving parts. Leave sufficient slack near the tailgate for opening and closing, and for potential future removal.
5. Connecter l'alimentation : Connect the red wire of the camera's power cable to a 12V power source that is active when the vehicle is in reverse (e.g., reverse light wire). Connect the black wire to a reliable ground point on the vehicle chassis.
6. Connecter la vidéo : Connect the yellow RCA connector from the camera cable to the video input (usually labeled "CAM IN" or "REVERSE VIDEO") on your aftermarket display unit.
7. Parking Line Switch: Locate the small green wire on the camera cable labeled "Parking line". If you wish to disable the parking guidelines on your display, cut this wire. If you want the guidelines to appear, leave it intact.
8. Tester le système : Reconnect the vehicle's battery. Turn on the vehicle and shift into reverse. The camera image should appear on your display. Verify the clarity and angle of the view.
9. Sécurisation finale : Once confirmed operational, ensure all cables are neatly tucked away and secured, and all panels are reinstalled.

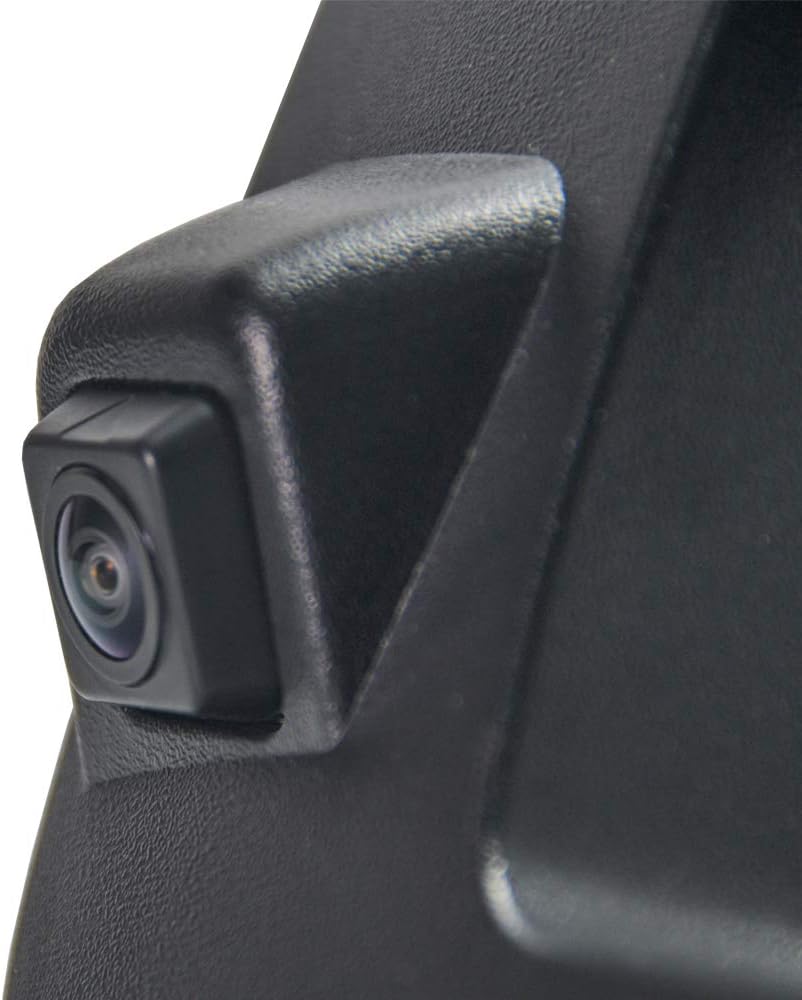

Image : Un gros plan view of the camera lens, highlighting its integration into the tailgate handle for a factory-like appearance.

Image: A detailed shot of the small green wire with a "Parking line" label, indicating the switch for enabling or disabling parking guidelines.

Video: An installation guide demonstrating the process of replacing the tailgate handle and connecting the backup camera for Chevrolet and GMC Sierra models 2007-2013.

7. Mode d'emploi

The ECOCONUT Tailgate Handle Backup Camera operates automatically when your vehicle is shifted into reverse, provided it is correctly connected to a compatible aftermarket display.

• Activation automatique: When the vehicle is put into reverse gear, the display connected to the camera will automatically switch to show the rear view.
• Directives de stationnement : If the parking line switch wire was left intact during installation, dynamic or static parking guidelines will appear on the screen to assist with parking. These lines indicate the projected path of the vehicle and distance markers.
• Désactivation: When the vehicle is shifted out of reverse gear, the display will return to its previous function (e.g., radio, navigation).

8. Entretien

To ensure the longevity and optimal performance of your backup camera, follow these simple maintenance tips:

• Nettoyer la lentille : Nettoyez régulièrement l'objectif de l'appareil photo avec un chiffon doux et sec.amp cloth to remove dirt, dust, and water spots that can obstruct the viewÉvitez les nettoyants abrasifs.
• Vérifiez le câblage : Periodically inspect all visible wiring for any signs of wear, fraying, or loose connections. Secure any loose cables.
• Protection contre les intempéries : While the camera is waterproof, extreme weather conditions (e.g., heavy snow, ice) can temporarily affect performance. Ensure the lens is clear of obstructions before use.

9. Dépannage

If you encounter any issues with your ECOCONUT Tailgate Handle Backup Camera, refer to the following table for common problems and solutions:

10. Spécifications du produit

11. Garantie et assistance

ECOCONUT is committed to providing high-quality products and customer satisfaction. For any warranty claims, technical support, or inquiries regarding your Tailgate Handle Backup Camera, please contact the seller or ECOCONUT customer service directly.

Please retain your proof of purchase for warranty purposes. Specific warranty terms and conditions may apply.
