Xgody 9-inch Truck GPS Navigation System User Manual

1. Introduction

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Xgody 9-inch Truck GPS Navigation System, Model X4. Please read this manual thoroughly to ensure proper use and to maximize the device's functionality.

2. Contenu de la boîte

Vérifiez que tous les éléments sont présents dans le colis :

• Xgody 9-inch GPS Navigation Device
• Support de tableau de bord
• Car Charger (12-36V/2A)
• Câble USB
• Manuel d'utilisation

3. Appareil terminéview

Familiarize yourself with the physical components and ports of your Xgody X4 GPS device.

Figure 3.1 : Face avant view of the Xgody 9-inch GPS device, showing the large touchscreen display.

Figure 3.2 : Retour view of the Xgody 9-inch GPS device, featuring the speaker grille and mounting points.

Figure 3.3 : Côté view of the Xgody 9-inch GPS device, highlighting the 3.5mm earphone slot, TF card slot, AV-IN port, and 2.0 USB slot.

The device features a 9-inch capacitive touchscreen, a speaker on the rear, and various ports on the side for connectivity and expansion. These include a 3.5mm earphone slot, a TF (Micro SD) card slot, an AV-IN port for external video input, and a 2.0 USB slot for charging and data transfer.

4. Installation

4.1 Montage de l'appareil

1. Attach the dashboard mount to the back of the GPS device.
2. Clean the desired area on your dashboard or windshield.
3. Securely attach the suction cup mount to the cleaned surface. Ensure it is stable and does not obstruct your view.
4. Ajustez le viewangle de vue pour une visibilité optimale.

4.2 Mise sous tension et charge

Connect the device to your vehicle's power outlet using the provided car charger. The device will typically power on automatically or can be turned on by pressing the power button. A red indicator light signifies that the device is charging. The internal battery provides approximately 1 hour of operation and takes 2-3 hours to fully charge.

4.3 Configuration initiale

Lors de la première utilisation ou après une réinitialisation d'usine, vous devrez peut-être configurer les paramètres de base :

• Langue: Sélectionnez votre langue préférée.
• Fuseau horaire: Définissez le fuseau horaire correct pour votre emplacement.
• Type de véhicule : Choose your vehicle profile (e.g., Truck, Car, Bus, Motorhome, Bicycle, Taxi, Pedestrian) to optimize routing.

4.4 Mises à jour de la carte

The device comes with pre-loaded maps. For lifetime map updates, refer to the manufacturer's website or contact customer support for instructions on how to download and install the latest map data. Regular map updates ensure accurate navigation and access to new roads and points of interest.

5. Mode d'emploi

5.1 Navigation de base

To begin navigation:

1. Dans le menu principal, appuyez sur « Navigation ».
2. Enter your destination address or select a Point of Interest (POI).
3. Confirm the destination and the device will calculate the optimal route based on your selected vehicle profile.
4. Follow the voice-guided turn-by-turn directions and on-screen map.

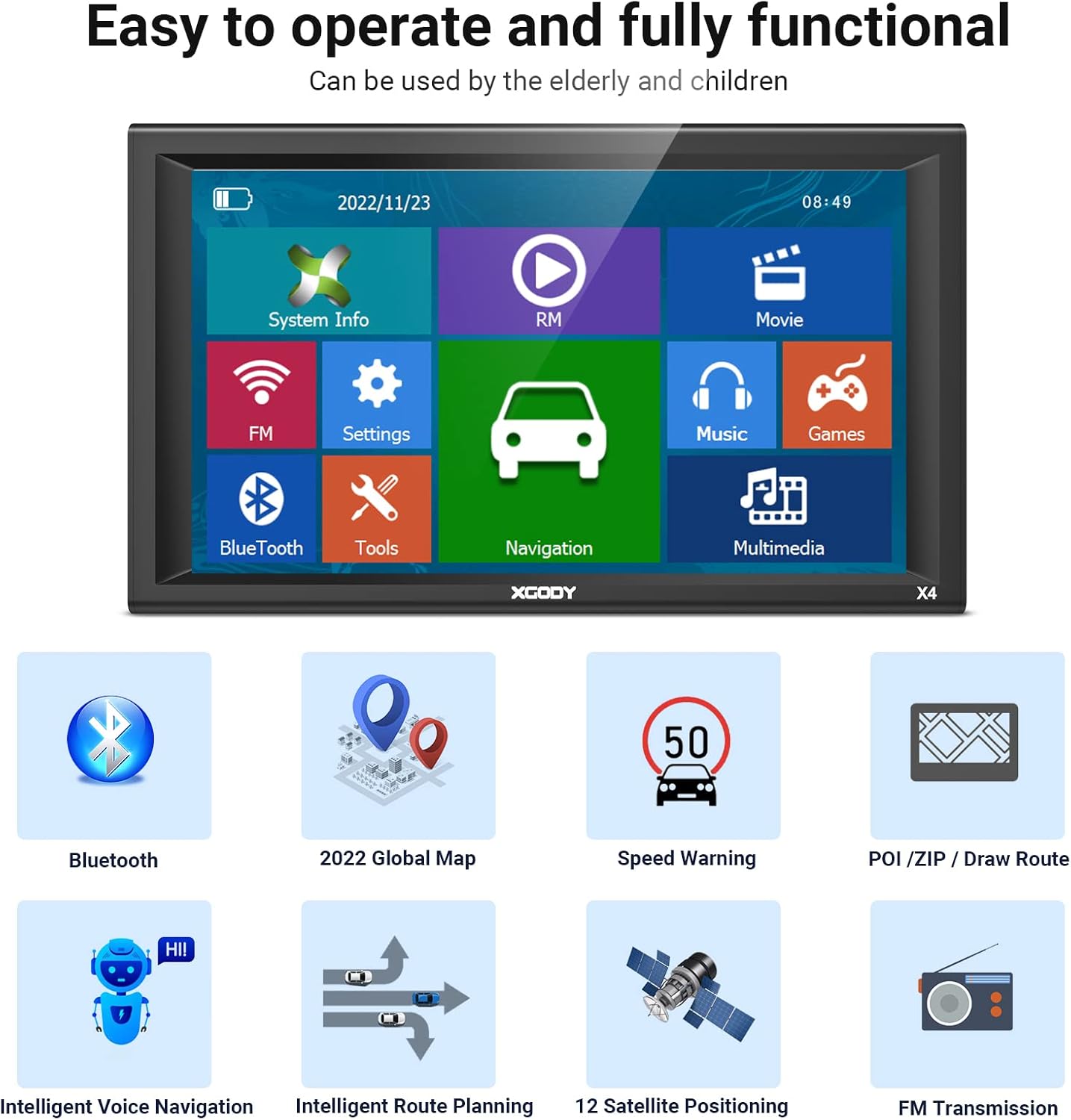

Figure 5.1: The main menu interface of the Xgody GPS, showing icons for System Info, RM, Movie, FM, Settings, Music, Games, Bluetooth, Tools, Navigation, and Multimedia.

Figure 5.2: A typical navigation screen displaying the current route, distance to next turn, estimated arrival time, and nearby points of interest like gas stations.

5.2 Véhicule Profiles and Route Planning

The Xgody X4 supports various vehicle types, allowing for customized routing. For trucks, you can input vehicle dimensions (height, width, length) and weight to avoid unsuitable roads, bridges, and tunnels. This feature helps ensure safe and efficient travel for commercial vehicles.

Figure 5.3: An illustration of the vehicle type selection screen, including options for car, taxi, bus, and truck, allowing for tailored navigation.

5.3 Fonctionnalités Bluetooth

Pair your mobile phone with the GPS device via Bluetooth for hands-free calling. This feature enhances safety by allowing you to make and receive calls without handling your phone while driving.

Figure 5.4: The Bluetooth hands-free calling interface on the GPS screen, showing a simulated call in progress.

5.4 Fonction AV-IN

The AV-IN port allows you to connect an external video source, such as a rear-view camera (not included). When connected, the GPS screen can display the camera feed, assisting with safer parking and maneuvering.

Figure 5.5: The GPS screen showing a rear camera view, demonstrating the AV-IN functionality for enhanced safety during reversing.

5.5 Points of Interest (POI) and Speed Warnings

The device provides information on various Points of Interest (POI) such as gas stations, restaurants, and rest areas. It also includes speed warnings to alert you when exceeding the speed limit, contributing to safer driving.

Figure 5.6: A navigation view highlighting POIs like gas stations and displaying speed camera warnings, along with current speed and estimated arrival time.

5.6 Transmetteur FM

The built-in FM transmitter allows you to broadcast the GPS audio instructions and multimedia sound to your vehicle's FM radio. This enables clearer audio output through your car's speaker system.

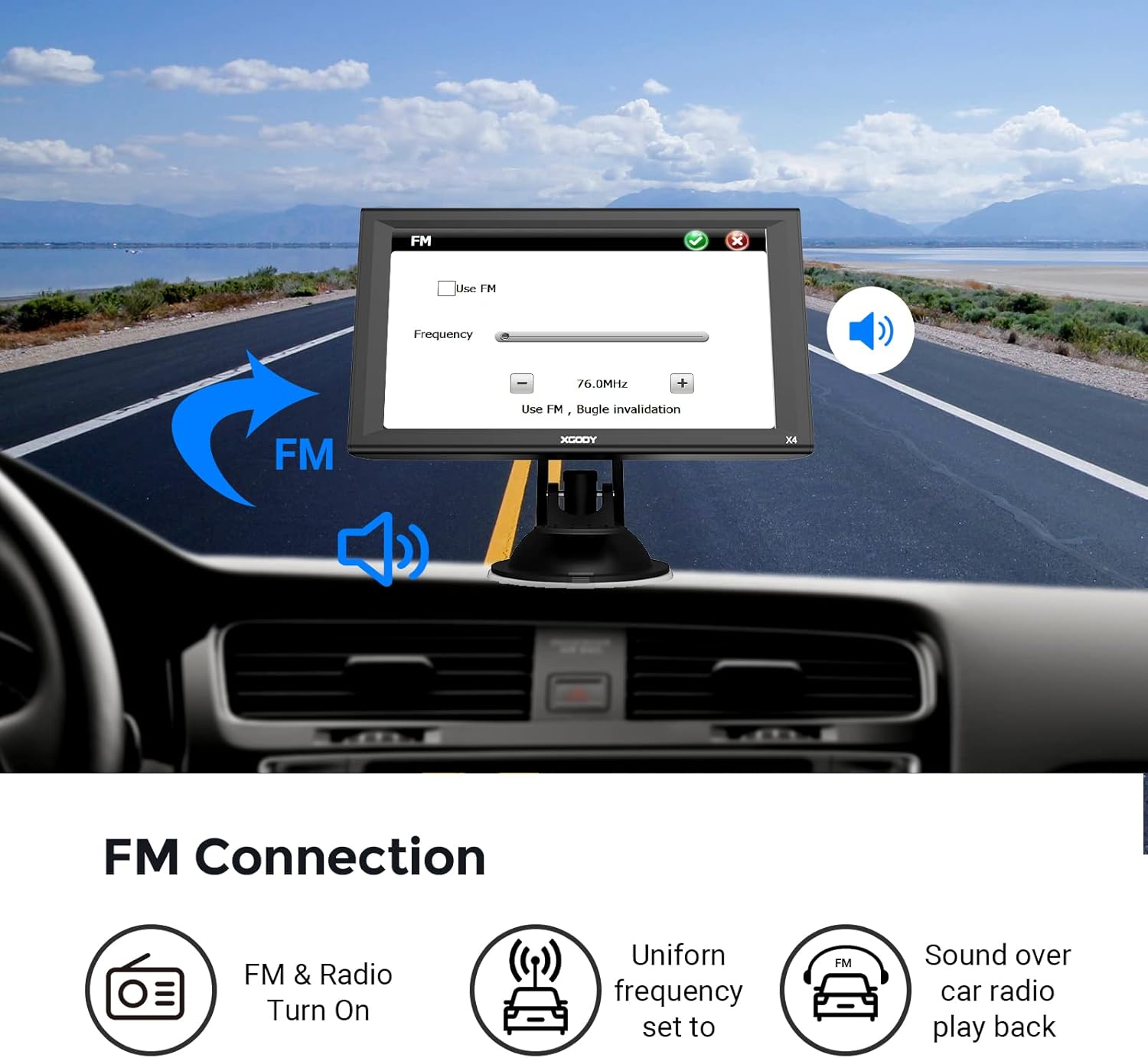

Figure 5.7: The FM connection settings screen on the GPS, allowing users to select a frequency to transmit audio to their car radio.

5.7 Fonctionnalités multimédias

The Xgody X4 can play various multimedia files, including music (MP3), videos (ASF, AVI, WMV, 3GP, MP4, RMVB), and e-books. It also includes simple games. These features are intended for use when the vehicle is stationary.

6. Entretien

6.1 Nettoyage de l'appareil

Use a soft, dry cloth to clean the screen and exterior of the device. Avoid using abrasive cleaners or solvents, as they may damage the screen or casing.

6.2 Entretien de la batterie

To prolong battery life, avoid exposing the device to extreme temperatures. If the device will not be used for an extended period, charge it to approximately 50% before storage and recharge it periodically.

6.3 Mises à jour des logiciels et des cartes

Regularly check for software and map updates. Updates can improve performance, add new features, and ensure the most accurate navigation data. Follow the instructions provided by the manufacturer for updating your device.

7. Dépannage

This section addresses common issues you might encounter with your Xgody X4 GPS device.

7.1 Device Will Not Power On or Keeps Cycling

• Vérifiez la connexion électrique : Ensure the car charger is securely plugged into both the device and the vehicle's power outlet. Verify the vehicle's power outlet is functioning.
• Charge de la batterie : If the battery is completely drained, it may take a few minutes of charging before the device responds. Look for the red charging indicator light.
• Remise à zéro: Locate the reset button (often a small pinhole) and gently press it with a paperclip for a few seconds.

7.2 Problèmes de signal GPS

• Clair View de Sky : Assurez-vous que l'appareil dispose d'une voie dégagée et sans obstruction view of the sky. Tall buildings, tunnels, and dense foliage can interfere with GPS reception.
• Déplacer l'appareil : Try repositioning the device on your dashboard or windshield.
• Attendez: It may take several minutes for the device to acquire satellite signals, especially after being off for a long time or moved a significant distance.

7.3 Map Update Failures

• Connexion Internet: Ensure a stable and fast internet connection during the download process.
• Espace de stockage : Verify that the device or inserted TF card has sufficient free space for the new map data.
• Procédure correcte : Double-check that you are following the exact map update instructions provided by Xgody. Incorrect procedures can lead to data corruption.

7.4 Non-réactivité de l'écran

• Nettoyer l'écran : Assurez-vous que l'écran est propre et exempt de saleté ou d'humidité.
• Redémarrage en douceur: Effectuez une réinitialisation logicielle à l'aide du bouton de réinitialisation.
• Recalibrer : Some devices offer a screen calibration option in the settings menu.

7.5 Problèmes audio

• Paramètres de volume : Check the device's volume settings and ensure it is not muted.
• Transmetteur FM: If using the FM transmitter, ensure the correct frequency is selected on both the GPS and your car radio. Adjust the volume on both devices.
• Haut-parleurs/casques externes : If using external audio, ensure they are properly connected and functioning.

8. Spécifications

Below are the technical specifications for the Xgody 9-inch Truck GPS Navigation System, Model X4.

9. Garantie et assistance

9.1 Garantie du produit

Your Xgody GPS device is covered by a manufacturer's warranty. Please refer to the warranty card included in your product packaging or visit the official Xgody webConsultez ce site pour obtenir des informations détaillées sur les termes, les conditions et la durée de la garantie.

9.2 Assistance clientèle

If you encounter any issues not covered in this manual or require further assistance, please contact Xgody customer support. Contact information can typically be found on the manufacturer's website or on the product packaging. When contacting support, please have your product model (Xgody X4) and purchase details readily available.
