1. Introduction
This manual provides essential information for setting up, operating, and maintaining your MSI PS42 8RB-059 laptop. Please read through this guide to ensure optimal performance and longevity of your device.

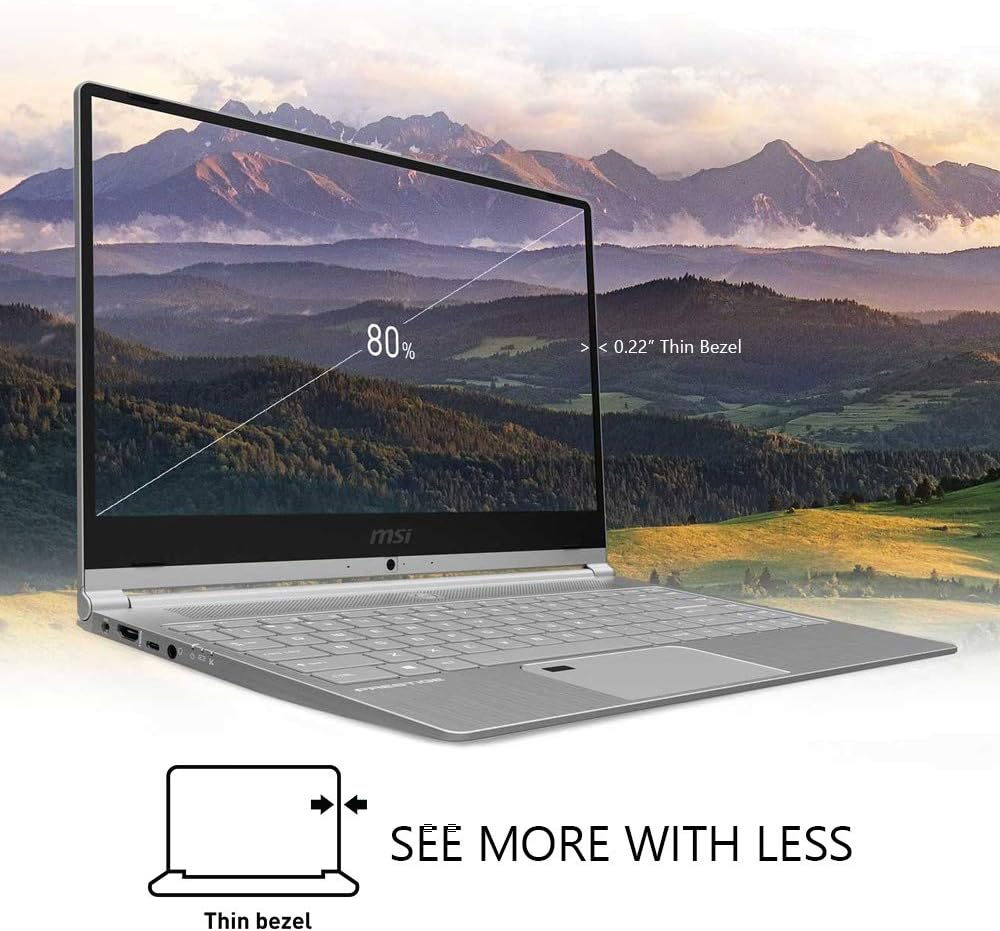

Figure 1.1: The MSI PS42 8RB-059 laptop showcasing its thin bezel display.
2. Installation
2.1 Déballage de votre ordinateur portable
À l'ouverture de l'emballage, assurez-vous que tous les composants sont présents :
- MSI PS42 8RB-059 Laptop
- Adaptateur secteur
- Manuel de l'utilisateur (ce document)
2.2 Branchement de l'adaptateur secteur
Connect the power adapter to the laptop's barrel charging port on the left side and then plug it into a power outlet. The laptop will begin charging. Note that the USB-C ports do not support power delivery.
2.3 Mise sous tension initiale et configuration de Windows
Press the power button located in the center above the keyboard to turn on the laptop. Follow the on-screen instructions to complete the Windows 10 Pro setup process. This includes setting up your user account, network connection, and other preferences.
Figure 2.1: The integrated fingerprint sensor for secure one-touch access with Windows Hello.
3. Utilisation de votre ordinateur portable
3.1 Fonctions d'affichage
Your laptop features a 14-inch Full HD IPS-Level display with a thin bezel design, offering an immersive visual experience. The True Color technology provides various display modes optimized for different tasks such as design, office work, movie watching, and gaming.
Figure 3.1: The display with True Color technology, offering optimized modes for various uses.
3.2 Clavier et pavé tactile
The laptop is equipped with a comfortable, backlit keyboard featuring large, silver keys. The precision touchpad supports multi-touch gestures for intuitive navigation. A fingerprint reader is integrated into the touchpad for secure login via Windows Hello.
3.3 Ports et connectivité
The MSI PS42 offers a variety of ports for your connectivity needs:
- Côté gauche : Power input (barrel jack), HDMI, 2x USB 3.1 Type-C (data only, no power delivery), Headphone/Microphone combo jack, LED indicators for power and charging.
- Côté droit : Kensington Lock slot, SD Card Reader, 2x USB 3.1 Type-A.
Figure 3.2 : Côté view illustrating the available ports for external device connectivity.
3.4 Cooling System (Cooler Boost 3)
The laptop features Cooler Boost 3 technology with dedicated fans for the CPU and GPU, ensuring efficient heat dissipation even during intensive usage. This design helps maintain optimal performance and system stability.
Figure 3.3: Visual representation of Cooler Boost 3 technology in action, keeping the laptop cool.
3.5 Audio Enhancement (Nahimic 3)
Experience enhanced audio quality with Nahimic 3 technology, providing immersive 7.1 audio for movies, music, and games.
Video 3.1: Official MSI PS42 product overview, highlighting key features including Nahimic 3 audio. This video demonstrates the laptop's design, display, and audio capabilities.
4. Entretien
4.1 Nettoyage de votre ordinateur portable
Regularly clean your laptop to prevent dust buildup and maintain performance. Use a soft, lint-free cloth for the screen and exterior. For the keyboard, use compressed air to remove debris. Ensure the laptop is powered off and unplugged before cleaning.
4.2 Mises à jour logicielles
Keep your Windows 10 Pro operating system and drivers updated to ensure security, stability, and optimal performance. You can check for updates through the Windows Settings menu.
4.3 Storage and Memory Management
Your laptop comes with a 512GB M.2 SATA SSD and 16GB DDR4 RAM (expandable up to 32GB). Regularly manage your storage by deleting unnecessary files and applications. Monitor RAM usage to ensure smooth multitasking.
5. Dépannage
5.1 Problèmes d'alimentation et de charge
- L'ordinateur portable ne s'allume pas : Ensure the power adapter is securely connected to both the laptop and a working power outlet. Check the LED indicators for charging status.
- La batterie ne se charge pas: Verify the power adapter is functioning correctly. If issues persist, contact customer support.
5.2 Surchauffe
If the laptop feels excessively hot, especially during heavy use, ensure the vents are not obstructed. The Cooler Boost 3 system is designed to manage heat, but proper airflow is crucial. Avoid using the laptop on soft surfaces that can block vents.
5.3 Problèmes de connectivité
- Wi-Fi issues: Check your router and network settings. Ensure Wi-Fi is enabled on your laptop.
- Périphériques USB non reconnus : Try connecting the device to a different USB port. Ensure drivers for the external device are installed.
6. Spécifications
| Fonctionnalité | Détail |
|---|---|
| Marque | MSI |
| Nom du modèle | PS42 8RB-059 |
| Taille de l'écran | 14 pouces |
| Couleur | Argent |
| Modèle de processeur | Core i7-8550U (1.8 - 4.0GHz) |
| Coprocesseur graphique | NVIDIA GeForce MX150 2G GDDR5 |
| Taille de la mémoire RAM installée | 16 GB DDR4 2400MHz (Max 32GB) |
| Taille du disque dur | 512 GB M.2 SATA SSD |
| Système opérateur | Windows 10 Pro |
| Caractéristiques spéciales | Thin Bezel Display, Ultra Light (2.62 lbs), One-touch access, True Color, Extended Battery Life, Cooler Boost 3, Nahimic 3 7.1 Audio, USB 3.1 Type-C |
| Contenu énergétique de la batterie | 65 Wattheures |
| Technologie de connectivité | USB, 802.11ac Wireless, Bluetooth |
| Ports | HDMI, USB 3.1 Type-C (x2), USB 3.1 Type-A (x2), SD Card Reader, Headphone/Mic Combo |
| Poids de l'article | 5.27 livres |
7. Garantie et assistance
7.1 Garantie du produit
Your MSI PS42 8RB-059 laptop comes with a 1-year Limited Warranty, which includes 1 Year Global coverage. Please refer to the warranty card included in your package for full terms and conditions.
7.2 Assistance clientèle
For technical assistance, troubleshooting, or service inquiries, please contact MSI Computer customer support. You can find contact information on the MSI official websur le site ou dans la documentation fournie avec votre ordinateur portable.
