1. Introduction
This manual provides instructions for the installation, operation, and maintenance of your FibroPool Professional Pool Filter Hose Replacement Kit. This kit is designed to upgrade your pool filtration system with enhanced durability and universal compatibility, ensuring efficient and leak-resistant performance for both above-ground and in-ground pools.
2. Composants du kit
The FibroPool Professional Pool Filter Hose Replacement Kit includes the following items:
- Two (2) 1.5" x 6-foot spiral-wound hoses with reinforced cuffs.
- Two (2) hose adapters.
- Two (2) hose clamps.
- One (1) roll of PTFE tape.

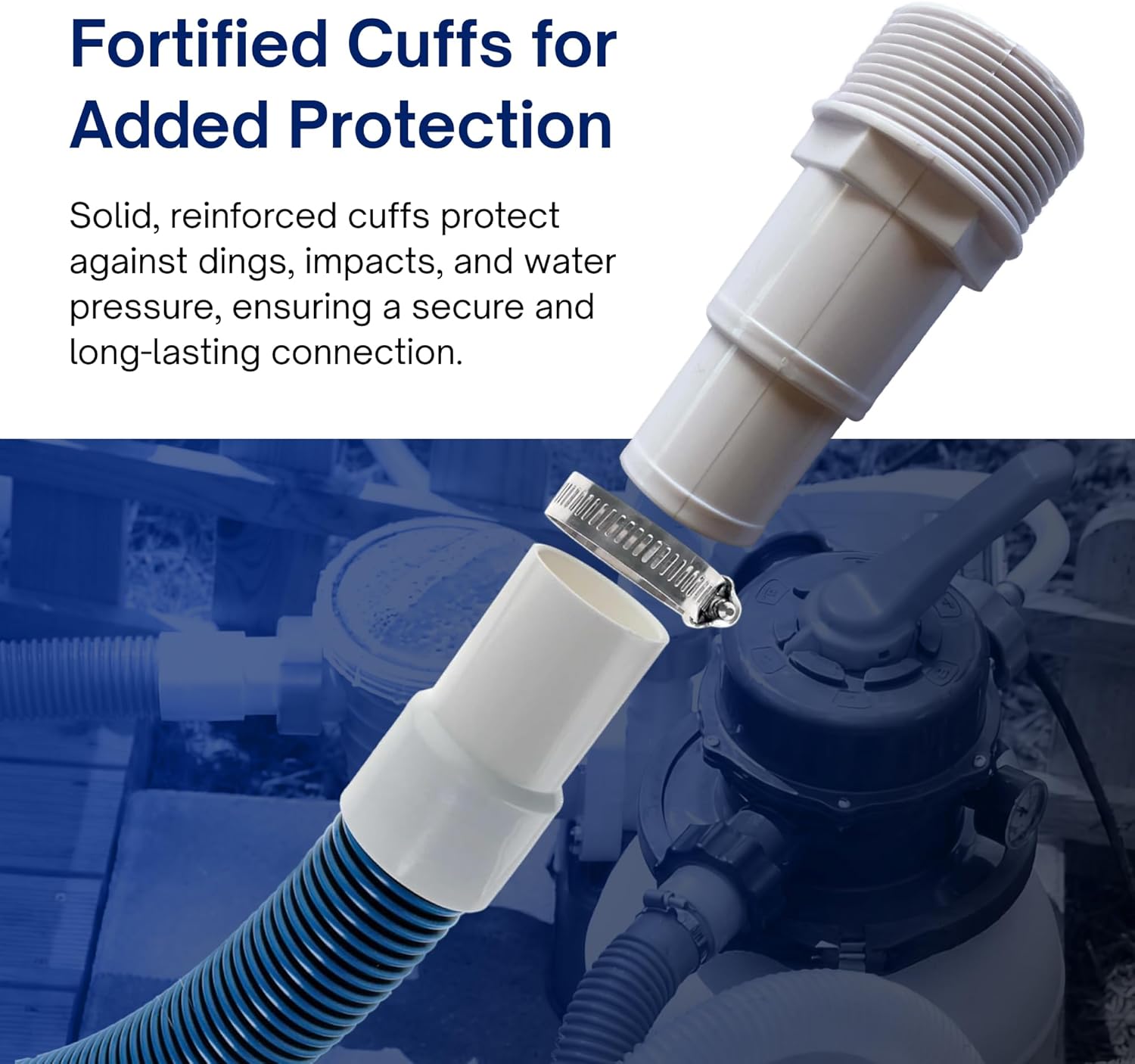

The hoses feature a spiral-wound design for superior flexibility and strength, resisting wear, chlorine, and high water pressure. Reinforced cuffs provide a secure, leak-resistant connection.
3. Configuration et installation
Before beginning installation, ensure your pool pump and filter system are turned off and disconnected from power. Close any necessary valves to prevent water flow.
- Retirer les vieux tuyaux : Desserrez le clamps securing the old hoses to your pool pump and filter. Carefully detach the old hoses and dispose of them properly.
- Préparer les connexions : Clean any debris from the connection points on your pump and filter. Apply PTFE tape to the threaded ends of the new adapters (if applicable) to ensure a watertight seal.
- Adaptateurs de fixation : Screw the adapters onto the pump and filter ports. Hand-tighten, then use a wrench for a snug fit, being careful not to overtighten.
- Connecter les tuyaux : Faites glisser un tuyau clamp over each end of the new FibroPool hoses. Push the reinforced cuffs of the hoses firmly onto the adapters.
- Cl sécuriséamps: Positionner le tuyau clamps over the cuffs and adapters, then tighten them securely with a screwdriver. Ensure a tight fit to prevent leaks.
The installation process is designed to be straightforward, requiring only basic tools like a screwdriver and pliers.
4. Mode d'emploi
Once the hoses are securely installed, you can resume normal operation of your pool filtration system.
- Ouvrir les vannes : Ensure all necessary valves are open to allow water to flow through the filtration system.
- Prime Pump (if necessary): If your pump requires priming, follow the manufacturer's instructions for your specific pump model.
- Démarrer la pompe : Reconnect power and turn on your pool pump.
- Vérifiez les fuites : Carefully inspect all connections for any signs of leaks. If leaks are detected, turn off the pump, tighten the clamps, and re-check.
The spiral-wound design of these hoses maintains structural integrity even under strong suction, preventing collapse during vacuuming or high-pressure operation.
For optimal performance, ensure the hoses are not kinked or excessively bent during operation.
5. Entretien
Regular maintenance will extend the lifespan of your FibroPool filter hoses.
- Inspectez régulièrement : Periodically check the hoses for any signs of wear, cracks, or damage, especially at the connection points and along the spiral winding.
- Clean Hoses: If hoses become dirty, they can be cleaned with mild soap and water. Rinse thoroughly.
- Hivérisation: During winter months or periods of non-use, disconnect the hoses, drain them completely, and store them in a dry, protected area away from extreme temperatures and direct sunlight. This prevents freezing damage and material degradation.
- Vérifier Clamps: Assurez-vous que le tuyau soit propreamps remain tight. Retighten if necessary to prevent leaks.
6. Dépannage
| Problème | Cause possible | Solution |
|---|---|---|
| Fuites d'eau au niveau des raccords | tuyau lâche clamps, insufficient PTFE tape, damaged adapter/cuff. | Serrer le collier du tuyauamps. Reapply PTFE tape to threaded adapters. Inspect adapters and hose cuffs for damage; replace if necessary. |
| Hose Collapse During Suction | Not applicable with FibroPool spiral-wound hoses (designed to resist collapse). If observed, check for blockages or extreme suction conditions. | Ensure no blockages are present in the hose or filter system. Verify pump is operating within normal parameters. |
| Débit d'eau réduit | Kinked hose, clogged filter, pump issue. | Straighten any kinks in the hose. Clean or backwash your pool filter. Check your pump for proper operation. |
If troubleshooting steps do not resolve the issue, contact FibroPool customer support for further assistance.
7. Spécifications du produit
- Modèle: FilterHoseKitPRO1.5in6x2
- Diamètre du tuyau: 1.5 pouces
- Longueur du tuyau : 6 feet (each hose)
- Quantité: 2 hoses per kit
- Matériel: Durable spiral-wound material with reinforced cuffs, Metal (clamps), Polytetrafluoroethylene (PTFE tape)
- Couleur: Silver (hoses), White (adapters), Silver (clamps)
- Compatibilité: Universal fit for most pool filter systems
- Code à barres : 760820386547
8. Garantie et assistance
For warranty information or technical support, please refer to the official FibroPool webConsultez leur site web ou contactez leur service client. Conservez votre reçu d'achat pour toute réclamation au titre de la garantie.
Coordonnées:
- Marque: FibroPool
- Fabricant: FibroPool
- Website: Visit the FibroPool Store on Amazon
