1. Introduction et plusview
This manual provides instructions for the proper installation, function, and care of the SRAM PressFit 30 Bottom Bracket Shield and Wave Washer Assembly. This precision-engineered component is designed for SRAM and Truvativ PressFit 30 bottom brackets, enhancing durability and performance. It includes a compact combination of shield, shim, and wave washers to improve bearing alignment, reduce friction, and extend crankset lifespan. The design incorporates innovative sealing technology to minimize dirt and water ingress, contributing to enhanced performance and noise reduction in demanding cycling conditions.

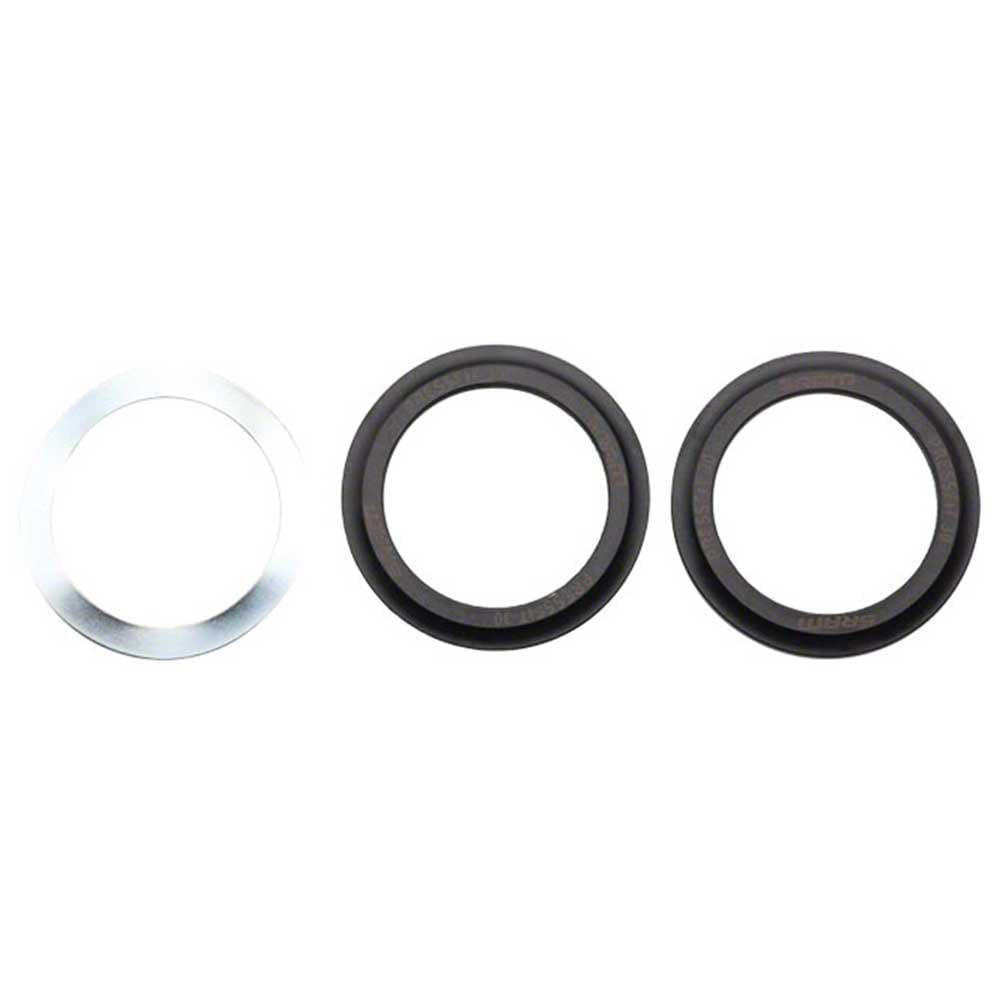

Image 1.1: SRAM PressFit 30 Bottom Bracket Shield and Wave Washer Assembly. This image displays the small components designed to protect bottom bracket bearings.
2. Configuration et installation
The SRAM PressFit 30 Bottom Bracket Shield and Wave Washer Assembly is designed for integration with existing PressFit 30 bottom bracket systems. Proper installation is crucial for optimal performance and longevity. It is recommended that installation be performed by a qualified bicycle mechanic or an individual with experience in bicycle drivetrain assembly.
2.1. Compatibilité
This assembly is compatible with SRAM and Truvativ PressFit 30 bottom brackets and SRAM BB-SPP-A0 models.
2.2. Outils requis
- Appropriate bottom bracket press tools (if installing new bearings)
- High-quality bicycle grease
- Torque wrench (refer to specific bottom bracket and crankset manufacturer's torque specifications)
2.3. Étapes d'installation
- Ensure the bottom bracket shell and bearings are clean and free of debris. Thoroughly clean any old grease or dirt.
- Apply a thin, even layer of appropriate bicycle grease to the bearing surfaces and the inside of the shield. This aids in protection and smooth operation.
- Carefully place the shield and wave washer onto the crank spindle or bearing, ensuring correct orientation as per your specific crankset and bottom bracket system. The wave washer typically sits between the bearing and the crank arm.
- Install the crankset according to the manufacturer's instructions, ensuring all components are seated correctly and torqued to the specified values. Incorrect torque can lead to premature wear or damage.
- Verify smooth rotation of the crankset without excessive play or binding. The crankset should spin freely with no lateral movement.
3. Principes de fonctionnement
Once installed, the shield and wave washer assembly functions to protect the bottom bracket bearings from external contaminants such as dirt, water, and grit. The shield acts as a physical barrier, while the wave washer provides a slight preload on the bearings. This preload helps to eliminate axial play and maintain proper bearing alignment, contributing to smooth and efficient power transfer from the pedals to the drivetrain. This system effectively reduces friction and extends the operational life of both the bottom bracket bearings and the crankset.
4. Entretien
Regular inspection and maintenance of your bottom bracket assembly are essential for sustained performance and longevity of your bicycle's drivetrain components.
4.1. Nettoyage
Keep the area around the bottom bracket clean. After riding in wet or dirty conditions, gently clean any visible debris from the shield and surrounding components using a soft cloth and mild degreaser, if necessary. Avoid high-pressure washing directly at the bottom bracket seals.
4.2. Inspection
Annually, or more frequently depending on riding conditions and mileage, remove the crankset and inspect the shield, wave washer, and bearings for signs of wear, damage, or corrosion. Look for cracks, deformation, or excessive play in the wave washer. Check the bearing surfaces for roughness or pitting.
4.3. Lubrification
While the bearings themselves are sealed, ensuring the external surfaces of the shield and the crank spindle are clean and lightly greased during reassembly can prevent creaking and improve overall component longevity. Use a high-quality, waterproof bicycle grease.
4.4. Remplacement
If the shield or wave washer shows significant wear, damage, or if the wave washer has lost its spring tension, replace the assembly to maintain optimal protection and performance. Continuing to use worn components can lead to premature bearing failure.
5. Dépannage
This section addresses common issues that may arise with bottom bracket components.
5.1. Bruits de craquement
Creaking from the bottom bracket area is a common issue. It can often be resolved by disassembling, thoroughly cleaning, regreasing, and reassembling the bottom bracket and crankset components. Ensure the shield and wave washer are correctly seated and that all bolts are torqued to the manufacturer's specifications. Dirt or insufficient grease are common culprits.
5.2. Excessive Play
If there is noticeable side-to-side play in the crankset, first check that the wave washer is present and correctly installed. Ensure the crankset is properly torqued. Worn bottom bracket bearings can also contribute to excessive play and may require replacement.
5.3. Stiff Rotation
Stiff rotation of the crankset can indicate over-tightening of the crankset bolts, incorrect installation of components (such as the shield or wave washer), or contaminated/damaged bearings. Re-check all installation steps, ensure proper torque, and inspect components for any damage or obstruction.
6. Spécifications
| Marque | Mémoire SRAM |
| Nom du modèle | PressFit 30 |
| Numéro de pièce | SRAM-CK2163 (11.6415.007.020) |
| GTIN/CUP | 710845689031 |
| Matériel | Multi |
| Finition extérieure | Noir |
| Type de service de véhicule | Vélo |
| Composants inclus | Bottom bracket shield and wave washer assembly |
| Compatibilité | SRAM and Truvativ PressFit 30 bottom brackets, SRAM BB-SPP-A0 models |
| Dimensions de l'article (LxlxH) | 4.5 x 4.25 x 0.25 pouces |
| Poids du colis | 0.01 kilogrammes |
7. Informations sur la garantie
SRAM products are covered by a limited warranty against defects in materials and workmanship. The specific terms, conditions, and duration of the warranty may vary by region and product. For detailed warranty information, please refer to the official SRAM website or contact SRAM customer support directly. It is important to retain your proof of purchase for any warranty claims.
8. Assistance et contact
For further assistance, technical documentation, or to locate an authorized service center, please visit the official SRAM website. Online resources typically include detailed installation guides, FAQs, and product specifications. You may also contact SRAM customer support for personalized assistance.
Official SRAM Website: www.sram.com
For product purchases and related inquiries on Amazon: Visit the SRAM Store on Amazon
