1. Introduction

The DMXking eDMX1 is a compact and robust single universe Ethernet DMX512 node designed for a wide range of lighting control applications. This device facilitates the conversion of Ethernet-based DMX protocols (Art-Net and sACN E1.31) to standard DMX512, allowing control of DMX-compatible lighting fixtures. It supports both DMX512 output and DMX512 input functionalities.

Image 1.1: The DMXking eDMX1 Ethernet DMX Adapter (3-Pin). This image shows the compact black enclosure of the eDMX1 adapter, featuring an Ethernet port and a USB power input port on one side, and a 3-pin DMX output/input connector on the other side (not fully visible). The top surface displays the DMXking logo, product name 'eDMX1 PRO', and regulatory markings.

2. Caractéristiques

• DMX512 Out or DMX512 In functionality over Art-Net / sACN E1.31.
• Fully compatible with Art-Net I, II, 3 & 4 and sACN protocols.
• External 5Vdc power input via USB socket. Can be powered from a computer USB port or the included USB power supply.
• Includes USB Power supply (110v).
• Configuration utility available for Windows and Mac OSX, offering basic Art-Net output/input test functionality.

3. Installation

3.1. Contenu du colis

Avant de poursuivre, assurez-vous que tous les composants sont présents :

• DMXking eDMX1 Ethernet DMX Adapter (3-Pin)
• USB Power Supply (110v)
• Câble USB

Image 3.1: The included USB Power Supply. This is a black wall adapter with a standard US two-prong plug and a USB-A output port, labeled with electrical specifications.

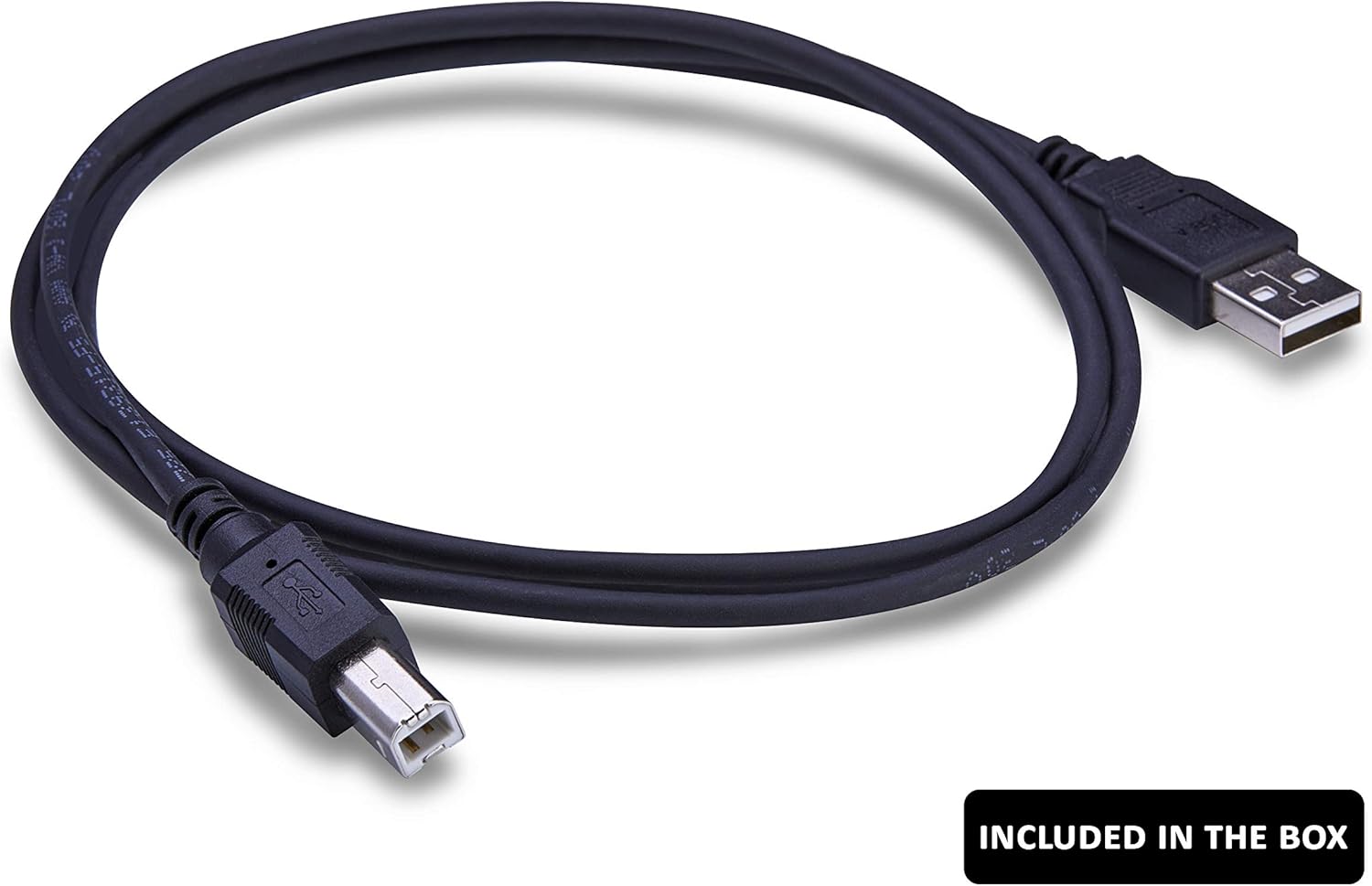

Image 3.2: The included USB Cable. This is a black USB-A to USB-B cable, used for powering the eDMX1 adapter.

3.2. Connexions physiques

1. Connexion électrique : Connect the provided USB cable to the eDMX1 adapter's USB power input. Plug the other end into the included USB power supply and then into a standard electrical outlet. Alternatively, the device can be powered from a computer's USB port.
2. Connexion Ethernet : Connect a standard Ethernet cable from your network router, switch, or directly from your computer's Ethernet port to the eDMX1 adapter's Ethernet port.
3. Connexion DMX : Connect a 3-pin DMX cable from the eDMX1 adapter to your DMX-compatible lighting fixtures or DMX input device, depending on whether you are using the eDMX1 for DMX output or input.

3.3. Initial Network Configuration

The eDMX1 adapter typically uses DHCP to obtain an IP address automatically. However, for initial setup or if your network does not use DHCP, manual configuration may be required using the DMXking configuration utility (available for Windows and Mac OSX).

Important Note on Initial IP Address:

The device may come pre-configured to receive setup commands on a specific static IP address, such as 192.168.0.111. If your network is not on the 192.168.0.xxx subnet, you may need to temporarily reconfigure your computer or router to match this subnet to access the device with the configuration utility. Once connected, you can change the eDMX1's IP settings (e.g., to DHCP or a static IP within your network's subnet) and then revert your network settings.

4. Mode d'emploi

Once the eDMX1 adapter is physically connected and configured on your network, it is ready for operation with compatible DMX software or hardware.

1. Compatibilité logicielle: The eDMX1 is compatible with any lighting control software that supports Art-Net (versions I, II, 3, & 4) or sACN E1.31 protocols. Examples include Luminair, QLab, and various PC-based DMX controllers.
2. DMX Output Mode: To send DMX data from your software to lighting fixtures, configure your software to output Art-Net or sACN to the IP address of the eDMX1. The adapter will convert this data to DMX512 and send it out through its 3-pin DMX port.
3. DMX Input Mode: To receive DMX data from a DMX console or other DMX source into your software, connect the DMX source to the eDMX1's 3-pin DMX port. Configure your software to receive Art-Net or sACN input from the eDMX1's IP address.
4. Utilitaire de configuration : Use the DMXking configuration utility to adjust network settings, DMX universe assignments, and other operational parameters as needed. The utility also provides basic test functionality for DMX output and input.

5. Entretien

The DMXking eDMX1 adapter is designed for reliable operation with minimal maintenance. Follow these guidelines to ensure longevity:

• Nettoyage: Keep the device clean and free from dust. Use a soft, dry cloth for cleaning. Avoid liquid cleaners or solvents.
• Environnement: Operate the device in a dry environment, away from excessive heat, humidity, or direct sunlight.
• Relations: Periodically check all cable connections (power, Ethernet, DMX) to ensure they are secure.
• Mises à jour du micrologiciel : Check the DMXking website periodically for any available firmware updates for your device. Follow the provided instructions carefully for any update procedures.

6. Dépannage

If you encounter issues with your eDMX1 adapter, refer to the following common troubleshooting steps:

6.1. Device Not Detected by Configuration Utility

• Vérification de l'alimentation : Ensure the eDMX1 is properly powered via the USB port. The device should show an indicator light if powered.
• Connexion Ethernet : Verify the Ethernet cable is securely connected to both the eDMX1 and your network device (router/switch/computer). Check for link lights on the Ethernet port.
• Configuration du réseau: If your computer and the eDMX1 are on different IP subnets, the utility may not find the device. Refer to Section 3.3 for details on initial IP configuration, especially if the device is set to a default static IP like 192.168.0.111. You may need to temporarily adjust your computer's IP address to match the device's subnet for initial detection.
• Pare-feu : Ensure your computer's firewall is not blocking communication with the eDMX1 or the configuration utility.

6.2. No DMX Output/Input

• Configuration du logiciel: Verify that your lighting control software is correctly configured to send/receive Art-Net or sACN data to/from the eDMX1's IP address and the correct DMX universe.
• Câble DMX : Ensure the DMX cable is correctly connected and is not faulty. For DMX output, ensure the DMX chain is properly terminated.
• eDMX1 Mode: Confirm that the eDMX1 is configured for the correct mode (DMX Output or DMX Input) using the configuration utility.

6.3. Intermittent Connectivity

• Stabilité du réseau : Ensure your Ethernet network is stable and free from interference. Avoid long or poor-quality Ethernet cables.
• Alimentation: Verify the 5Vdc power supply is stable and providing sufficient power. Try a different USB power source if available.
