1. Introduction
The Cata E 100 GT is a silent bathroom extractor fan designed to maintain a fresh and humidity-free environment in your bathroom. Featuring a modern white glass front and a perimeter extraction system, this fan efficiently removes odors and condensation. Its low power consumption and high energy efficiency make it an ideal solution for effective and quiet ventilation in bathrooms and small utility spaces.
Figure 1 : Face avant view of the Cata E 100 GT extractor fan.
2. Consignes de sécurité
Veuillez lire attentivement toutes les consignes de sécurité avant l'installation et l'utilisation. Le non-respect de ces consignes peut entraîner un choc électrique, un incendie ou des blessures.
- Installation électrique: All electrical connections must be performed by a qualified electrician in accordance with local wiring regulations and standards.
- Coupure de courant : Always disconnect the power supply before performing any installation, maintenance, or cleaning tasks.
- Ventilation: Assurez une ventilation adéquate dans la pièce où le ventilateur est installé afin d'éviter le refoulement des gaz provenant des appareils à conduit d'évacuation ouvert.
- Enfants et personnes vulnérables : Cet appareil n'est pas destiné à être utilisé par des personnes (y compris les enfants) ayant des capacités physiques, sensorielles ou mentales réduites, ou manquant d'expérience et de connaissances, à moins qu'elles ne bénéficient d'une surveillance ou d'instructions concernant l'utilisation de l'appareil par une personne responsable de leur sécurité.
- Limites de température : The thermal protector allows operation at ambient temperatures up to 40°C. Do not expose the unit to temperatures exceeding this limit.
- Dommage: Do not operate the fan if the power cord or plug is damaged, or if the unit has been dropped or damaged in any way. Contact qualified service personnel for repair.
3. Produit terminéview

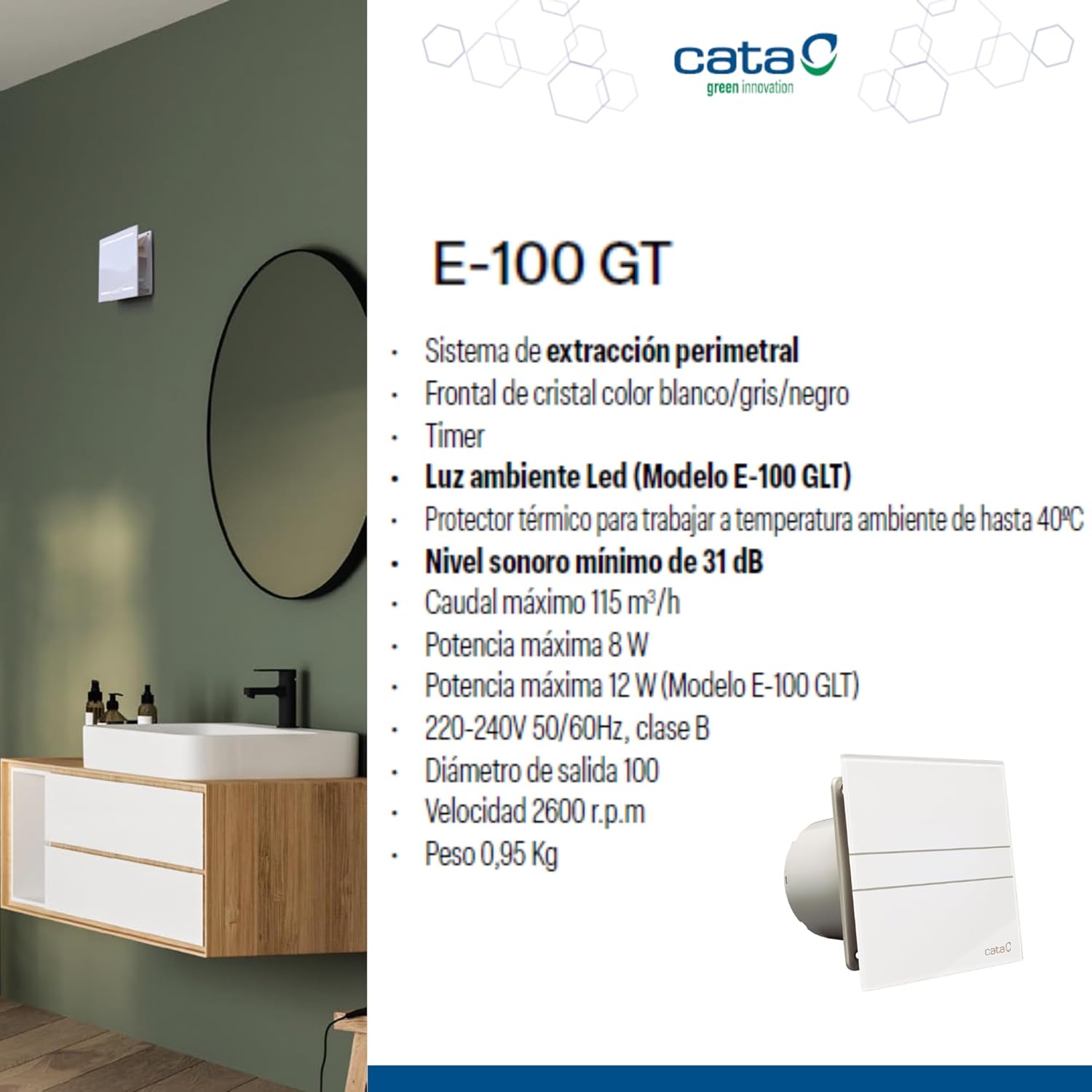

The Cata E 100 GT extractor fan combines modern design with high performance for optimal bathroom ventilation. Key features include:
- Perimeter Extraction System: Ensures efficient air circulation and removal of humidity and odors.
- White Glass Front: Provides an elegant and modern aesthetic, easy to clean.
- Minuterie intégrée : Allows programming of operating time from 3 to 15 minutes after activation.
- Protecteur thermique : Ensures safe operation at ambient temperatures up to 40°C.
- Faible niveau de bruit : Operates at a minimum sound level of 31 dB for quiet performance.
- Débit d'air élevé : Maximum airflow of 115 m³/h for rapid and effective ventilation.
- Faible consommation d'énergie : Maximum power of 8 W (220-240V 50/60Hz, Class B).
Figure 2 : Plusview of key features and cleaning process for the E-Glass series.
4. Composants inclus
The standard package for the Cata E 100 GT includes the following components:
- Cata E 100 GT Extractor Fan Unit
- Matériel de montage (vis, chevilles)
- Manuel d'instructions
- Module de minuterie : Electronic timer adjustable between 3 and 15 minutes.
- Note: Other control types (Standard, Hygro, PIR) may be available in different models or configurations. This manual focuses on the TIMER model.
5. Configuration et installation
The Cata E 100 GT extractor fan is designed for wall mounting. Ensure the installation area has a 100 mm diameter opening for the outlet duct.
- Choisissez l'emplacement: Select a suitable wall location in the bathroom, away from direct water spray, ensuring proper air circulation.
- Préparer l'ouverture : Create a circular opening of 100 mm diameter in the wall for the fan's outlet.
- Débrancher l'alimentation : Before any electrical work, ensure the main power supply to the installation area is switched off at the circuit breaker.
- Montage: Secure the fan body to the wall using appropriate screws and wall plugs. Refer to the dimensions diagram for precise measurements.
- Connexion électrique : Connect the fan to the electrical supply (220-240V 50/60Hz) according to the wiring diagram provided in the full installation guide (not included in this manual, consult a qualified electrician). Ensure proper grounding.
- Fixer le panneau avant : Once the electrical connections are secure and tested, attach the glass front panel.
- Restaurer l'alimentation : Allumez l’alimentation principale.
Figure 3: Dimensions of the Cata E 100 GT extractor fan (in mm).
6. Mode d'emploi
The Cata E 100 GT with timer functionality operates as follows:
- Activation : The fan typically activates when the light switch in the bathroom is turned on, or via a separate switch connected to the fan.
- Fonction minuterie : After the fan is activated and then switched off (e.g., by turning off the light), the integrated electronic timer will keep the fan running for a pre-set duration. This duration can be adjusted between 3 and 15 minutes.
- Réglage de la minuterie : To adjust the timer duration, carefully remove the front panel (refer to maintenance section for guidance). Locate the timer adjustment dial or screw on the fan unit. Use a small screwdriver to set the desired run-on time.
- Fonctionnement continu : For continuous operation, the fan will run as long as the power supply is active. The timer function only engages after the main power signal is interrupted.
7. Entretien
Regular cleaning ensures optimal performance and longevity of your Cata E 100 GT extractor fan.
- Débrancher l'alimentation : Always ensure the power supply to the fan is disconnected at the main circuit breaker before cleaning or performing any maintenance.
- Retirer le panneau avant : The glass front panel is designed for easy removal. Gently pull or unclip the front panel as shown in Figure 2 (or similar diagrams in the full manual) to access the fan interior.
- Clean Front Panel: Wash the glass front panel with mild soap and water. Dry thoroughly with a soft cloth. Avoid abrasive cleaners.
- Intérieur du ventilateur propre : Use a soft brush or vacuum cleaner to remove dust and debris from the fan blades and interior housing. Do not use water directly on electrical components.
- Remonter: Once all parts are clean and dry, carefully reattach the front panel.
- Restaurer l'alimentation : Allumez l’alimentation principale.
8. Dépannage
If you encounter issues with your Cata E 100 GT extractor fan, refer to the following common problems and solutions:
| Problème | Cause possible | Solution |
|---|---|---|
| Le ventilateur ne s'allume pas. | Absence d'alimentation électrique ; câblage desserré ; interrupteur défectueux. | Check circuit breaker. Ensure all connections are secure (consult electrician). Test switch. |
| Le ventilateur est excessivement bruyant. | Accumulated dust/debris on blades; loose mounting; obstruction in ducting. | Disconnect power and clean fan blades. Check mounting screws. Inspect ducting for blockages. |
| La fonction minuterie ne fonctionne pas. | Incorrect timer setting; wiring issue; faulty timer module. | Adjust timer setting (see Operating Instructions). Verify wiring (consult electrician). |
| Insufficient air extraction. | Blocked air outlet/inlet; fan blades dirty; undersized fan for room. | Clean fan and check for obstructions. Ensure proper ducting. |
If the problem persists after attempting these solutions, please contact a qualified technician or Cata customer support.
9. Spécifications
| Fonctionnalité | Détail |
|---|---|
| Numéro de modèle | E 100 GT |
| Dimensions (L x P x H) | 9.4 cm x 15 cm x 15 cm |
| Poids | 0.1 kg (100 g) |
| Consommation d'énergie | 8 W |
| Voltage | 220-240 V, 50/60 Hz |
| Capacité de flux d'air | 115 m³/h |
| Vitesse | 2600 tr/min |
| Niveau de bruit | 31 dB |
| Diamètre de sortie | 100 mm |
| Nombre de vitesses | 2 |
| Material (Front) | Glass (White Crystal) |
| Matériau (lames) | Acier allié |
| Caractéristiques spéciales | Lightweight, Thermal Protector, Timer |
| Utilisation recommandée | Bathroom, Air Circulation, Ventilation |
10. Garantie et assistance
Garantie: This product is covered by the manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official Cata webConsultez le site pour connaître les conditions générales de garantie détaillées. Conservez votre preuve d'achat pour toute réclamation au titre de la garantie.
Assistance clientèle : For technical assistance, spare parts, or any questions regarding the operation or maintenance of your Cata E 100 GT extractor fan, please contact Cata customer support. Contact details can typically be found on the manufacturer's website ou dans l'emballage du produit.
Ressources en ligne : For additional information, FAQs, or updated manuals, please visit the official Cata website: www.cata.es
