GROHE Eurocube Kitchen Faucet Model 31255000 Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your GROHE Eurocube Kitchen Faucet, Model 31255000. Designed with a clean aesthetic of straight lines and square shapes, this faucet features a durable GROHE StarLight chrome finish and GROHE SilkMove technology for smooth control. Please read these instructions carefully before proceeding with installation or use to ensure proper function and longevity of the product.

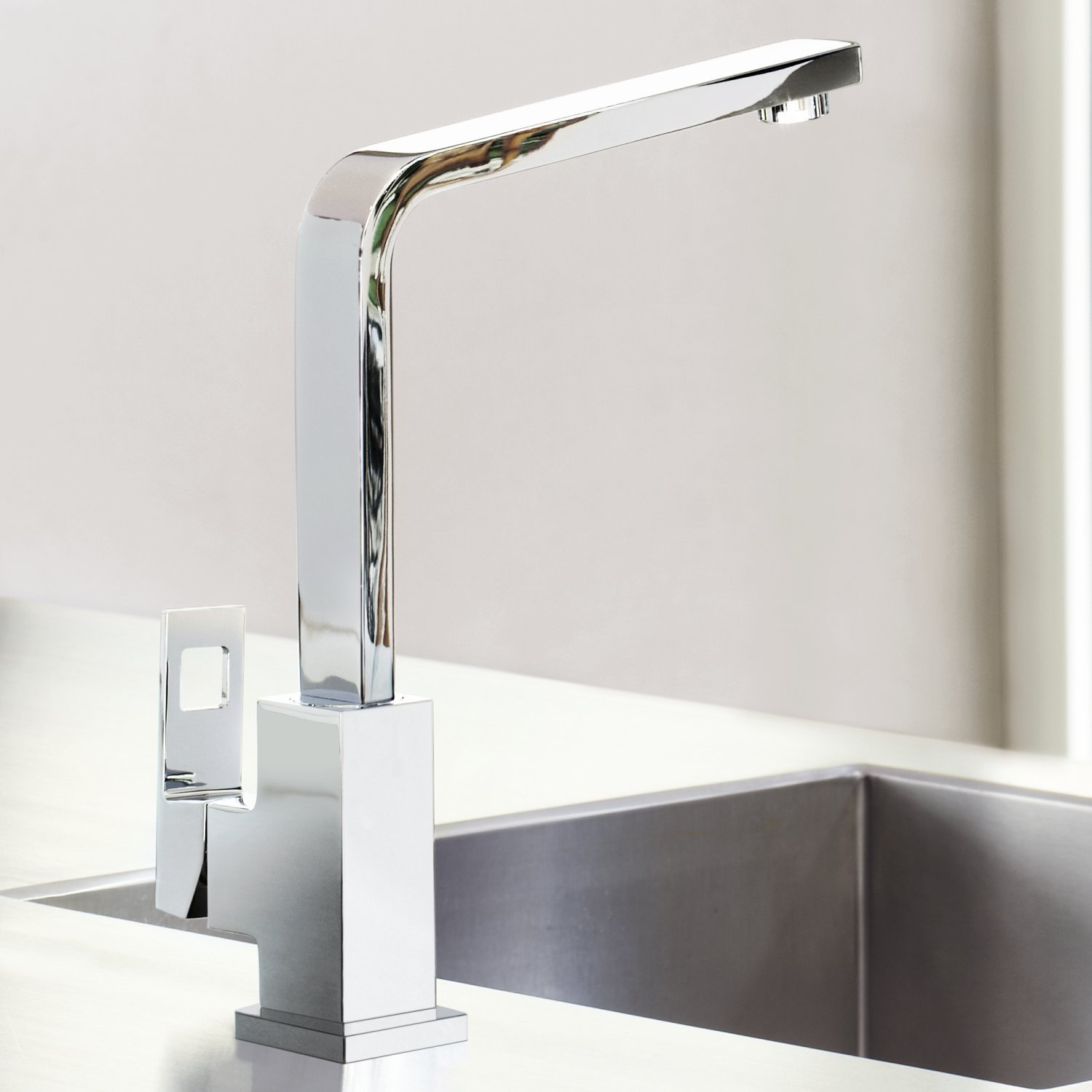

Figure 1 : The GROHE Eurocube Kitchen Faucet, Model 31255000, showcasing its distinctive cuboid design and chrome finish in a kitchen environment.

Configuration et installation

The GROHE Eurocube Kitchen Faucet is designed for single-hole installation and includes a rapid installation system for ease of setup. Ensure all necessary components are present before beginning.

Composants inclus :

• 1 x GROHE Eurocube Kitchen Faucet
• Tuyaux de raccordement flexibles
• Matériel de montage

Étapes d'installation :

1. Préparez la surface de montage : Ensure the sink or countertop has a single mounting hole with a diameter of approximately 34mm. The maximum thickness of the mounting surface should not exceed 60mm.
2. Connecter les tuyaux : Attach the flexible connection hoses to the faucet base. Ensure a secure, watertight connection.
3. Montez le robinet : Insert the faucet into the mounting hole. From underneath the sink, secure the faucet using the provided mounting hardware. Tighten firmly but do not overtighten.
4. Raccordement au réseau d'eau potable : Connect the flexible hoses to your hot and cold water supply lines. Ensure the connections are tight to prevent leaks.
5. Vérifiez les fuites : Ouvrez lentement l'arrivée d'eau principale et vérifiez tous les raccords pour détecter toute fuite.

A minimum recommended water pressure of 1.0 bar is required for optimal performance.

Figure 2 : Technical drawing illustrating key dimensions and connection points for the GROHE Eurocube Kitchen Faucet. Note the spout height, handle movement, and connection specifications.

Mode d'emploi

Your GROHE Eurocube Kitchen Faucet is designed for intuitive and comfortable use.

Contrôle du débit et de la température de l'eau :

• La poignée à levier unique permet de contrôler à la fois le débit et la température de l'eau.
• Contrôle de flux : Lift the lever upwards to increase water flow. Push downwards to decrease or stop the flow.
• Contrôle de la température : Move the lever to the left for hot water and to the right for cold water. The integrated GROHE SilkMove 28 mm ceramic cartridge ensures smooth and precise adjustment.

Fonctionnalités du bec verseur :

• The high spout design allows for easy filling and cleaning of large pots and containers.
• The spout features a 360° swivel range, providing full flexibility and convenience for various kitchen tasks, including switching between multiple sink basins le cas échéant.

Figure 3 : The faucet in operation, showing water flowing from the high spout, ideal for various kitchen tasks.

Entretien et soins

To maintain the lustrous appearance and optimal performance of your GROHE Eurocube Kitchen Faucet, follow these simple care instructions:

• Nettoyage de la finition : The GROHE StarLight chrome finish is highly durable and scratch-resistant. To clean, simply wipe the faucet down with a soft, dry cloth. For more stubborn marks, use a mild soap solution and rinse thoroughly with clean water, then dry immediately with a soft cloth.
• Évitez les nettoyants agressifs : Do not use abrasive cleaners, scouring pads, or cleaning agents containing alcohol, ammonia, or phosphoric acid, as these can damage the chrome finish.
• Entretien de l'aérateur : Periodically unscrew and clean the aerator (the mesh screen at the end of the spout) to remove any mineral deposits or debris that may affect water flow.

Dépannage

If you encounter any issues with your GROHE Eurocube Kitchen Faucet, refer to the following common solutions:

• Faible débit d'eau :
  • Check if the main water supply valves are fully open.
  • Clean the aerator for any blockages (refer to Maintenance section).
  • Verify that the minimum recommended pressure of 1.0 bar is met.
• Leaking from Faucet Base:
  • Ensure all connections to the water supply lines are securely tightened.
  • Vérifiez le serrage des fixations.
• Difficulté à régler la température/le débit :
  • The GROHE SilkMove cartridge is designed for smooth operation. If stiffness occurs, ensure no external obstructions are present. If the issue persists, professional assistance may be required.

Si votre problème persiste après avoir suivi ces étapes, veuillez contacter le service client.

Spécifications du produit

Informations sur la garantie

The GROHE Eurocube Kitchen Faucet Model 31255000 comes with a Garantie de 10 ans from the date of invoice. This warranty covers manufacturing defects and ensures the quality and durability of your product. Please retain your purchase invoice as proof of purchase for warranty claims.

Assistance clientèle

For any questions, installation guidance, or support regarding your GROHE Eurocube Kitchen Faucet, please contact our customer service team:

Toll-Free Installation Guidance: 1800 102 4475

You can also visit the official GROHE store for more product information and resources: GROHE Store on Amazon.in
