TAMIYA TS-71 Smoke Lacquer Spray Paint Instruction Manual

1. Introduction

The TAMIYA TS-71 Smoke Lacquer Spray Paint is a specialized acrylic resin spray designed for model building. This product provides a transparent glossy smoke finish suitable for various materials. This manual provides essential information for safe and effective use of the product.

Utilisation prévue : This spray paint is formulated for use on plastic, wood, metal, glass, and ceramic surfaces, primarily in model building applications. It is ideal for creating tinted effects on model car windows or other transparent parts.

2. Consignes de sécurité

DANGER! This product is an extremely flammable aerosol. The container is pressurized and may burst if heated. Always adhere to the following safety precautions:

• Provoque une irritation cutanée.
• Provoque des lésions oculaires graves.
• Nocif si inhalé.
• Peut provoquer somnolence ou étourdissements.
• L'exposition répétée peut provoquer dessèchement ou gerçures de la peau.
• Tenir hors de portée des enfants.
• Tenir à l'écart de la chaleur, des surfaces chaudes, des étincelles, des flammes nues et de toute autre source d'inflammation. Interdiction de fumer.
• Ne pas vaporiser sur une flamme nue ou toute autre source d'inflammation.
• Ne pas percer ou brûler, même après utilisation.
• Portez des gants de protection, des vêtements de protection, une protection oculaire et une protection faciale.
• Magasin fermé à clé.
• Protéger du soleil. Ne pas exposer à des températures supérieures à 50°C (122°F).
• Dispose of contents and container to an appropriate recycling or disposal facility in accordance with local regulations.

Avertissement concernant la Proposition 65 : Ce produit peut contenir des produits chimiques reconnus par l'État de Californie pour provoquer le cancer et des anomalies congénitales ou d'autres troubles de la reproduction.

Image 1: Side of the TAMIYA TS-71 Smoke spray can displaying safety warnings and hazard pictograms (flammable, irritant, general hazard).

3. Installation et préparation

3.1 Workspace Preparation

• Work in a well-ventilated area, preferably outdoors or in a spray booth.
• Protect surrounding areas from overspray using drop cloths or newspaper.
• Ensure the ambient temperature is at room temperature for optimal application (approximately 20-25°C or 68-77°F).

3.2 Préparation de la surface

• Ensure the surface to be painted is clean, dry, and free from dust, grease, oil, or other contaminants.
• For best adhesion on plastic and metal, a suitable primer may be applied first, though this lacquer can be used directly on ABS and Styrene plastic.
• Lightly sand smooth surfaces if necessary to provide a key for the paint.

3.3 Can Preparation

• Shake the spray can vigorously for at least one minute before use to ensure proper mixing of the paint. Continue shaking periodically during application.

4. Mode d'emploi

4.1 Champ d'application

1. Hold the spray can approximately 30 cm (12 inches) from the surface to be painted.
2. Apply the paint in several thin, even coats. Avoid applying a thick single coat, as this can lead to runs or an uneven finish.
3. Move the can smoothly and consistently across the surface, overlapping each pass slightly.
4. For a darker smoke effect, apply additional thin layers. The color deepens with each subsequent coat.
5. Pulvérisez toujours dans un endroit bien ventilé.

Image 2: Side of the TAMIYA TS-71 Smoke spray can detailing application instructions in German, including shaking before use and applying thin layers.

4.2 Temps de séchage

• The paint dries relatively fast.
• Allow sufficient drying time between coats (typically 10-15 minutes, depending on humidity and temperature).
• For full curing and durability, allow 12-24 hours of drying time before handling the painted object extensively.

5. Maintenance et stockage

5.1 Post-Use Cleaning

• After each use, invert the can and spray for a few seconds until only clear propellant comes out. This clears the nozzle and prevents clogging.
• Wipe the nozzle clean with a cloth.

5.2 Stockage

• Store the can in a cool, dark place, away from direct sunlight and heat sources.
• Ensure the storage area does not exceed 50°C (122°F).
• Keep the can tightly capped when not in use.

Image 3: Top of the TAMIYA TS-71 Smoke spray can, showing the color and finish, along with storage instructions in Japanese.

6. Dépannage

• Buse bouchée : If the nozzle clogs, remove it and soak it in lacquer thinner. If it remains clogged, replace it with a new nozzle. Always clear the nozzle after use as described in Section 5.1.
• Uneven Finish/Runs: This usually occurs from applying too much paint in one coat or holding the can too close. Apply lighter, more even coats from the recommended distance.
• Mauvaise adhérence : Ensure the surface is thoroughly cleaned and prepared. For challenging surfaces, consider using a compatible primer.
• Paint Not Drying: Ensure adequate ventilation and appropriate room temperature. High humidity can prolong drying times.

7. Spécifications

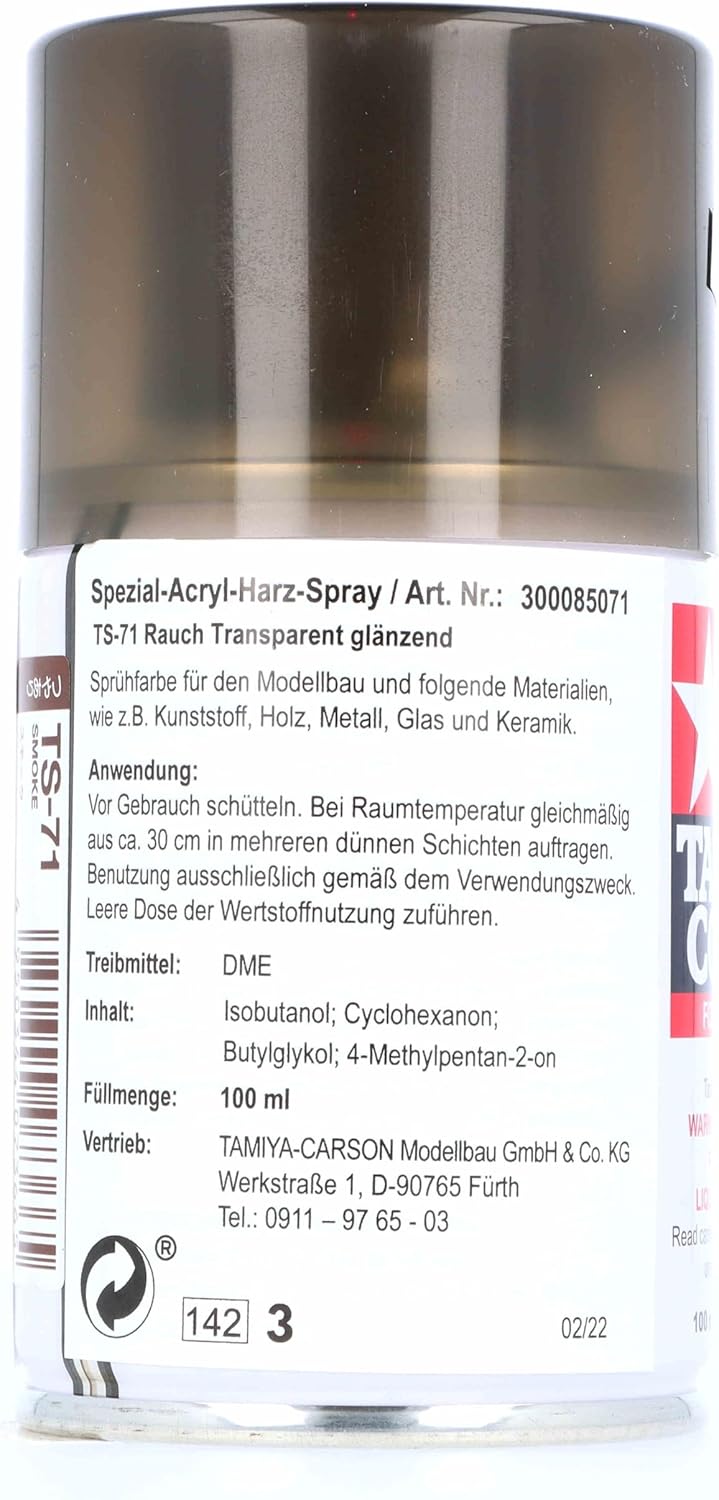

Image 4: Side of the TAMIYA TS-71 Smoke spray can showing product details, ingredients, and barcode (UPC/EAN: 4950344073665).

8. Élimination

Dispose of the empty container and any remaining product in accordance with local regulations for hazardous waste or aerosol cans. Do not puncture or incinerate the can, even when empty.

9. Garantie et assistance

For specific warranty information or technical support, please contact TAMIYA customer service directly. Contact details can typically be found on the manufacturer's official website ou emballage du produit.
