ELECROW AI Starter Kit for Jetson Orin Nano Instruction Manual

1. Introduction

The ELECROW AI Starter Kit for Jetson Orin Nano is a comprehensive development platform designed for artificial intelligence and embedded systems learning and application. This kit integrates a variety of sensors, an 8MP gimbal camera, and an 11.6-inch IPS screen, providing a no-soldering, plug-and-play experience. It is intended for users to explore AI edge computing, robotics, and visual recognition through practical Python tutorials.

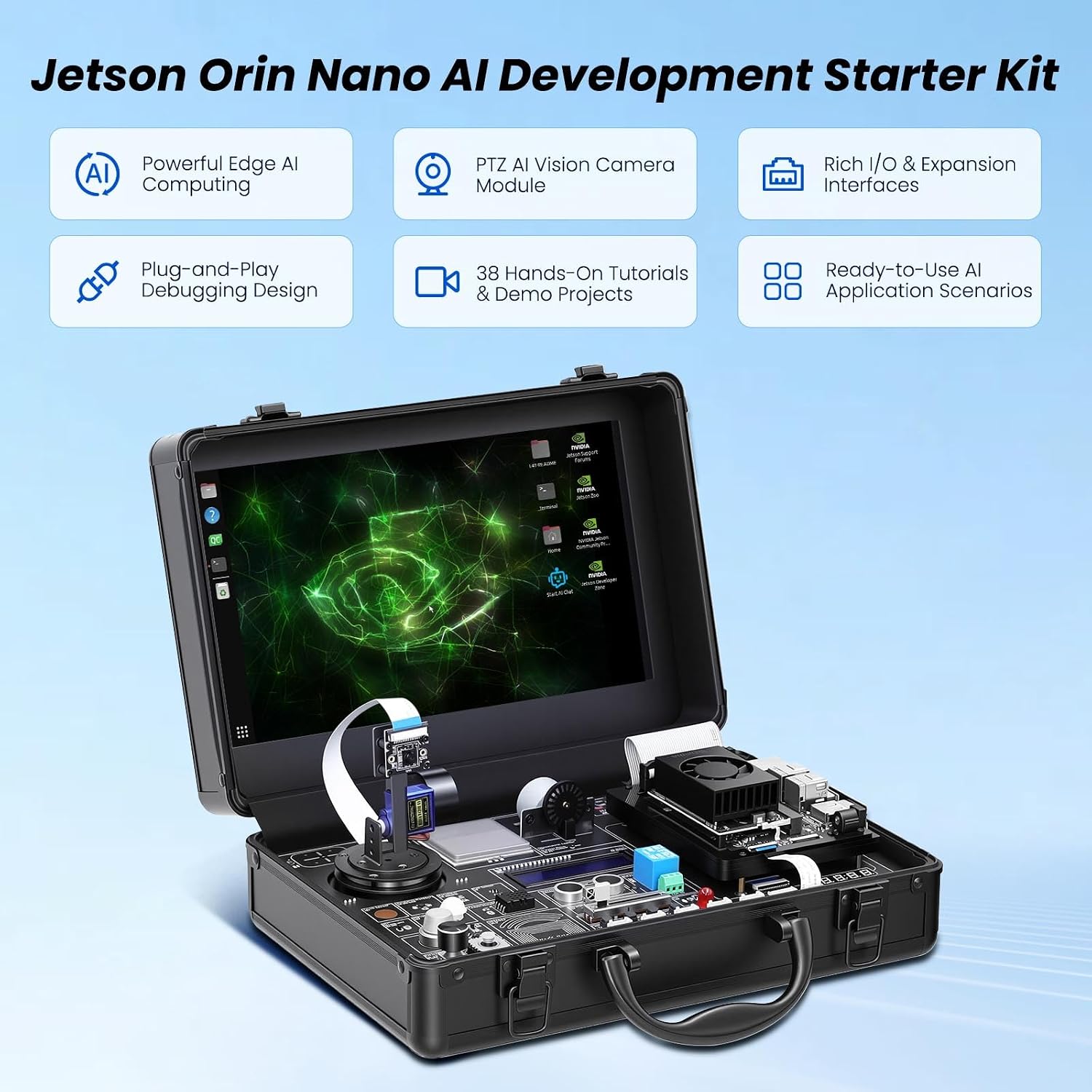

Image 1.1 : Terminéview of the ELECROW AI Starter Kit for Jetson Orin Nano, showcasing its portable design with an integrated screen and various components.

2. Installation

This section outlines the steps to set up your ELECROW AI Starter Kit. The kit is designed for a plug-and-play experience, minimizing the need for complex wiring or soldering.

2.1 Déballage et identification des composants

Carefully unpack all components from the custom carrying case. Verify that all items listed in the packing list are present.

• 1x AI Starter Kit for Jetson Nano (main unit with integrated screen and sensor board)
• Télécommande IR 1x
• 1x NFC Card
• 1x 128G SD Card (pre-installed or to be installed)
• 1x 40-pin GPIO Cable
• 2x 22-pin FPC Cable
• 2x 24-pin FPC Cable
• 1x Jetson DP&USB Adapter Board
• 4x Acrylic Mounting Plates

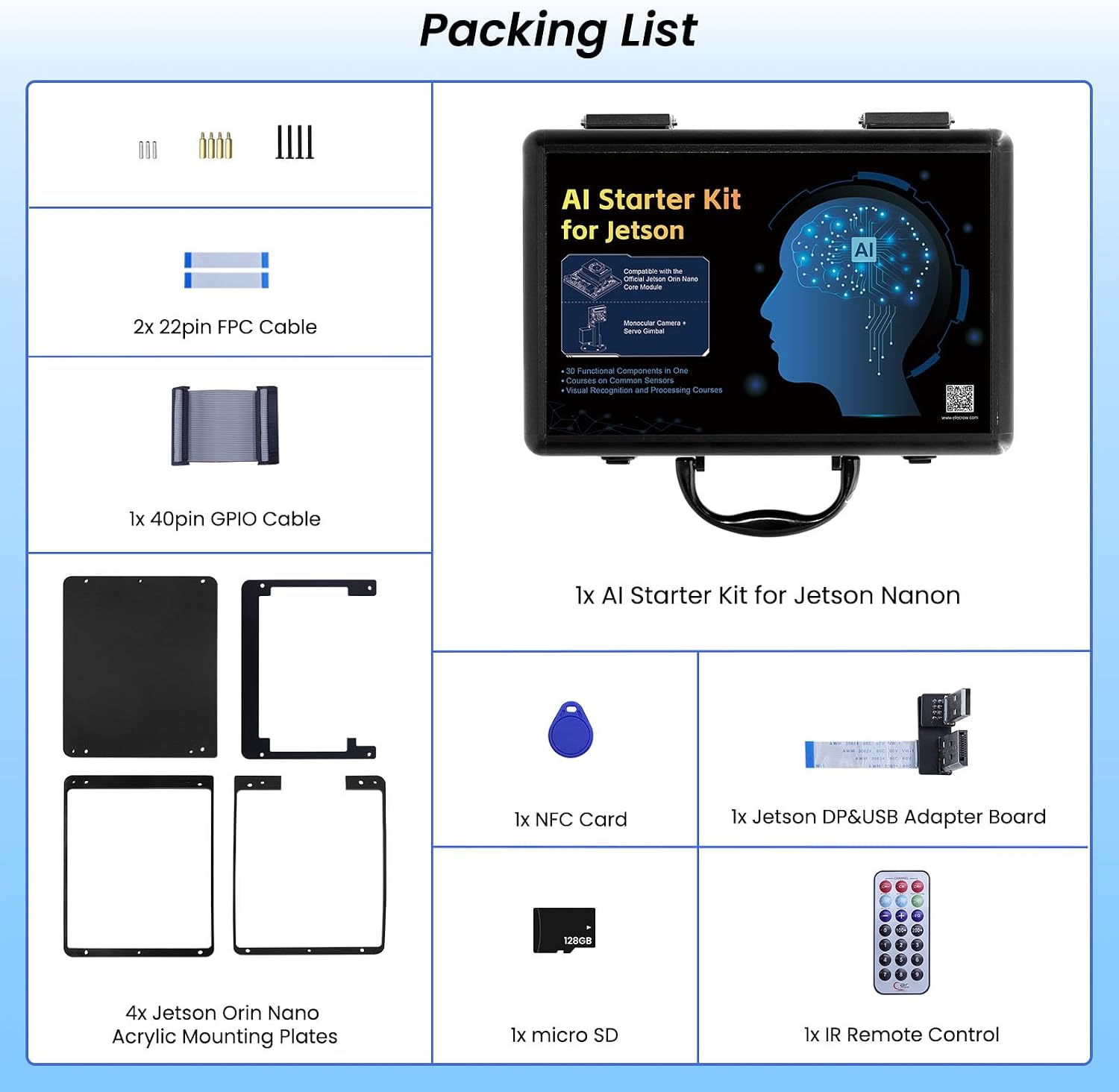

Image 2.1 : Détail view of the kit's packing list, illustrating each included accessory.

2.2 Installing the Jetson Orin Nano Board (if not pre-installed)

The kit is designed to accommodate a Jetson Orin Nano board (not included). Follow these steps to install it:

1. Open the main unit case.
2. Locate the designated slot for the Jetson Orin Nano board.
3. Carefully insert the Jetson Orin Nano board into its connector.
4. Secure the board using the provided screws or fasteners.
5. Connect any necessary FPC cables or GPIO cables as indicated in the specific Jetson Orin Nano documentation.

Video 2.2: A short video demonstrating the process of fixing the core board top plate, which is part of the Jetson Orin Nano installation.

2.3 Mise sous tension initiale

Connect the power adapter to the kit and a power outlet. The integrated 11.6-inch IPS screen should power on, displaying the operating system interface.

3. Fonctionnement

This section details the primary operational features of the ELECROW AI Starter Kit.

3.1 30-in-1 No-Solder Sensor Board

The kit features an integrated sensor board with 30 functional sensors. These include temperature and humidity, ultrasonic ranging, gas, and motion sensors. The design allows for direct use without soldering or complex wiring. Refer to the provided Python tutorials for examples on how to interact with each sensor.

Image 3.1: An illustration of the 30-in-1 sensor board, highlighting the various integrated sensors and components.

3.2 8MP Gimbal Camera and Dual Servos

The kit includes an IMX219 8MP monocular camera mounted on a dual-servo gimbal. This setup supports advanced AI vision applications such as face recognition and intelligent object tracking. The gimbal allows for precise camera movement and positioning.

Image 3.2 : Un aperçu détaillé view of the 8MP HD camera with servo control, demonstrating its capability for face recognition and intelligent object tracking.

3.3 11.6-inch IPS HD Screen

The integrated 1366x768 resolution IPS screen provides a direct visual interface for your projects, eliminating the need for an external monitor. This enables a self-contained development and experimentation environment.

Image 3.3: The integrated 11.6-inch IPS screen in operation, showing its display capabilities.

3.4 AI Voice Interaction System

An exclusive AI voice interaction system is built into the kit, allowing for intelligent Q&A and voice command control. This feature facilitates natural human-computer dialogue and interaction with your AI projects.

3.5 Python Tutorials and Project Development

The kit includes 38 step-by-step Python tutorials, ranging from basic programming concepts to advanced vision practice. These tutorials cover sensor control, embedded development, and AI visual recognition, guiding users through practical applications.

Image 3.4 : Un example of the Python course content and vision practice tutorials included with the kit.

Video 3.5: An official product video demonstrating the ELECROW AI Starter Kit for Jetson Orin Nano with its 11.6-inch IPS screen and various functionalities.

4. Entretien

Proper maintenance ensures the longevity and optimal performance of your AI Starter Kit.

• Nettoyage: Use a soft, dry cloth to clean the screen and exterior surfaces. Avoid abrasive cleaners or solvents. For sensitive electronic components, use compressed air to remove dust.
• Stockage: When not in use, store the kit in its original carrying case in a cool, dry environment to protect it from dust, moisture, and physical damage.
• Mises à jour logicielles : Regularly check for and install operating system and software updates for the Jetson Orin Nano board to ensure security and access to the latest features and bug fixes.
• Gestion des composants : Handle all electronic components, especially the camera and sensor board, with care to prevent damage. Avoid applying excessive force to connectors or cables.

5. Dépannage

This section provides solutions to common issues you might encounter with your ELECROW AI Starter Kit.

5.1 Problèmes d'alimentation électrique

• Kit does not power on:
  1. Ensure the power adapter is securely connected to both the kit and a working power outlet.
  2. Vérifiez que la prise de courant est fonctionnelle en la testant avec un autre appareil.
  3. Vérifiez que l'adaptateur secteur ne présente aucun dommage visible.

5.2 Problèmes d'affichage

• Screen remains blank:
  1. Confirm the Jetson Orin Nano board is correctly installed and powered.
  2. Check the FPC cables connecting the screen to the main board for secure connections.
  3. Restart the kit.

5.3 Sensor or Camera Malfunction

• Sensor not responding or camera not detected:
  1. Ensure all cables (FPC, GPIO) are properly connected to the sensor board and camera module.
  2. Verify that the correct software drivers and libraries are installed and configured for the specific sensor or camera in your operating system.
  3. Consult the Python tutorials for specific code examples and troubleshooting steps related to individual sensors.
  4. Restart the Jetson Orin Nano board.

5.4 Software and Tutorial Issues

• Python tutorials not running or errors encountered:
  1. Ensure your Python environment is correctly set up with all required libraries (e.g., OpenCV, NumPy, Jetson.GPIO).
  2. Check for syntax errors in your code.
  3. Refer to the official ELECROW documentation or community forums for updated information and support.

6. Spécifications

7. Garantie et assistance

7.1 Informations sur la garantie

The ELECROW AI Starter Kit for Jetson Orin Nano comes with a Garantie constructeur de 1 ansCette garantie couvre les défauts de matériaux et de fabrication dans des conditions normales d'utilisation. Veuillez conserver votre preuve d'achat pour toute réclamation au titre de la garantie.

7.2 Assistance technique

For technical assistance, detailed documentation, or further inquiries, please visit the official ELECROW website or contact their customer support. Online resources, including forums and FAQs, may also be available to assist with common questions and project development.

Note: The Jetson Orin Nano board itself is not included in this kit and its warranty and support are provided by NVIDIA or its respective manufacturer.
