1. Produit terminéview

The JideTech 5MP PoE IP Bullet Camera is designed for both indoor and outdoor surveillance, offering high-resolution video and advanced detection capabilities. It features a 1/2.8" Mstar SSC30KQ Chip and IMX335 Sensor, delivering smooth 2560 x 1920 resolution at 30 frames per second. Key features include 120 feet color night vision, human/vehicle detection, two-way audio, and IP66 weatherproofing.

Figure 1.1: JideTech 5MP PoE IP Bullet Camera. This image displays the main unit of the JideTech 5MP PoE IP Bullet Camera.

2. Contenu de la boîte

Vérifiez que tous les composants sont présents dans le package :

• 1x JideTech 5MP PoE Camera (Outdoor)
• 1x Manuel d'utilisation
• 1x Installation Screw Package
• 1x Tail Line Waterproof Cap

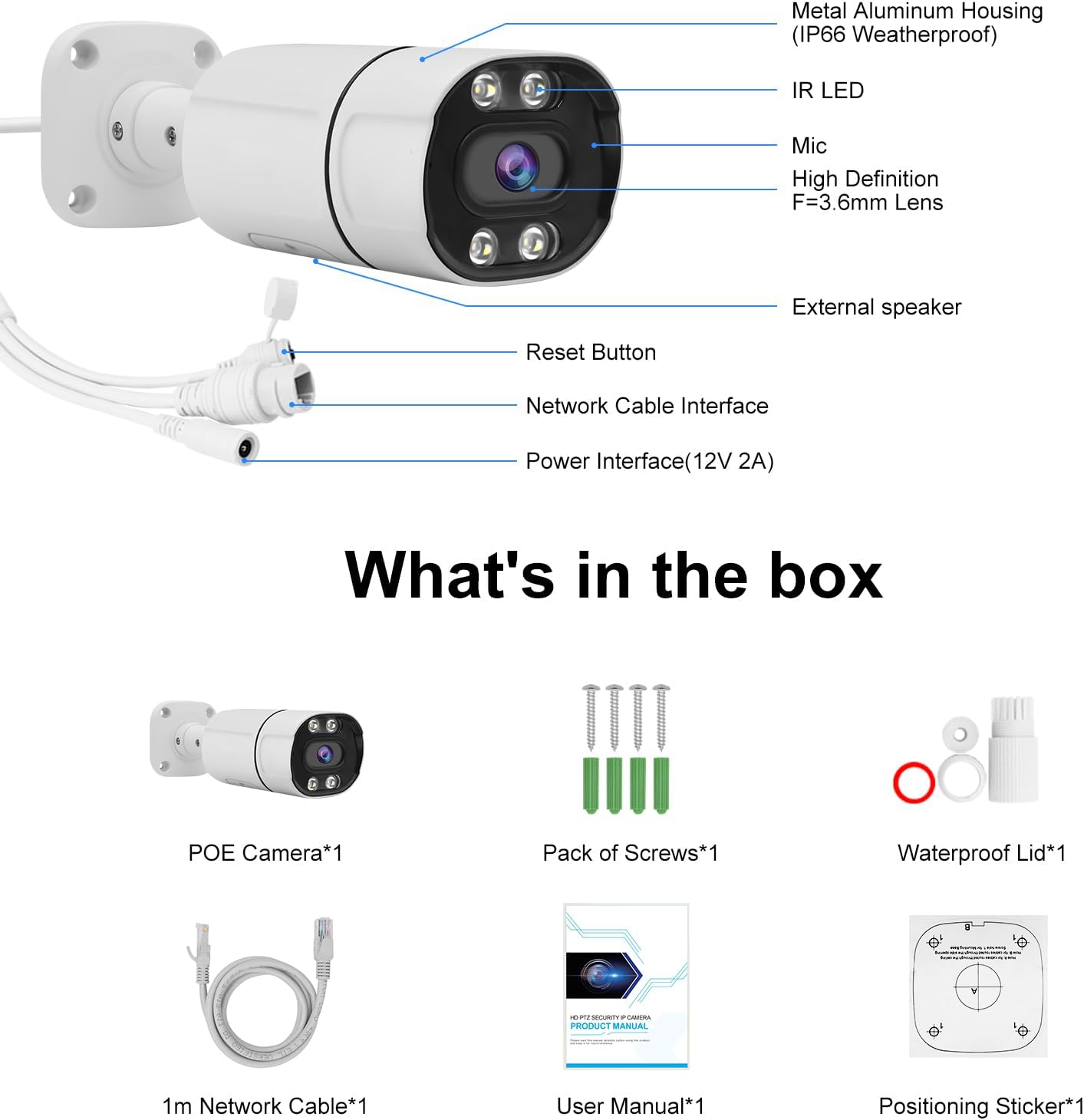

Figure 2.1: Package Contents. This image displays the JideTech 5MP PoE camera, installation screws, user manual, and tail line waterproof cap.

3. Configuration et installation

The JideTech 5MP PoE IP Bullet Camera offers flexible connection options. Ensure proper power and network connections for optimal performance.

3.1 méthodes de connexion

There are three primary ways to connect your PoE IP camera:

1. Connect via NVR PoE (Power over Ethernet)
2. Connect by DC12V Power Supply
3. Connect via PoE Injector or PoE Switch

3.2 Étapes de connexion détaillées

Method 1: Connect via NVR PoE

This method simplifies installation by providing both power and data through a single Ethernet cable from a Power over Ethernet (PoE) Network Video Recorder (NVR).

1. Connect one end of an Ethernet cable to the camera's PoE port.
2. Connect the other end of the Ethernet cable to a PoE port on your NVR.
3. Ensure the NVR is connected to your router and a power source.
4. Connect a monitor to the NVR to view l'alimentation de la caméra.
5. Access the NVR interface to configure and view la caméra.

Figure 3.2: NVR PoE Connection Diagram. This diagram illustrates how to connect the camera to a PoE NVR, which then connects to a router and monitor for local viewing, and allows remote access via mobile devices.

Method 2: Connect by DC12V Power Supply

This method uses a separate power adapter for the camera and connects to your network via a standard Ethernet cable to a router.

1. Connect the DC12V power adapter to the camera's power input.
2. Branchez l'adaptateur secteur sur une prise électrique standard.
3. Connectez une extrémité d'un câble Ethernet au port LAN de la caméra.
4. Connectez l'autre extrémité du câble Ethernet à un port LAN disponible sur votre routeur.
5. Ensure your router is powered on and connected to the internet for remote access.

Figure 3.3: DC12V Power Supply Connection Diagram. This diagram illustrates connecting the camera to a router using a DC12V power supply for power and an Ethernet cable for data, enabling access via mobile devices and laptops.

Method 3: Connect via PoE Injector or PoE Switch

This method is suitable when you need to power the camera over Ethernet but do not have a PoE NVR. A PoE injector or switch provides the necessary power.

1. Connect one end of an Ethernet cable to the camera's PoE port.
2. Connect the other end of this Ethernet cable to a PoE output port on a PoE injector or PoE switch.
3. Connect the PoE injector/switch to a power source.
4. Connect a standard Ethernet cable from the PoE injector/switch's data input (or an uplink port on the switch) to a LAN port on your router.
5. Assurez-vous que tous les appareils sont allumés.

Figure 3.4: PoE Injector/Switch Connection Diagram. This diagram illustrates connecting the camera to a PoE switch, which provides both power and data, and then connects to a router for network access.

4. Mode d'emploi

4.1 Accès initial et configuration

After connecting the camera, you will need to access its interface for initial setup. This typically involves using a dedicated mobile application (e.g., "Viedolink" for iOS/Android) or a web navigateur sur un ordinateur connecté au même réseau.

• Download the "Viedolink" app from your device's app store.
• Suivez les instructions de l'application pour ajouter votre caméra. Cela implique généralement de scanner un code QR sur la caméra ou de saisir manuellement son identifiant.
• Set up a secure password for your camera.
• Configure network settings if necessary (e.g., static IP address).

4.2 Surveillance et enregistrement vidéo

The camera provides Ultra HD 5MP resolution (2560 x 1920@30fps) for clear video monitoring.

Figure 4.1: 5MP Full HD Image Quality. This image demonstrates the superior clarity and detail provided by the 5MP resolution compared to a 2MP image.

The camera supports up to a 512GB MicroSD card for local storage. Recording options typically include continuous recording, scheduled recording, and event-triggered recording (e.g., motion detection).

4.3 Vision nocturne

The camera features advanced night vision capabilities, providing clear images up to 120 feet (36 meters) in low-light conditions, including color night vision.

Figure 4.2: 5MP Day & Night Vision. This image illustrates the camera's ability to capture clear video both during the day and at night, with night vision extending up to 120 feet.

4.4 Human/Vehicle Detection and Motion Alerts

Utilizing cutting-edge detection algorithms, the camera can accurately identify people and vehicles, reducing false alarms from other movements. When a person or vehicle is detected, the camera sends real-time alert messages to your mobile phone or email.

Figure 4.3: Smart Human/Vehicle Detection. This image demonstrates the camera's intelligent detection capabilities, distinguishing between human and vehicle movement.

Figure 4.4: Motion Detection and Alarm. This image illustrates how the camera detects motion and sends instant alerts via email or app notifications, allowing for timely action.

4.5 Audio bidirectionnel

The built-in microphone and speaker enable two-way communication through the camera. This allows you to speak with visitors or deter intruders directly via the app.

Figure 4.5: Two-Way Audio Communication. This image demonstrates the camera's two-way audio feature, allowing real-time conversation with individuals near the camera.

5. Entretien

To ensure the longevity and optimal performance of your JideTech 5MP PoE IP Bullet Camera, follow these maintenance guidelines:

• Nettoyage: Nettoyez régulièrement l'objectif de l'appareil photo avec un chiffon doux et sec.amp cloth to remove dust, dirt, or smudges that may affect image quality. Avoid abrasive cleaners.
• Protection contre les intempéries : The camera features an IP66 waterproof rating and a stable aluminum casing, designed to withstand various weather conditions (hot, snow, rain). However, ensure the tail line waterproof cap is securely installed to protect connections.
• Mises à jour du micrologiciel : Vérifiez périodiquement les instructions du fabricant. website or the Viedolink app for firmware updates. Keeping the firmware updated ensures access to the latest features and security enhancements.
• Gestion des câbles: Assurez-vous que tous les câbles sont correctement connectés et protégés contre les dommages environnementaux ou les tamper.

Figure 5.1: IP66 Waterproof Rating. This image emphasizes the camera's robust design, capable of operating reliably in diverse weather conditions.

6. Dépannage

If you encounter issues with your JideTech 5MP PoE IP Bullet Camera, refer to the following common troubleshooting steps:

• Aucune image/Hors ligne :
  • Check all power connections to the camera, NVR, PoE switch/injector, and router.
  • Verify that Ethernet cables are securely connected and not damaged.
  • Ensure the camera and NVR/router are on the same network segment.
  • Restart the camera, NVR, and router.
• Mauvaise qualité d'image :
  • Nettoyez l'objectif de l'appareil photo.
  • Vérifiez la présence d'obstructions dans le champ de vision de la caméra. view.
  • Ensure sufficient lighting for night vision if applicable.
  • Verify camera resolution settings in the app or NVR.
• La détection de mouvement ne fonctionne pas :
  • Vérifiez les paramètres de sensibilité de la détection de mouvement dans l'application.
  • Vérifiez que les zones de détection sont correctement configurées.
  • Verify notification settings (app push, email) are enabled and correctly configured.
• Problèmes audio bidirectionnels :
  • Check microphone and speaker volume settings in the app.
  • Ensure there are no physical obstructions blocking the microphone or speaker.
  • Test network connectivity, as audio streaming requires a stable connection.

If these steps do not resolve the issue, please refer to the support section of this manual.

7. Spécifications

8. Garantie et assistance

JideTech is committed to providing quality products and customer satisfaction. For any issues or inquiries regarding your camera, please contact JideTech customer service.

• Contact: Refer to the contact information provided in the product packaging or on the official JideTech website. You may also contact the seller via the Amazon platform.
• Garantie: Information regarding the product warranty period and terms can be found in the included warranty card or on the manufacturer's website.
