Airpher K25 Cordless Vacuum Cleaner User Manual

Introduction

Thank you for choosing the Airpher K25 Cordless Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new appliance. Please read it thoroughly before use and retain it for future reference.

Figure 1: Airpher K25 Cordless Vacuum Cleaner and Included Accessories

The Airpher K25 is a versatile and powerful cleaning solution designed for various surfaces, including carpets, hardwood floors, and tiles. Its advanced features, such as AI auto-suction and a dual-motor system, ensure thorough cleaning performance.

Installation

1. Assemblage

The Airpher K25 features a modular design for easy assembly and versatility. Connect the main vacuum body to the adjustable extension rod, and then attach the V-shaped anti-tangle floor brush. Ensure all connections click securely into place.

Figure 2: Main components of the Airpher K25 for assembly.

2. Chargement de la batterie

The vacuum is powered by an upgraded eight-cell removable battery. It supports two charging methods:

1. Chargeur de batterie amovible : Remove the battery pack and connect it directly to the adapter.
2. Wireless Wall Mount Charging: Install the included wall hanger in a convenient location. The vacuum can be mounted on the wall hanger, and the adapter can be plugged into the hanger to charge the battery while stored.

A full charge takes approximately 2.5 hours. The smart touch display will indicate the battery level.

Figure 3: Two convenient charging methods for the Airpher K25 battery.

Mode d'emploi

1. Power Modes and AI Auto-Adjusting Suction

The Airpher K25 features a user-friendly smart touch display to manage power modes and monitor status. Press the power button to turn on the vacuum. Cycle through the three manual power modes by pressing the mode switch button:

• Level 1 Light (20KPA): For daily hard floor cleaning (up to 70 minutes runtime).
• Level 2 Medium (45KPA): For general cleaning and crumbs (up to 40 minutes runtime).
• Level 3 Heavy (65KPA): For deep cleaning and stubborn pet hair (up to 20 minutes runtime).

The AI-powered chip automatically senses debris size and boosts suction by 30% in just 0.2 seconds for optimal performance and battery efficiency.

Figure 4: AI-powered auto-adjusting suction adapts to different debris types.

2. Utilisation des pièces jointes

The Airpher K25 comes with a 3-in-1 tool kit for versatile cleaning:

• V-Shaped Anti-Tangle Floor Brush: Ideal for all floor types, especially hardwood and carpets, minimizing hair wrap.
• Brosse à poussière 2 en 1 : Pour le nettoyage des surfaces délicates, des tissus d'ameublement et des intérieurs de voiture.
• Suceur plat : For reaching tight corners, edges, and narrow gaps.

These attachments can be connected directly to the main body for handheld use or to the extension rod for extended reach.

Figure 5: The 3-in-1 versatile brush set for comprehensive cleaning.

3. Smart Lighting and Maneuverability

The floor brush is equipped with a 140° wide-angle green light that illuminates hidden dust, making it 16 times more visible than standard LED lights. The flexible brush head allows for easy maneuvering around furniture and into tight spaces.

Figure 6: Green light on the floor brush reveals hidden dust for thorough cleaning.

Entretien

1. Vider la poubelle

The Airpher K25 features a large 1.5-liter dust collection cup. To empty, simply press the one-click release button located on the dustbin to dispose of accumulated debris directly into the trash without touching the contents.

Figure 7: One-click empty feature for convenient dustbin disposal.

2. Nettoyage et remplacement du filtre

The vacuum utilizes a dual HEPA filtration system, trapping up to 99.97% of fine dust. The outer HEPA filter can be removed in 1 second for easy cleaning. The integrated Filter Cone Cyclone System separates large debris from fine particles, reducing clogging and extending the HEPA filter's lifespan by up to 2 times.

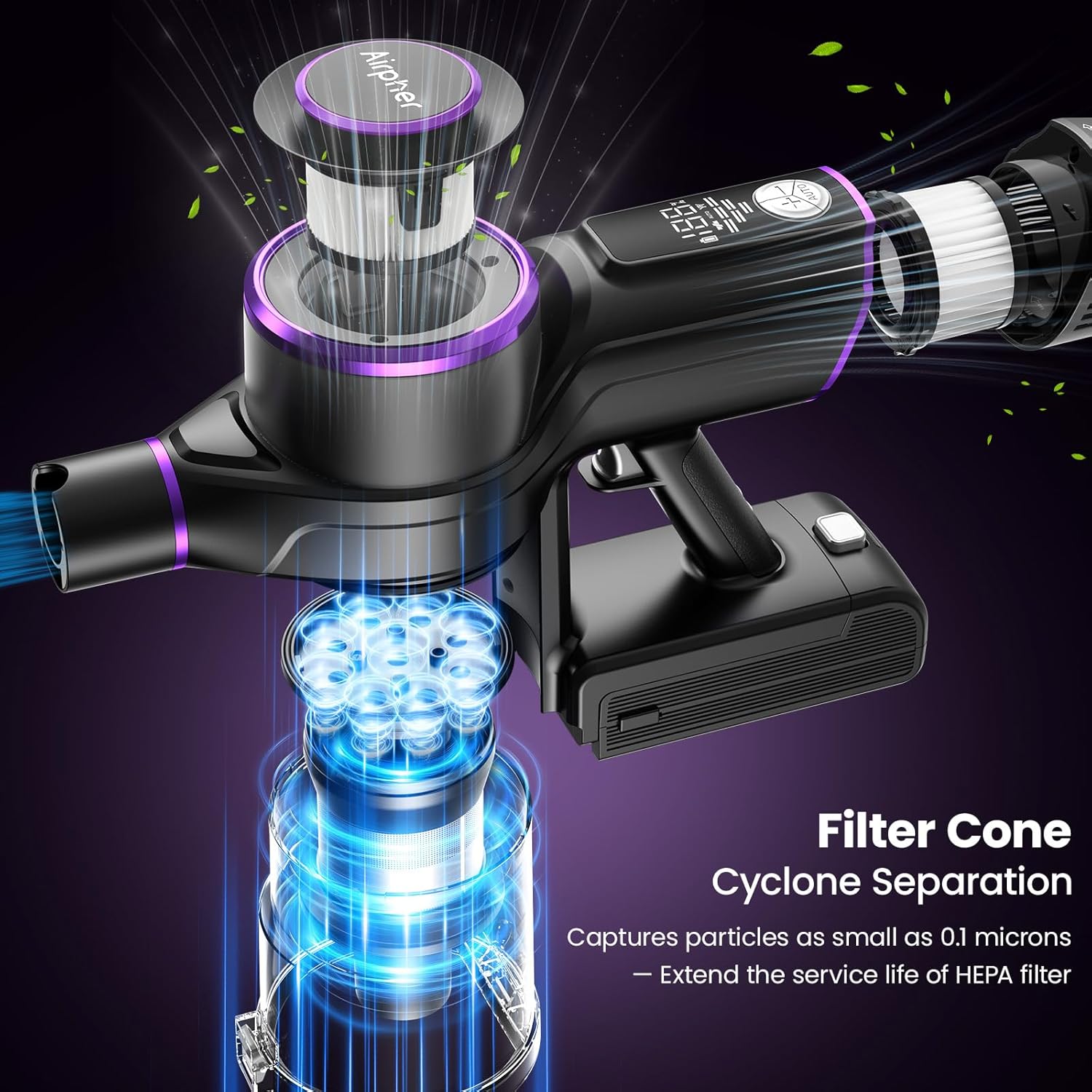

Figure 8: Dual HEPA filters and cone cyclone separation for efficient filtration.

3. Entretien du rouleau de brosse

The V-shaped anti-tangle brush is designed to minimize hair wrap. Regularly check the brush roll for any entangled hair or debris and remove it to maintain optimal cleaning performance.

Dépannage

If you encounter any issues with your Airpher K25, please refer to the following common solutions:

• Pas d'alimentation : Ensure the battery is fully charged. Check that the battery pack is securely inserted.
• Aspiration réduite : Empty the dustbin if it's full. Clean or replace the HEPA filters. Check the brush roll and extension rod for blockages.
• Rouleau de brosse ne tournant pas : Check for entangled hair or debris in the brush roll and remove any obstructions.
• Indicateurs d'erreur : The smart touch display will show specific icons for low battery, brush roll entanglement, or full dustbin/clogged filter. Address the indicated issue.

Pour obtenir de l'aide supplémentaire, veuillez contacter le service client.

Caractéristiques

Garantie et assistance

The Airpher K25 Cordless Vacuum Cleaner comes with a 3-year after-sale service and 7x24h customer support. For any inquiries or assistance, please contact the manufacturer's support team.
