Introduction
Thank you for choosing the ALFORDSON Arco-Grey Ergonomic Office Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new chair. Designed for comfort and support during long hours, this chair features a breathable mesh back, dynamic lumbar support, an adjustable headrest, and versatile flip-up armrests. Please read these instructions carefully before assembly and use.
Image: The ALFORDSON Arco-Grey Ergonomic Office Chair in use, demonstrating its suitability for a home office environment.
Consignes de sécurité
- Capacité de poids maximale : Cette chaise est conçue pour supporter un poids maximal de 180 kg (396 lbs). Ne dépassez pas cette limite.
- Assemblée: Ensure all parts are correctly assembled and all screws are tightened before use. Periodically check and re-tighten screws.
- Stabilité: Do not stand on the chair. Avoid leaning excessively to one side or backward to prevent tipping.
- Enfants: Tenez les enfants éloignés de la chaise pendant le montage. Ne laissez pas les enfants jouer sur ou avec la chaise.
- Mouvement: Use caution when moving the chair, especially on uneven surfaces.
- Entretien: Do not use abrasive cleaners or harsh chemicals on any part of the chair.
Contenu du colis
Please verify that all components are present before beginning assembly. Refer to the assembly diagram for a visual representation of all parts.
- Pied de chaise (5 étoiles)
- Roulettes (5 pièces)
- Vérin à gaz
- Mécanisme de siège
- Coussin de siège
- Dossier
- Accoudoirs (2 pièces)
- Appuie-tête
- Kit de visserie (vis, rondelles, clé Allen)
Image: Key structural components of the chair, highlighting the reinforced steel base, SGS certified gas lift, durable nylon base, and smooth-rolling universal wheels.
Configuration et assemblage
Follow these steps to assemble your ALFORDSON Arco-Grey Ergonomic Office Chair. It is recommended to assemble the chair on a soft, clean surface to prevent damage.
- Fixez les roulettes à la base : Insert each caster into the holes at the end of each leg of the 5-star chair base until it clicks securely into place.
- Insérer le vérin à gaz : Place the gas lift cylinder into the center hole of the assembled chair base. Ensure it is seated firmly.
- Mécanisme de fixation du siège : Alignez le mécanisme du siège avec les trous pré-percés sous le coussin. Fixez-le à l'aide des vis et de la clé Allen fournies. Assurez-vous que l'avant du mécanisme soit orienté vers l'avant du siège.
- Fixez les accoudoirs : Fixez les accoudoirs sur les côtés du coussin d'assise à l'aide des vis fournies. Ne les serrez pas complètement pour le moment.
- Fixez le dossier : Align the backrest with the mounting plates on the seat mechanism and armrests. Secure it with screws. Once the backrest is attached, fully tighten all armrest screws.
- Fixer l'appui-tête : Slide the headrest into the designated slots at the top of the backrest. Adjust to your preferred height and angle.
- Raccordez le siège au vérin à gaz : Placez soigneusement l'assise et le dossier assemblés sur le vérin à gaz, en veillant à ce que l'orifice central du mécanisme d'assise soit aligné avec le haut du vérin. Appuyez fermement pour fixer le tout.
Mode d'emploi
Your ALFORDSON Arco-Grey chair offers several adjustment features to customize your seating experience.
1. Réglage de la hauteur du siège
To adjust the seat height, pull the lever located under the right side of the seat upwards. While holding the lever, stand up to raise the seat or remain seated and apply pressure to lower it. Release the lever to lock the height.
2. Fonction d'inclinaison du dossier
The backrest can recline up to 120 degrees. To recline, pull the lever located under the left side of the seat upwards and lean back. Release the lever at your desired angle to lock the recline. To return to an upright position, pull the lever again and lean forward slightly.
Image: Visual guide to the chair's adjustable recline, 360-degree swivel capability, and the 10 cm seat height adjustment range.
3. Accoudoirs relevables
The armrests can be flipped up by 60 degrees. This allows the chair to be pushed closer to your desk, saving space. Simply lift the armrests upwards until they lock into the vertical position. To lower them, pull them down.
4. Appui-tête réglable
The headrest can be adjusted in both height and angle. Gently push or pull the headrest to set it to your preferred position for neck and head support.
5. Support lombaire dynamique
The chair features integrated dynamic lumbar support that adapts to your lower back curve, providing continuous support. No manual adjustment is typically needed for this feature.
Image : détaillée view of the chair's ergonomic features, including integrated lumbar support, adjustable headrest angle and height, and adjustable armrests.
6. Pivotant à 360 degrés
The chair offers full 360-degree swivel rotation, allowing for easy movement and access to different areas of your workspace without needing to reposition the entire chair.
Entretien
- Nettoyage: For the mesh and fabric parts, use a soft cloth dampened with mild soap and water. Avoid harsh detergents or abrasive cleaners. Wipe dry immediately.
- Cadre et Base : Essuyez les pièces métalliques et en plastique avec un chiffon doux et sec.
- Casters: Nettoyez régulièrement les roulettes des cheveux et des débris pour assurer un roulement fluide.
- Fixations : Regularly check all screws and bolts to ensure they are tight. Re-tighten as necessary to maintain stability and prevent squeaking.
Dépannage
| Problème | Cause possible | Solution |
|---|---|---|
| La chaise est instable ou bancale. | Vis desserrées ou assemblage incorrect. | Vérifiez toutes les vis de montage et serrez-les fermement. Assurez-vous que le vérin à gaz est bien en place dans sa base. |
| Chair makes squeaking or creaking noises. | Fixations desserrées ou frottements entre les pièces. | Tighten all screws. Apply a small amount of silicone lubricant to moving parts or connection points if noises persist. |
| Le réglage de la hauteur du siège ne fonctionne pas. | Dysfonctionnement du vérin à gaz ou problème de levier. | Ensure the lever is fully engaged. If the issue persists, the gas lift may need replacement. Contact customer support. |
| Les roulettes ne roulent pas en douceur. | Débris coincés dans les roulettes. | Retournez la chaise et retirez les cheveux, la poussière ou les débris des roulettes. |
Caractéristiques
- Modèle: Arco-Grey
- Dimensions (L x l x H) : 51 x 59 x 128 cm (20.1 x 23.2 x 50.4 pouces)
- Poids de l'article : 10.8 kg (23.8 lb)
- Recommandation de poids maximum: 180 kg (396 lb)
- Couleur: Arco - Grey
- Matériels: Class A1 breathable mesh, high-resilience foam, reinforced steel base, robust nylon base, SGS certified gas lift.
- Assemblage requis : Oui

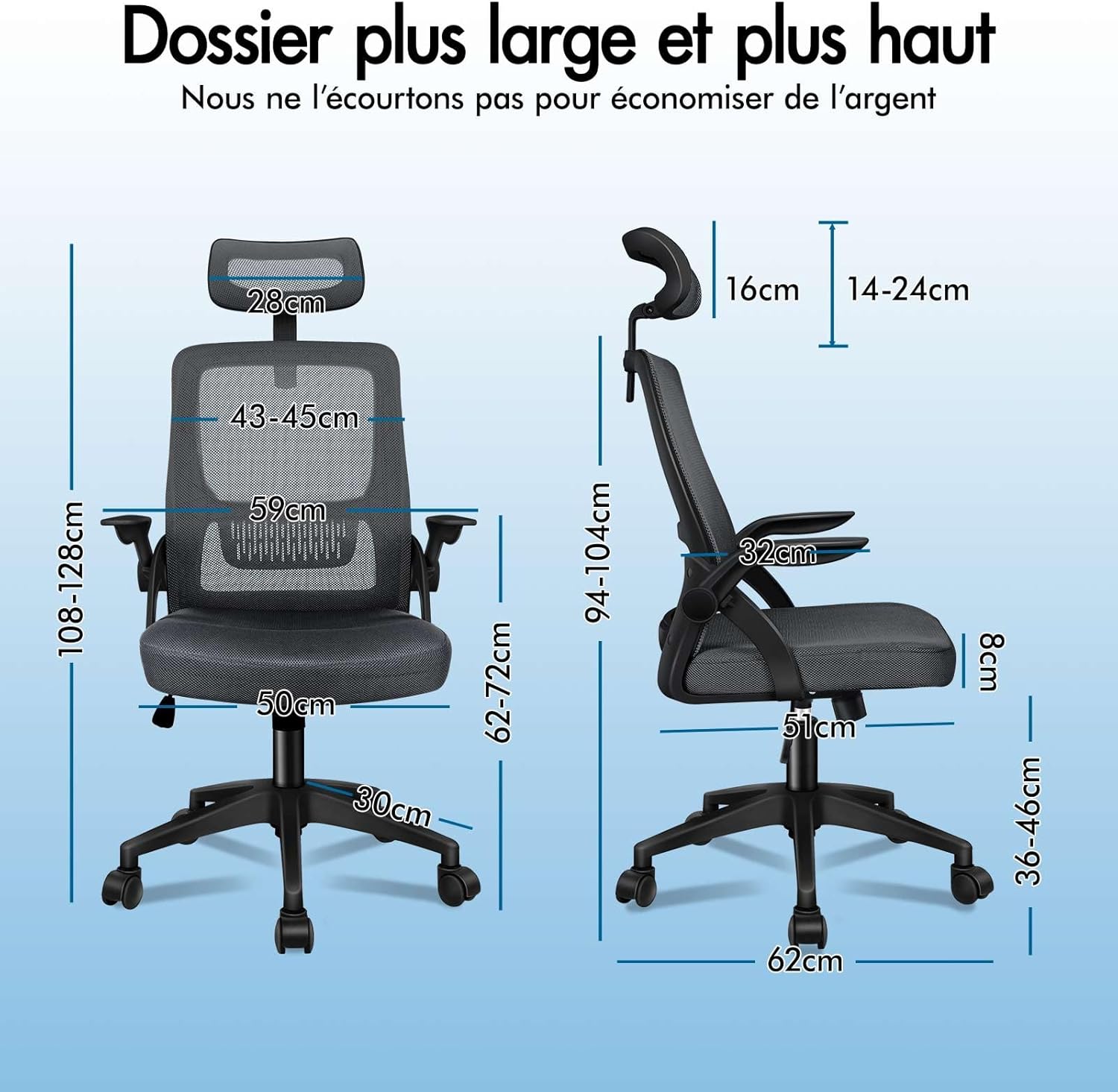

Image: Comprehensive dimensions of the chair, including seat height, backrest height, and overall width and depth.
Image: Illustration of the quality materials used, including Class A1 mesh and high-resilience foam for the seat.
Garantie et assistance
The ALFORDSON Arco-Grey Ergonomic Office Chair comes with a Garantie de deux ans against manufacturing defects. This warranty covers parts and components under normal use.
For warranty claims, technical support, or any questions regarding your product, please contact ALFORDSON customer service through the retailer where you purchased the chair or visit the official ALFORDSON website pour les coordonnées.
