SwanScout 505A Watch Charger Stand User Manual

1. Introduction

The SwanScout 505A is a versatile charging stand designed for Apple Watch Series and compatible AirPods models. It features fast charging capabilities, a heat-reducing coil design, and a stable, adjustable stand for optimal user experience. This manual provides essential information for the proper setup, operation, and maintenance of your charging stand.

2. Contenu de la boîte

• 1 x SwanScout 505A Watch Charger Stand
• Câble de charge 1 x USB-C
• 1 x Manuel d'utilisation

3. caractéristiques du produit

• Innovative and Elegant Design: A vertical stand with a minimalist aesthetic, suitable for various environments.

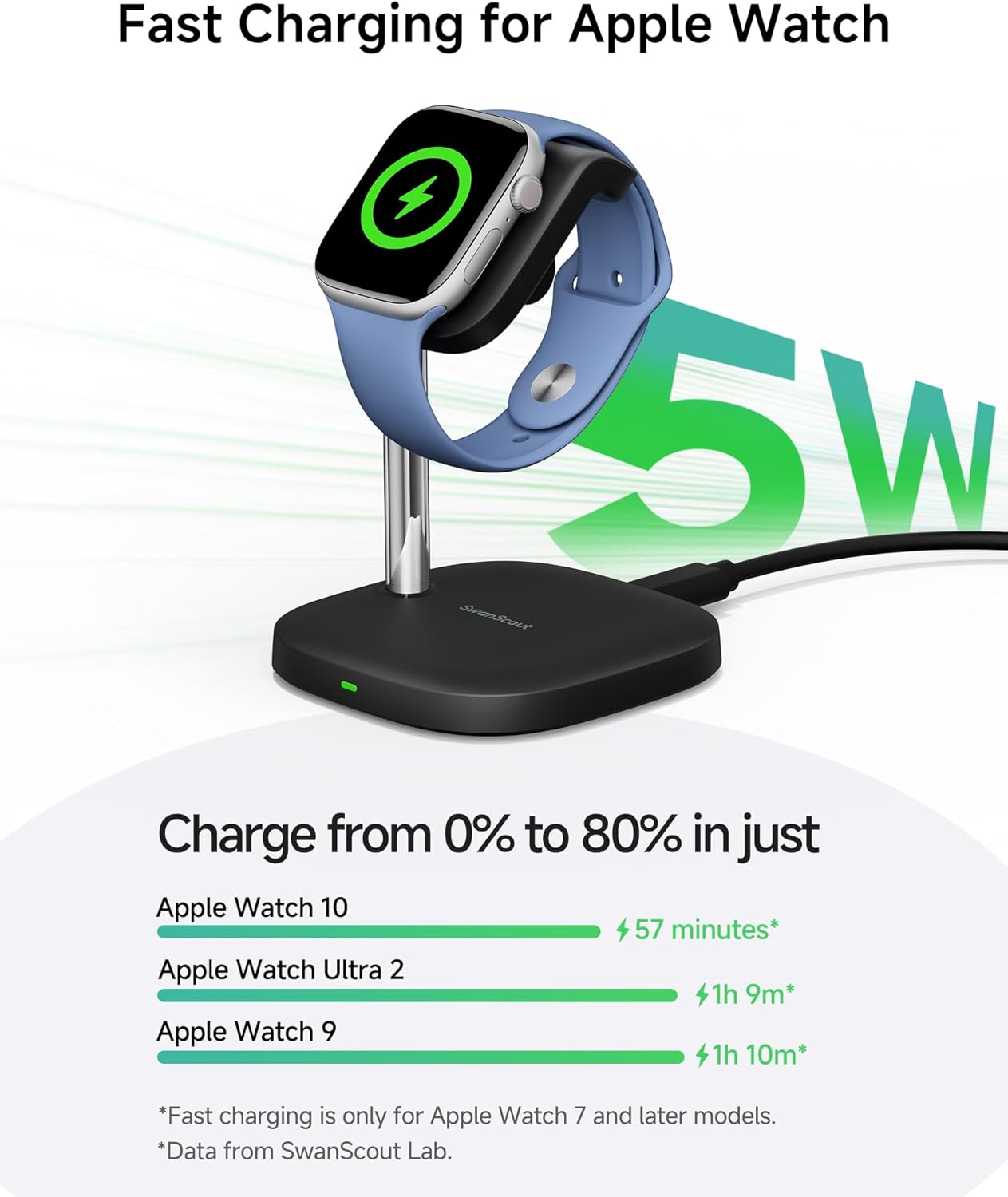

• Fast Charging for Apple Watch: Delivers 5W of power, capable of charging Apple Watch Series 10 from 0% to 80% in approximately 60 minutes.
• Separated Coil Design: The charging coil is separated from the main circuit board to effectively reduce heat generation during charging, thereby extending the watch's battery lifespan.

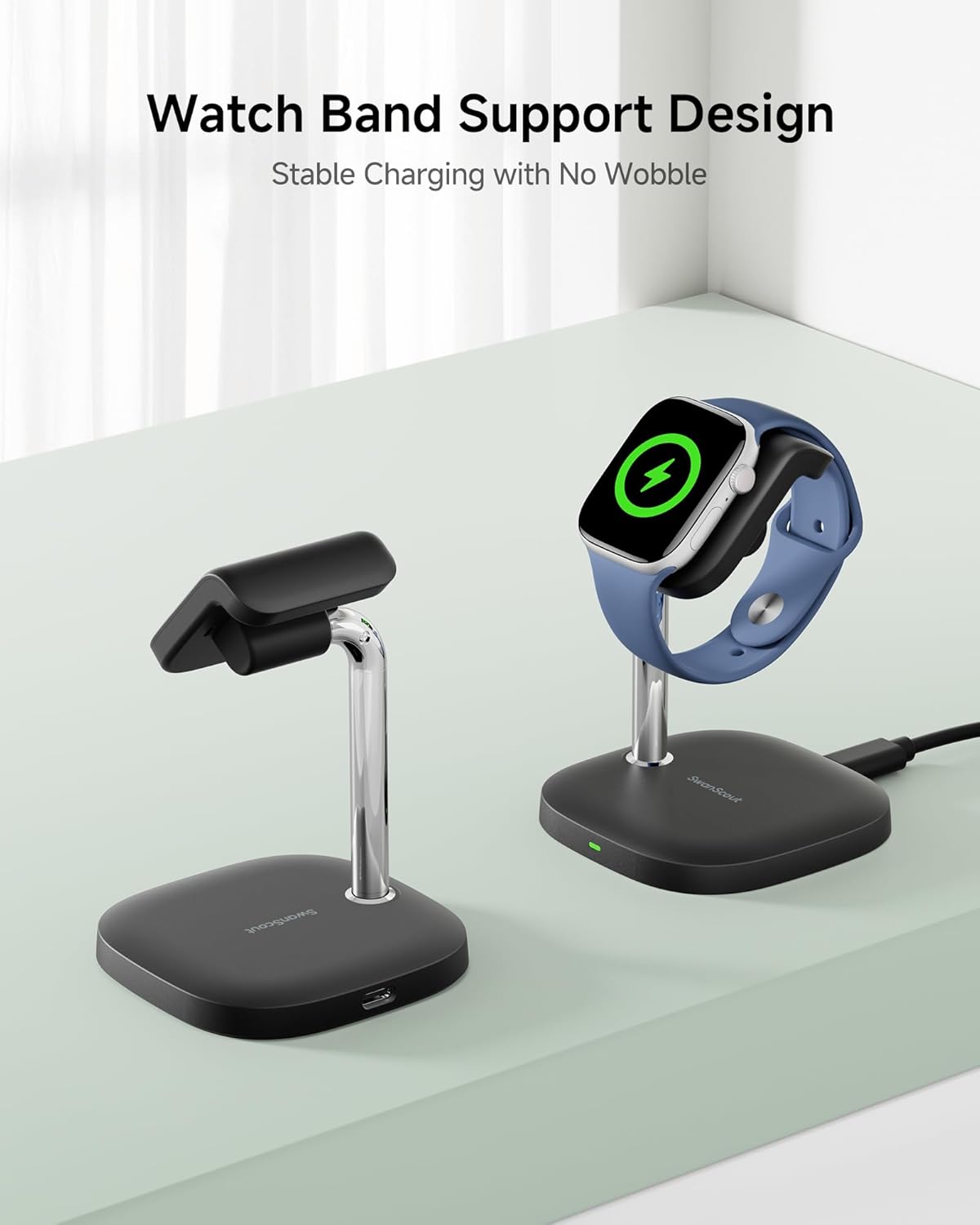

• Charge stable : Features a unique watch band support design to prevent wobbling and ensure secure positioning of your device.
• Adjustable Charging Angle: The watch band support can rotate from 0° to 45°, allowing for a customizable viewangle d'inclinaison pendant la charge.
• Anti-Tipping Weighted Base: The stand's base is weighted to provide exceptional stability and prevent accidental tipping.

4. Instructions de configuration

1. Déballer le chargeur : Carefully remove the SwanScout 505A Watch Charger Stand and its components from the packaging.
2. Connecter l'alimentation : Insert the provided USB-C charging cable into the USB-C port on the back of the charging stand. Connect the other end of the cable to a compatible USB power adapter (not included). A green indicator light on the base will illuminate when power is connected.
3. Placement: Place the charging stand on a stable, flat surface away from direct sunlight or heat sources.

Note: For optimal fast charging performance, use a power adapter with sufficient wattage (e.g., a PD 20W or 25W adapter).

5. Mode d'emploi

5.1 Recharger votre Apple Watch

1. Position the Watch: Place your Apple Watch onto the magnetic charging module of the stand. The watch will automatically align and secure itself.
2. Vérifier la charge : The watch screen will display a charging indicator (a green lightning bolt) to confirm that charging has begun. The indicator light on the stand's base will also be active.
3. Ajuster l'angle : Gently rotate the watch band support to adjust the viewing angle between 0° and 45° for comfort.
4. Supprimer la montre : Once charging is complete, simply lift your Apple Watch from the stand.

5.2 Recharger vos AirPods

The SwanScout 505A is compatible with AirPods 4 and AirPods Pro 2. To charge your AirPods:

1. Placer les AirPods : Place your AirPods charging case (compatible models only) onto the designated charging area on the base of the stand.
2. Vérifier la charge : The indicator light on your AirPods case will show its charging status.

6. Entretien

• Nettoyage: Disconnect the power cable before cleaning. Use a soft, dry cloth to wipe the surface of the charging stand. Do not use abrasive cleaners or solvents.
• Stockage: When not in use, store the charger in a cool, dry place away from extreme temperatures.
• Entretien des câbles : Évitez de plier ou de pincer excessivement le câble de charge afin de prévenir tout dommage.

7. Dépannage

• L'appareil ne se charge pas :
  • Ensure the USB-C cable is securely connected to both the stand and the power adapter.
  • Verify the power adapter is functioning and plugged into a live outlet.
  • Check if your device (Apple Watch or AirPods) is correctly positioned on the charging area.
  • Confirm your device is compatible with the SwanScout 505A.
• Chargement lent :
  • Ensure you are using a power adapter that supports fast charging (e.g., PD 20W or 25W).
  • Remove any thick cases from your Apple Watch that might interfere with charging efficiency.
• Surchauffe:
  • While the SwanScout 505A has a separated coil design to reduce heat, some warmth during charging is normal. If the device or charger becomes excessively hot, discontinue use and contact support.
  • Assurez une ventilation adéquate autour du chargeur.
• Voyant éteint :
  • Check all cable connections and the power source.
  • Essayez un autre câble USB-C ou un autre adaptateur secteur.

8. Spécifications

9. Compatibilité

The SwanScout 505A Watch Charger Stand is compatible with the following devices:

• Apple Watch : Ultra 3, Ultra 2, Ultra, SE 3, SE 2, SE, Series 11, 10, 9, 8, 7, 6, 5, 4, 3, 2.
• AirPods: AirPods 4 (with Active Noise Cancellation), AirPods Pro 2.

Note: Not compatible with Apple Watch Series 1 or other AirPods models.

10. Consignes de sécurité

• N’exposez pas l’appareil à l’eau, à l’humidité ou à des températures extrêmes.
• Évitez de laisser tomber ou de soumettre l'appareil à des impacts violents.
• Ne tentez pas de démonter, de réparer ou de modifier le chargeur.
• Tenir hors de portée des enfants et des animaux domestiques.
• Assurer une ventilation adéquate pendant l’utilisation pour éviter la surchauffe.
• This product includes multiple protection features: Overvoltage Protection, Overcurrent Protection, Overtemperature Protection, Overcharge Protection, ESD Protection, Short Circuit Protection, and Foreign Object Protection.

11. Guide visuel

Images du produit

Vidéos de produits

12. Garantie et assistance

This SwanScout product comes with a standard manufacturer's warranty. For detailed warranty information, product support, or to report any issues, please refer to the warranty card included in your package or visit the official SwanScout webVous pouvez également contacter directement le vendeur via votre plateforme d'achat pour obtenir de l'aide.
