Manuel d'instructions

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Generic 24-Piece Plasma Cutter Consumable Set. This set is designed to be compatible with specific plasma cutter models, ensuring optimal performance and durability. Please read these instructions carefully before use to ensure safety and extend the lifespan of your consumables.

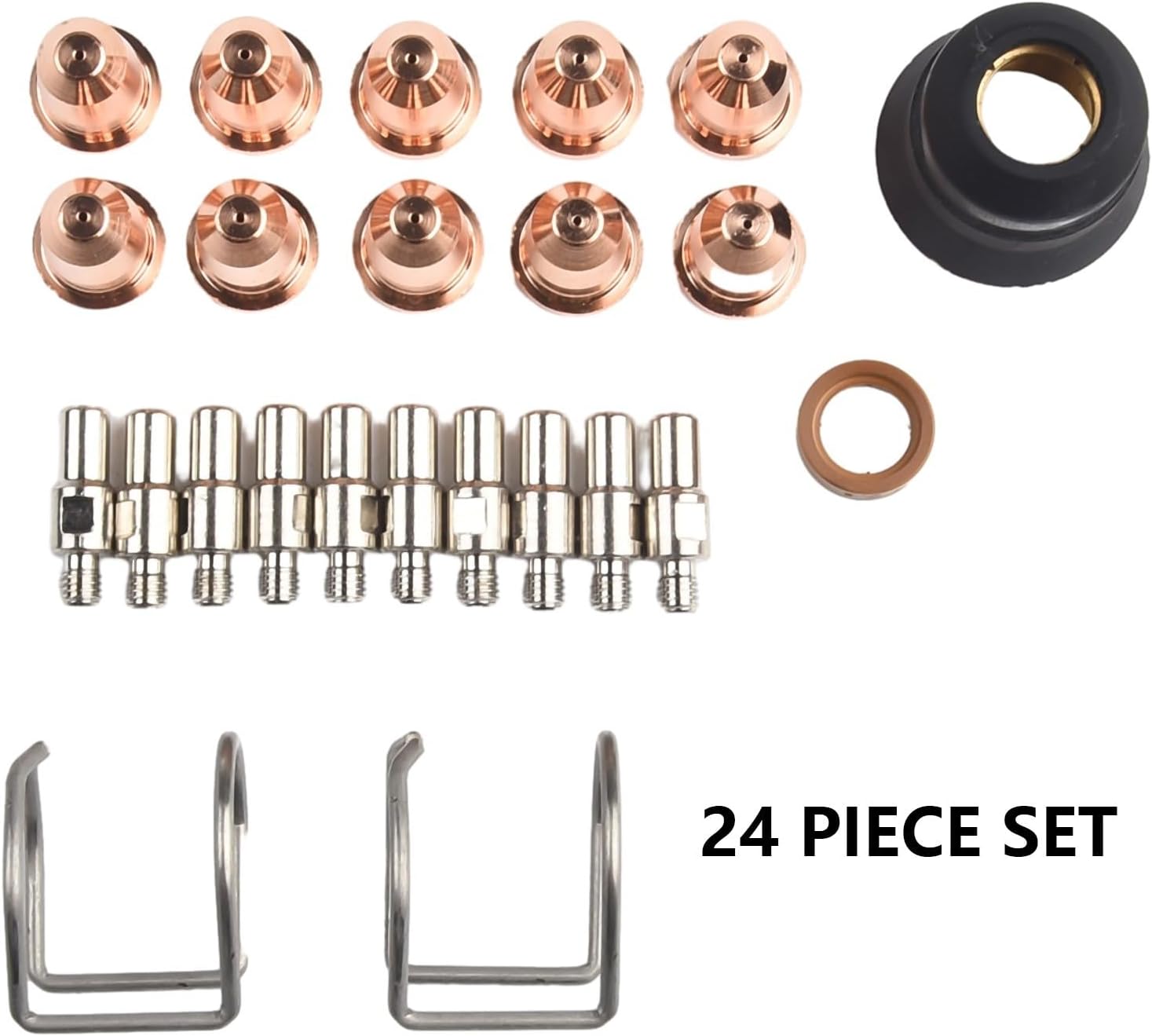

Image 1.1: Complete 24-piece plasma cutter consumable set.

2. Contenu du colis

The 24-piece plasma cutter consumable set includes the following components:

• 10 x Plasma Torch Ref: PD-116-8 (WSP-08002)
• 10 x Plasma Torch Electrode Ref: PR-110 (WSP-08001)
• 1 x Plasma Torch Guard Ref: PC0116 (WSP-08014)
• 1 x Swirl Ring for Plasma Torch Ref: PE0106 (WSP-08005)
• 2 x Plasma Torch Spring Guide Ref: CV0010 (WSP-08050)

Image 2.1 : Détail view of various consumable parts.

3. Compatibilité

This consumable set is specifically designed for use with the following plasma cutter models:

• Chicago électrique 95539
• Chicago électrique 95413
• Chicago électrique 60767
• Chicago électrique 95136
• Razorweld CUT 45 / CUT45

Ensure your plasma cutter model is listed above for proper fit and function. Using incompatible parts may lead to poor performance or damage to your equipment.

4. Configuration et installation

Proper installation of consumables is crucial for safe and effective plasma cutting. Always refer to your plasma cutter's original instruction manual for specific safety precautions and detailed assembly steps. The following are general guidelines:

1. La sécurité avant tout : Disconnect the plasma cutter from the power source before attempting any installation or maintenance. Wear appropriate personal protective equipment (PPE), including gloves and eye protection.
2. Démontage de la tête de torche : Carefully unscrew and remove the existing consumables from the plasma torch head. Note the order of components for reassembly.
3. Inspecter les composants : Before installing new consumables, inspect the torch head for any damage or debris. Clean if necessary.
4. Installer les nouveaux consommables : Insert the new electrode (PR-110) into the torch body. Follow with the swirl ring (PE0106), ensuring it is seated correctly. Then, place the plasma torch spring guide (CV0010) if applicable. Finally, screw on the plasma torch guard (PC0116) and the plasma torch ref (PD-116-8) securely. Ensure all components are hand-tightened to prevent gas leaks and ensure proper electrical contact.
5. Vérifier l'assemblage : Double-check that all consumables are correctly installed and tightened.

Image 4.1: Consumable set with detailed views of key components for installation.

5. Directives d'exploitation

Once the consumables are correctly installed, you can operate your plasma cutter according to its manufacturer's instructions. Here are some general tips for optimal performance with these consumables:

• Pression atmosphérique: Ensure the air pressure is set correctly for your plasma cutter and the material thickness you are cutting. Incorrect pressure can lead to poor cut quality and premature consumable wear.
• Vitesse de coupe : Adjust your cutting speed to match the material and thickness. Too fast or too slow can affect cut quality and consumable life.
• Duel de torches : Maintain the recommended standoff distance between the torch tip and the workpiece. This is critical for arc stability and consumable longevity.
• Propreté: Keep the workpiece and torch components clean from oil, grease, and rust to ensure a stable arc and clean cuts.

6. Entretien

Regular maintenance of your plasma cutter consumables will ensure consistent performance and extend their operational life.

• Inspection quotidienne : Before each use, inspect the electrode tip and nozzle for signs of wear, such as pitting, discoloration, or excessive orifice enlargement. Replace worn parts promptly.
• Nettoyage: Periodically clean the torch head and consumable components. Use a soft cloth and avoid abrasive materials that could damage the surfaces. Ensure no metal shavings or debris are present.
• Stockage: Stockez les consommables non utilisés dans un endroit propre et sec afin d'éviter toute contamination et corrosion.
• Remplacement: Consumables are designed to wear out. Replace them as soon as you notice a decrease in cut quality, arc instability, or difficulty in starting the arc.

7. Dépannage

If you encounter issues during plasma cutting, consider the following common troubleshooting steps related to consumables:

If problems persist, consult your plasma cutter's specific troubleshooting guide or contact a qualified technician.

8. Spécifications

• Dimensions du produit : 3.54 x 3.15 x 0.79 pouces
• Poids de l'article : 5.2 onces
• Fabricant: CROC
• ASIN: B0DMT5DFWC
• Numéro de modèle de l'article : 8O7OJXTN46YA26EKERKLQ39D
• Date de mise en ligne sur Amazon : 12 novembre 2024
• Taille de la pointe : 0.8mm (as indicated in product title)

9. Garantie et assistance

This consumable set is designed for durability and performance. As consumables are wear items, their lifespan depends heavily on usage conditions and maintenance practices. For specific warranty information or technical support regarding this product, please contact the seller or manufacturer directly through your purchase platform.

Always ensure you are using genuine or compatible replacement parts to maintain the integrity and safety of your plasma cutting equipment.
