FOHERE 1.7L Electric Kettle KEG5820-GS Instruction Manual

1. Consignes de sécurité importantes

Please read these instructions carefully before using the appliance and save them for future reference. Incorrect operation may cause damage to the appliance or injury to the user.

• Ne plongez pas la bouilloire, la base d'alimentation, le cordon d'alimentation ou la prise dans l'eau ou tout autre liquide.
• Assurer le voltage indiqué sur l'appareil correspond à votre vol localtage avant de connecter.
• Gardez l'appareil hors de portée des enfants. Une surveillance étroite est nécessaire lorsqu'il est utilisé à proximité d'enfants.
• Do not operate the kettle if the cord, plug, or the appliance itself is damaged. Contact customer service for repair.
• Placez toujours la bouilloire sur une surface ferme, plane et résistante à la chaleur.
• Do not fill above the MAX line or below the MIN line to prevent boiling dry or splashing.
• Avoid contact with steam from the spout when water is boiling.
• The kettle body is made of borosilicate glass, which is resistant to heat and cracks. The bottom is 304 food-grade stainless steel.
• The exterior wall of the double-wall design is designed to be cooler than ordinary glass kettles, but caution should still be exercised as hot water is inside.
• Débranchez la bouilloire de la prise lorsqu'elle n'est pas utilisée et avant de la nettoyer.

2. Produit terminéview

The FOHERE Electric Kettle KEG5820-GS is designed for efficient and precise water heating. It features a 1.7-liter capacity, temperature control, and a keep-warm function.

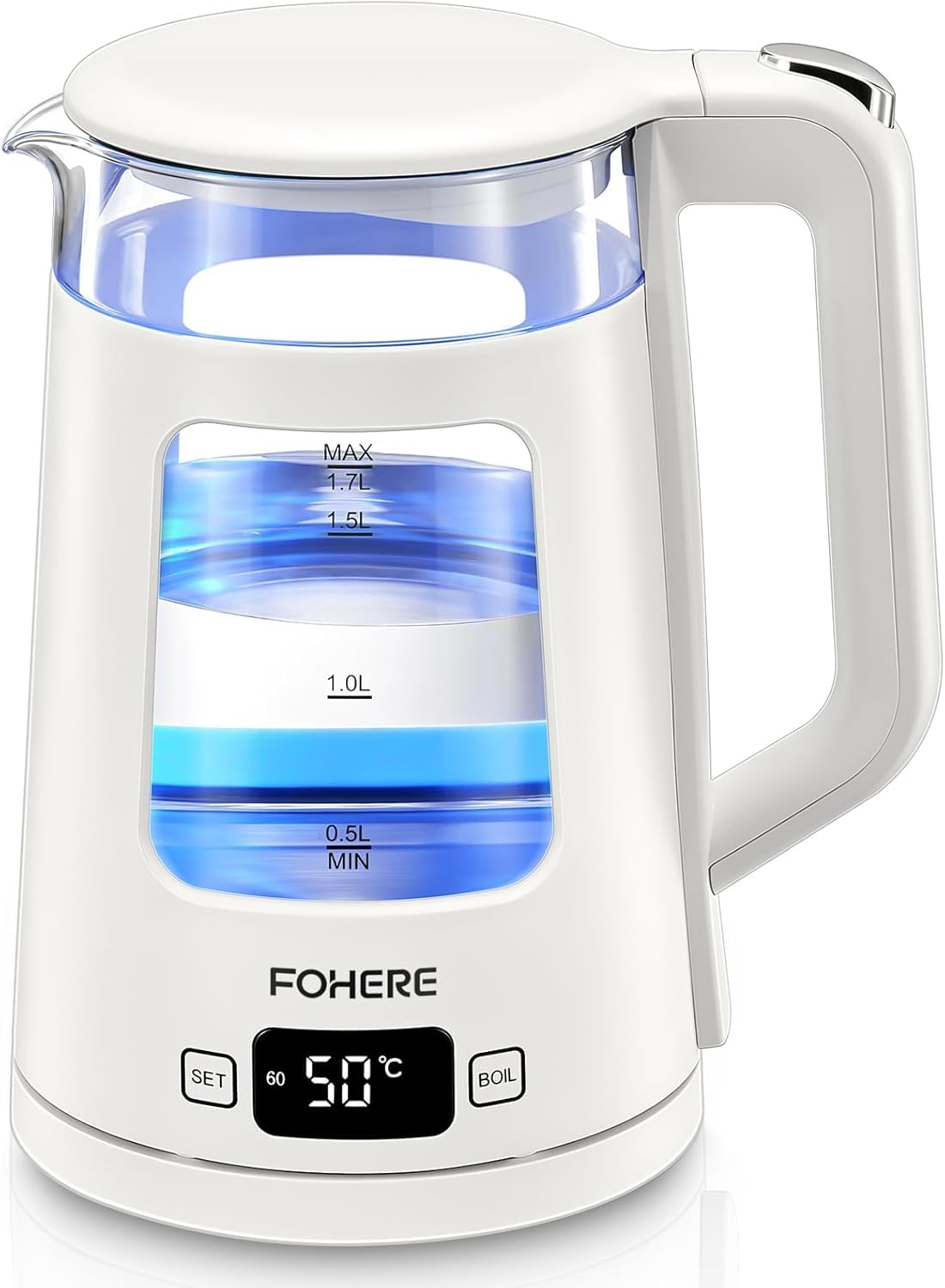

Figure 1: FOHERE 1.7L Electric Kettle. This image shows the overall design of the kettle, highlighting its glass body and control panel.

Caractéristiques principales :

• Capacité de 1.7 litres : Ideal for multiple servings.
• Contrôle de la température : 5 preset temperature settings for various beverages.
• 30-Minute Keep Warm Function: Maintient la température d'eau souhaitée.
• Ébullition rapide : Boils 1.7L in approximately 5 minutes.
• Automatic Shut-off & Boil-Dry Protection: Améliore la sécurité.
• LED HD Display: Affiche la température actuelle et les paramètres.
• 5 Color-Changing Indicator Lights: Visually indicates temperature ranges.
• BPA-Free Durable Construction: Borosilicate glass kettle body and 304 stainless steel heating plate for pure water taste.
• Wide Opening & V-Shaped Spout: For easy filling, cleaning, and pouring.
• Base pivotante à 360° : Cordless convenience for left and right-handed users.

Figure 2: Durable and safe construction. This image highlights the one-touch lid opening, V-shaped nozzle, borosilicate glass kettle body, and stainless steel heating plate, emphasizing the BPA-free materials.

3. Installation et première utilisation

3.1 Déballage

Retirez délicatement la bouilloire et tous ses accessoires de l'emballage. Conservez l'emballage pour un stockage ou une élimination ultérieure.

3.2 Nettoyage initial

1. Avant la première utilisation, remplissez la bouilloire d'eau propre jusqu'au niveau MAX.
2. Boil the water (see Operating Instructions).
3. Jeter l'eau bouillie.
4. Répétez ce processus 2 à 3 fois pour éliminer tout résidu de fabrication.

3.3 Placement

Placez la base d'alimentation sur une surface stable, plane et sèche, à distance du bord du plan de travail. Assurez-vous que le cordon d'alimentation ne pend pas et ne risque pas d'être tiré dessus ou de provoquer une chute.

4. Mode d'emploi

4.1 Remplissage de la bouilloire

1. Appuyez sur le bouton de déverrouillage du couvercle pour ouvrir le couvercle.
2. Fill the kettle with fresh water between the MIN (0.5L) and MAX (1.7L) marks.
3. Fermez bien le couvercle.
4. Placez fermement la bouilloire sur son socle.

Figure 3: Kettle capacity markings. This image illustrates the 1.7L maximum capacity and corresponding cup measurements, showing water being poured into a cup.

4.2 Sélection de la température et ébullition

The kettle offers 5 preset temperature settings, indicated by different LED light colors.

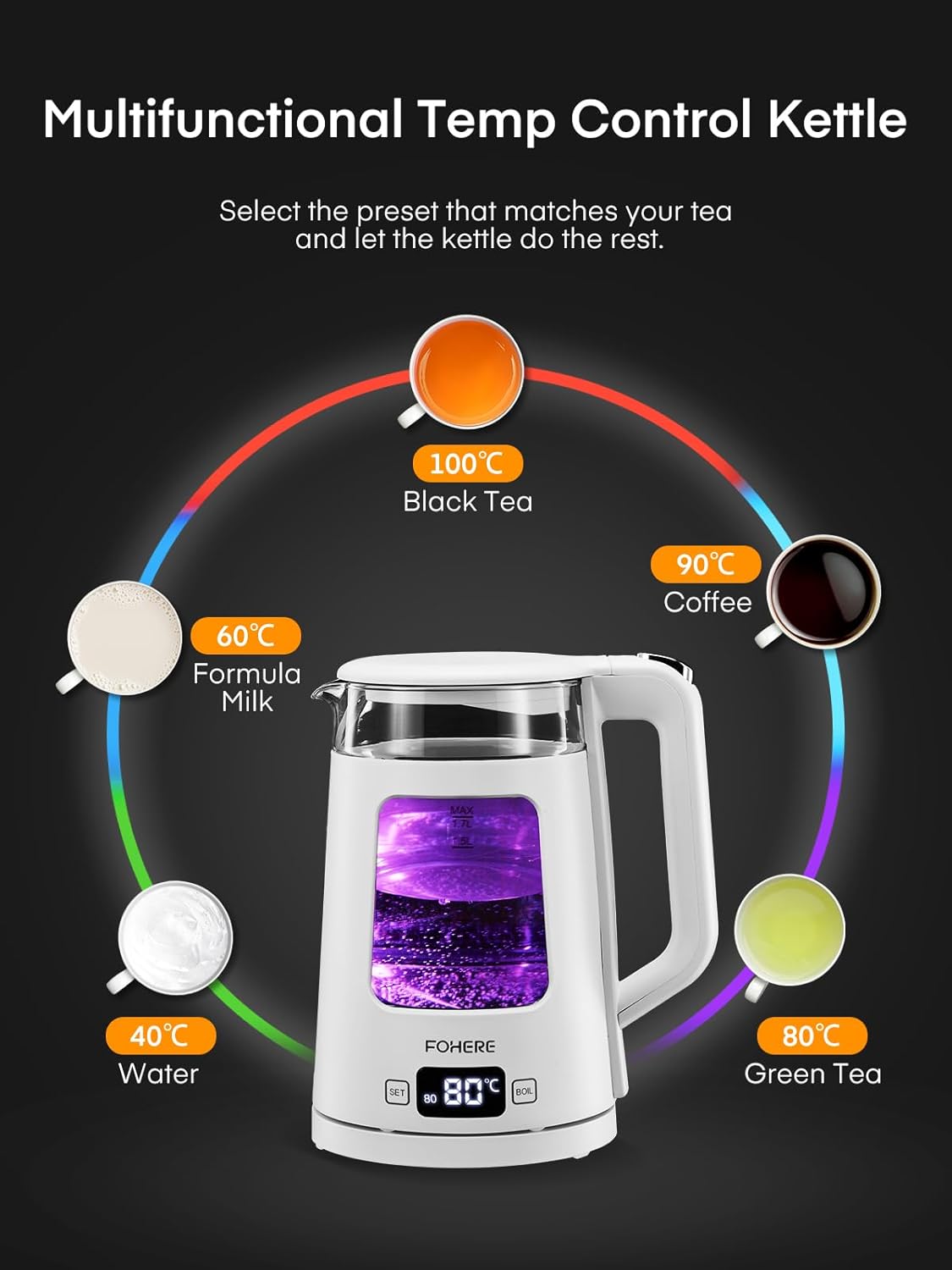

Figure 4: Temperature control settings. This image displays the kettle's control panel with 'SET' and 'BOIL' buttons, and a digital temperature display, showing different temperature presets for various beverages like black tea, coffee, green tea, formula milk, and water.

1. Plug the power base into a suitable wall outlet. The LCD display will light up.
2. Appuyez sur le "ENSEMBLE" button repeatedly to cycle through the desired temperature presets. The LED display will show the selected temperature.
3. The 5 LED colors indicate the following temperature ranges:
• Vert: 0°C - 40°C (e.g., for water)
• Bleu: 41°C - 60°C (e.g., for formula milk)
• Violet: 61°C - 80°C (e.g., for green tea)
• Bleu clair: 81°C - 90°C (e.g., for coffee)
• Rouge: 91°C - 100°C (e.g., for black tea, boiling)

Figure 5: LED color indicators. This image shows the kettle changing colors based on temperature, with examples for 0-40°C (green), 40-60°C (blue), 60-80°C (purple), 80-90°C (light blue), and 90-100°C (red).
4. Once the desired temperature is selected, press the "BOUILLIR" button to start heating. The kettle will heat the water to the selected temperature and then automatically switch to the keep warm function (if applicable).
5. To simply boil water to 100°C, you can directly press the "BOUILLIR" button without selecting a temperature. The kettle will automatically shut off once boiling is complete.

Figure 6: LED HD Display and controls. This image details the 'SET' and 'BOIL' buttons and the digital temperature display, showing how to adjust temperature and initiate boiling.

Figure 7: Boiling speed and keep warm function. This image illustrates the rapid boiling times for different water volumes (0.5L in 2 min, 1.0L in 4 min, 1.7L in 5 min) and the keep warm feature.

4.3 Fonction de maintien au chaud

After reaching the selected temperature, the kettle will automatically activate the 30-minute keep warm function. The display will show the current temperature, and the kettle will reheat if the temperature drops below the set point. Note: The keep warm function does not apply when boiling to 100°C directly.

4.4 Automatic Shut-off and Boil-Dry Protection

The kettle will automatically turn off once the water has reached the boiling point or the selected temperature. It is also equipped with boil-dry protection, which automatically switches off the heating element if the kettle is accidentally switched on without sufficient water. Allow the kettle to cool down before refilling.

5. Entretien et nettoyage

5.1 Nettoyage quotidien

1. Débranchez toujours la bouilloire et laissez-la refroidir complètement avant de la nettoyer.
2. Essuyez l'extérieur de la bouilloire avec un chiffon doux et sec.amp chiffon. N'utilisez pas de nettoyants abrasifs ou de tampons à récurer.
3. The interior of the kettle can be cleaned by hand due to its wide opening.
4. Ne plongez pas la bouilloire ou la base électrique dans l’eau.

Figure 8: Wide opening for easy cleaning. This image shows a hand cleaning the interior of the kettle through its wide opening, emphasizing the ease of maintenance.

5.2 Détartrage

Mineral deposits (limescale) can build up inside the kettle, especially in hard water areas. Regular descaling is recommended to maintain performance and prolong the life of your kettle. The frequency depends on water hardness and usage.

1. Fill the kettle with 1 cup of white vinegar or lemon juice and 2 cups of water.
2. Boil the mixture and let it stand for 30 minutes.
3. Pour out the solution and rinse the kettle thoroughly with clean water.
4. For stubborn deposits, gently scrub with a soft brush or sponge after soaking.
5. Séchez l'intérieur avec un chiffon doux et propre.

Note: Limescale forms from minerals in tap water. Using pure or distilled water can prevent scale buildup. Water quality varies by geographical area, affecting hardness and scale formation.

6. Dépannage

7. Spécifications

• Numéro de modèle : KEG5820-GS
• Marque: FOHÈRE
• Capacité: 1.7 litres
• Pouvoir: 2200 watts
• Voltage: 220 volts
• Matériel: Borosilicate Glass, 304 Stainless Steel, Polypropylene (PP)
• Dimensions (L x l x H) : 16 x 16 x 25 cm
• Poids: 1.57 kg
• Origine: Allemagne

8. Garantie et assistance

For warranty information or technical support, please refer to the documentation provided with your purchase or contact FOHERE customer service. Keep your proof of purchase for warranty claims.

Return Policy: 30-day refund/replacement policy applies as per purchase terms.
