1. Introduction

This manual provides essential instructions for the safe operation, assembly, maintenance, and troubleshooting of your BILT HARD 7.5 HP 224cc Gas Powered Wood Chipper Shredder. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.

The BILT HARD wood chipper is a versatile 3-in-1 multi-function heavy-duty machine designed for forestry, gardens, and landscaping. It features a powerful 7.5 HP 224cc 4-stroke OHV engine, capable of chipping branches up to 3 inches in diameter and shredding yard debris up to 1/2 inch. It includes a large 2.0 bushels collection bag and a reversible tow hitch for easy transport.

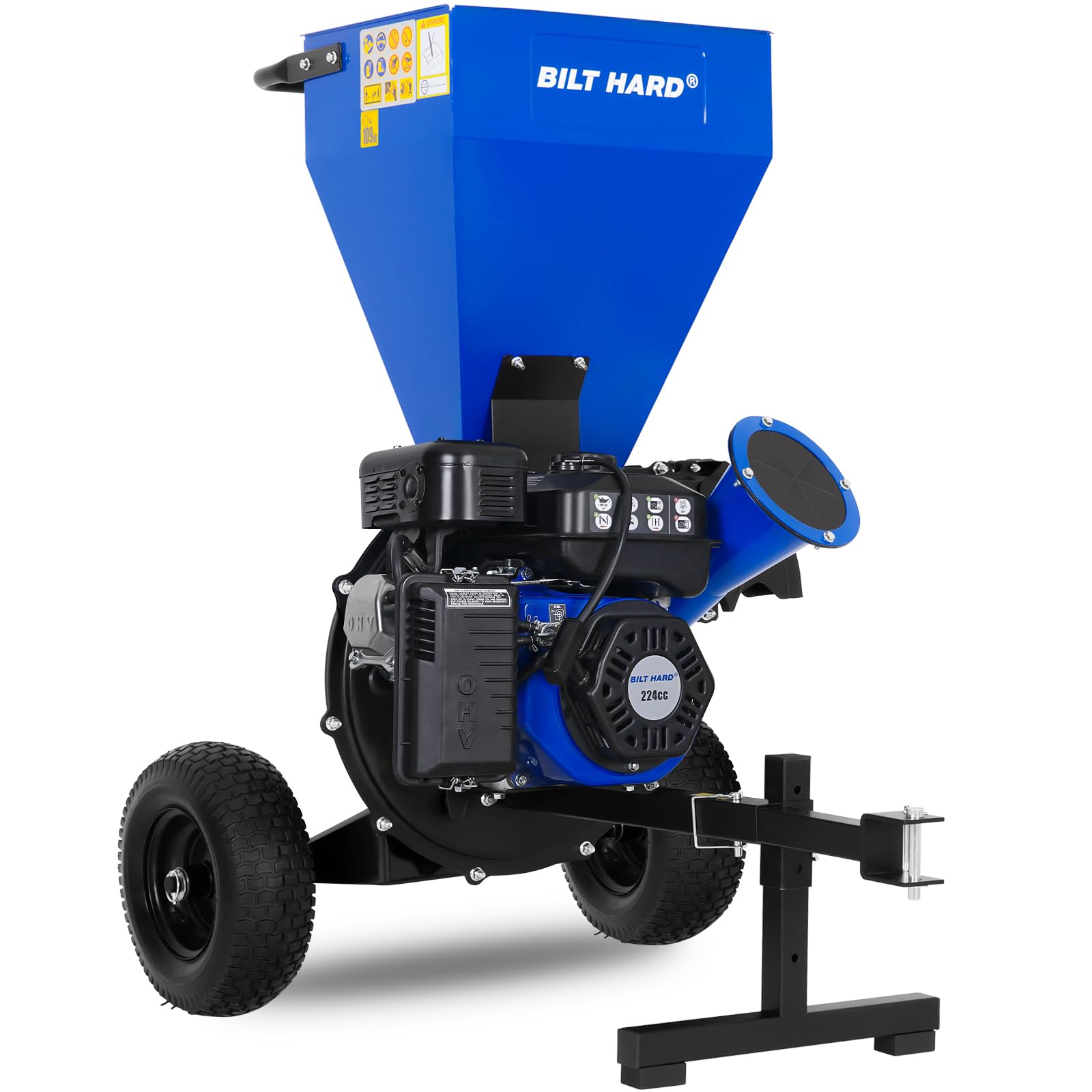

Figure 1: BILT HARD Wood Chipper Shredder with Tow Hitch.

2. Consignes de sécurité

AVERTISSEMENT : Le non-respect de ces consignes de sécurité peut entraîner des blessures graves, voire mortelles.

• Portez toujours un équipement de protection individuelle (EPI) approprié, notamment une protection oculaire, une protection auditive, des gants et des chaussures robustes.
• Never operate the chipper without all guards and safety devices in place.
• Gardez vos mains, vos pieds et vos vêtements à l'écart de toutes les pièces mobiles.
• Assurez-vous que la zone de travail est dégagée de tout passant, enfant et animal domestique.
• Do not chip wet wood, vines, pine cones, palm branches, or petrified wood, as these materials can cause the machine to jam and fail.
• Operate the machine on a level, stable surface.
• Before performing any maintenance or clearing jams, always turn off the engine and disconnect the spark plug wire.
• Use only 87+ unleaded gasoline for fuel.
• Do not refuel a hot engine. Allow it to cool before adding fuel.

3. Configuration et assemblage

Before operating your wood chipper, ensure all components are correctly assembled and secured. Refer to the assembly diagram for detailed steps.

3.1 Fixation du sac de collecte

Securely attach the large 2.0 bushels collection bag to the discharge chute. Ensure it is properly fastened to prevent debris from scattering.

Figure 2: Key components of the BILT HARD Wood Chipper, including the feed hopper, chipper cone, engine, and front stand.

3.2 Tow Hitch Assembly

The chipper features a reversible tow hitch for easy attachment to a lawn tractor or ATV. Assemble the tow bar and secure it with the provided pins. The front stand can be removed or adjusted as needed for towing or stationary use.

Figure 3: Removable stand and tow bar for easy transport.

3.3 Fixation des roues

Attach the 12-inch pneumatic wheels to the axle. These wheels are designed for smooth movement across various terrains.

Figure 4: 12-inch pneumatic wheels for mobility.

4. Mode d'emploi

Familiarisez-vous avec les commandes et les procédures de fonctionnement avant de démarrer le moteur.

4.1 Démarrage du moteur

Follow these steps to start the 224cc 4-stroke OHV engine:

1. Déplacez le levier de la vanne de carburant vers le ON position.
2. To start a FROID engine, move the choke to the FERMER position.
3. To restart a CHAUD moteur, laissez le levier de starter dans le OUVRIR position.
4. Move the Throttle Lever away from the LENT position, about 1/3 of the way toward the RAPIDE position.
5. Tournez le commutateur du moteur sur la ON position.
6. Pull the Recoil Starter.

Figure 5: Engine starting controls and positions.

4.2 Chipping Branches (3" Max Diameter)

Use the 3-inch chipping side chute for larger branches. Feed branches into the chute one at a time, ensuring they are relatively straight to prevent jamming. The machine is designed to handle branches up to 3 inches in diameter.

Figure 6: Wood chipper ready for operation in a garden.

4.3 Shredding Yard Debris (1/2" Max Diameter)

For smaller twigs and leaves, use the 1/2-inch shredding top hopper. Gently feed material into the hopper. The machine can also be used for vacuuming and suctioning leaves (vacuum attachments not included).

Figure 7: Easy maintenance access and leaf vacuum function port.

5. Entretien

Un entretien régulier garantit la longévité et les performances optimales de votre broyeur de branches.

• Huile moteur : Check engine oil level before each use. Change oil according to the engine manufacturer's recommendations.
• Filtre à air : Nettoyez ou remplacez régulièrement le filtre à air, surtout en cas de poussière.
• Bougie d'allumage: Inspectez et nettoyez régulièrement la bougie d'allumage. Remplacez-la si elle est usée.
• Lames : Inspect chipper blades (20M0409) and J-type hammer slices for sharpness and damage. Sharpen or replace as needed.
• Nettoyage général : Keep the machine clean and free of debris. Remove any stuck material from the chipper mechanism after each use (ensure engine is off and spark plug wire disconnected).
• Stockage: Store the chipper in a dry, protected area when not in use.

6. Dépannage

7. Spécifications

Figure 8: Product dimensions and key measurements.

8. Garantie et assistance

8.1 Informations sur la garantie

This BILT HARD Wood Chipper comes with a 90-day warranty against defects in materials and workmanship from the date of purchase. Please retain your proof of purchase for warranty claims.

8.2 Assistance clientèle

For technical assistance, parts, or warranty inquiries, please contact BILT HARD customer support. Refer to the contact information provided with your product packaging or visit the official BILT HARD website.

Vous pouvez également visiter le Boutique BILT HARD sur Amazon pour plus d'informations sur les produits et les ressources d'assistance.
