ALFORDSON D-OCH-MASG-B-FT-FABK-FBA Ergonomic Swivel Office Chair User Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your ALFORDSON D-OCH-MASG-B-FT-FABK-FBA Ergonomic Swivel Office Chair. Please read this manual carefully before use to ensure proper function and safety. Keep this manual for future reference.

The ALFORDSON office chair is designed to provide comfort and support during long hours of work. Key features include an ergonomic design, adjustable recline, massage function, retractable footrest, 360-degree swivel, and adjustable seat height.

2. Avertissements de sécurité

• Capacité de charge maximale: This product has a maximum load capacity of 180 kg (approximately 396 lbs). Do not exceed this weight limit.
• Surface stable : Utilisez toujours la chaise sur une surface stable et plane pour éviter qu'elle ne bascule.
• Instructions de montage : Suivez attentivement les instructions de montage. Un montage incorrect peut entraîner une instabilité et des blessures.
• Usage réservé aux adultes : The chair is intended for adults only and is not suitable for children. Keep children away from the chair during assembly and use.
• Contrôles réguliers : Vérifiez régulièrement le serrage de tous les boulons et vis. Resserrer si nécessaire.
• Évitez de rester debout : Ne montez pas sur la chaise.

3. Contenu du colis

Avant de commencer l'assemblage, assurez-vous que toutes les pièces énumérées ci-dessous sont présentes et en bon état. Si des pièces sont manquantes ou endommagées, n'effectuez pas l'assemblage et contactez le service client.

• 1 x ALFORDSON Massage Office Chair (unassembled components)
• 1 x Manuel d'assemblage

4. Configuration et assemblage

Refer to the separate, detailed assembly manual included in your package for step-by-step instructions. The following are general guidelines:

1. Préparation: Clear a spacious area for assembly. Place all components on a soft, clean surface (e.g., a carpet or blanket) to prevent scratches.
2. Identification des composants : Identify all parts and hardware using the parts list in the assembly manual.
3. Séquence d'assemblage: Follow the numbered steps in the assembly manual precisely.
4. Contraction: Tighten all screws and bolts securely, but do not overtighten, as this may damage the components.
5. Vérification finale : After assembly, ensure the chair is stable, all connections are secure, and all adjustable functions operate smoothly.

5. Mode d'emploi

5.1 Réglage de la hauteur du siège

To adjust the seat height, locate the lever on the right side beneath the seat. While seated, pull the lever up to lower the seat. To raise the seat, stand up slightly and pull the lever up. Release the lever at the desired height to lock the position.

5.2 Recline Function and Footrest

The chair features a 150-degree recline adjustment. Use the lever on the left side of the chair to adjust the backrest angle. Pull the lever up, lean back to your desired angle, and release the lever to lock it. To return to an upright position, pull the lever up and lean forward.

A retractable footrest is integrated beneath the seat. Pull the footrest out when reclining for additional leg support. Push it back in when not in use.

5.3 Fonction pivotante

The chair offers a full 360-degree swivel, allowing for easy movement and access to different areas of your workspace without needing to reposition the entire chair.

5.4 Fonction massage

The chair includes a massage function with two massage zones located in the backrest, targeting the back and lumbar vertebrae. It is powered via a simple USB connection.

• Connexion électrique : Connect the USB cable from the chair to a compatible USB power source (e.g., computer, USB wall adapter, power bank).
• Unité de contrôle: Locate the massage control unit, typically found on the side of the chair.
• Opération: Press the 'ON/OFF' button to activate or deactivate the massage function. Use the 'MODE' button to cycle through the available massage modes:
  • Continuous vibrations
  • Mixed intense and slow vibrations
  • Intense and continuous vibration

6. Entretien

• Nettoyage: For fabric surfaces, gently wipe with a damp cloth and a mild, non-abrasive detergent. Avoid using harsh chemicals or abrasive cleaners, as they may damage the fabric.
• Matériel: Periodically check all screws and bolts for tightness. Retighten as needed to maintain stability and prevent squeaking.
• Roues: Keep the chair wheels clean from dust, hair, and debris to ensure smooth movement. If wheels become stiff, clean them thoroughly.
• Ascenseur de gaz: Do not attempt to disassemble or repair the gas lift. If it malfunctions, contact customer service.

7. Dépannage

• Chair is unstable or wobbles:
  Ensure all assembly screws and bolts are securely tightened. Check that the base and gas lift are correctly assembled and seated.
• Le vérin à gaz ne permet pas de régler la hauteur :
  Verify that the height adjustment lever is fully engaged or disengaged. Check for any obstructions preventing the gas lift from moving freely. If the gas lift is faulty, it may need replacement.
• La fonction massage ne fonctionne pas :
  Ensure the USB cable is securely connected to a functional USB power source. Check the cable for any visible damage. Try a different USB port or power adapter.
• Wheels not rolling smoothly or making noise:
  Inspect the wheels for any trapped debris, hair, or dirt and clean them thoroughly. Ensure the wheels are properly inserted into the chair base.
• Chair creaks or makes noise when moving:
  Check and retighten all connections, especially where the seat and backrest attach to the base. A small amount of lubricant can be applied to moving metal parts if the noise persists.

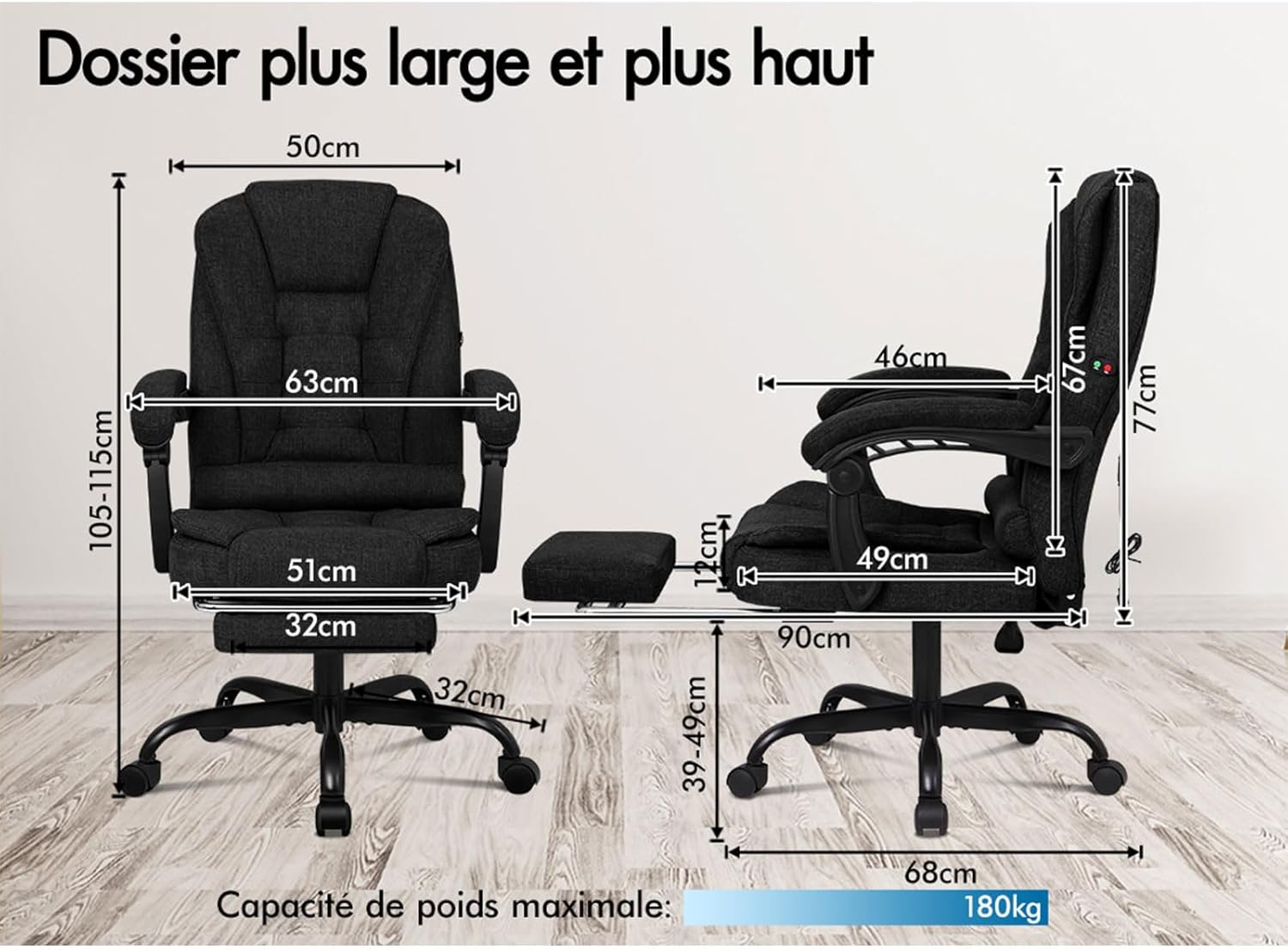

8. Spécifications

9. Garantie et assistance

For detailed warranty information, please refer to the documentation provided with your purchase or visit the official ALFORDSON website. If you encounter any issues or require technical assistance, please contact ALFORDSON customer service through the retailer where you purchased the product or via the contact information provided on the ALFORDSON website.
