DGFTB Replacement Battery Instruction Manual

For LG CordZero A9 Series Cordless Vacuum Cleaners

Introduction

This manual provides essential instructions for the safe and effective use of your DGFTB 25.2V Li-ion replacement battery, designed for LG CordZero A9 series cordless vacuum cleaners. Please read this manual thoroughly before installation and operation to ensure optimal performance and longevity of your battery.

Consignes de sécurité

Respectez toujours les consignes de sécurité suivantes lors de la manipulation et de l'utilisation de la batterie :

  • Ne pas démonter, écraser ou percer la batterie.
  • N’exposez pas la batterie à des températures élevées (supérieures à 60 °C / 140 °F) ni à la lumière directe du soleil.
  • Keep the battery away from water, fire, and extreme humidity.
  • Use only the original LG CordZero A9 charger or a compatible charger specifically designed for this battery type.
  • Si la batterie présente des signes de dommages, de fuite ou de surchauffe, cessez immédiatement de l'utiliser et mettez-la au rebut conformément aux règles en vigueur.
  • Tenir hors de portée des enfants.

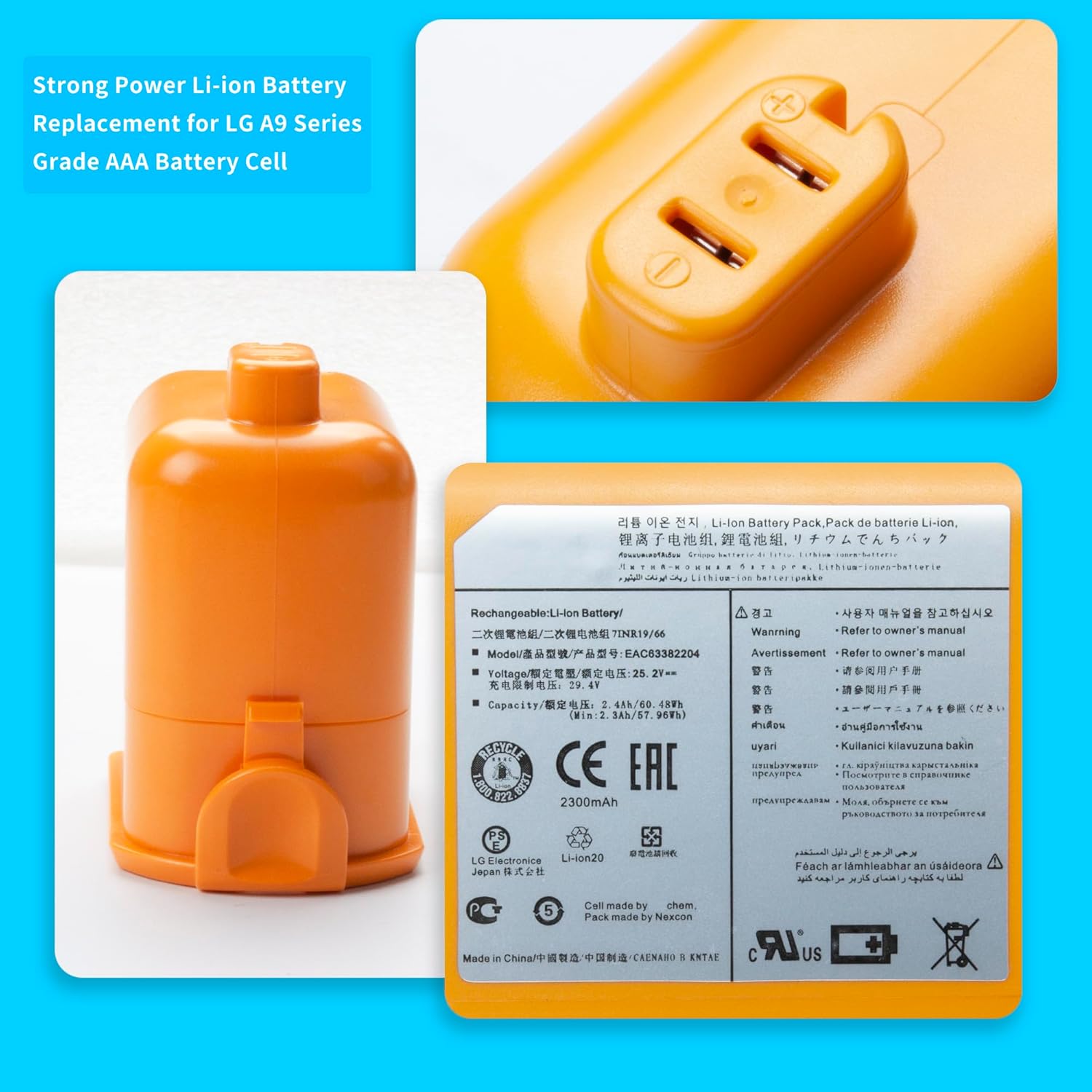

Close-up of the DGFTB replacement battery label showing safety warnings and specifications.

Image: Close-up of the DGFTB replacement battery label, displaying important safety warnings and technical specifications.

Configuration : Installation de la batterie

Follow these steps to correctly install the DGFTB replacement battery into your LG CordZero A9 vacuum cleaner:

  1. Assurez-vous que l'aspirateur est éteint et débranché de toute source d'alimentation.
  2. Locate the battery compartment on your LG CordZero A9 vacuum. This is typically on the main body of the vacuum.
  3. Press the battery release button or latch, if present, and carefully slide out the old battery.
  4. Align the DGFTB replacement battery with the battery slot, ensuring the connectors are properly oriented.
  5. Gently slide the new battery into the compartment until it clicks securely into place. Do not force the battery.
  6. For initial installation, ensure the interface is fully connected.
A hand installing the DGFTB replacement battery into an LG CordZero A9 vacuum cleaner.

Image: A user demonstrating the simple process of installing the DGFTB replacement battery into the LG CordZero A9 vacuum cleaner.

Fonctionnement : Chargement et utilisation

To maximize the performance and lifespan of your DGFTB battery, follow these operating guidelines:

  • Cycle de charge initial : For the first 3-4 uses, fully discharge the battery to approximately 5% (avoiding 0%) and then charge it completely to 95%. This helps calibrate the battery for optimal performance.
  • Chargement régulier : Connect your LG CordZero A9 vacuum with the DGFTB battery installed to its charging station or adapter. The charging indicator on your vacuum will show the charging status.
  • Évitez les surcharges : While the battery has built-in overcharge protection, it is generally good practice to disconnect the charger once the battery is fully charged if not in use.
  • Utilisation optimale : The battery is designed for consistent power delivery throughout its discharge cycle, providing reliable operation for your vacuuming tasks.
Collage showing the LG CordZero A9 vacuum in various cleaning scenarios, powered by the DGFTB battery.

Image: A visual representation of the LG CordZero A9 vacuum cleaner in action, demonstrating the enduring power provided by the DGFTB replacement battery for comprehensive cleaning.

Entretien

Proper maintenance can significantly extend the life of your DGFTB replacement battery:

  • Nettoyage régulier : Veillez à ce que les contacts de la batterie restent propres et exempts de poussière ou de débris. Essuyez-les avec un chiffon sec si nécessaire.
  • Contrôle de la température : Store and operate the battery in a moderate temperature environment. Avoid extreme cold or heat, as these can degrade battery performance and lifespan.
  • Stockage à long terme : If storing the battery for an extended period, charge it to approximately 50-60% capacity. Store it in a cool, dry place. Avoid storing a fully charged or completely depleted battery for long durations.
  • Cycle Management: Periodically perform a full discharge (to 5%) and recharge cycle to help maintain battery health, especially if you notice a decrease in run time.

Dépannage

If you encounter issues with your DGFTB replacement battery, consider the following:

  • La batterie ne charge pas :
    • Ensure the battery is correctly seated in the vacuum and the charging dock/cable is securely connected.
    • Vérifiez que la prise de courant est fonctionnelle.
    • Vérifiez si la batterie ou le chargeur présentent des dommages visibles.
    • Try re-inserting the battery to ensure a proper connection.
  • Durée d'exécution courte :
    • Perform the initial charge cycle recommendation (discharge to 5%, charge to 95%, repeat 3-4 times) to calibrate the battery.
    • Assurez-vous que la batterie est complètement chargée avant utilisation.
    • Operating the vacuum on high power settings will naturally reduce run time.
    • Battery capacity can degrade over time with extensive use.
  • La batterie ne tient pas la charge :
    • This could indicate a defective battery or an issue with the vacuum's charging system.
    • Ensure proper charging procedures are followed as outlined in the 'Operating' section.
    • If the issue persists after following all troubleshooting steps, contact customer support.

Caractéristiques

Key technical details of the DGFTB replacement battery:

  • Type de batterie : Li-ion
  • Voltage: 25.2V
  • Capacité: 60.48 Wh / 2400 mAh
  • Numéros de pièces compatibles : EAC63382201, EAC63382202, EAC63382204, EAC63758601, MEV65921201, 7ICR19/66
  • Composition des cellules de batterie : Lithium-ion
  • Poids de l'article : Environ 1.15 livres
  • Dimensions du colis : Environ 5 x 4.29 x 3.31 pouces

Fonctionnalités de protection avancées

The DGFTB battery incorporates Grade A cells and built-in circuit protection to enhance safety and extend battery life:

  • Chargement sous-volttaget protection
  • Protection contre les surintensités de sortie
  • Protection contre la surchauffe lors de la charge
  • Protection contre les courts-circuits de sortie
  • Charging Over-Charging Protection
  • Protection contre la surchauffe de la sortie
  • Protection contre les surintensités de charge
  • Protection contre la décharge excessive de la sortie
  • Protection contre les décharges excessives
  • Survol de sortietaget protection
  • Protection contre la surchauffe à la décharge
  • Charging Over-Voltaget protection
Diagram illustrating the multiple protection features of the DGFTB battery.

Image: Un schéma détaillé montreasing the comprehensive suite of protection features integrated into the DGFTB battery, ensuring safe and stable operation.

Compatibilité

The DGFTB replacement battery is compatible with a wide range of LG CordZero A9 series cordless vacuum cleaner models, including but not limited to:

  • LG CordZero A9, A9+
  • A902RM, A905RM, A906SM, A907GMS, A908VMR
  • A927KGMS, A927KVMS, A929KVM
  • A958, A958SA, A958SK, A9M, A9MASTER2X
  • A9MULTI, A9MULTI2X, A9PETNBED, A9PETNBED2X
  • A9 PLUS A905M, A907GMS, A908MVR
  • A9K-PRO, A9 Kompressor, A9K-CORE, A9K MAX, A9T-ULTRA, A916
Image displaying various LG CordZero A9 vacuum models that are compatible with the DGFTB replacement battery.

Image: A visual guide to several LG CordZero A9 vacuum models, confirming their compatibility with the DGFTB replacement battery.

Garantie et assistance

For any questions, concerns, or warranty inquiries regarding your DGFTB replacement battery, please contact the seller or manufacturer directly through your purchase platform. Please refer to your purchase documentation for specific warranty terms and contact information.
