Introduction
This manual provides detailed instructions for the assembly, installation, operation, and maintenance of your Vente-unique ZEVINI wall-mounted bathroom vanity. Please read all instructions carefully before beginning assembly and retain this manual for future reference. This product is designed for bathroom use and features a ribbed MDF cabinet with two soft-close drawers and a ceramic countertop basin.

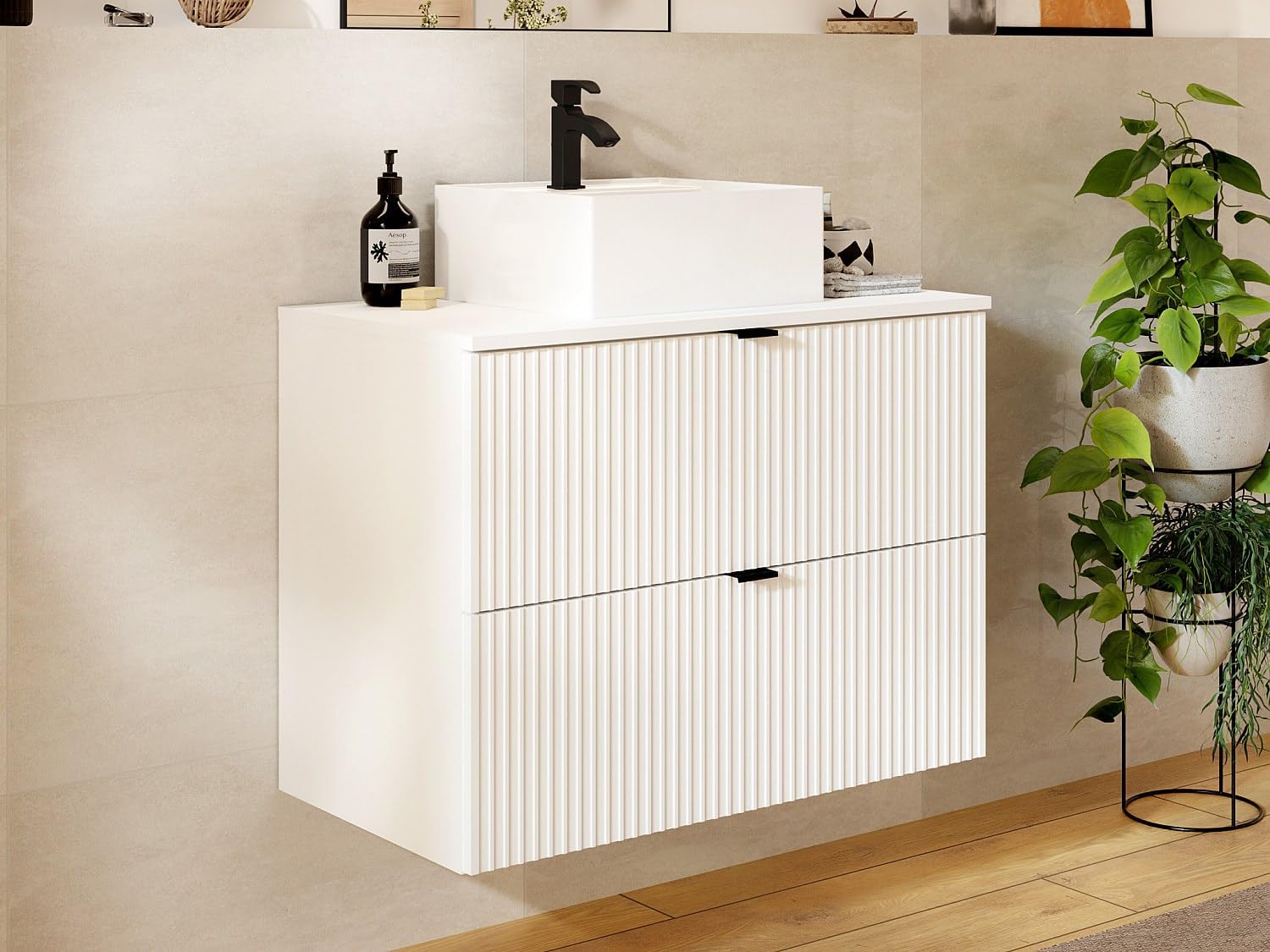

Image: The Vente-unique ZEVINI wall-mounted bathroom vanity, featuring a white ribbed cabinet, black handles, and a square white ceramic countertop basin with a black faucet installed.
Consignes de sécurité
- Always ensure the wall is suitable for mounting and can support the weight of the vanity and its contents. Consult a professional if unsure.
- Use appropriate wall fixings for your wall type (not included).
- Pendant le montage, tenez les petites pièces hors de portée des enfants afin d'éviter tout risque d'étouffement.
- Ne serrez pas trop les vis, car cela pourrait endommager le matériau.
- Assurez-vous que tous les raccords d'eau sont correctement étanches afin d'éviter les fuites.
- Ce produit est conçu pour une utilisation en intérieur uniquement.
Contenu du colis
Before starting assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.
- 1 x ZEVINI Vanity Cabinet (MDF, White, Ribbed)
- 1 x VERINI Countertop Basin (Ceramic, White, Square)
- 2 x Drawer Units with Soft-Close Mechanism
- 2 x Black Metal Handles
- Assembly Hardware (screws, dowels, brackets for cabinet assembly)
- Note: Faucet, drain, and wall mounting hardware are not included.
Configuration et assemblage
Assembly requires two people. Tools required: screwdriver, drill, level, measuring tape, pencil.
Step 1: Assemble the Vanity Cabinet
Follow the included cabinet assembly instructions to construct the main vanity frame. Ensure all panels are securely fastened. The MDF panels are designed for durability and moisture resistance.
Image : Vue de face view of the assembled Vente-unique ZEVINI vanity cabinet with the square countertop basin in place, ready for installation.
Step 2: Install Drawer Slides and Drawers
Attach the drawer slides to the inside of the cabinet using the provided screws. Assemble the two drawer units, ensuring the ribbed front panels are correctly oriented. Insert the assembled drawers into the slides. The soft-close mechanism will engage automatically.
Image: The Vente-unique ZEVINI vanity with both ribbed drawers partially open, showing the interior storage space and the soft-close mechanism.
Image : Un gros plan view of the top drawer of the Vente-unique ZEVINI vanity, showing the ribbed texture of the drawer front and the black handle, with the drawer slightly ajar.
Step 3: Wall Mounting the Cabinet
Determine the desired height for your vanity. Mark the drilling points on the wall using a level and measuring tape. Drill pilot holes and insert appropriate wall anchors (not supplied). Secure the vanity cabinet to the wall using suitable screws and brackets. Ensure the cabinet is level and firmly attached before proceeding.
Step 4: Install the Countertop Basin
Place the VERINI ceramic countertop basin onto the top surface of the vanity cabinet. Apply a bead of silicone sealant around the base of the basin to secure it and prevent water ingress. Connect the drain and faucet (not included) according to their respective manufacturer's instructions. Ensure all plumbing connections are watertight.
Image : Vue de dessus view of the Vente-unique VERINI square ceramic countertop basin, showing the faucet hole and drain opening.
Image: Technical drawing illustrating the dimensions of the VERINI square countertop basin, including length, depth, height, and diameters for faucet and drain holes.
Mode d'emploi
The ZEVINI vanity is designed for daily use in a bathroom environment. The two drawers feature a soft-close mechanism, ensuring quiet and gentle closing. To open, gently pull the black metal handles. To close, push the drawer until the soft-close mechanism engages, allowing it to close smoothly and silently.
Image : Un front direct view of the Vente-unique ZEVINI wall-mounted bathroom vanity, highlighting the ribbed texture of the two drawers and the black handles.
Entretien
Cabinet Care (MDF)
- Essuyez les surfaces avec un chiffon doux, damp tissu.
- Évitez les nettoyants abrasifs ou les produits chimiques agressifs, car ils peuvent endommager la finition.
- Immediately wipe away any spilled water to prevent moisture damage, especially on edges and seams.
- Do not place hot items directly on the cabinet surface.
Basin Care (Ceramic)
- Nettoyer la céramique basin avec du savon doux et de l'eau.
- For stubborn stains, use a non-abrasive ceramic cleaner.
- Rinse thoroughly after cleaning to remove all cleaning product residue.
- Avoid dropping heavy objects into the basin to prevent chipping or cracking.
Dépannage
| Problème | Cause possible | Solution |
|---|---|---|
| Drawer does not close smoothly. | Obstruction in the drawer slide or misaligned drawer. | Check for objects blocking the slide. Realign the drawer on its runners. Ensure soft-close mechanism is not damaged. |
| Water leak from basin or faucet. | Loose plumbing connections or insufficient sealant. | Tighten all plumbing connections. Reapply silicone sealant around the basin if necessary. Consult a plumber if leaks persist. |
| Vanity feels unstable on the wall. | Improper wall mounting or inadequate wall anchors. | Ensure appropriate wall anchors are used for your wall type. Verify all mounting screws are securely tightened. Re-evaluate wall suitability if necessary. |
Caractéristiques
| Fonctionnalité | Détail |
|---|---|
| Nom du modèle | ZEVINI |
| Marque | Vente-unique |
| Matériau de l'armoire | MDF (Panneau de fibres à densité moyenne) |
| Finition de l'armoire | Matte, Ribbed |
| Couleur de l'armoire | Blanc |
| Basin Matériel | Céramique |
| Basin Couleur | Blanc |
| Cabinet Dimensions (L x H x D) | 80 cm x 60 cm x 47 cm (31.5 po x 23.6 po x 18.5 po) |
| Basin Dimensions (L x H x D) | 41 cm x 15 cm x 41 cm (16.1 po x 5.9 po x 16.1 po) |
| Nombre de tiroirs | 2 |
| Mécanisme de tiroir | Soft-Close System |
| Type d'installation | Fixation murale |
| Caractéristiques spéciales | Moisture resistant (MDF), Ribbed front, Metal handles |
Garantie et assistance
This Vente-unique product comes with a Garantie de 2 ans against manufacturing defects. Please retain your proof of purchase. For technical assistance, missing parts, or warranty claims, please contact Vente-unique customer support through their official website or the retailer where the product was purchased. Do not attempt to repair the product yourself if it is under warranty, as this may void the warranty.
