SwanScout 701AC
SwanScout Fast Charging Station 701AC User Manual
Modèle : 701AC
1. Introduction
The SwanScout 701AC is a versatile 3-in-1 fast charging station designed to efficiently charge your iPhone, Apple Watch, and AirPods simultaneously. This compact and foldable device also features an integrated digital clock, making it an ideal solution for organizing your charging needs at home or while traveling.
2. Contenu du colis
Veuillez vérifier que tous les articles sont présents dans le colis :
- 1 x SwanScout 701AC Charging Station
- 1 x Charging Cable (Type C to Type C)
- 1 x 25W Charging Brick
- 1 x Manuel d'utilisation (ce document)
3. Produit terminéview
The SwanScout 701AC charging station integrates multiple charging points and a digital display into a single unit.
Image 1: The SwanScout 701AC charging station in its upright position, charging an iPhone, Apple Watch, and AirPods. The digital clock displays the time.
Composants clés :
- Port de chargement du téléphone : USB-C port for iPhone charging.
- Earbuds Charging Port: USB-C port for AirPods charging.
- Apple Watch Charging Pad: Integrated wireless charging area for Apple Watch.
- Affichage de l'horloge numérique : Shows time in 12H or 24H format.
- Brightness Touch Button: Adjusts the clock display brightness.
- 12/24H Switch Button: Toggles time format and enters time setting mode.
- Time Setting Buttons (+/-): Adjusts the time displayed on the clock.
Image 2 : Gros plan view of the control buttons on the SwanScout 701AC, including the 12/24H switch and time adjustment buttons.
4. Instructions de configuration
- Déballer: Retirez soigneusement tous les composants de l'emballage.
- Connecter l'alimentation : Connect the provided USB-C to USB-C charging cable to the input port on the SwanScout 701AC. Connect the other end of the cable to the included 25W charging brick.
- Brancher: Insert the 25W charging brick into a standard wall power outlet. The digital clock display should illuminate, indicating power is supplied.
- Déplier (si nécessaire) : If the charging station is in its folded, compact state, gently unfold it to the desired upright or horizontal charging position.

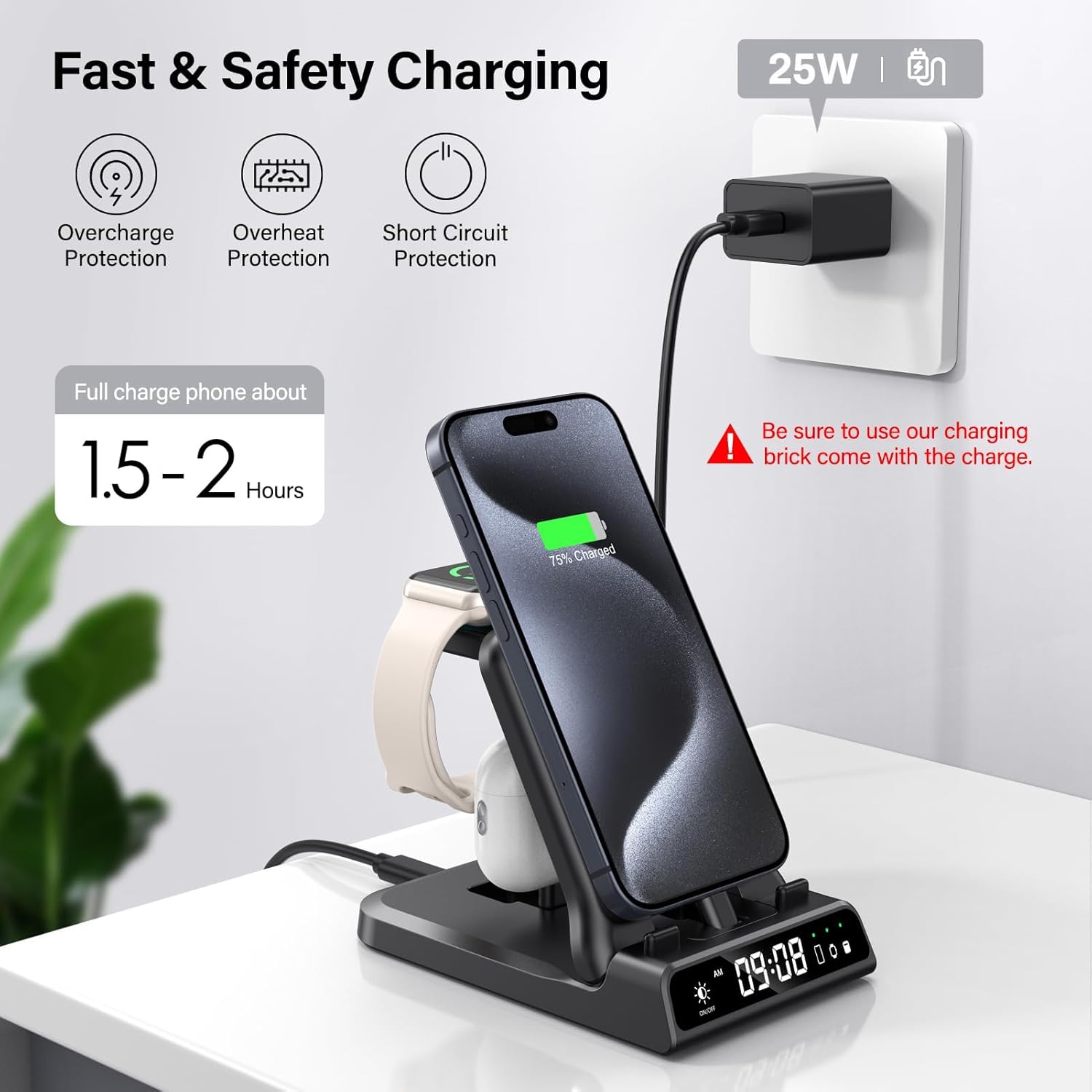

Image 3: The SwanScout 701AC charging station connected to the 25W charging brick and plugged into a wall outlet.
5. Mode d'emploi
5.1 Appareils de charge
The SwanScout 701AC allows for simultaneous charging of three devices:
- Chargement de l'iPhone : Insert your iPhone into the dedicated USB-C charging port. Ensure the phone is securely seated. The design is case-friendly, accommodating most phone cases without removal.
- Charger l'Apple Watch : Place your Apple Watch onto the integrated wireless charging pad. Ensure the watch is centered on the pad for optimal charging.
- Chargement des AirPod : Insert your AirPods case into the dedicated USB-C charging port.
Image 4: The charging station accommodating an iPhone with a protective case, illustrating its case-friendly design.
5.2 Digital Clock Operation
- Réglage du temps :
- Appuyez brièvement sur le 12/24H Switch Button once to enter time setting mode. The hour digits will flash.
- Utilisez le "+" et "-" boutons pour régler l'heure.
- Appuyez brièvement sur le 12/24H Switch Button again to switch to minute adjustment. The minute digits will flash.
- Utilisez le "+" et "-" boutons pour régler les minutes.
- Appuyez brièvement sur le 12/24H Switch Button a third time to exit time setting mode.
- Switching 12H/24H Format: Appuyez longuement sur le 12/24H Switch Button for 3 seconds to toggle between 12-hour and 24-hour time formats.
- Réglage de la luminosité : Appuyez sur le Bouton tactile de luminosité (located near the clock display) to cycle through different brightness levels: 100%, 50%, 20%, and OFF. This feature is designed to be sleep-friendly.
Image 5: The digital clock display showing various brightness settings and the charging status indicators for phone, watch, and earbuds.
5.3 Conception pliable
The charging station can be folded for portability and to save space. It supports both vertical and horizontal phone charging positions when unfolded.
Image 6: The SwanScout 701AC demonstrating its versatility with vertical charging, horizontal stand mode, and its compact folded state for storage or travel.
6. Compatibilité des appareils
The SwanScout 701AC is designed for broad compatibility with various Apple and select Android devices:
- Modèles de téléphones compatibles :
For iPhone Air/17/17 Pro/17 Pro Max/16/16 Plus/16 Pro/16 Pro Max, 15/15 Plus/15 Pro/15 Pro Max.
Also compatible with Samsung S25/S24/S23/S22 series and Google Pixel 10/9/8/7/6 series (via USB-C ports). - Compatible Apple Watch Models:
For Apple Watch Ultra 2/Ultra/SE/Series 9/8/7/6/5/4/3/2. - Modèles d'écouteurs compatibles :
For AirPods 4/Pro 3/Pro 2.
Also compatible with Samsung Galaxy Buds3 Pro/3/2/Pro/2 Pro.

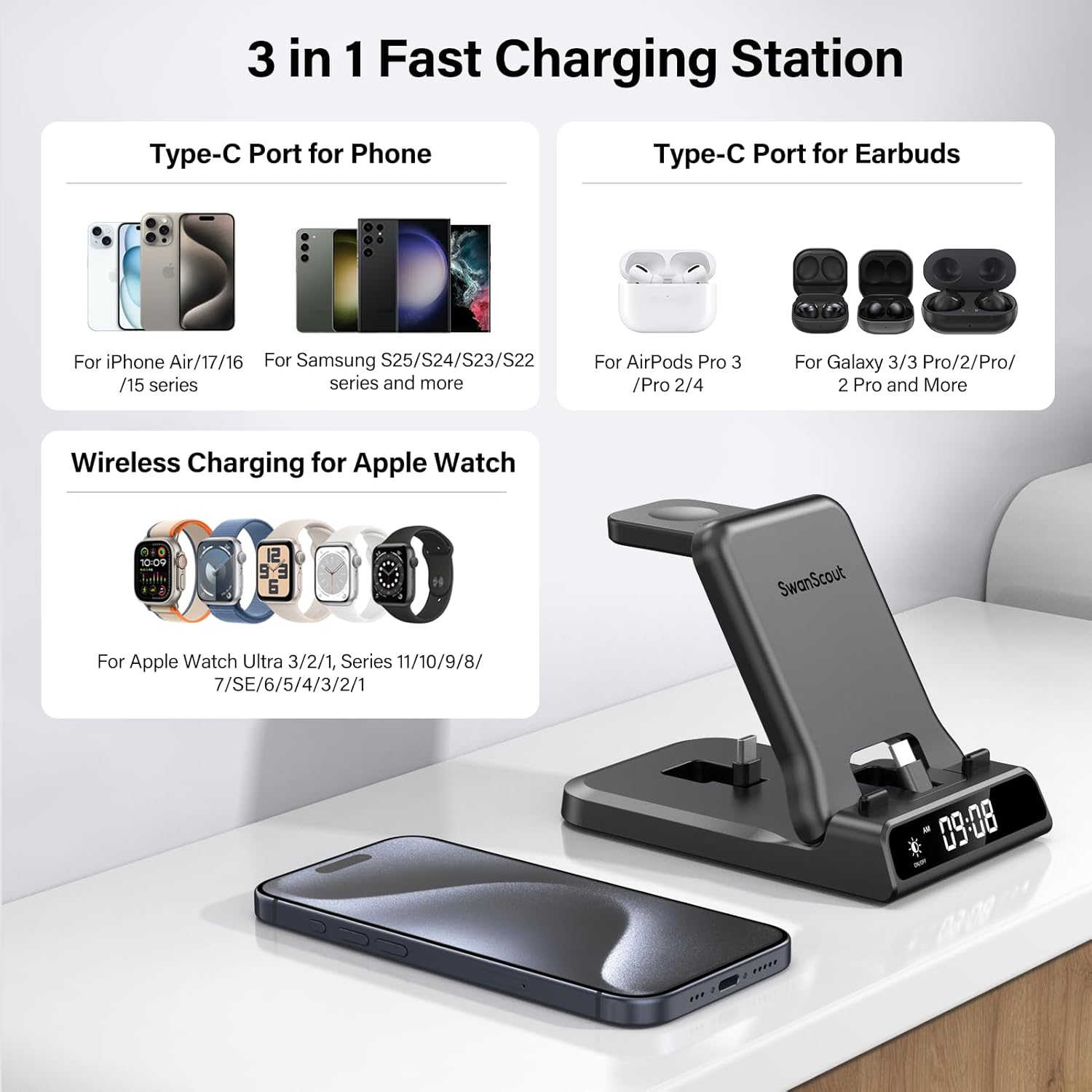

Image 7: A visual guide to the SwanScout 701AC's compatibility with various iPhone, Samsung, Apple Watch, AirPods, and Galaxy Buds models.
7. Caractéristiques de sécurité
The SwanScout 701AC is equipped with multiple safety protections to ensure secure and reliable charging:
- Protection contre les surcharges: Prevents devices from being overcharged, extending battery life.
- Protection contre la surchauffe : Surveille la température pour éviter la surchauffe pendant la charge.
- Protection contre les courts-circuits : Dispositifs de protection contre les courts-circuits électriques.
8. Entretien
Pour garantir la longévité et les performances optimales de votre borne de recharge, suivez ces consignes d'entretien :
- Nettoyage: Use a soft, dry cloth to wipe the surface of the charging station. Avoid using liquid cleaners, aerosols, or solvents.
- Stockage: When not in use, especially during travel, fold the charging station into its compact form to protect the charging ports and surfaces.
- Environnement: Conservez l'appareil à l'abri des températures extrêmes, de la lumière directe du soleil et des environnements humides.
9. Dépannage
If you encounter issues with your SwanScout 701AC, refer to the following common solutions:
| Problème | Cause possible | Solution |
|---|---|---|
| L'appareil ne charge pas | Loose connection, incompatible power adapter, device not properly seated. | Ensure all cables are securely connected. Use the included 25W charging brick. Re-seat the device firmly on its respective charging area/port. Verify device compatibility. |
| Chargement lent | Using a non-25W power adapter, background apps on device. | Always use the included 25W charging brick for optimal fast charging performance. Close unnecessary apps on your device. |
| Digital clock not displaying or incorrect time | No power, incorrect time setting. | Ensure the charging station is powered on. Refer to Section 5.2 for instructions on setting the time. |
| Clock brightness too high/low | Le réglage de la luminosité nécessite un ajustement. | Tap the Brightness Touch Button to cycle through brightness levels (100%, 50%, 20%, OFF). |
10. Spécifications
| Fonctionnalité | Détail |
|---|---|
| Marque | CygneScout |
| Numéro de modèle | S10002 (701AC) |
| Type de connecteur | USB Type C |
| Vol d'entréetage | 9 volts |
| Amprage | 3 Amps |
| Quoitage | 25 watts |
| Courant de sortie | 3 Amps |
| Volume de sortietage | 9 volts |
| Nombre total de ports USB | 2 |
| Caractéristiques spéciales | 3-in-1 Wired Charger, Digital Clock, Fast Charging, Foldable |
| Matériel | Acrylonitrile butadiène styrène |
| Poids de l'article | 305 gramme |
| Power Plug Type de | Type A - 2 pin (North American & Japanese) |
| Certification | FCC |
11. Informations sur la garantie
The SwanScout 701AC Fast Charging Station comes with a Garantie constructeur de 1 ansCette garantie couvre les défauts de matériaux et de fabrication dans des conditions normales d'utilisation. Veuillez conserver votre preuve d'achat pour toute réclamation au titre de la garantie.
12. Assistance clientèle
For any questions, concerns, or issues regarding your SwanScout 701AC Fast Charging Station, please do not hesitate to contact our customer service team. We are committed to providing assistance and ensuring your satisfaction.
Please refer to the contact information provided with your purchase or visit the official SwanScout website pour les détails de l'assistance.
