KOZWAY A10 Action Camera User Manual

1. Introduction

This manual provides detailed instructions for the operation and maintenance of your KOZWAY A10 Action Camera. The A10 is a high-performance action camera featuring 4K EIS Ultra HD video recording, 20MP photo capture, Wi-Fi connectivity, a 170-degree wide-angle lens, and a waterproof design up to 30 meters with its protective case. It includes a convenient dual-display system and a touch screen for intuitive control.

Image 1.1: The KOZWAY A10 Action Camera showcasing its front display and rear touch screen.

2. Installation

2.1 Déballage et composants

Carefully unpack your KOZWAY A10 Action Camera and verify all components are present. The standard package typically includes:

• KOZWAY A10 Action Camera
• Boîtier étanche
• Mounting Accessories (various clips, mounts, straps)
• Câble de chargement USB
• Manuel d'utilisation

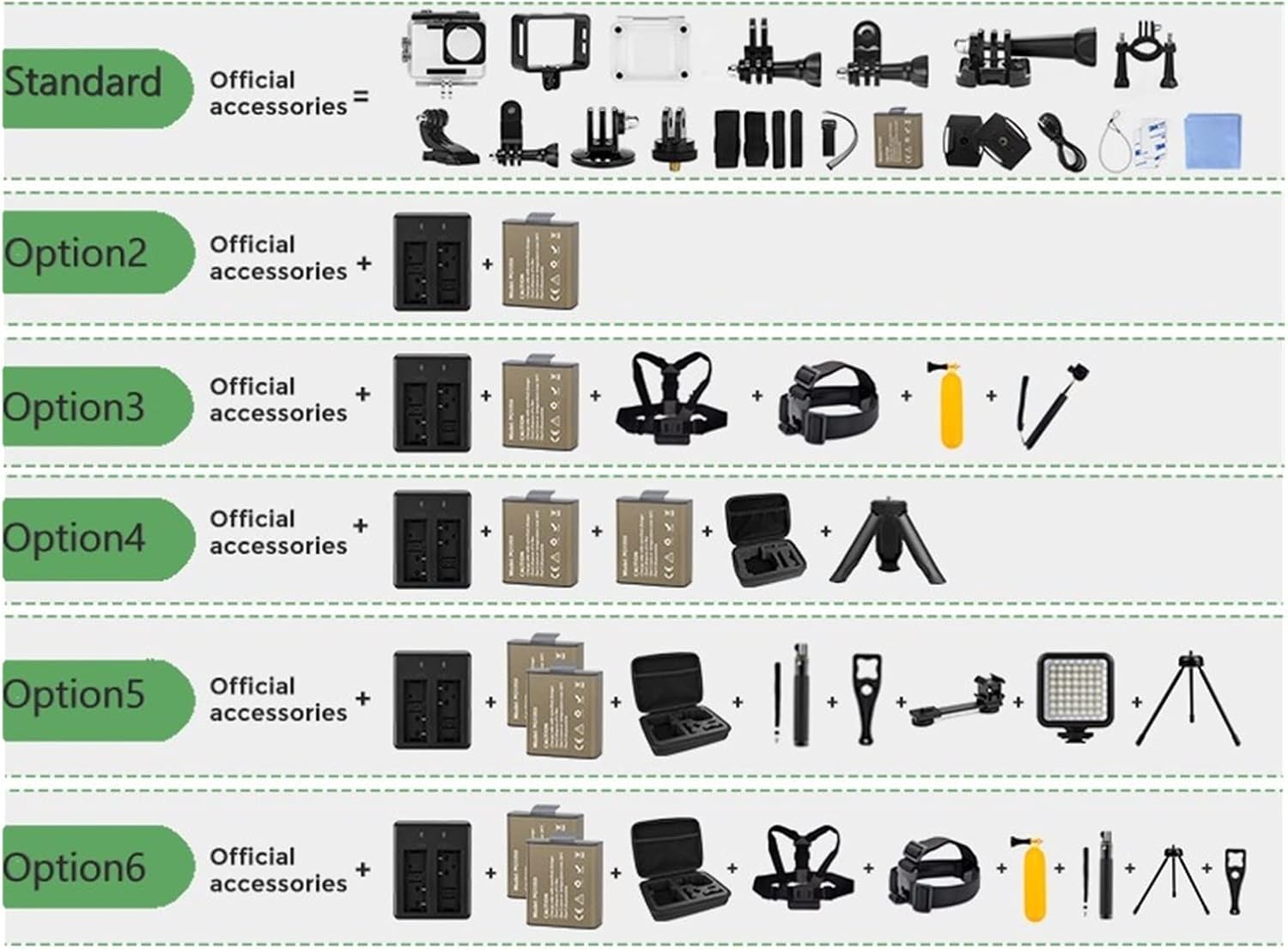

Image 2.1 : Un surview of the standard accessories that accompany the KOZWAY A10 Action Camera.

2.2 Installation de la batterie

Locate the battery compartment on the camera. Open the compartment cover, insert the battery according to the polarity indicators, and close the cover securely.

2.3 Installation de la carte mémoire

The A10 camera supports microSD cards. Open the memory card slot cover, insert a compatible microSD card (Class 10 or higher recommended) with the contacts facing the correct direction, and close the cover. Ensure the card is properly seated.

Image 2.2: The KOZWAY A10 Action Camera shown with a 32GB MicroSD card, indicating memory card compatibility.

2.4 Chargement de la batterie

Connect the camera to a USB power source using the provided USB cable. The charging indicator light will illuminate. Once fully charged, the light will change or turn off. A full charge is recommended before first use.

2.5 Utilisation de l'étui étanche

To use the camera underwater or in wet conditions, place it inside the waterproof case. Ensure the case is properly sealed before submersion. The case provides protection up to 30 meters depth.

Image 2.3: The KOZWAY A10 Action Camera securely enclosed within its waterproof case, ready for underwater use.

3. Mode d'emploi

3.1 Mise sous/hors tension

Press and hold the Power/Mode button (usually on the front or top) for a few seconds to turn the camera on or off. A startup sound and screen display will confirm power status.

3.2 Navigation dans l'interface

The A10 features a rear touch screen for easy navigation. Swipe left/right or tap icons to switch between video, photo, and playback modes, and to access settings. The front display provides essential information during recording or when facing the camera.

3.3 Enregistrement vidéo

In video mode, press the Shutter/Record button to start recording. Press it again to stop. The camera supports 4K resolution at 30 frames per second (4K/30FPS) and includes Electronic Image Stabilization (EIS) for smoother footage. The denoise feature helps reduce unwanted audio background noise.

Image 3.1: Visual representation of the camera's capabilities including 30M diving depth, 4K/30FPS recording, EIS anti-shake, and 4x digital zoom.

3.4 Capture de photos

In photo mode, press the Shutter/Record button to take a picture. The camera captures 20-megapixel images. Utilize the 4x digital zoom feature to get closer to your subject. The 170-degree wide-angle lens captures a broad field of view, and the lens distortion correction feature can be enabled in settings to reduce fish-eye effect.

Image 3.2: Demonstrates the 170-degree wide-angle lens, lens distortion correction, remote control functionality, and the camera's ability to act as a 1080P webcame.

3.5 Connectivité Wi-Fi et application

Enable Wi-Fi in the camera settings. Download the official KOZWAY app on your smartphone. Connect your phone to the camera's Wi-Fi network. The app allows for remote control of the camera, live preview, and transfer of media files.

Télécommande 3.6

The camera supports an external remote control for convenient operation. Follow the remote control's instructions to pair it with your camera. This allows you to start/stop recording or take photos from a distance.

3.7 WebFonctionnalité de la caméra

Connect the camera to your computer via USB. Select 'Webcam Mode' on the camera's screen (if prompted). The camera will then function as a 1080P webcaméra pour les appels vidéo ou le streaming.

4. Entretien

4.1 Nettoyage de l'appareil photo et de l'objectif

Use a soft, lint-free cloth to clean the camera body and screen. For the lens, use a specialized lens cleaning cloth and solution. Avoid abrasive materials that could scratch the lens or screen.

4.2 Entretien du boîtier étanche

After each use in water, rinse the waterproof case with fresh water and allow it to air dry. Inspect the O-ring seal for any debris or damage. Replace the O-ring if necessary to maintain waterproof integrity.

4.3 Entretien de la batterie

Store batteries in a cool, dry place. Avoid fully discharging batteries for extended periods. If not using the camera for a long time, charge the batteries to about 50% before storage.

4.4 Stockage

Store the camera in a protective case or bag to prevent scratches and impacts. Keep it away from extreme temperatures, high humidity, and direct sunlight.

5. Dépannage

5.1 La caméra ne s'allume pas

• Assurez-vous que la batterie est complètement chargée.
• Vérifiez si la batterie est insérée correctement.
• Essayez une autre batterie chargée si vous en avez une.

5.2 Problèmes d'enregistrement (bégaiement, gel)

• Ensure you are using a high-speed microSD card (Class 10 or UHS-I/UHS-3 recommended).
• Format the microSD card in the camera's settings.
• Check for available storage space on the microSD card.

5.3 Problèmes de connexion Wi-Fi

• Assurez-vous que le Wi-Fi est activé sur l'appareil photo et sur votre smartphone.
• Redémarrez l'appareil photo et votre smartphone.
• Ensure you are within the camera's Wi-Fi range.

5.4 Surchauffe de la caméra

It is normal for the camera to become warm during extended use, especially when recording in 4K. If it becomes excessively hot or shuts down, allow it to cool down before resuming use. Avoid direct sunlight exposure during operation.
