1. Introduction
Thank you for choosing the Vactidy Cordless Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.
2. Contenu de la boîte
Déballez soigneusement tous les composants et vérifiez-les par rapport à la liste ci-dessous :
- Unité moteur principale (with Dustbin and Battery)
- Tube métallique rétractable
- Tête de brosse motorisée pour sols avec lumières LED
- Outil de crevasse longue
- Outil pinceau 2 en 1
- Support mural avec port de chargement
- Adaptateur secteur/Chargeur
- Filtre HEPA Extra
- Manuel d'utilisation
Figure 2.1: Included components of the Vactidy Cordless Vacuum Cleaner.
3. Configuration et assemblage
Suivez ces étapes pour assembler votre aspirateur :
- Fixez le tube métallique rétractable : Align the metal tube with the main motor unit and push until it clicks securely into place.
- Fixez la tête de brosse pour sol : Connect the motorized floor brush head to the other end of the metal tube, ensuring it clicks firmly.
- Chargement : Before first use, fully charge the vacuum. Connect the power adapter to the wall mount and then place the main motor unit onto the wall mount. The LED screen will indicate charging status.
Figure 3.1: Wall mount installation steps.
For detailed visual instructions on assembly and charging, refer to the official product video below:
Video 3.1: Official Vactidy Blitz V8 Pro Self-Standing Cordless Vacuum Cleaner overview, including assembly and features.
4. Mode d'emploi
4.1 Sélection de l'alimentation et du mode
The vacuum features an intuitive LED touch panel. Press the power button to turn the unit on/off. Use the mode selection button to switch between two suction power levels: Eco Mode (for lighter cleaning and longer runtime) and Max Mode (for powerful suction on stubborn dirt).

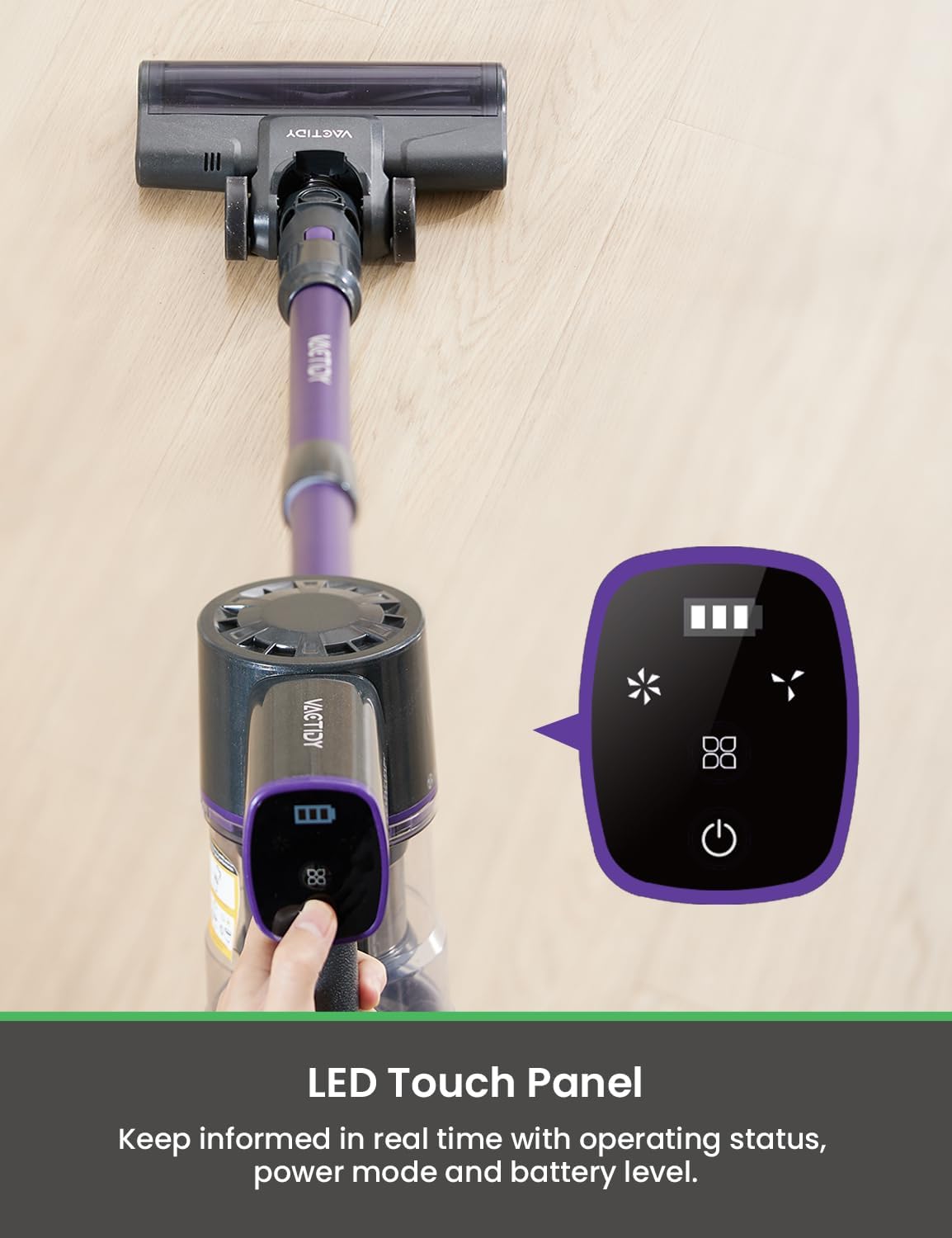

Figure 4.1: LED Touch Panel displaying battery level and current power mode.
4.2 Utilisation générale
The motorized floor brush head is designed for effective cleaning on both hardwood floors and carpets. Its 180° rotatable design allows for easy maneuverability around furniture and obstacles. The 4 LED brush head lights illuminate dust and debris in dark areas, ensuring thorough cleaning.

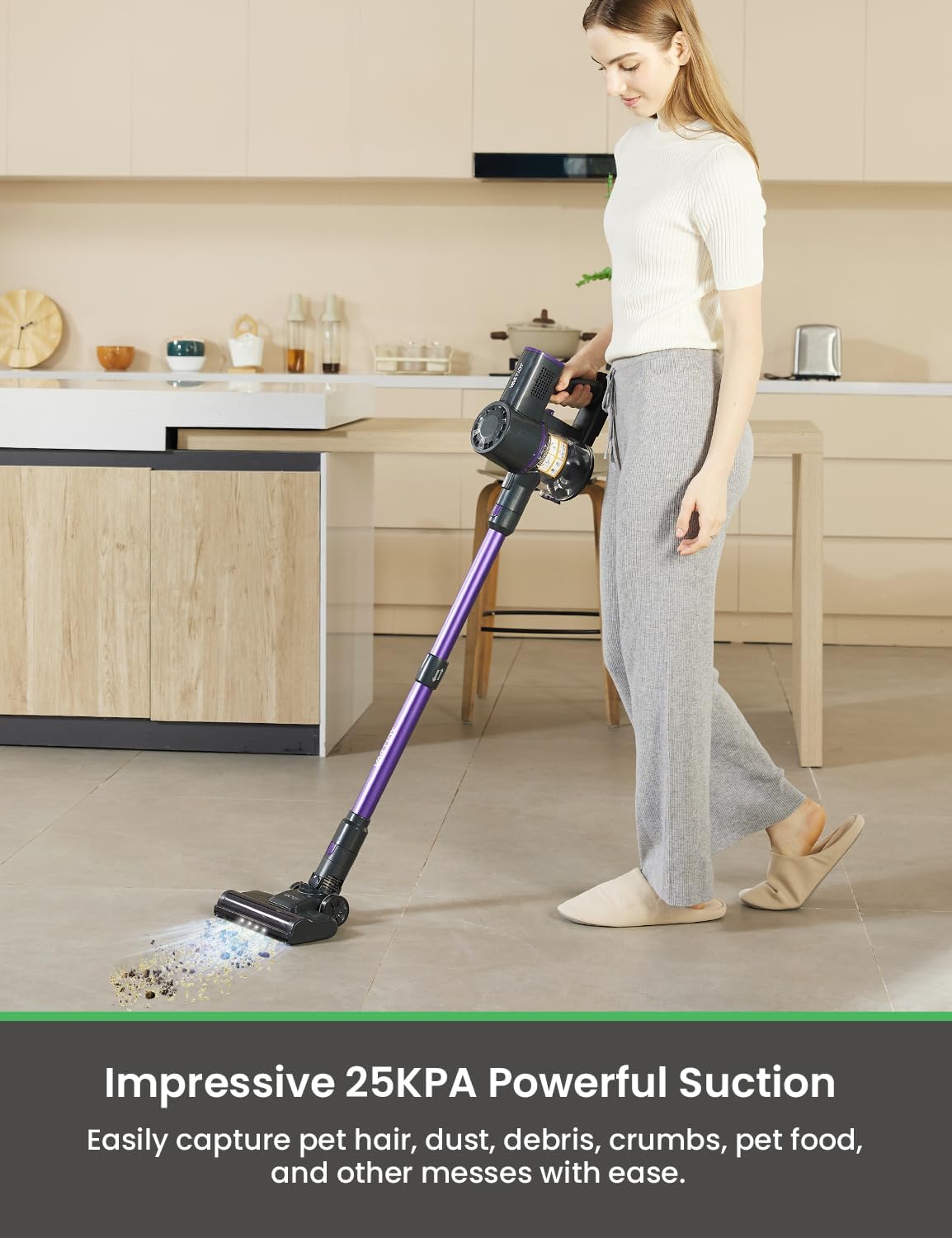

Figure 4.2: Vacuum in use on a hard floor, demonstrating powerful suction.
Figure 4.3: Vacuum in use on a carpet, showcasing the EasyGrab™ roller brush technology.
4.3 Conception autoportante
The V8 Pro features a convenient self-standing design, allowing you to pause cleaning and place the vacuum upright anywhere without needing to lean it against a wall or furniture. To engage, simply push the brush head forward until it locks into the upright position.

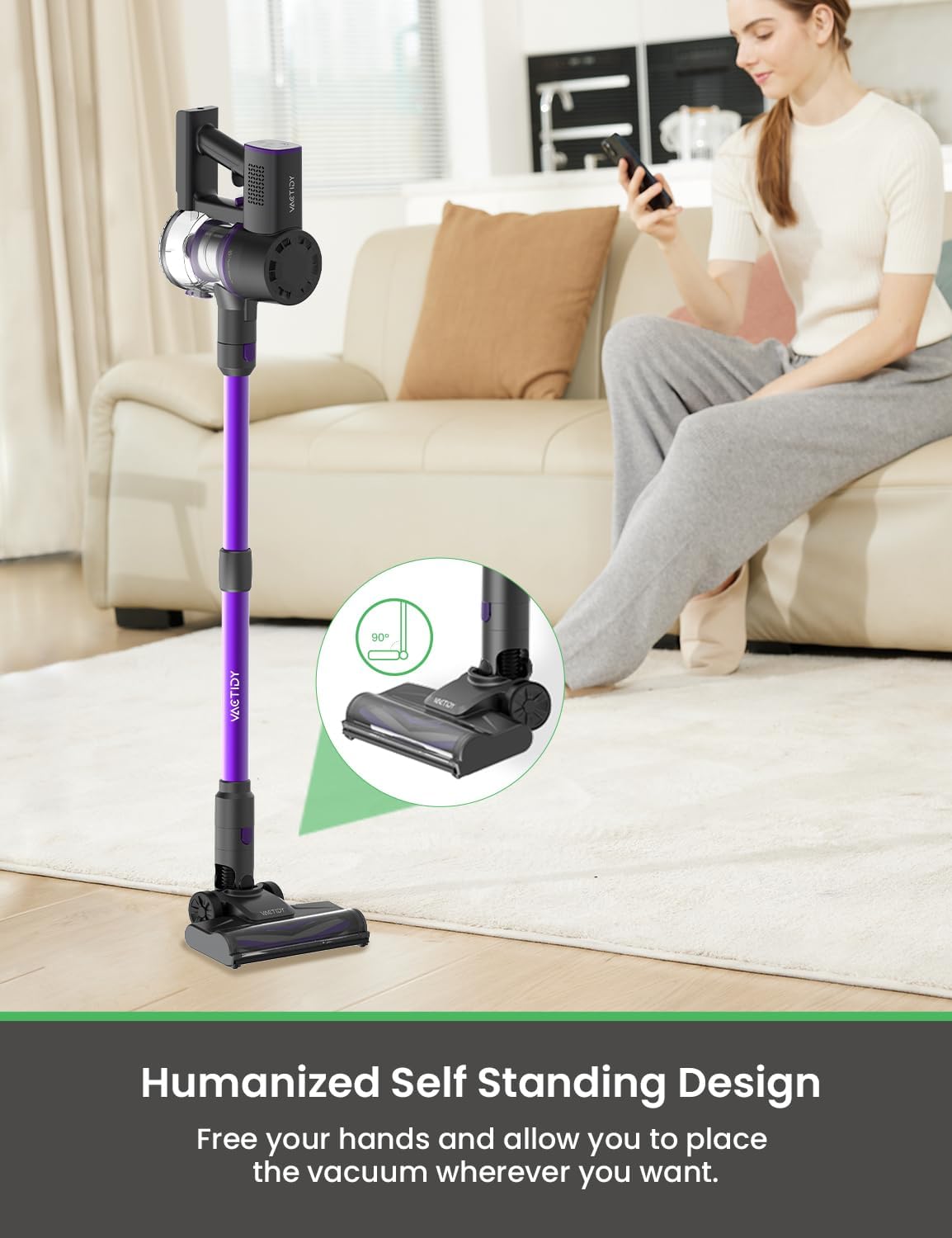

Figure 4.4: The vacuum's self-standing capability.
4.4 Utilisation des pièces jointes
The vacuum comes with versatile attachments for different cleaning scenarios:
- Outil long pour crevasses : Ideal for narrow gaps, corners, and hard-to-reach areas like between sofa cushions or along baseboards.
- Outil pinceau 2 en 1 : Can be used as a soft brush for delicate surfaces (e.g., keyboards, curtains) or as a wider crevice tool by retracting the brush bristles. Perfect for upholstery and car interiors.
Figure 4.5: Demonstrating the versatility of attachments for various cleaning needs.
5. Entretien
5.1 Vidange du bac à poussière
To maintain optimal suction, empty the dust cup after each use or when the MAX line is reached. Press the release button on the dust cup to open the bottom flap and discard debris into a trash bin.
Figure 5.1: Emptying the dust cup.
5.2 Nettoyage des filtres
The Vactidy V8 Pro utilizes a 4-stage CycloneFlow™ Technology Filtration System, including a HEPA filter, Multi-Cyclone Filtration, Stainless Steel Filtration, and Cyclone Separation Filtration. For best performance, clean the filters regularly (recommended every 2-3 months or as needed). Twist to remove the dust cup and separate the filter components. Rinse the filters with cold water and allow them to air dry completely for at least 24 hours before reassembling.
Figure 5.2: Components of the CycloneFlow™ Filtration System.
Figure 5.3: Cleaning the dust cup and filters.
5.3 Nettoyage de la brosse rotative
Periodically check the roller brush for tangled hair or debris. Remove the roller brush from the floor head and use scissors or a brush to clear any obstructions. Reinsert the roller brush securely.
Figure 5.4: The EasyGrab™ Roller Brush before and after cleaning.
6. Dépannage
| Problème | Cause possible | Solution |
|---|---|---|
| L'aspirateur ne s'allume pas | Batterie faible ; assemblage incorrect. | Charge the battery fully. Ensure all parts are securely clicked into place. |
| Faible puissance d'aspiration | Full dust cup; clogged filters; tangled roller brush. | Empty dust cup. Clean all filters. Clear any obstructions from the roller brush and tube. |
| L'aspirateur s'arrête de manière inattendue | Surchauffe ; batterie faible. | Allow the vacuum to cool down. Recharge the battery. |
| La tête de brosse ne tourne pas | Obstruction dans le rouleau de la brosse ; tête de brosse mal fixée. | Remove any tangled hair or debris. Reattach the brush head securely. |
If the problem persists, please contact Vactidy customer support.
7. Spécifications
| Fonctionnalité | Détail |
|---|---|
| Marque | Vactidy |
| Nom du modèle | Blitz V8 Pro |
| Dossier spécial | Bagless, Self-Standing, LED Screen |
| Type de filtre | Filtre HEPA (4-s)tage CycloneFlow™ Technology) |
| Est-ce sans fil ? | Oui |
| Capacité du bac à poussière | 0.5 litres |
| Quoitage | 160 watts |
| Durée d'exécution | Jusqu'à 35 minutes (mode éco) |
| Utilisations recommandées | Sol dur, Moquette |
| Facteur de forme | Bâton, portatif |
| Niveau de bruit | 70 dB |
| Poids de l'article | 4.7 livres |
| Dimensions du produit | 17 x 7 x 8 pouces |
8. Garantie et assistance
Vactidy products typically come with a manufacturer's warranty. Please refer to the warranty card included in your packaging or visit the official Vactidy website pour des informations détaillées sur la garantie et les conditions.
For technical support, troubleshooting assistance, or to order replacement parts, please contact Vactidy customer service through their official website ou les coordonnées fournies dans la documentation de votre produit.
Vous trouverez également des ressources supplémentaires et une FAQ sur le site. Vactidy Amazon Store.
