Console vidaXL avec tiroirs et étagères, chêne Sonoma 100 cm - Manuel d'instructions

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your vidaXL Console Table with Drawers and Shelves. Please read these instructions carefully before beginning assembly and retain them for future reference. This console table is designed to be a practical and decorative addition to your interior, offering storage and display space.

Caractéristiques du produit :

• Durable engineered wood construction with a smooth surface, offering resistance, stability, and moisture resistance.
• Robust steel frame for enhanced strength and stability.
• Two drawers and two lower shelves provide ample storage for books, plants, storage boxes, and decorative items.
• Versatile design suitable for displaying photos, decorations, or flowers.

2. Consignes de sécurité

AVERTISSEMENT : Pour éviter tout basculement, ce produit doit être utilisé avec le dispositif de fixation murale fourni.

• Suivez toujours attentivement les instructions de montage.
• Assurez-vous que toutes les vis et fixations sont bien serrées avant utilisation.
• Do not overload shelves or drawers. The maximum recommended weight capacity is 80 kg.
• Pendant le montage, tenez les petites pièces et les matériaux d'emballage hors de portée des enfants.
• Place the console table on a flat, stable surface.

3. Contenu de l'emballage et identification des pièces

Before starting assembly, carefully unpack all components and verify against the parts list provided in your product packaging. It is crucial to identify each part correctly, as some components may appear similar.

Figure 1: Fully assembled vidaXL Console Table in Sonoma Oak. This image shows the overall appearance of the product.

Separate all screws and small fittings into distinct containers to avoid confusion during assembly. Refer to the included assembly diagram for specific part numbers and their corresponding illustrations.

4. Instructions de montage

Assembly requires patience and attention to detail. It is recommended to have a clear, spacious area for assembly.

1. Préparation: Lay out all components on a soft, clean surface to prevent scratches. Identify all parts and hardware using the provided diagram.
2. Assemblage du cadre : Begin by assembling the main steel frame structure. Do not fully tighten screws until all frame components are loosely connected. This allows for minor adjustments.
3. Installation de l'étagère : Attach the engineered wood shelves to the frame. Ensure they are oriented correctly according to the diagram.
4. Assemblage du tiroir : Assemble the drawer boxes and install the drawer slides onto both the drawers and the main console frame. Pay close attention to the orientation of the drawer slides.
5. Insertion du tiroir : Carefully insert the assembled drawers into their respective compartments. Adjust slides if necessary to ensure smooth operation and proper alignment.
6. Serrage final : Once all components are in place and aligned, systematically tighten all screws and fasteners. Avoid over-tightening.
7. Fixation murale : Secure the console table to the wall using the provided anti-tipping device. This is a critical safety step to prevent accidental tipping.

Figure 2: Technical drawing showing the dimensions of the console table: 100 cm (length) x 34.5 cm (width) x 75 cm (height). Drawer dimensions are also indicated.

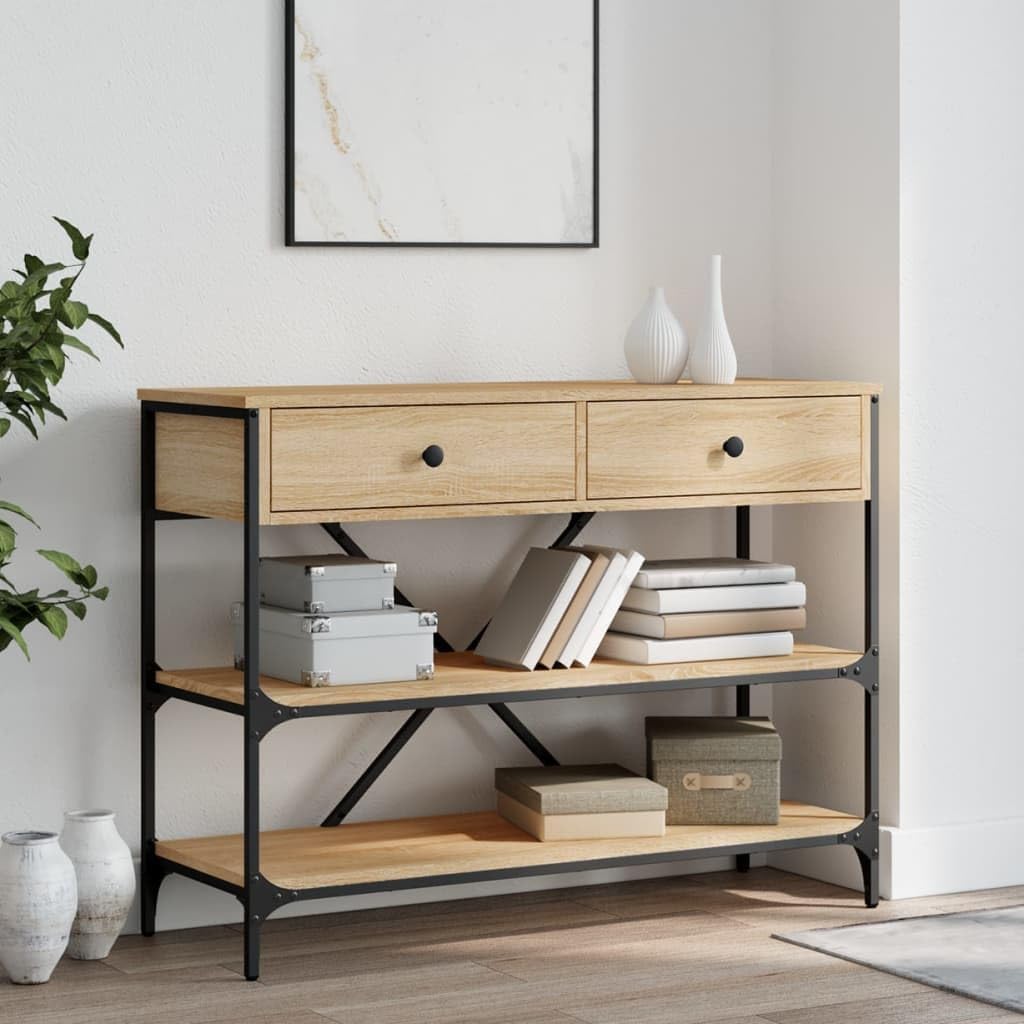

Figure 3: The console table placed in a room, showcasing its use for displaying decorative items and storing books in the shelves and boxes on top.

5. Mode d'emploi

The vidaXL Console Table is designed for versatile use in various indoor settings.

• Stockage: Utilize the two drawers for discreet storage of smaller items. The two open shelves are ideal for organizing books, magazines, or storage bins.
• Afficher: The tabletop and shelves provide ample space to display decorative objects, photo frames, plants, or other personal items.
• Placement: Suitable for entryways, living rooms, hallways, or dining areas as a functional and aesthetic piece of furniture.

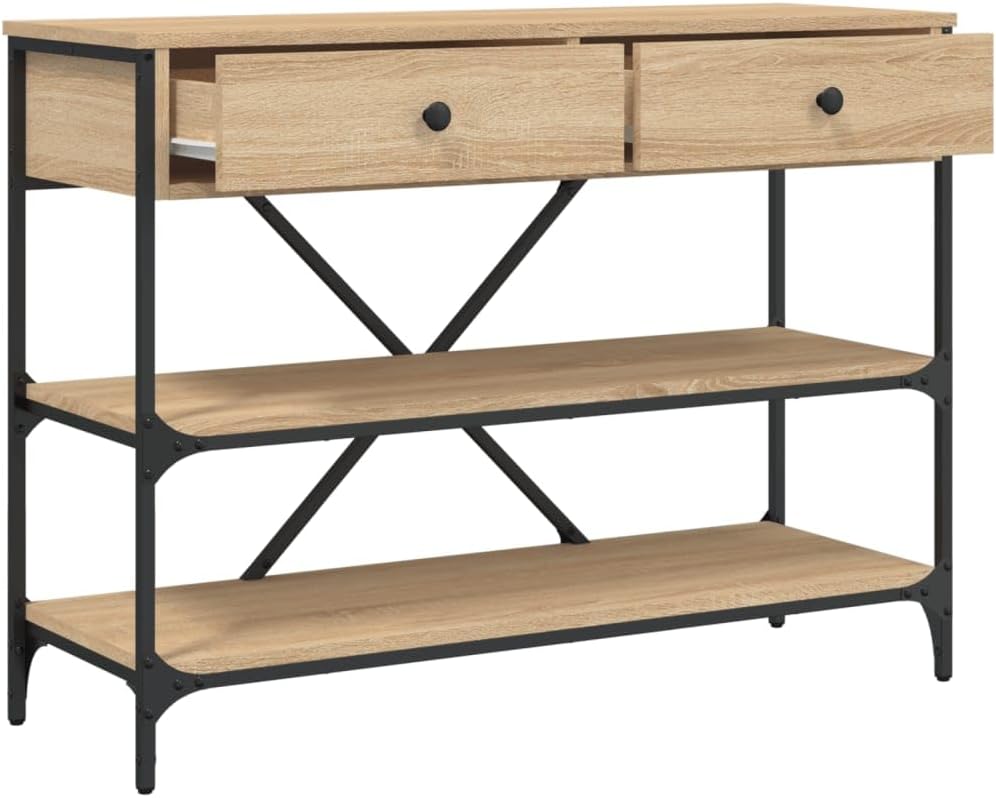

Figure 4 : Gros plan view of the console table with one drawer partially open, illustrating the internal storage capacity.

6. Maintenance et entretien

To ensure the longevity and appearance of your console table, follow these care guidelines:

• Nettoyage: Essuyez les surfaces avec un chiffon doux, damp Utilisez un chiffon. Évitez d'utiliser des produits chimiques agressifs, des nettoyants abrasifs ou des produits de polissage qui pourraient endommager la finition.
• Déversements : Essuyez immédiatement tout liquide renversé afin d'éviter les taches ou les dommages causés par l'humidité au bois d'ingénierie.
• Soleil: Évitez toute exposition prolongée à la lumière directe du soleil afin de prévenir la décoloration ou le jaunissement de la finition du bois.
• Chaleur: Ne posez pas d'objets chauds directement sur la surface. Utilisez des dessous de verre ou des protections.
• Inspection: Periodically check all fasteners and re-tighten if necessary to maintain structural integrity.

7. Dépannage

Si vous rencontrez des problèmes lors du montage ou de l'utilisation, reportez-vous aux solutions courantes suivantes :

• Difficulté avec l'assemblage :
  • Problème: Les pièces ne s'alignent pas et ne s'emboîtent pas facilement.
  • Solution: Ensure all screws are only loosely tightened during initial assembly. This allows for flexibility to align parts. Once all parts are in place, then gradually tighten all fasteners. Double-check part orientation against the manual's diagrams.
• Les tiroirs ne coulissent pas correctement :
  • Problème: Drawers rub or get stuck when opening/closing.
  • Solution: Verify that the drawer slides are installed correctly and are level. Adjust the vertical position of the slides on the console frame if possible. Ensure the drawer box itself is assembled squarely.
• Pièces manquantes ou endommagées :
  • Problème: Des composants sont manquants ou sont arrivés endommagés.
  • Solution: Contact vidaXL customer support with your product model number (833404) and a description of the missing/damaged parts.

8. Spécifications

9. Garantie et assistance

Specific warranty information for this product may be included with your purchase documentation. Please refer to the packaging or contact vidaXL customer service for details regarding warranty coverage.

For further assistance, missing parts, or technical support, please contact vidaXL customer service through their official website or the retailer from whom you purchased the product. When contacting support, please provide your product model number (833404) and purchase details.
