MotoTec 60V 1500W Electric Mini Bike User Manual

Introduction

This manual provides essential information for the safe operation, maintenance, and care of your MotoTec 60V 1500W Electric Mini Bike. Please read this manual thoroughly before operating the mini bike to ensure proper use and to prevent injury or damage.

Image : Côté view of the MotoTec 60V 1500W Electric Mini Bike, showcasing its design and knobby tires.

Consignes de sécurité

Operating an electric mini bike carries inherent risks. Adhere to all safety guidelines to minimize potential hazards.

• Portez toujours un casque et un équipement de sécurité approprié, notamment des gants, des lunettes de protection et des chaussures robustes.
• Avant chaque sortie, assurez-vous que tous les composants sont bien fixés et en bon état de fonctionnement.
• Do not operate the mini bike under the influence of alcohol or drugs.
• Observe all local laws and regulations regarding electric vehicle operation.
• Maintenez une distance de sécurité avec les autres véhicules et les piétons.
• Avoid riding on public roads unless permitted by local regulations.
• The maximum rider weight for this mini bike is 220 lbs (100 kg). Do not exceed this limit.
• Gardez les mains et les pieds éloignés des pièces mobiles.
• Children should only operate the mini bike under direct adult supervision.

Composants du produit

Familiarize yourself with the main components of your MotoTec Electric Mini Bike:

• Moteur: 60V 1500W brushless hub motor for efficient power delivery.
• Batterie: 60V/20Ah Lithium-Ion battery, housed securely.
• Cadre: Durable steel construction for rugged terrain.
• Roues: 18x7-8 pneumatic tires with knobby tread for enhanced grip.
• Freins: Freins à disque hydrauliques avant et arrière pour une puissance de freinage fiable.
• Suspension: Front and rear suspension system for a smoother ride.
• Éclairage: LED front headlight (high and low beam) and LED rear brake light.
• Corne: Integrated horn for signaling.
• Tableau de bord: LCD display showing speedometer, battery meter, and trip meter.
• Étrangler: Twist-grip throttle for speed control.
• Clé: Ignition key for starting the mini bike.
• Keyed Storage Compartment: Located in the faux gas tank area.

Image: Front 3/4 view of the mini bike, highlighting the front wheel, headlight, and handlebars.

Setup and Pre-Ride Checks

While the mini bike arrives largely pre-assembled, some minor setup and crucial pre-ride checks are necessary.

1. Déballage: Carefully remove the mini bike from its packaging. You may need to disassemble parts of the shipping frame.
2. Ajustement du guidon : Ensure handlebars are properly aligned and tightened.
3. Pression des pneus: Check and adjust tire pressure to the recommended PSI (refer to tire sidewall for specific values).
4. Brake Functionality: Testez les freins à disque hydrauliques avant et arrière pour vous assurer qu'ils s'enclenchent en douceur et efficacement.
5. Connexion de la batterie : Verify that the battery plug is securely connected. A loose connection can prevent the bike from operating.
6. Vérification de l'éclairage : Confirm the front LED headlight (high/low beam) and rear LED brake light are functional.
7. Horn Check: Testez le klaxon.
8. Fonctionnement de l'accélérateur : Ensure the twist throttle operates smoothly and returns to the idle position when released.

Image : Face avant view of the mini bike, showing the headlight and robust front tire.

Charger la batterie

The MotoTec Electric Mini Bike is powered by a 60V/20Ah Lithium-Ion battery. Proper charging ensures optimal performance and battery longevity.

1. Locate the charging port on the mini bike.
2. Connectez le chargeur fourni au port de chargement.
3. Branchez le chargeur sur une prise électrique standard.
4. Le voyant de charge du chargeur s'allume généralement en rouge pendant la charge et devient vert une fois la charge complète.
5. A full charge from a completely drained battery takes approximately 10 hours.
6. Ne surchargez pas la batterie. Débranchez le chargeur une fois la batterie pleine.
7. Chargez la batterie dans un endroit bien ventilé, loin des matériaux inflammables.

Mode d'emploi

Follow these steps to operate your MotoTec Electric Mini Bike:

1. Mise sous tension : Insert the key into the ignition and turn it to the "ON" position. The LCD instrument panel will illuminate.
2. Sélectionnez le mode vitesse : Use the handlebar switch to select your desired speed mode (13mph, 18mph, or 28mph).
3. Commencez à rouler : With your feet on the footpegs, gently twist the throttle to accelerate. The mini bike will move forward.
4. Freinage: To slow down or stop, release the throttle and gently apply the front and/or rear hydraulic disc brakes.
5. Pilotage: Dirigez le véhicule en tournant le guidon dans la direction souhaitée.
6. Éteindre: When finished riding, turn the key to the "OFF" position and remove it.

Image : Côté droit view of the mini bike, showing the motor housing and seat.

Paramètres de vitesse réglables

Your MotoTec Electric Mini Bike features adjustable speed settings, allowing you to control the maximum speed. These settings are controlled via a switch on the handlebar.

• Faible vitesse: Environ 13 km/h (21 mph)
• Vitesse moyenne: Environ 18 km/h (29 mph)
• Grande vitesse: Environ 28 km/h (45 mph)

Select the appropriate speed mode based on rider experience, terrain, and safety considerations.

Entretien

Regular maintenance is crucial for the longevity and safe operation of your mini bike.

• Pneus: Vérifiez régulièrement la pression des pneus et inspectez-les pour détecter toute usure ou dommage. Remplacez rapidement les pneus usés.
• Freins: Vérifiez l'usure des plaquettes de frein et assurez-vous que les leviers de frein fonctionnent correctement. Ajustez ou remplacez-les si nécessaire.
• Entretien de la batterie:
  • Charge the battery after each use, even if not fully depleted.
  • If storing the bike for an extended period, charge the battery to approximately 50-70% and store in a cool, dry place. Recharge every 1-2 months.
  • Évitez de décharger complètement la batterie, car cela peut réduire sa durée de vie.
• Fixations : Periodically check all nuts, bolts, and fasteners for tightness. Tighten any loose components.
• Nettoyage: Clean the mini bike with a damp Chiffon. Évitez d'utiliser des nettoyeurs haute pression directement sur les composants électriques.
• Stockage: Store the mini bike in a dry, secure location, away from direct sunlight and extreme temperatures.

Image : Arrière view of the mini bike, showing the tail light, rear suspension, and wide tire.

Dépannage

This section addresses common issues you might encounter with your MotoTec Electric Mini Bike.

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact MotoTec customer support.

Caractéristiques

Detailed technical specifications for the MotoTec 60V 1500W Electric Mini Bike:

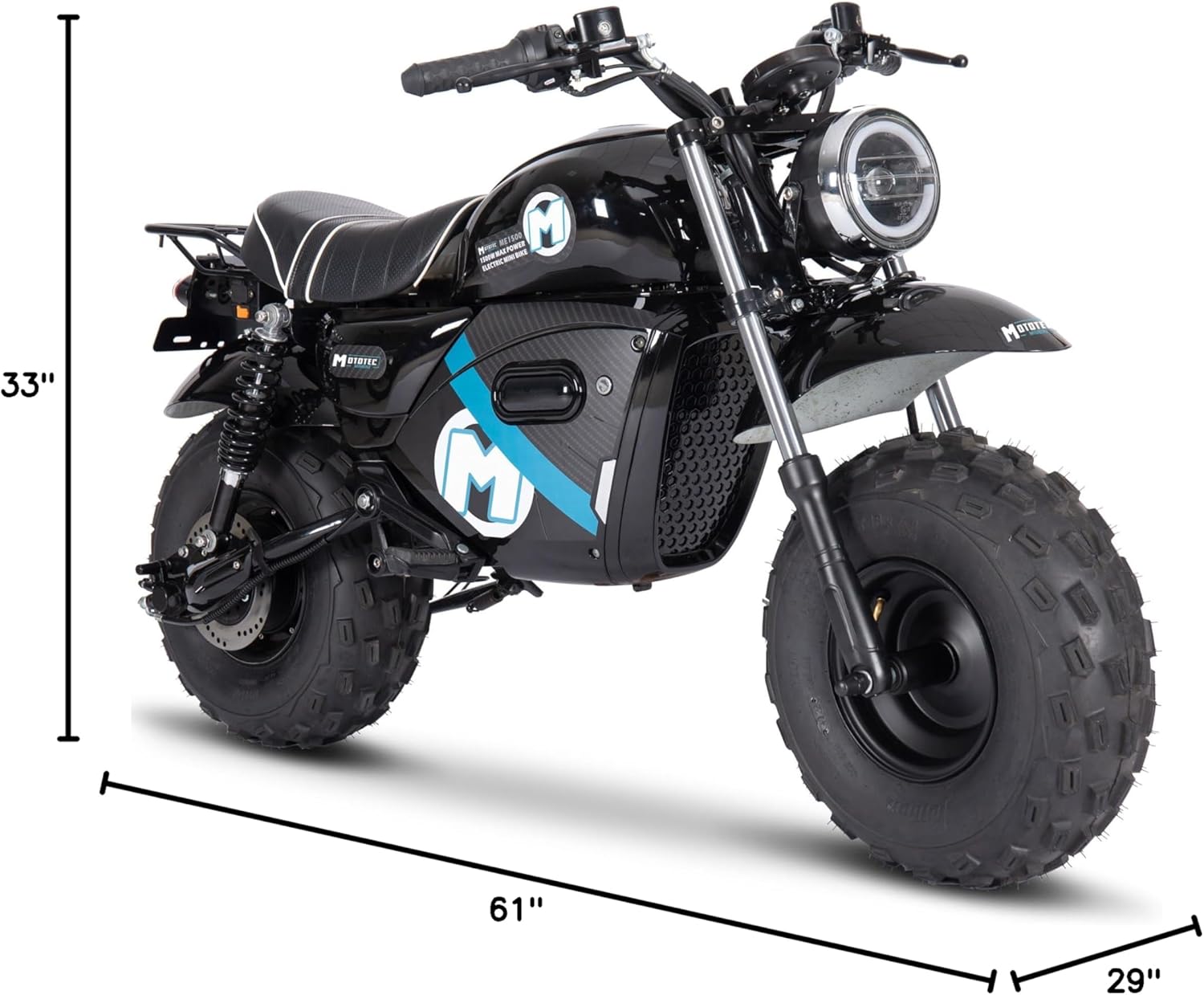

Image: Diagram illustrating the length, width, and height dimensions of the MotoTec Electric Mini Bike.

Informations sur la garantie

The MotoTec 60V 1500W Electric Mini Bike comes with a manufacturer's warranty.

• Période de garantie : 60 days parts replacement.
• Cette garantie couvre les défauts de fabrication liés aux matériaux et à la main-d'œuvre.
• It does not cover damage resulting from misuse, neglect, accidents, unauthorized modifications, or normal wear and tear.
• Conservez votre preuve d'achat pour les réclamations au titre de la garantie.

For detailed warranty terms and conditions, please refer to the documentation included with your product or contact MotoTec customer support.

Assistance clientèle

If you have any questions, require technical assistance, or need to make a warranty claim, please contact MotoTec customer support.

Refer to the contact information provided with your product or visit the official MotoTec website pour les détails de l'assistance.

When contacting support, please have your model number (MT-MiniBike-60v-1500w) and proof of purchase readily available.
