SWAREY H1 800ML Ultrasonic Cleaner User Manual

1. Introduction

Merci pour votre achatasing the SWAREY H1 800ML Ultrasonic Cleaner. This device utilizes 45,000Hz ultrasonic waves to provide effective and deep cleaning for various items such as jewelry, glasses, watch bands, dentures, and coins. This manual provides essential information for the safe and efficient operation and maintenance of your ultrasonic cleaner.

2. Informations importantes sur la sécurité

Veuillez lire attentivement toutes les consignes de sécurité avant d'utiliser l'appareil. Le non-respect de ces consignes peut entraîner un choc électrique, un incendie ou des blessures graves.

Do not immerse the main unit (base with power cord) in water or other liquids.
Ensure the power cord and plug are not damaged. Do not operate if damaged.
Tenir hors de portée des enfants. Cet appareil n'est pas un jouet.
Ne pas utiliser l'appareil de nettoyage sans liquide dans le réservoir.
Débranchez toujours l'appareil avant de le nettoyer ou lorsqu'il n'est pas utilisé.
Ne démontez pas l'appareil et n'essayez pas de le réparer vous-même. Contactez un technicien qualifié.
Use only tap water or a suitable cleaning solution. Avoid flammable or corrosive liquids.
Do not place items that may be damaged by ultrasonic vibrations (e.g., certain soft gemstones, non-waterproof watches).
Avoid touching the water during operation.
Assurez une bonne ventilation pendant l'utilisation.

3. Contenu du colis

Vérifiez que tous les éléments sont présents dans le colis :

1 x SWAREY H1 Ultrasonic Cleaner Main Unit
1 x Large Cleaning Basket
1 x Small Cleaning Basket
1 x Manuel d'utilisation

SWAREY H1 Ultrasonic Cleaner package contents including the main unit, two cleaning baskets, and user manual.

Image: Contents of the SWAREY H1 Ultrasonic Cleaner package.

4. Produit terminéview

The SWAREY H1 Ultrasonic Cleaner features an 800ML capacity tank and a user-friendly interface for efficient cleaning.

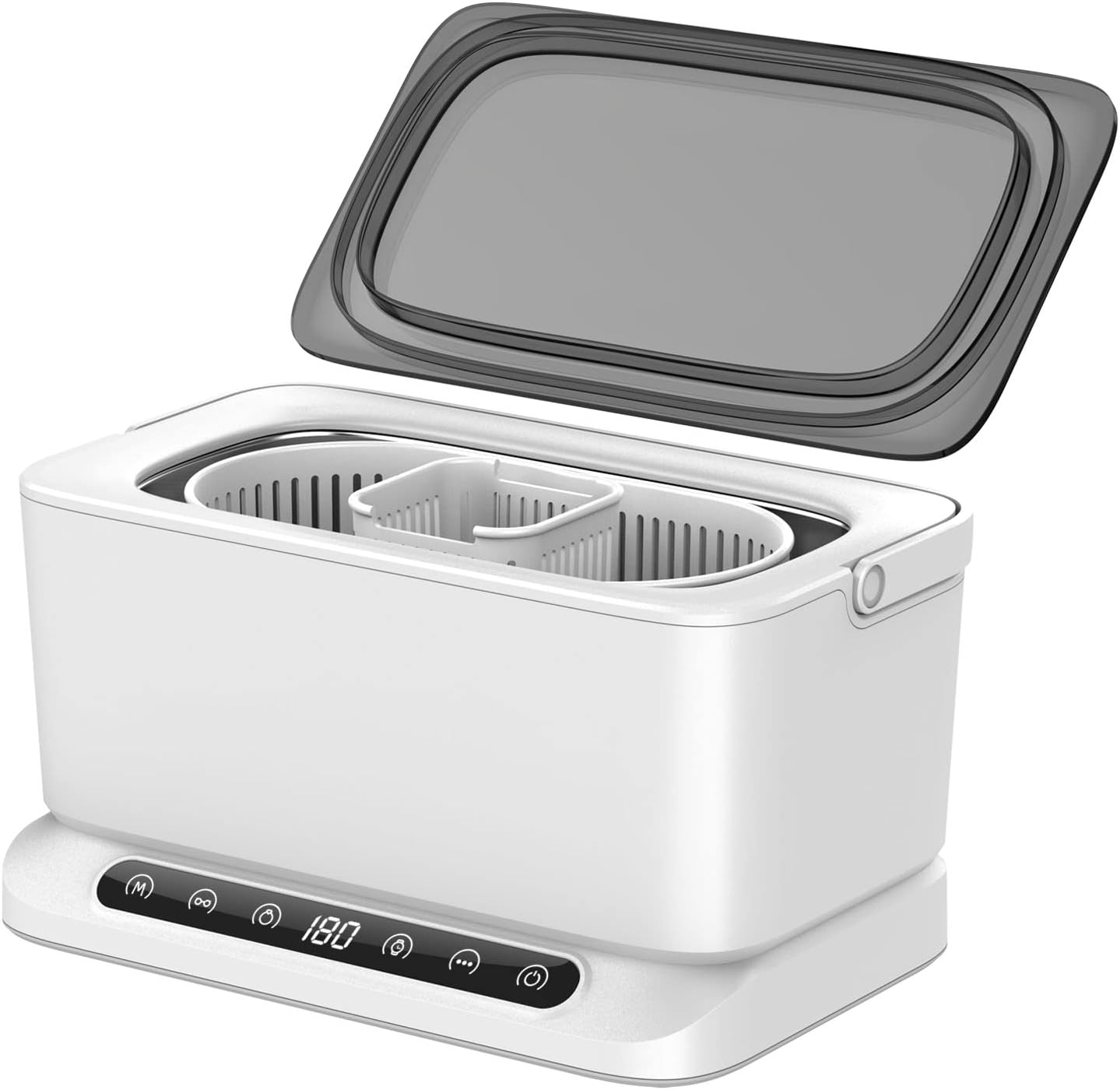

SWAREY H1 Ultrasonic Cleaner with lid open, showing the internal tank and baskets.

Image : Avant view of the SWAREY H1 Ultrasonic Cleaner with the lid open, revealing the stainless steel tank and included cleaning baskets.

Caractéristiques principales :

800ML Capacity: Accommodates various items from small jewelry to glasses.
45,000Hz Ultrasonic Frequency: Provides powerful and deep cleaning action.
4 modes de nettoyage : Pre-set modes for Glasses (180s), Jewelry (240s), Watch (300s), and Degas (360s).
Split Structure Design: The cleaning tank separates from the base for easy water pouring and cleaning.
SUS304 Stainless Steel Tank: Durable and corrosion-resistant material.
Advanced Degas Function: Helps prevent oxidation and improves cleaning effectiveness by removing dissolved gases.
Affichage numérique à DEL : Clearly indicates cleaning time and mode.

Diagram showing the three-layer split design of the SWAREY H1 Ultrasonic Cleaner, highlighting the removable tank, lid, and base.

Image : éclatée view illustrating the split design of the cleaner, showing the removable tank, lid, and base unit.

SWAREY H1 Ultrasonic Cleaner in operation, showing glasses being cleaned in the tank with ultrasonic waves indicated.

Image: The ultrasonic cleaner in action, demonstrating its 360-degree deep cleaning capability with glasses inside the tank.

5. Installation

Déballer: Retirez soigneusement tous les composants de l'emballage.
Placement: Place the main unit on a stable, flat, and dry surface, away from heat sources and direct sunlight. Ensure there is adequate ventilation.
Separate Tank: Lift the cleaning tank from the base unit using the integrated handle.
Remplir le réservoir : Fill the stainless steel tank with tap water. For enhanced cleaning, you may add a few drops of dish soap or a specialized ultrasonic cleaning solution. Do not exceed the maximum fill line.
Insérer le panier : Place the appropriate cleaning basket (large or small) into the tank.
Déposez les objets : Carefully place the items to be cleaned into the basket. Ensure items are fully submerged but not overcrowded.
Remonter: Place the filled tank back onto the base unit, ensuring it is securely seated. Close the lid.
Connecter l'alimentation : Plug the power cord into a grounded electrical outlet (AC 100-120V, 50/60Hz or AC 220-240V, 50/60Hz depending on your model).

A hand lifting the removable tank of the SWAREY H1 Ultrasonic Cleaner from its base unit.

Image: Demonstrating the removable tank feature, showing how to lift the tank from the base for filling or emptying.

6. Mode d'emploi

Follow these steps to operate your SWAREY H1 Ultrasonic Cleaner:

Mise sous tension : Après la configuration, appuyez sur Bouton d'alimentation (indicated by a power symbol) to turn on the unit. The LED display will illuminate.
Sélectionnez le mode: Appuyez sur le Bouton de mode (indicated by an 'M' symbol) repeatedly to cycle through the four pre-set cleaning modes:
- Glasses Mode (180s): For eyeglasses, sunglasses, optical lenses.
- Jewelry Mode (240s): For rings, necklaces, earrings, bracelets.
- Watch Mode (300s): For waterproof watch bands and cases.
- Degas Mode (360s): For items requiring enhanced cleaning and removal of dissolved gases.
The selected time will be displayed on the LED screen.
Commence a nettoyer: Once the desired mode is selected, the cleaning cycle will begin automatically after a short delay, or you may press the Bouton marche/arrêt (often integrated with the Power button or a separate play/pause icon).
Pendant le nettoyage : The unit will operate for the selected duration. A gentle buzzing sound is normal during ultrasonic cleaning.
Fin de cycle : The unit will automatically shut off when the cleaning cycle is complete.
Supprimer des éléments : Unplug the unit. Carefully lift the tank from the base. Remove the cleaning basket and retrieve your cleaned items.
Rincer et sécher : Rinse the cleaned items under clean running water and dry them thoroughly with a soft cloth.

Control panel of the SWAREY H1 Ultrasonic Cleaner showing buttons for mode selection and LED display.

Image: Close-up of the control panel with LED display and mode selection buttons.

Applications recommandées:

Various items like glasses, jewelry, and watches being cleaned in the SWAREY H1 Ultrasonic Cleaner.

Image : Examples of items suitable for cleaning, including glasses, jewelry, and watch straps.

Before and after images of a watch, glasses, and a necklace cleaned with the SWAREY H1 Ultrasonic Cleaner.

Image: Visual comparison of items before and after ultrasonic cleaning, demonstrating the powerful cleaning effect.

7. Entretien

Un entretien approprié garantit la longévité et les performances optimales de votre nettoyeur à ultrasons.

Vider et rincer le réservoir : After each use, unplug the unit. Lift the tank from the base and carefully pour out the dirty water. Rinse the tank with clean water.
Réservoir propre : Wipe the inside of the stainless steel tank with a soft cloth. Do not use abrasive cleaners or scouring pads.
Extérieur propre : Essuyez l'extérieur de l'appareil avec un chiffon doux.amp cloth. Do not use excessive water or allow water to enter the control panel.
Stockage: Ensure the unit is completely dry before storing. Store in a cool, dry place, away from direct sunlight and out of reach of children.
Évitez les produits chimiques agressifs : Do not use strong acids, alkalis, or corrosive cleaning agents in the tank, as this can damage the stainless steel.

8. Dépannage

If you encounter issues with your SWAREY H1 Ultrasonic Cleaner, refer to the following common problems and solutions:

Problème	Cause possible	Solution
L'unité ne s'allume pas.	Le cordon d'alimentation n'est pas correctement branché. Pas de courant à la prise. Dysfonctionnement de l'unité.	Ensure power cord is firmly plugged into both the unit and the outlet. Testez la prise avec un autre appareil. Contactez le support client.
Résultats de nettoyage médiocres.	Niveau d'eau insuffisant. Items overcrowded. Incorrect cleaning mode/time. Stubborn dirt requiring cleaning solution.	Assurez-vous que les articles sont complètement immergés. Clean fewer items at a time. Select a longer cleaning cycle or a more appropriate mode. Add a few drops of dish soap or a specialized ultrasonic cleaning solution.
Bruit ou vibration inhabituel.	L'appareil n'est pas posé sur une surface stable. Items touching the tank walls. Normal operating sound (buzzing is expected).	Place the unit on a firm, flat surface. Ensure items are placed in the basket and not directly touching the tank. If the noise is excessive or unusual, discontinue use and contact support.

9. Spécifications

Modèle:	H1
Capacité du réservoir :	800 ml
Fréquence ultrasonique:	45,000 Hz
Cleaning Tank Material:	Acier inoxydable (SUS304)
Alimentation:	AC 100-120V, 50/60Hz or AC 220-240V, 50/60Hz
Contrôle des modes :	4 mode settings (Glasses/Jewelry/Watch/Degas)
Inner Tank Size:	172 x 88 x 55 mm (6.77 x 3.46 x 2.17 pouces)
C extérieurasing Size:	216 x 137 x 121 mm (8.5 x 5.39 x 4.76 pouces)
Poids net:	0.892 kg
Gross Weight (package include):	1.09 kg

Diagram showing the dimensions of the SWAREY H1 Ultrasonic Cleaner tank and outer casing.

Image: Detailed dimensions of the ultrasonic cleaner's tank and external casing.

10. Garantie et assistance

SWAREY products are designed and manufactured to the highest quality standards. For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official SWAREY webVeuillez vous munir de votre numéro de modèle (H1) et des détails de votre achat lorsque vous contactez l'assistance.
