HITOSINO 5MP IP PoE Turret Camera User Manual

Produit terminéview

The HITOSINO 5MP IP PoE Turret Camera is a high-performance surveillance solution designed for both outdoor and indoor environments. It features advanced imaging capabilities, intelligent detection, and robust construction to ensure reliable security monitoring.

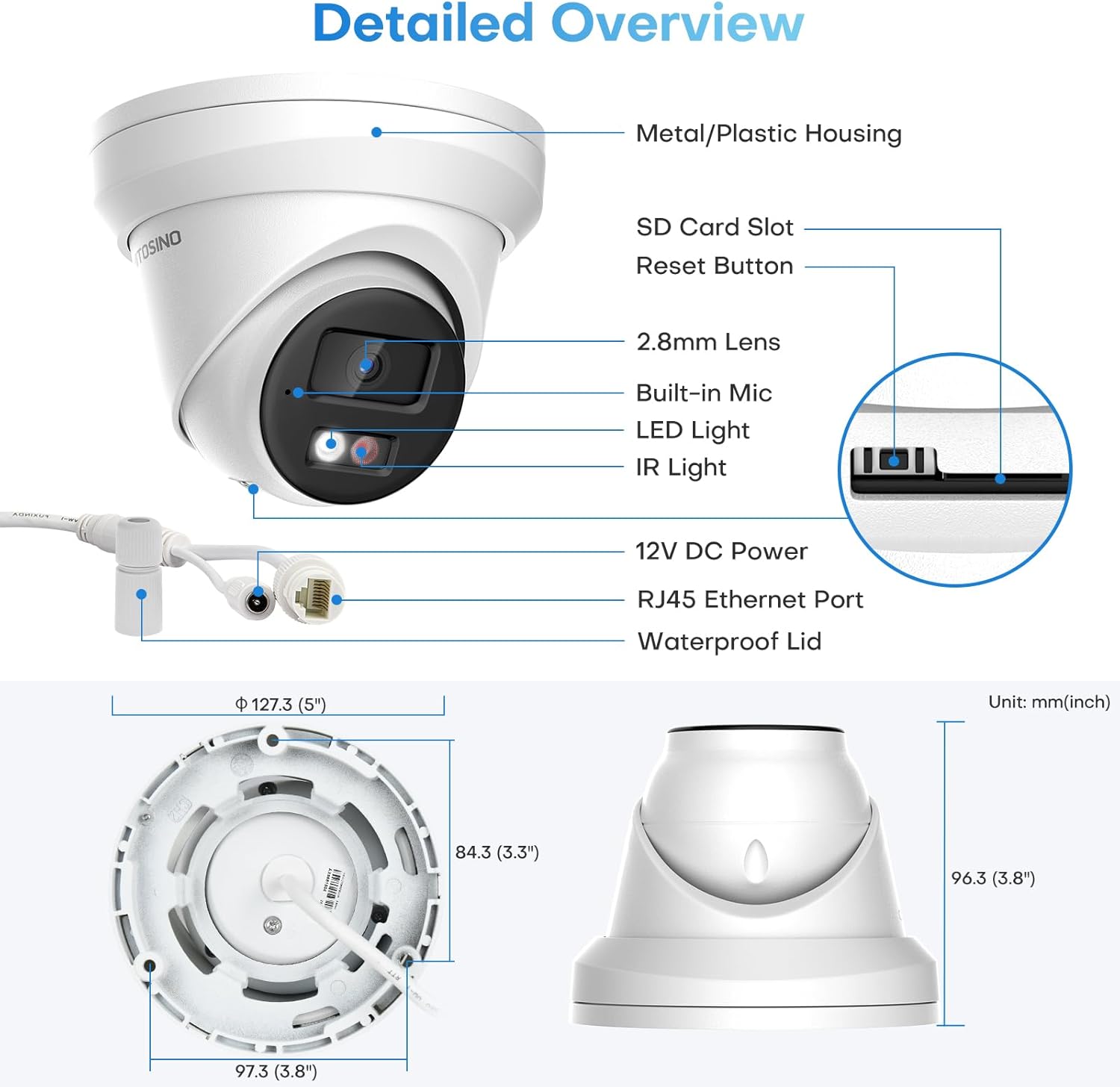

Figure 1.1 : Plusview of the HITOSINO 5MP IP PoE Turret Camera.

Caractéristiques principales :

• Clarté 5.3MP : Delivers stunning 3072x1728 resolution for detailed surveillance.
• Vision nocturne couleur intelligente : Provides full-color images in low-light conditions when human/vehicle detection is triggered, or clear infrared night vision up to 98ft.
• Détection humaine/véhicule : Utilizes deep learning for accurate detection, reducing false alarms.
• Microphone intégré : Captures real-time audio for enhanced monitoring.
• Stockage flexible : Supports SD card (up to 512GB), NAS, or FTP.
• IP67 résistant aux intempéries : Durable metal housing designed for extreme temperatures (-30°C to 60°C / -22°F to 140°F) and harsh weather.
• Grand angle View: Champ diagonal de 114° de view for broad coverage.

Qu'y a-t-il dans la boîte

• Caméra
• Guide de démarrage rapide
• Douille hexagonale
• Vis
• Positioning stickers (Note: No power supply, network cable, or PoE switch included)

Figure 1.2: The camera and included accessories, excluding power supply and network cables.

Caractéristiques

Installation

1. Alimenter la caméra

The camera can be powered in two ways: via a 12V/1A power adapter or through Power over Ethernet (PoE).

Standalone Use with 12V 2A Power Adapter:

Connect the camera to a 12V 2A power adapter and then connect the camera's Ethernet port to your router using a network cable. Your PC or phone can then access the camera via the router.

Figure 2.2: Connection diagram for standalone use with a 12V 2A power adapter.

Standalone Use with PoE Switch:

Connect the camera directly to a PoE switch using a single network cable. The PoE switch will provide both power and data. The PoE switch then connects to your router, allowing access from your PC or phone.

Figure 2.3: Connection diagram for standalone use with a PoE switch.

Connecting to HITOSINO/Hikvision PoE NVR:

For seamless integration, connect the camera to a HITOSINO or Hikvision PoE NVR. The NVR provides power and manages recordings. Connect the NVR to a monitor for local viewing and to your router for remote access.

Figure 2.4: Connection diagram for integrating the camera with a PoE NVR system.

Connecting to HITOSINO/Hikvision Non-PoE NVR:

If using a non-PoE NVR, you will need a separate PoE switch to power the camera. The camera connects to the PoE switch, which then connects to the NVR. The NVR connects to a monitor and router as usual.

Figure 2.5: Connection diagram for integrating the camera with a non-PoE NVR system, requiring an external PoE switch.

2. App Setup (Guarding Vision)

To add your camera to the Guarding Vision app for remote viewing and management, follow these steps:

1. Download and install the Guarding Vision app on your smartphone.
2. Ouvrez l'application et sélectionnez « Ajouter un appareil ».
3. Choose 'Scan QR Code' and scan the QR code located on your camera. Alternatively, you can manually enter the camera's serial number.
4. Follow the on-screen prompts to connect the device to your network and enable Guarding Vision service.
5. Enter the device password or verification code you set for Hik-Connect or Guarding Vision. This code can be found on the camera's webparamètres de la page.
6. Create a verification code for encryption if prompted.
7. Nommez votre appareil pour une identification facile.

3. Montage de la caméra

The camera can be wall-mounted or ceiling-mounted. Use the provided drill template for accurate installation.

Figure 2.7: Various mounting options for the turret camera, including wall and ceiling mounts.

For cables routed through the wall, use Hole A on the drill template. For mounting the base, use the screw holes indicated by '1'.

Utilisation de l'appareil photo

1. Modes de vision nocturne

The camera offers three night vision modes for optimal surveillance in varying light conditions:

• Lumière blanche : Provides 24/7 full-color imaging up to 100ft.
• IR Supplement Light: Offers crystal clear white and black imaging up to 100ft using infrared.
• Double lumière intelligente : Automatically switches to color on human/vehicle detection, minimizing light pollution.

Figure 3.1: Visual representation of the three available night vision modes.

2. Human/Vehicle Detection (Motion Detection 2.0)

Leveraging deep learning technology, the camera provides 98% accurate human and vehicle detection, significantly reducing false alarms compared to traditional motion detection. This intelligent feature helps you focus on relevant events.

Figure 3.4: Motion Detection 2.0 accurately identifies humans and vehicles, minimizing irrelevant alerts.

3. Microphone intégré

The integrated microphone captures and transmits audio in real-time, adding an extra layer of security and situational awareness to your surveillance.

Figure 3.5: The camera's built-in microphone allows for real-time audio capture, enhancing surveillance capabilities.

4. Options de stockage flexibles

Maximize recording time with H.265+ compression. The camera supports various storage options including a Micro SD card (up to 512GB, not included), Network Attached Storage (NAS), or File Transfer Protocol (FTP).

Figure 3.6: The camera features a Micro SD card slot for convenient local storage without monthly fees.

H.265+ video compression technology can save up to 70-80% in bandwidth and storage compared to H.264, without compromising video quality.

Figure 3.7: H.265+ compression offers significant savings in bandwidth and storage.

5. Accès à distance

Access your camera feed and settings remotely via the Hik-Connect or Guarding Vision mobile apps (available on Google Play and App Store) or through PC software like iVMS4200 and web navigateurs.

Figure 3.8: The camera supports easy access from phones, tablets, and PCs for remote viewing.

Entretien

Regular maintenance ensures optimal performance and longevity of your HITOSINO camera.

• Nettoyage: Nettoyez régulièrement l'objectif et le boîtier de l'appareil photo avec un chiffon doux et sec.amp Chiffon. Évitez les nettoyants abrasifs ou les solvants.
• Mises à jour du micrologiciel : Check the official HITOSINO webConsultez le site ou l'application pour connaître les mises à jour du micrologiciel disponibles et vous assurer que votre caméra dispose des dernières fonctionnalités et améliorations de sécurité.
• Inspection des câbles : Regularly inspect all cables for any signs of wear, damage, or loose connections, especially for outdoor installations.
• Gestion du stockage: Si vous utilisez une carte SD, veuillez la recharger périodiquement.view et gérer les photos enregistréestage pour éviter que la carte ne soit pleine.

Dépannage

Helpful Tips for Connectivity:

• Ensure all devices (camera, router, NVR, PoE switch) are properly powered on and correctly connected.
• The default IP address of the camera is 192.168.1.64, and DHCP is enabled by default. When connected to your router, the camera should automatically be assigned a valid IP address.
• For this value series, unlike Hikvision branded or HITOSINO white label products, ONVIF is enabled by default. When using with a third-party PoE NVR, ensure you know the NVR's built-in IP address and adjust the camera's IP address to the same network segment accordingly. However, for full functionality, it is recommended to use a HITOSINO or Hikvision NVR.

Figure 4.1: Important tips for ensuring proper camera functionality and compatibility.

We have videos explaining how to configure each connection, please check them out. We understand that each experience is unique, so if you encounter any issues, we are always here to help.

Garantie et assistance

HITOSINO is committed to providing high-quality cameras and excellent customer service.

• Garantie limitée de 2 ans : Your product is covered by a 2-year limited warranty from the date of purchase.
• Garantie de remboursement de 30 jours : Si vous n'êtes pas satisfait de votre achat, vous pouvez le retourner dans les 30 jours pour obtenir un remboursement intégral.
• Assistance technique à vie : We offer professional technical support for the lifetime of your product.

For any inquiries or technical assistance, please feel free to contact us through Amazon messages or the contact information provided on the product packaging. Your safety is our priority.
