Introduction
This manual provides essential information for the safe and effective use of the Generic BL4266 24V Brushless Motor. This motor features a strong magnetic, 9-pole inner rotor design with double ball bearings for enhanced performance and durability. It operates at 24V and includes red, black, and white output wires for connection.
Consignes de sécurité
Please read and understand all safety instructions before operating the motor. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Sécurité électrique : Ensure all connections are secure and insulated. Do not operate the motor with damaged wiring.
- Voltage: Use only a 24V power supply. Exceeding the rated voltage peut endommager le moteur.
- Chaleur: Motors can generate heat during operation. Avoid touching the motor directly after prolonged use. Ensure adequate ventilation.
- Pièces mobiles: Keep hands, hair, and loose clothing away from rotating parts during operation.
- Environnement: Do not expose the motor to water, excessive dust, or corrosive environments.
- Utilisation professionnelle : This product is intended for users who possess the necessary technical knowledge for its application. Technical support is not provided.
Produit terminéview
The BL4266 is a robust 24V brushless DC motor designed for various applications. It features a compact design with a 9-pole inner rotor and double ball bearings for smooth and efficient operation.
Composants moteur
- Corps du moteur : Cylindrical housing containing the stator and rotor.
- Arbre de sortie : The rotating shaft for power transmission.
- Câblage : Red, black, and white wires for power and control.
- Internal Circuitry: Integrated control board for brushless motor operation.
Images du produit
Figure 1 : Général view of the BL4266 24V Brushless Motor. This image shows the overall appearance of the motor, highlighting its compact cylindrical design and the output shaft.
Figure 2 : Devant view of the BL4266 motor detailing mounting dimensions. This image indicates a mounting hole spacing of 29mm and M3.5 screw size for attachment.

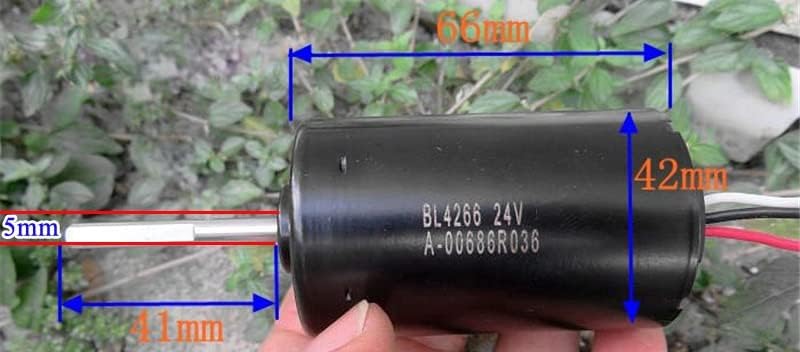

Figure 3 : Côté view of the BL4266 motor showing overall dimensions. The motor body length is approximately 66mm, diameter 42mm, shaft diameter 5mm, and exposed shaft length 41mm.
Figure 4 : Haut view of the internal circuit board of the BL4266 motor. This shows various electronic components, including capacitors and integrated circuits, responsible for motor control.

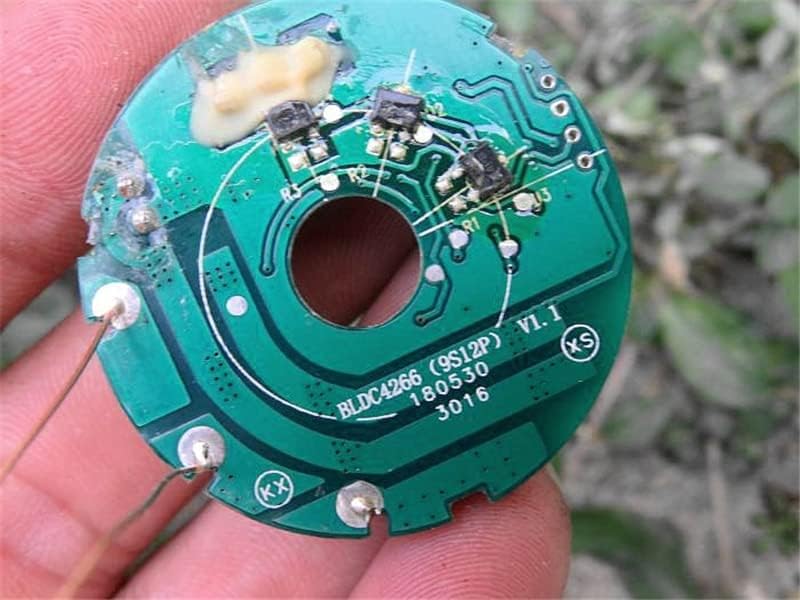

Figure 5 : Bas view of the internal circuit board of the BL4266 motor. This perspective reveals additional traces and components on the reverse side of the control board.
Figure 6 : Multiple BL4266 motors shown in their original packaging. This image provides a view of how the motors are typically supplied.
Caractéristiques
| Fonctionnalité | Spécification |
|---|---|
| Modèle | BL4266 |
| Vol d'exploitationtage | 24V |
| Type de moteur | Moteur CC sans balais (BLDC) |
| Type de rotor | 9-Pole Inner Rotor |
| Roulements | Double Ball Bearings |
| Fils de sortie | Rouge, Noir, Blanc |
| Poids | Environ 365 g |
| Longueur du corps du moteur | 66 mm (environ) |
| Diamètre du corps du moteur | 42 mm (environ) |
| Diamètre de l'arbre | 5 mm (environ) |
| Longueur de l'arbre exposé | 41 mm (environ) |
| Espacement des trous de montage | 29 mm (environ) |
| Taille de la vis de montage | M3.5 (approx.) |
Configuration et installation
Proper installation is crucial for the safe and efficient operation of the BL4266 motor. This motor requires an external brushless motor controller (ESC) for operation, which is not included.
Montage du moteur
- Identify a suitable mounting surface that can securely hold the motor and withstand any operational vibrations.
- Align the motor's mounting holes with the pre-drilled holes on your mounting surface. Refer to Figure 2 for mounting dimensions (29mm spacing, M3.5 screws).
- Secure the motor using appropriate M3.5 screws. Do not overtighten, as this may damage the motor housing.
Connexions de câblage
The BL4266 motor comes with three output wires: Red, Black, and White. These wires are typically connected to a compatible 24V brushless motor controller (ESC).
- Fil rouge : Typically positive power input from the ESC.
- Fil noir : Typically negative power input from the ESC.
- Fil blanc : Typically a signal or control wire from the ESC. The exact function may vary depending on the ESC model. Consult your ESC manual for specific wiring diagrams.
Important: Ensure correct polarity and secure connections to prevent damage to the motor or ESC. Incorrect wiring can lead to motor malfunction or permanent damage.
Mode d'emploi
Once the motor is securely mounted and correctly wired to a compatible 24V brushless motor controller (ESC) and power supply, follow these general steps for operation:
- Mise sous tension : Connect the 24V power supply to the ESC.
- Configuration du contrôleur: Ensure your ESC is properly configured for a 9-pole brushless motor, if applicable.
- Lancer l'opération : Use the control input of your ESC (e.g., throttle signal from a microcontroller or remote control) to start and control the motor speed.
- Surveiller les performances : Observe the motor for any unusual noises, excessive heat, or vibrations during initial operation. If any anomalies are detected, immediately power off and inspect the setup.
- Éteindre: Disconnect the power supply from the ESC when the motor is not in use.
Note: The specific operating procedures will largely depend on the brushless motor controller (ESC) used with this motor. Always refer to the ESC's instruction manual for detailed operational guidelines.
Entretien
The BL4266 brushless motor is designed for low maintenance. However, periodic checks can help ensure its longevity and optimal performance.
- Nettoyage: Keep the motor free from dust, dirt, and debris. Use a soft, dry cloth or compressed air for cleaning. Avoid using liquids.
- Inspections : Regularly check for any signs of physical damage, loose connections, or worn wires.
- Roulements: The double ball bearings are typically sealed and require no lubrication under normal operating conditions. If unusual noise or resistance is detected, the bearings may need inspection by a qualified technician.
- Stockage: Store the motor in a dry, clean environment away from extreme temperatures and humidity when not in use.
Dépannage
This section provides basic troubleshooting steps for common issues. As technical support is not provided for this product, advanced diagnostics may require professional assistance.
| Problème | Cause possible | Solution |
|---|---|---|
| Motor does not start or rotate. | No power to ESC/motor; Incorrect wiring; Faulty ESC; Motor damage. | Check power supply and connections. Verify wiring to ESC. Test ESC with another motor if possible. Inspect motor for visible damage. |
| Motor runs intermittently or stutters. | Loose connections; ESC timing issues; Overheating. | Secure all connections. Consult ESC manual for timing adjustments. Ensure adequate cooling. |
| Le moteur est excessivement chaud. | Overload; Insufficient cooling; Incorrect ESC settings. | Reduce load on the motor. Improve ventilation. Check ESC settings (e.g., current limits). |
| Bruit ou vibration inhabituel. | Loose mounting; Damaged bearings; Obstruction. | Check motor mounting screws. Inspect shaft and bearings for damage. Remove any obstructions. |
Garantie et assistance
This product is sold without explicit warranty information provided by the manufacturer. As stated in the product description, technical support for its use is not provided. Users are expected to have the necessary technical knowledge for integration and operation.
For any issues, please refer to the troubleshooting section of this manual or consult with a qualified professional if you lack the expertise to diagnose and resolve problems.
