1. Informations importantes sur la sécurité
This lockout device is designed to enhance safety during maintenance or repair of electrical equipment by preventing accidental energization. Adherence to proper lockout/tagout (LOTO) procedures is critical for preventing serious injury or death from unexpected startup of machinery or release of hazardous energy.
- Always ensure all power sources are de-energized and verified before applying the lockout device.
- This device is intended for use with 120V circuit breakers that have holes in the switch handle. Verify compatibility before use.
- Use only in conjunction with appropriate safety padlocks and tags to clearly indicate the locked-out status and responsible personnel.
- Do not attempt to force the device onto incompatible circuit breakers.
- Regularly inspect the device for any signs of wear, damage, or deformation. Replace immediately if compromised.
- This device is made of PA material, which offers good insulation properties. However, always treat electrical systems with extreme caution.

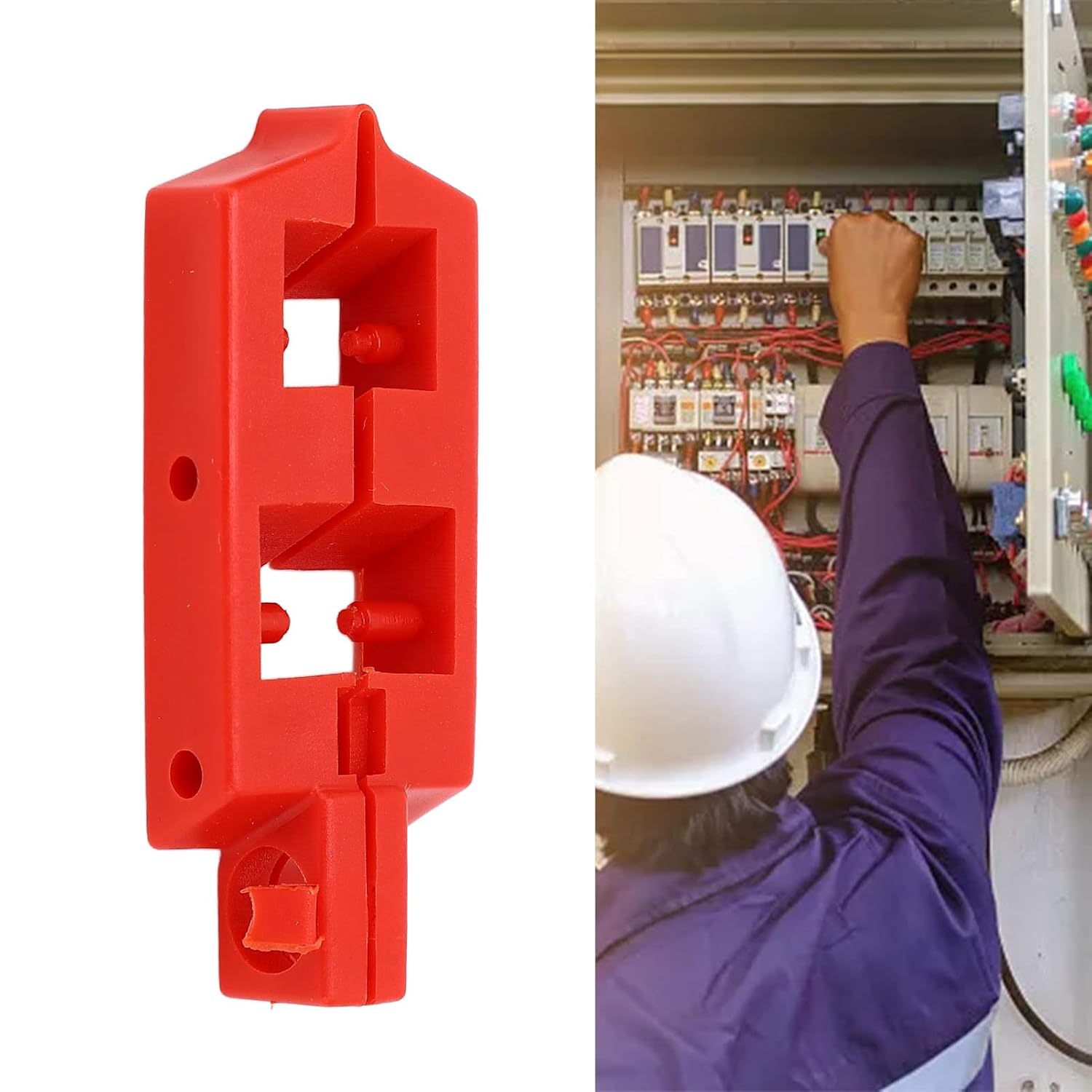

Image: A worker is shown near an electrical panel, highlighting the importance of safety during electrical work. The lockout device is designed to prevent accidental power restoration.
2. Produit terminéview
The Dioche Circuit Breaker Lockout Device is a robust and easy-to-use solution for isolating 120V circuit breakers. Its design ensures a secure fit and prevents unauthorized operation during maintenance procedures.
Caractéristiques principales :
- Simple and Quick Installation: Clip-type design allows for tool-free installation and removal.
- Dual Control Design: Accommodates switch handles of various sizes for versatile application.
- Durable PA Material: Constructed from impact-resistant, good insulation modified nylon PA material, ensuring longevity and resistance to deformation.
- Conception professionnelle : Specifically engineered for single and multi-pole circuit breakers with holes on both sides of switch handles.

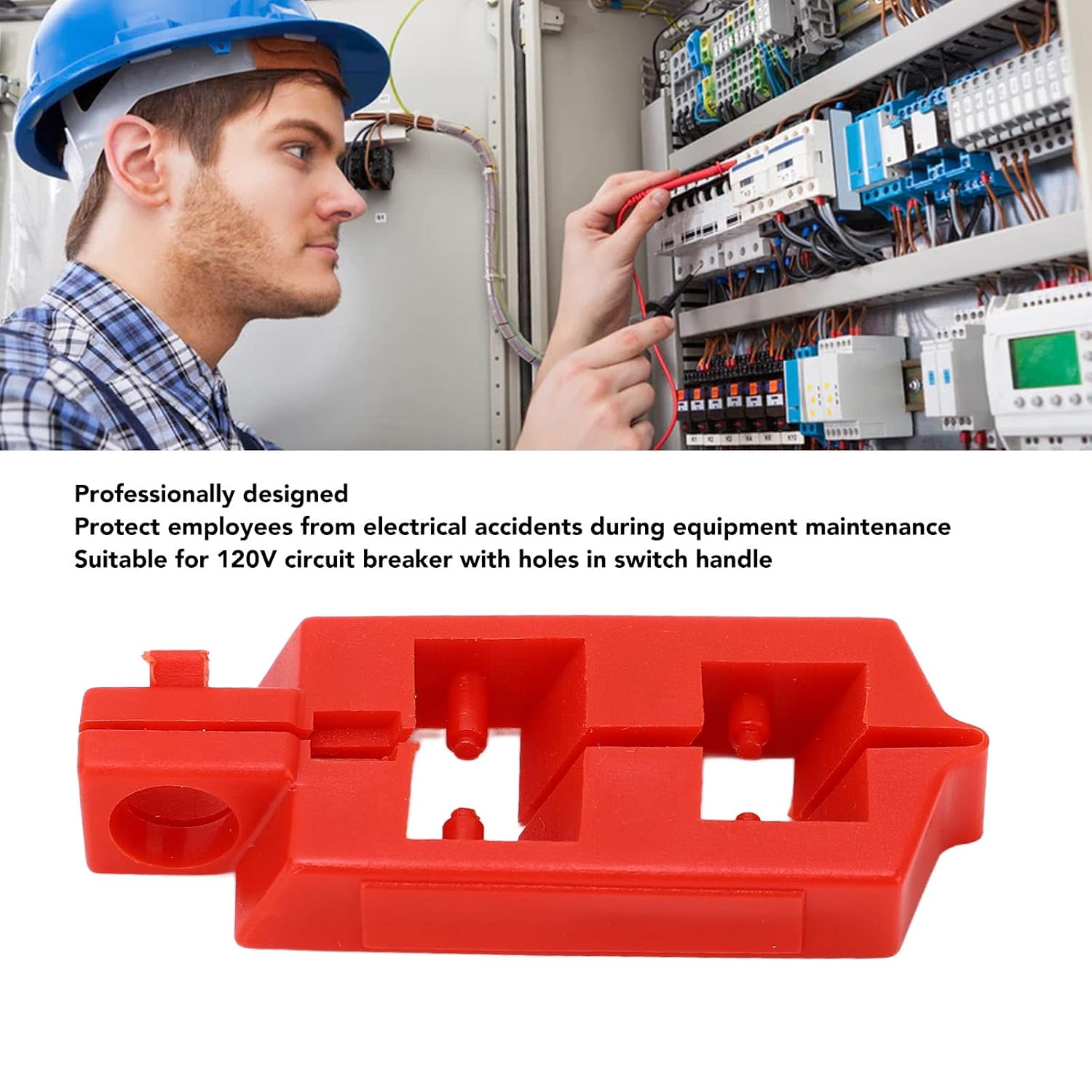

Image: The Dioche Circuit Breaker Lockout Device, highlighting its key features and robust construction from PA material.
3. Spécifications
| Attribut | Détail |
|---|---|
| Type d'article | Verrouillage du disjoncteur |
| Matériel | PA (polyamide) |
| Compatibilité | Suitable for 120V circuit breakers with holes in the switch handle |
| Keyhole Diameter | Environ 8 mm / 0.31 po |
| Taille du produit (L x l x H) | Dimensions approximatives : 55 x 20 x 8 mm / 2.17 x 0.79 x 0.31 pouces |
| Type de montage | Clip-In Mount |
| Numéro de modèle | Dioche1fv0n72tzi |
| Fabricant | Dioche |
Image: Detailed dimensions of the Dioche Circuit Breaker Lockout Device, showing its compact size.
4. Configuration et installation
4.1 Déballage
Carefully remove the Circuit Breaker Lockout Device from its packaging. Inspect the device for any visible damage or defects. If any damage is found, do not use the device and contact customer support.
4.2 étapes d'installation
Before installation, ensure that the circuit breaker is in the OFF position and all power to the circuit has been verified as de-energized using appropriate testing equipment. Always follow your facility's established Lockout/Tagout (LOTO) procedures.
- Identify the 120V circuit breaker handle that requires lockout. Ensure it has the necessary holes for the device's pins.
- Position the circuit breaker handle in the OFF position.
- Align the pins of the Dioche Circuit Breaker Lockout Device with the holes in the circuit breaker handle.
- Gently press the lockout device onto the circuit breaker handle until it clips securely into place. The device should fit snugly and prevent the handle from being moved.
- Once the device is installed, insert a safety padlock through the keyhole of the lockout device. This prevents the device from being removed and the circuit breaker from being re-energized.
- Attach a lockout tag to the padlock, clearly indicating the reason for lockout, the date, and the name of the authorized person.
- Verify that the circuit breaker cannot be switched ON with the lockout device and padlock in place.
Image: The lockout device securely attached to multiple circuit breakers, illustrating proper installation for electrical isolation.
5. Mode d'emploi
5.1 Applying the Lockout Device
The primary function of this device is to secure a circuit breaker in the OFF position. Follow these steps to apply the lockout device:
- Ensure the circuit breaker is in the OFF position.
- Place the lockout device over the circuit breaker handle, aligning the internal pins with the holes on the handle.
- Press down firmly until the device clicks into place, securing the handle.
- Insert your personal safety padlock through the designated hole on the device.
- Attach a lockout tag to the padlock, providing necessary safety information.
- Attempt to move the circuit breaker handle to confirm it is fully locked out.
5.2 Removing the Lockout Device
Removal of the lockout device should only be performed by the authorized person who applied it, or under strict company procedures for group lockout or shift changes.
- Verify that the work on the associated equipment is complete and it is safe to re-energize.
- Supprimer le verrouillage tag from the padlock.
- Unlock and remove your personal safety padlock from the lockout device.
- Gently pull the lockout device off the circuit breaker handle.
- Store the lockout device in a clean, dry place for future use.
- Restore power to the circuit breaker only after ensuring all personnel are clear and the equipment is safe to operate.
Image: The lockout device in proximity to an electrical panel, demonstrating its practical application in industrial settings.
6. Entretien
Proper maintenance ensures the longevity and effectiveness of your Dioche Circuit Breaker Lockout Device.
- Nettoyage: Clean the device periodically with a damp cloth. Avoid using harsh chemicals or abrasive cleaners that could damage the PA material.
- Inspection: Before each use, visually inspect the device for any cracks, chips, deformation, or signs of wear. Pay close attention to the pins and the keyhole area.
- Stockage: Store the lockout device in a clean, dry environment, away from direct sunlight and extreme temperatures. Proper storage helps maintain its structural integrity.
- Remplacement: If the device shows any signs of damage or wear that could compromise its function, replace it immediately. Do not attempt to repair damaged lockout devices.
7. Dépannage
This section addresses common issues you might encounter with your circuit breaker lockout device.
| Problème | Cause possible | Solution |
|---|---|---|
| Device does not fit on circuit breaker handle. | Incompatible circuit breaker type or size. Handle lacks necessary holes. | Verify that the circuit breaker is a 120V type with holes in the handle. This device is designed for specific compatibility. Consult product specifications. |
| L'appareil semble avoir du jeu après l'installation. | Not fully engaged, or circuit breaker handle is worn/damaged. | Ensure the device is pressed firmly until it clicks into place. If it remains loose, the circuit breaker handle may be damaged or the device itself is worn; replace as necessary. |
| Padlock cannot be inserted into the keyhole. | Incorrect padlock size or keyhole obstruction. | Use a padlock with a shackle diameter of approximately 8mm (0.31in). Check the keyhole for any debris or damage. |
| Device appears damaged or cracked. | Impact physique ou fatigue des matériaux. | Immediately discontinue use and replace the device. A damaged lockout device compromises safety. |
8. Informations sur la garantie
Dioche products are manufactured to high-quality standards. While specific warranty details may vary, Dioche typically offers a limited warranty against defects in materials and workmanship under normal use. Please retain your proof of purchase for any warranty claims.
For detailed warranty terms and conditions, please refer to the official Dioche website ou contacter le support client.
9. Assistance clientèle
If you have any questions, require technical assistance, or need to report an issue with your Dioche Circuit Breaker Lockout Device, please contact our customer support team.
You can find more information and contact details by visiting the official Dioche store on Amazon:
Please have your product model number (Dioche1fv0n72tzi) ready when contacting support.
