LS2 Advant X Modular Motorcycle Helmet User Manual

1. Introduction

This manual provides essential information for the proper use, maintenance, and care of your LS2 Advant X Modular Motorcycle Helmet. Please read these instructions thoroughly before using your helmet to ensure maximum safety and extend the product's lifespan.

Image : Avant view of the LS2 Advant X modular helmet in solid matt black.

Caractéristiques principales :

• Matériau de la coque : Constructed from Tri-composite HPFC (High Performance Fiberglass Composite) fibers, offering excellent resistance and lightness.
• Poids: Approximately 1550g +/- 50g, ensuring comfort during long rides.
• Absorption d'impact : Features multi-density EPS (Expanded Polystyrene) for optimized shock absorption.
• Jugulaire : Reinforced chin strap with a quick and efficient micrometric buckle closure system to prevent chafing and ensure a secure fit.
• Dual Homologation: Certified with ECE22.06 dual homologation, allowing use as both a full-face and open-face (jet) helmet.

2. Helmet Fitment and Sizing

A correctly fitting helmet is crucial for safety and comfort. Follow these steps to determine your size:

Image: Guide on how to measure your head for the correct helmet size, including a size chart.

Comment mesurer :

1. Place a measuring tape approximately 2 cm (0.8 inches) above your eyebrows, passing just above your ears and around the back of your skull.
2. Ensure the measuring tool is horizontal and flat against your head, without being too tight. Note the measurement in centimeters.

Refer to the LS2 size chart to find the corresponding helmet size. The helmet should fit snugly without causing pressure points. If it feels too loose or moves excessively, try a smaller size. If it causes discomfort or pain, try a larger size.

3. Composants terminésview

Familiarize yourself with the various parts of your LS2 Advant X helmet.

Côté view: Shows the main visor, sun visor lever, and chin bar mechanism.

Arrière view: Highlights the exhaust vents and rear shell design.

Intérieur view: Displays the comfortable padding and micrometric chin strap.

Chin bar raised: Demonstrates the modular functionality for open-face riding.

4. Installation

4.1. Installation/Retrait de la visière

The LS2 Advant X helmet features a quick-release visor system. To remove the main visor, open it fully, locate the release levers on each side, and press them while gently pulling the visor away from the helmet. To install, align the visor's pivots with the helmet's mechanism and push until you hear a click, ensuring it's securely fastened on both sides.

4.2. Réglage de la mentonnière

The micrometric buckle allows for easy and precise adjustment. To fasten, insert the tab into the buckle until it clicks securely. To adjust tightness, pull the strap. To release, pull the red tab. Ensure the strap is snug under your chin, allowing only two fingers to fit comfortably between the strap and your throat.

5. Utilisation du casque

5.1. Fonctionnement de la mentonnière modulaire

To raise the chin bar, locate the release button, typically at the center front of the chin bar. Press the button and lift the chin bar upwards until it locks into the open position. To lower it, press the release button again and push the chin bar down until it securely latches into the closed, full-face position. Always ensure the chin bar is fully locked in either position before riding.

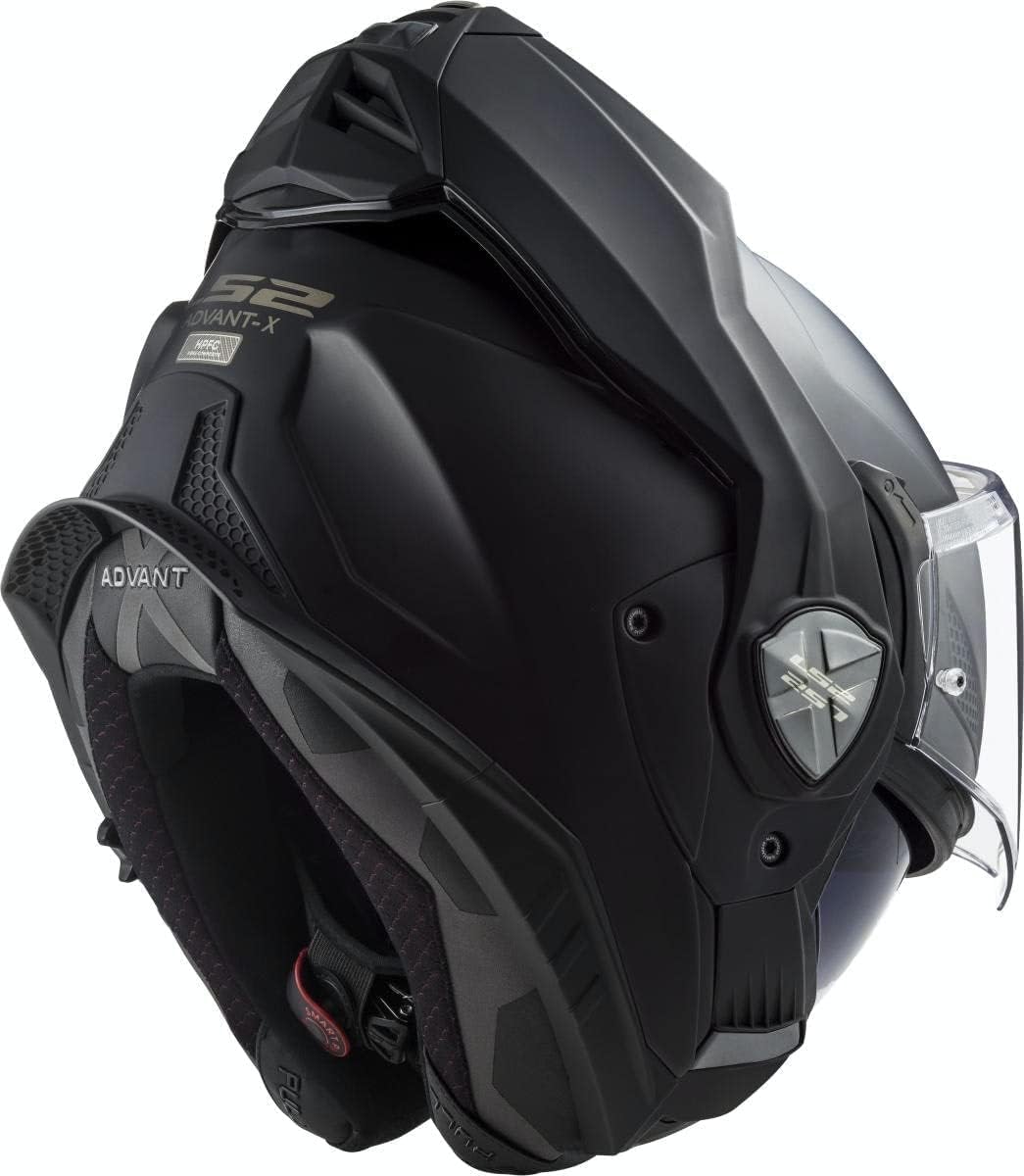

Image : Côté view of the LS2 Advant X helmet with the chin bar in the raised position.

5.2. Visor System (Clear and Sun Visor)

The clear main visor can be opened and closed manually. The internal sun visor is operated by a slider mechanism, usually located on the side or bottom edge of the helmet. Slide it down to deploy the sun visor and up to retract it. Use the sun visor only in bright conditions and retract it in low light or at night.

5.3. Système de ventilation

The Advant X helmet is equipped with multiple vents for airflow. Front vents (chin and top) can be opened or closed to control air intake. Rear exhaust vents help to draw warm air out. Adjust these vents according to weather conditions for optimal comfort.

6. Entretien

Regular maintenance ensures your helmet remains in optimal condition and provides maximum protection.

6.1. Nettoyage extérieur

Nettoyez la coque du casque avec un chiffon doux et sec.amp cloth and mild soap. Avoid abrasive cleaners, solvents, or petroleum-based products, as these can damage the shell material and finish. Rinse thoroughly and dry with a soft, clean cloth.

6.2. Nettoyage intérieur

The interior comfort padding is removable and washable. Gently detach the padding components. Hand wash them with mild soap and lukewarm water, or follow specific washing instructions provided with the helmet. Allow them to air dry completely before re-installing. Ensure all padding is correctly re-installed for proper fit and protection.

6.3. Entretien de la visière

Clean visors with a soft cloth and lukewarm water. For stubborn dirt, use a specialized helmet visor cleaner. Do not use abrasive materials or harsh chemicals. The Pinlock anti-fog insert (if included) should be cleaned carefully with a soft, damp cloth only, avoiding rubbing. Store the helmet in its bag to prevent scratches.

6.4. Stockage

Store your helmet in a cool, dry place away from direct sunlight and extreme temperatures. Keep it away from chemicals, fuels, and cleaning agents that could degrade the helmet materials. Use the provided helmet bag for protection against dust and scratches.

7. Dépannage

Voici quelques problèmes courants et leurs solutions potentielles :

• Formation de buée sur la visière : Ensure the Pinlock insert is correctly installed (if applicable). Open vents for increased airflow. Consider using anti-fog sprays.
• Le casque est trop serré/trop lâche : Re-check your head measurement against the size chart. Helmet padding will compress slightly over time, but a helmet should never be uncomfortably tight or dangerously loose.
• Bruit excessif du vent : Ensure all vents are closed if not needed. Check that the visor is fully closed and sealed. A snug fit is essential for minimizing noise.
• Mentonnière non verrouillée : Ensure no debris is obstructing the locking mechanism. Apply gentle, firm pressure until it clicks into place. If the issue persists, contact support.

8. Spécifications

Detailed technical specifications for the LS2 Advant X Modular Motorcycle Helmet:

9. Informations sur la garantie

The LS2 Advant X Modular Motorcycle Helmet comes with a Garantie produit de 1 ans from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. It does not cover damage caused by accidents, misuse, unauthorized modifications, or normal wear and tear.

For warranty claims, please retain your proof of purchase and contact the retailer or LS2 customer service directly. They will guide you through the process of assessment and resolution.

10. Assistance clientèle

If you have any questions, require assistance with your helmet, or need further information not covered in this manual, please contact your authorized LS2 dealer or visit the official LS2 Helmets website de ressources d'assistance.

Always prioritize your safety and ensure your helmet is in proper working order before every ride.
