Instruction Manual for HUIZHEN DVX34 Robot Vacuum Accessories Kit

Introduction

This instruction manual provides detailed guidance on the installation, maintenance, and replacement of the HUIZHEN DVX34 Accessories Kit for Yeedi Robot Vacuums. This kit is designed to ensure your robot vacuum maintains optimal cleaning performance and extends its operational lifespan.

Compatibilité

The HUIZHEN DVX34 Accessories Kit is compatible with the following Yeedi Robot Vacuum Cleaner models:

• Yeedi Vac Station (DVX34)
• Yeedi Vac Max (DVX34)
• Yeedi Vac 2 Pro (YDVN11)

This image illustrates the specific Yeedi robot vacuum models that are compatible with this accessory kit, including Yeedi Vac 2 Pro, Vac, Vac Max, and Vac Station.

Contenu du colis

Each HUIZHEN DVX34 Accessories Kit includes the following components:

• 1 x Main Roller Brush
• 4 x Pinceaux latéraux
• 2 filtres HEPA
• 2 x Microfiber Mop Pads (Reusable)
• 4 x Disposable Mopping Pads
• 2 x sacs à poussière

This image provides a visual representation of all the replacement parts included in the HUIZHEN DVX34 Accessories Kit.

Installation et remplacement

Follow these steps to install or replace the components of your robot vacuum.

Brosse à rouleau principal

The main roller brush features soft bristles and a V-shaped design for effective cleaning on various floor types. It is made from durable ABS material.

1. Turn off your robot vacuum and place it upside down on a clean, flat surface.
2. Repérez le couvercle principal de la brosse, généralement fixé par des clips ou des vis. Ouvrez-le ou retirez-le.
3. Retirez l'ancienne brosse principale.
4. Insert the new main roller brush, ensuring it clicks securely into place.
5. Close the main brush cover.

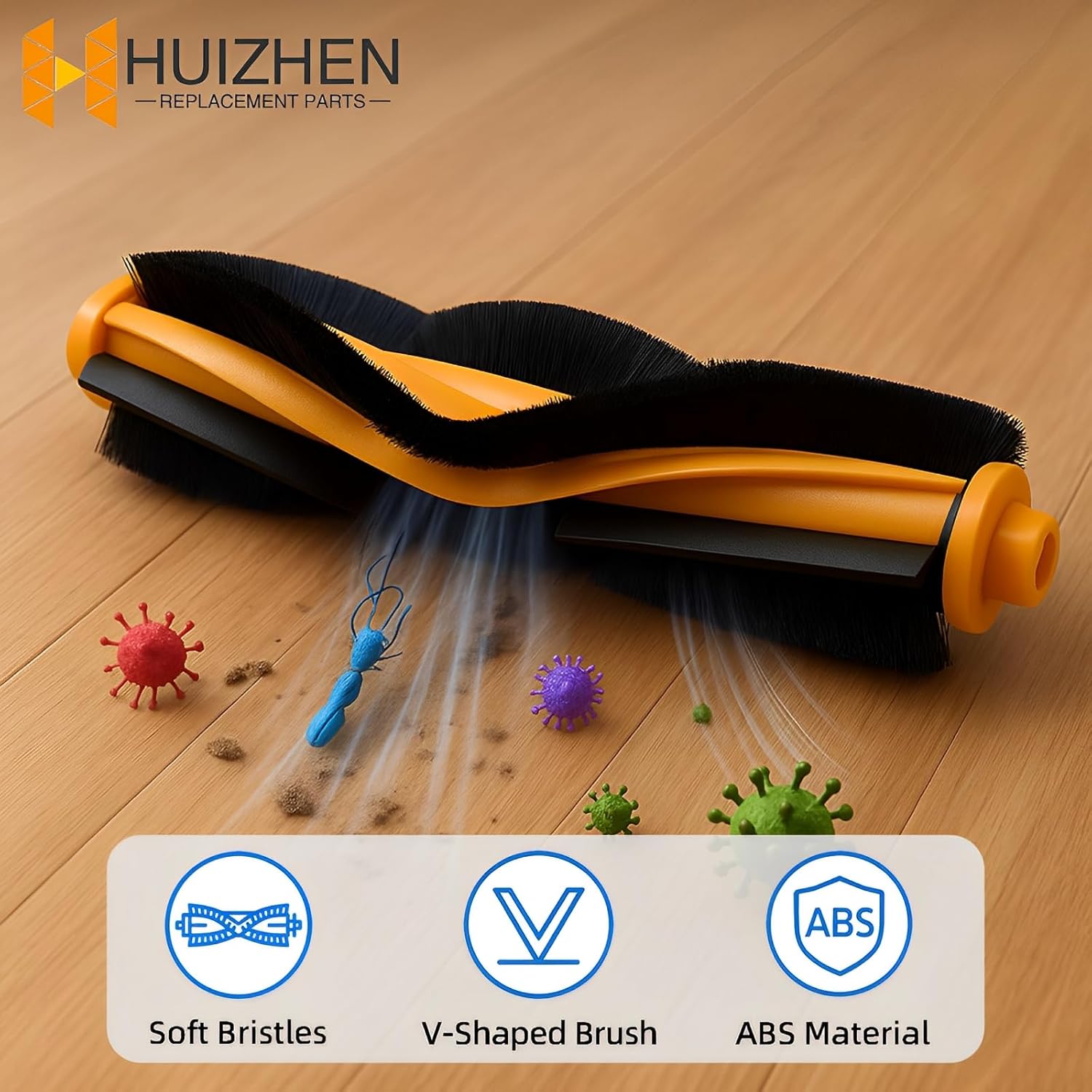

This image highlights the design and material features of the main roller brush, emphasizing its soft bristles, V-shape, and durable ABS construction.

Brosses latérales

The side brushes are designed with soft bristles for safe use on all floor types and feature a slot design for easy replacement. They are made from durable ABS.

1. Turn off your robot vacuum and place it upside down.
2. Locate the side brushes. They are typically held in place by a single screw or a simple clip mechanism.
3. Remove the old side brushes.
4. Align the new side brush with the corresponding slot and press down until it clicks, or secure it with the screw if applicable.

Conseil: If the side brushes appear bent or curled from shipping, soak them in warm water for a few minutes to help them recover their original shape. This will not affect their quality or performance.

This image illustrates the key features of the side brushes, including their soft bristles for floor protection, easy-to-use slot design, and robust ABS construction.

Filtres HEPA

HEPA filters are crucial for trapping fine particles, effectively blocking 99.9% of dust, pollen, pet fur dander, and airborne particles as small as 0.1 micrometers.

1. Open the dust bin of your robot vacuum.
2. Remove the old HEPA filter from the dust bin.
3. Insert the new HEPA filter into the designated slot in the dust bin, ensuring a snug fit.
4. Close the dust bin.

This image visually explains the high filtration efficiency of the HEPA filter, capable of capturing microscopic particles like pollen, hair, pet dander, kitchen fume, dust, and lint.

Mop Pads (Reusable and Disposable)

The microfiber mop pads are machine washable and reusable, designed for thorough cleaning on various floor types including marble, bamboo, ceramic, hardwood, laminate, tile, stone, and cement. Disposable pads offer convenience.

1. Locate the mopping plate or attachment on your robot vacuum.
2. Retirez la lingette de balai usagée.
3. Attach the new reusable microfiber mop pad or a fresh disposable mopping pad to the mopping plate, ensuring it is securely fastened.

This image demonstrates the versatility of the mop pad, indicating its suitability for cleaning a wide range of floor surfaces.

This image highlights the practical benefits of the microfiber mop pad, emphasizing its reusability and machine washability for cost savings and a cleaner living environment.

Sacs à poussière

The dust bags are designed for large capacity and feature a 4-layer leak-proof seal with high precision for effective leakage prevention. They offer over 99.9% filtration efficiency and are eco-friendly and biodegradable.

1. Open the dust collection compartment on your robot vacuum or its auto-empty station.
2. Retirez soigneusement le sac à poussière plein, en veillant à bien fermer l'ouverture pour éviter toute fuite de poussière.
3. Insert a new dust bag into the compartment, making sure it is properly seated and sealed.
4. Close the dust collection compartment.

This image provides details on the dust bag's dimensions and its environmental and performance benefits, including high filtration efficiency and biodegradability.

This image details the advanced sealing technology of the dust bag, ensuring effective leakage prevention through durable non-woven fabric, a 4-layer seal, and high precision sealing.

Fréquence d'entretien et de remplacement

To ensure your robot vacuum cleaner maintains optimal performance and cleaning efficiency, regular maintenance and timely replacement of accessories are recommended. This also helps extend the device's lifespan.

• Recommandation générale : It is recommended to replace the accessories every three months, depending on usage frequency and environment.
• Brosse principale : Inspect regularly for tangled hair or debris. Clean as needed. Replace every 3-6 months.
• Brosses latérales : Check for wear and bending. Clean off any hair or debris. Replace every 3-6 months.
• Filtres HEPA : Tap out dust after each use. Do not wash. Replace every 2-3 months.
• Tampons de nettoyage : Wash reusable pads after each use. Replace disposable pads after each use. Reusable pads should be replaced every 3-6 months depending on wear.
• Sacs à poussière : Replace when full. Frequency depends on usage and household dust levels.

Caractéristiques

Garantie et assistance

Les informations relatives à la garantie et au service client ne figurent pas dans les données produit fournies. Veuillez vous référer à l'emballage du produit ou au site web du fabricant. webConsultez le site pour plus de détails sur la couverture de la garantie et comment contacter le support.
