SriHome 3MP FHD Security Camera User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your SriHome 3MP FHD Security Camera (Model SH039B/SP039). Please read this manual thoroughly before using the product to ensure proper functionality and safety. This camera offers 3MP Full HD resolution, color night vision, sound and light alarms, IP66 waterproofing, two-way audio, and local TF card storage.

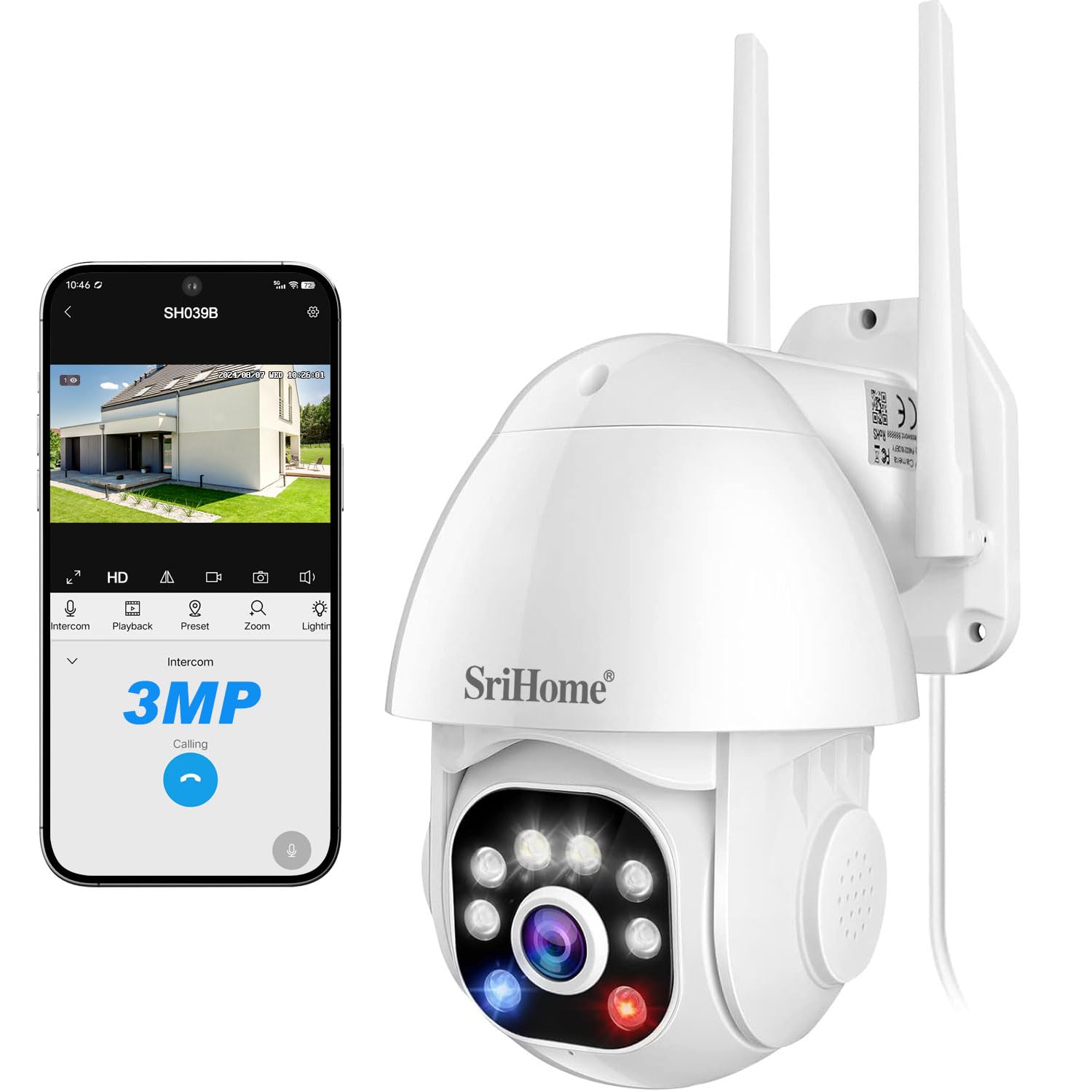

Image 1: SriHome 3MP IP Camera highlighting key features like 3MP resolution, starlight lens, two-way audio, waterproof design, human detection, motion detection, ONVIF support, color night vision, MicroSD card slot, and H.265 compression.

2. Contenu du colis

Vérifiez que tous les éléments énumérés ci-dessous sont inclus dans votre colis :

• SriHome IP Camera (x1)
• Adaptateur secteur (x1)
• Manuel d'utilisation (x1)
• Vis de fixation (1 jeu)
• Bouchon étanche (x1)

Image 2 : Représentation visuelle des éléments inclus dans l'emballage du produit.

3. Schéma du produit

Familiarize yourself with the components of your SriHome security camera:

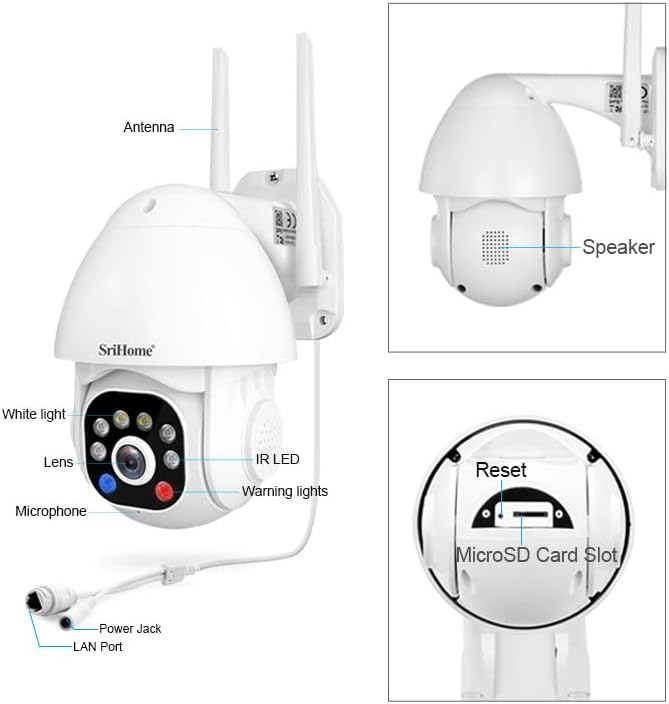

Image 3: Detailed diagram illustrating the various parts and ports of the SriHome IP Camera.

• Antenne: Pour la connectivité Wi-Fi.
• Conférencier: Pour la communication audio bidirectionnelle et les alarmes sonores.
• Lumière blanche : Provides illumination for color night vision and acts as a warning light.
• Lentille: The primary camera sensor.
• Microphone: Pour une communication audio bidirectionnelle.
• Prise d'alimentation: Se connecte à l'adaptateur secteur.
• Port LAN : Pour connexion réseau filaire.
• LED IR : LED infrarouges pour la vision nocturne en noir et blanc.
• Voyants d'avertissement : Red and blue lights for active deterrence.
• Bouton de réinitialisation : Permet de réinitialiser l'appareil photo aux paramètres d'usine.
• Emplacement pour carte MicroSD : Pour le stockage vidéo local.

4. Installation

4.1 Téléchargement de l'application

Download the SriHome app to your smartphone for camera control and monitoring.

• Pour Android : Scannez le code QR ou visitez Google Play Store.
• Pour iOS : Scannez le code QR ou visitez App Store d'Apple.

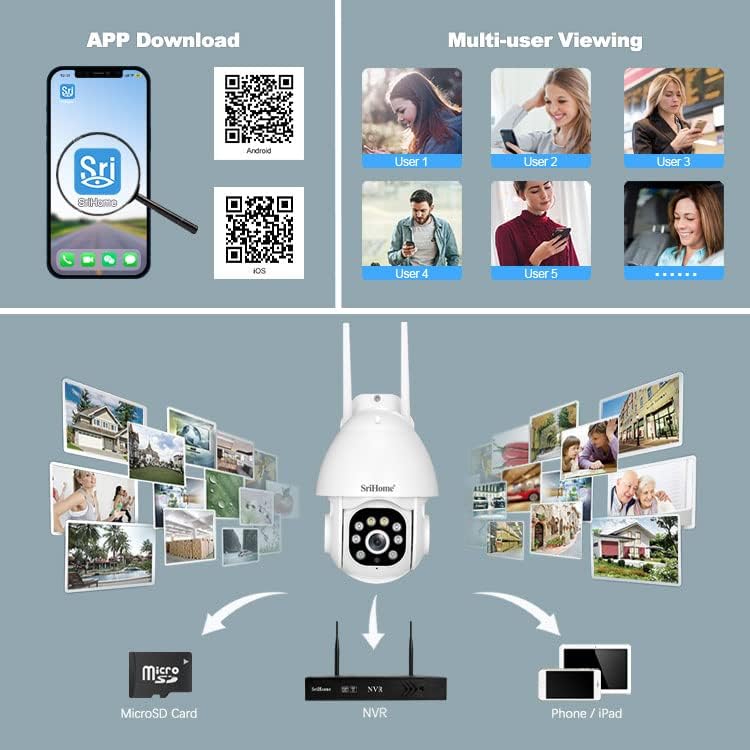

Image 4: Instructions for downloading the SriHome app and an overview of multi-user viewoptions de chargement et de stockage.

Connexion réseau 4.2

The camera supports both wireless (Wi-Fi) and wired connections.

1. QR Code Network: Follow the in-app instructions to connect the camera to your Wi-Fi network by scanning a QR code generated by the app.
2. Réseau de points d'accès AP : The camera can connect directly to your phone via its built-in AP hotspot without a router for initial setup or direct monitoring.
3. Réseau filaire : Connect an Ethernet cable to the LAN port for a stable wired connection.

4.3 Installation de la carte microSD

To enable local storage, install a MicroSD card (up to 128GB, not included) into the designated slot. Ensure the camera is powered off before inserting or removing the card.

4.4 Montage

The camera is designed for wall mounting. Use the provided screws and waterproof plug to secure the camera in your desired outdoor location. Ensure the mounting surface is stable and can support the camera's weight.

5. Mode d'emploi

5.1 Rotation panoramique et inclinaison

Contrôler la caméra viewing angle remotely through the SriHome app. The camera offers 355° horizontal pan and 90° vertical tilt for comprehensive coverage.

Image 5: Remote control of camera pan and tilt functions via the SriHome app.

5.2 Modes de vision nocturne

L'appareil photo dispose de trois modes de vision nocturne :

• Alarm Mode (Default): Provides black and white night vision. When a human figure is detected, the white light automatically turns on, switching to full-color night vision.
• Mode lumière blanche : The white light remains on, providing continuous full-color night vision. Brightness is adjustable.
• Mode infrarouge : White light is off, and the camera uses IR LEDs for standard black and white night vision.

5.3 Human Detection & Tracking

Equipped with AI, the camera can distinguish human motion from other movements (e.g., pets, wind, leaves) to reduce false alarms. Upon human detection, the camera sends immediate notifications to your smartphone and can track the detected person.

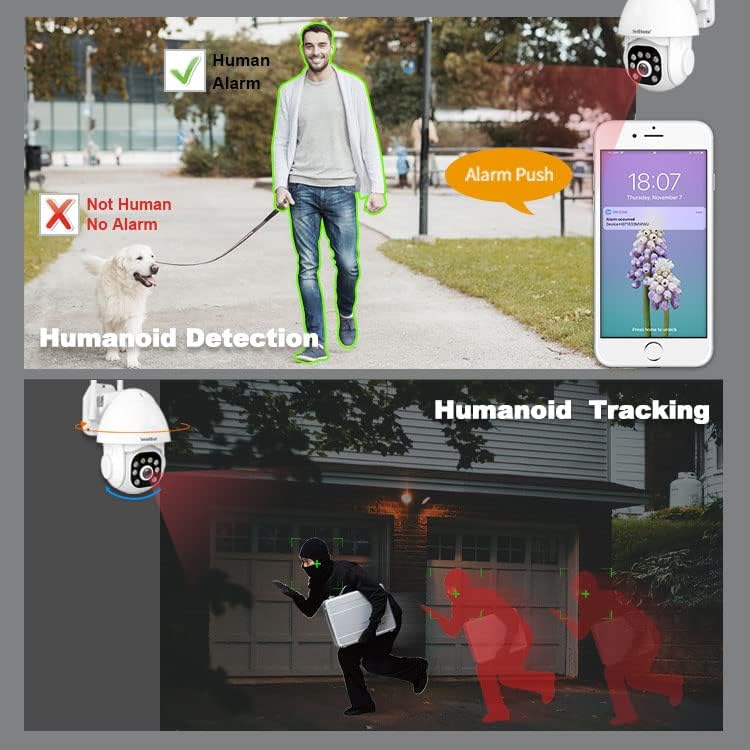

Image 6: Demonstration of the camera's ability to detect and track human figures.

5.4 Audio bidirectionnel

The integrated microphone and high-fidelity speaker allow for real-time two-way communication through the mobile app. You can listen to the camera's surroundings and speak through the camera.

Image 7: The camera's IP66 waterproof design and two-way audio communication capability.

5.5 Alarme sonore et défense active

When motion or a human is detected, the camera can actively deter intruders by emitting loud sound alarms and flashing red and blue warning lights.

Image 8: The camera activating its audible alarm and flashing lights to deter a person.

5.6 Multi-utilisateurs Viewing

The camera supports up to 5 simultaneous viewers. The first user to set up the camera becomes the administrator. Other users require administrator authorization to access the camera feed.

5.7 Options de stockage

Les enregistrements peuvent être stockés de deux manières :

• Carte MicroSD : Local storage on a MicroSD card (up to 128GB).
• Enregistreur vidéo en réseau (NVR) : Connect the camera to a Network Video Recorder (NVR) for continuous recording and extended storage (NVR not included).

6. Entretien

The SriHome camera is designed for outdoor use with an IP66 waterproof rating, making it resistant to dust, heat, and cold. Regular cleaning of the lens with a soft, dry cloth is recommended to ensure clear image quality. Avoid using harsh chemicals.

7. Dépannage

• La caméra ne se connecte pas au Wi-Fi : Ensure the camera is within range of your Wi-Fi router. Check Wi-Fi password accuracy. Try resetting the camera using the reset button.
• No image or black screen: Verify the power adapter is correctly connected and the camera is powered on. Check network connection.
• Fausses alertes : Adjust the motion detection sensitivity settings in the app. Utilize the human detection feature to minimize alerts from non-human movements.
• La carte microSD n'enregistre pas : Assurez-vous que la carte microSD est correctement insérée et formatée dans l'application. Vérifiez si la carte est pleine ou corrompue.
• Problèmes audio bidirectionnels : Check microphone and speaker permissions for the SriHome app on your smartphone. Ensure network connection is stable.

8. Spécifications

9. Garantie et assistance

For warranty information and technical support, please refer to the contact details provided in the product packaging or visit the official SriHome website. Conservez votre reçu d’achat pour les réclamations au titre de la garantie.
