DEWINNER 7.2V Cordless 2-in-1 Hedge Trimmer and Grass Shear User Manual

1. Introduction

Thank you for choosing the DEWINNER 7.2V Cordless 2-in-1 Hedge Trimmer and Grass Shear. This versatile tool is designed for efficient trimming of hedges and shearing of grass in your garden. Please read this manual carefully before operating the tool to ensure safe and effective use. Keep this manual for future reference.

2. Consignes de sécurité

Always observe basic safety precautions to reduce the risk of injury. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Lisez toutes les instructions: Familiarisez-vous avec les commandes et le bon usage de l'outil.
• Double Child Safety Lock: The tool features a double child safety lock design. Ensure both safety mechanisms are engaged before operation and when storing the tool to prevent accidental startup.
• Gardez votre zone de travail dégagée : Ne pas utiliser dans des atmosphères explosives, par exemple en présence de liquides, de gaz ou de poussières inflammables.
• Portez un équipement de protection individuelle (EPI) approprié : Portez toujours des lunettes de sécurité, des gants et des chaussures robustes lorsque vous utilisez la débroussailleuse.
• Avoid Contact with Blades: Keep hands, feet, and clothing away from the blades. Blades remain sharp after use.
• Batterie sécurisée : Ensure the battery is correctly inserted and secured before use.
• Stockage approprié : After use, clean the blades thoroughly and store the tool in a dry, secure place out of reach of children.

3. Composants du produit

Familiarize yourself with the different parts of your DEWINNER 2-in-1 Trimmer.

Image: Labeled diagram of the DEWINNER 2-in-1 Trimmer components.

• Batterie amovible : Fournit une alimentation sans fil.
• Poignée ergonomique : Conçu pour une prise en main confortable.
• Interrupteur NO/OFF : Active et désactive l'outil.
• Verrouillage de sécurité : Empêche les démarrages accidentels.
• Grass Cutter Blade: Shorter blade for grass shearing.
• Hedges Blade: Longer blade for hedge trimming.

4. Installation

4.1 Chargement de la batterie

The tool is powered by a 7.2V Lithium-ion battery. Ensure the battery is fully charged before first use.

1. Connectez le chargeur à une prise de courant.
2. Insérez la batterie dans le chargeur.
3. Prévoyez environ 3 à 5 heures pour une charge complète.
4. A fully charged battery provides approximately 40 minutes of trimming or 50 minutes of grass shearing operation.

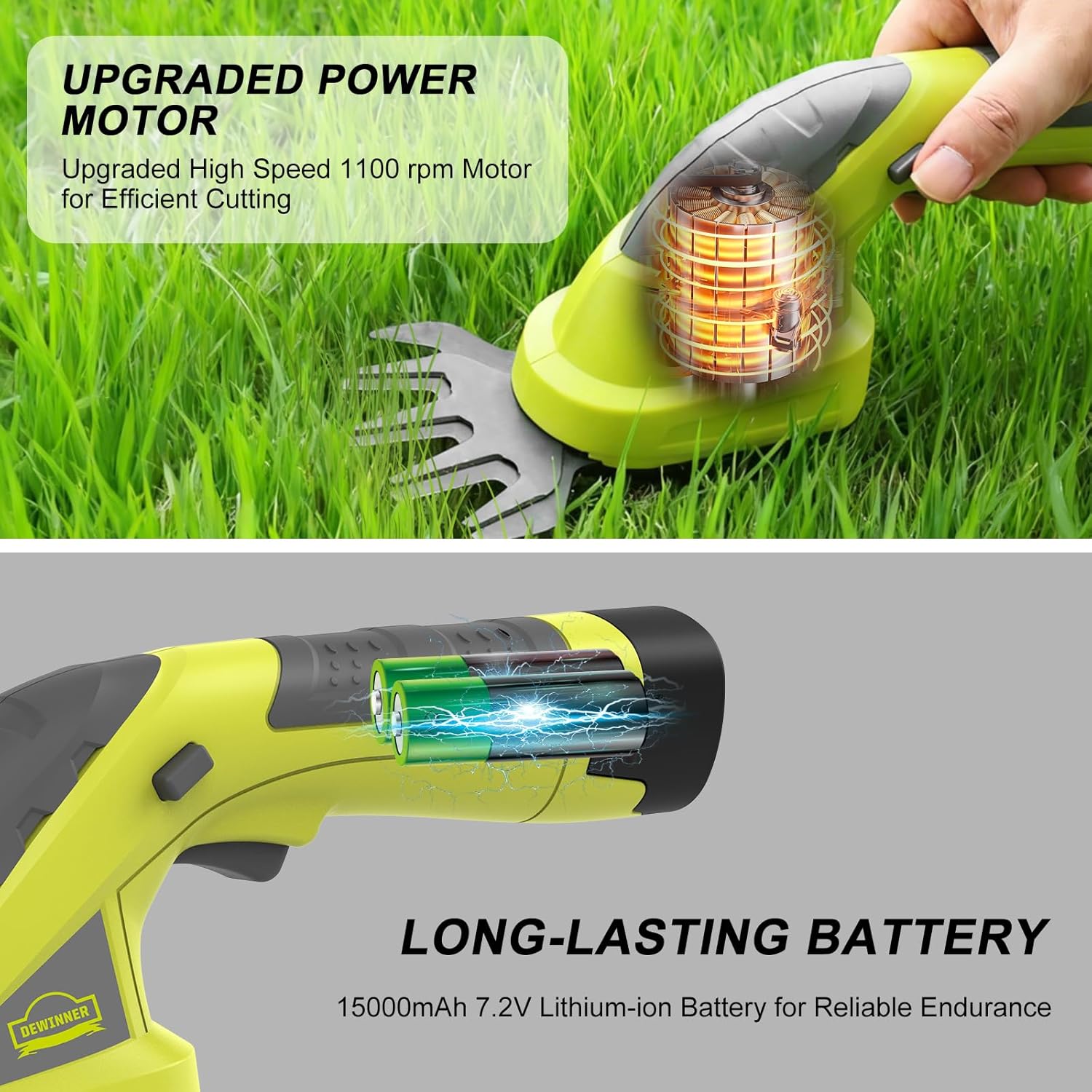

Image: Illustration of the upgraded motor and long-lasting battery.

4.2 Blade Installation and Changing

The DEWINNER 2-in-1 Trimmer allows for easy, tool-free blade changes between the grass shear and hedge trimmer blades.

1. Ensure the tool is switched OFF and the safety lock is engaged.
2. To remove a blade, locate the blade release mechanism (refer to the product components diagram).
3. Press the release button and slide the blade out.
4. To install a new blade, align it with the slot and slide it in until it clicks securely into place.

Image: Comparison of the short grass blade and long hedge blade.

5. Mode d'emploi

Always ensure the battery is fully charged and the correct blade is installed for your task.

5.1 Activating the Tool

1. Hold the tool firmly by the ergonomic grip.
2. Disengage the safety lock (refer to the product components diagram for location).
3. Press the NO/OFF switch to start the blades. Release the switch to stop the blades.

Image: Ergonomic grip and safety lock for controlled operation.

5.2 Hedge Trimming

Use the longer hedge blade for shaping shrubs and hedges.

• Ensure the hedge blade is securely installed.
• Hold the trimmer with both hands if necessary for better control.
• Cut in a smooth, sweeping motion.
• The hedge blade is suitable for branches less than 10mm in thickness.

5.3 Grass Shearing

Use the shorter grass shear blade for trimming grass edges and small areas.

• Ensure the grass shear blade is securely installed.
• Guide the trimmer along the grass line, maintaining a steady pace.

Image: Demonstrations of the trimmer in both grass shearing and hedge trimming modes.

6. Entretien

Un entretien régulier garantit la longévité et les performances optimales de votre outil.

• Nettoyage de la lame : After each use, clean the blades thoroughly to remove sap, grass, and debris. Wipe them dry immediately to prevent rust.
• Lubrification de la lame : Apply a light coat of machine oil to the blades periodically to maintain smooth operation and prevent corrosion.
• Stockage: Store the tool in a dry, well-ventilated area, away from direct sunlight and moisture. Ensure the safety lock is engaged and the battery is removed if storing for extended periods.
• Entretien de la batterie: Do not store the battery in a fully discharged state. Recharge it periodically if not in use for a long time.

Image: Detail of the high hardness blade, emphasizing its quality.

7. Dépannage

If you encounter issues with your DEWINNER trimmer, refer to the following common problems and solutions:

8. Spécifications

Detailed technical specifications for the DEWINNER 7.2V Cordless 2-in-1 Hedge Trimmer and Grass Shear.

Image: Product dimensions for the DEWINNER 2-in-1 Trimmer.

9. Garantie et assistance

For warranty information or technical support, please refer to the documentation included with your purchase or contact DEWINNER customer service through their official channels. Keep your purchase receipt as proof of purchase.
