1. Introduction
Thank you for choosing the DEWINNER 90x190 Slatted Bed Base. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed base. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

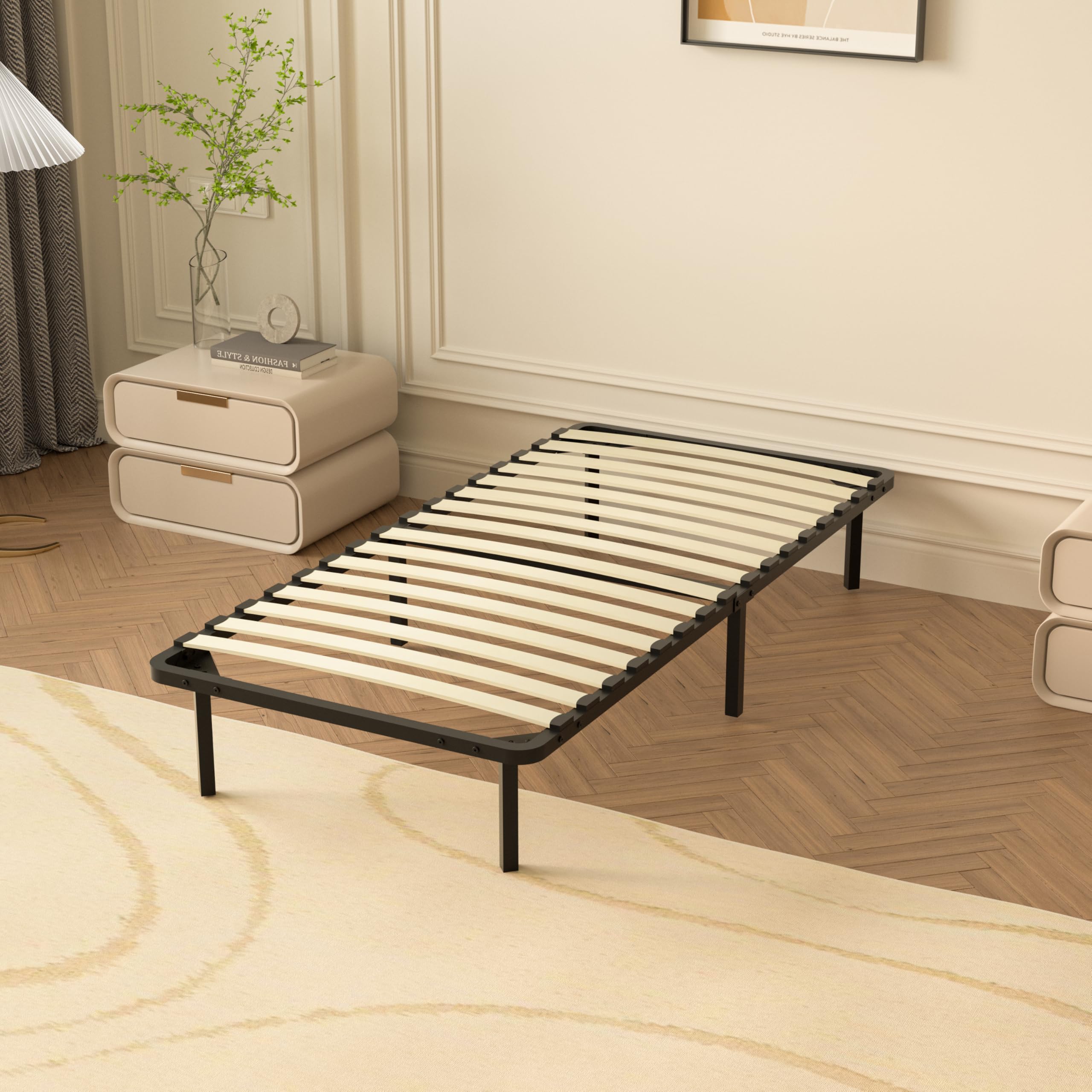

Figure 1: DEWINNER 90x190 Slatted Bed Base, fully assembled.
2. Consignes de sécurité
- Avant l'assemblage, assurez-vous que toutes les pièces sont présentes et en bon état. Ne pas utiliser si des pièces sont manquantes ou cassées.
- Assemble the bed base on a soft, clean surface to prevent scratches.
- Serrez fermement tous les boulons et vis. Vérifiez et resserrez périodiquement les fixations pour assurer la stabilité.
- Ne pas dépasser la capacité de charge maximale spécifiée dans la section des spécifications.
- Pendant le montage, tenez les petites pièces hors de portée des enfants afin d'éviter tout risque d'étouffement.
- Ce produit est conçu pour une utilisation en intérieur uniquement.
3. Contenu du colis
Vérifiez que tous les composants énumérés ci-dessous sont inclus dans votre colis :
- Metal Frame Sections (Long and Short)
- Pieds de support (6 unités)
- Wooden Slats (18 units)
- Plastic Slat Holders
- Quincaillerie d'assemblage (boulons, écrous, rondelles)
- Clé hexagonale (clé Allen)
- Manuel d'instructions
4. Instructions de montage
Assembly is quick and easy, typically taking less than 30 minutes. Follow these steps carefully:
Étape 1 : Déballer et identifier les pièces
Carefully unpack all components from the box. Lay them out on a clean, flat surface and compare them with the package contents list to ensure everything is present.
Figure 2 : Vue éclatée view of bed base components, showing frame parts, slats, and hardware.
Étape 2 : Assembler le cadre métallique
Connect the metal frame sections using the provided bolts, nuts, and washers. Ensure the corner brackets are correctly oriented. Hand-tighten all fasteners initially.
Figure 3: Detail of connecting metal frame corners.
Step 3: Attach the Support Legs
Attach the 6 support legs to the designated points on the metal frame. Ensure they are securely fastened. Once all frame sections and legs are in place, fully tighten all bolts using the hex key.
Étape 4 : Installer les lattes de bois
Insert the wooden slats into the plastic slat holders along the frame. Ensure each slat is firmly seated in its holder. The slats are designed to provide optimal support and flexibility.
Figure 4: Detail of slat installation and frame construction.
Guide vidéo d'assemblage
For a visual guide on the assembly process, please watch the video below:
Video 1: Step-by-step assembly guide for the DEWINNER bed base.
5. Mode d'emploi
The DEWINNER slatted bed base is designed to provide a stable and supportive foundation for your mattress. Simply place your mattress directly onto the assembled bed base. No box spring is required.
Compatibilité du matelas
This bed base is compatible with various mattress types, including spring, foam, and latex mattresses.
Figure 5: Mattress compatibility for the bed base.
Espace de stockage
The bed base offers approximately 26 cm of clearance underneath, providing ample space for storage boxes, baskets, or a robot vacuum cleaner.
Figure 6: Dimensions of the bed base, highlighting under-bed storage space.
6. Entretien
To ensure the longevity and optimal performance of your DEWINNER bed base, follow these simple maintenance guidelines:
- Nettoyage: Essuyez le cadre métallique avec de la publicitéamp chiffon. Évitez les produits chimiques agressifs ou les nettoyants abrasifs.
- Fixations : Periodically check all bolts and screws and re-tighten them as needed to maintain stability and prevent squeaking.
- Lattes: Ensure all wooden slats remain securely in their plastic holders. If a slat becomes dislodged, reinsert it carefully.
- Mouvement: When moving the bed base, lift it rather than dragging it to prevent damage to the legs or frame.
7. Dépannage
| Problème | Cause possible | Solution |
|---|---|---|
| Bed base is wobbly or unstable. | Attaches lâches. | Check and tighten all bolts and screws using the provided hex key. |
| Des grincements. | Loose connections or slats rubbing against the frame. | Tighten all fasteners. Ensure slats are properly seated in their holders. Anti-noise joints are integrated to minimize this. |
| Slat falls out of place. | Slat not fully inserted or damaged holder. | Reinsert the slat firmly into its plastic holders. If a holder is damaged, contact customer support. |
8. Spécifications
- Numéro de modèle : 1
- Dimensions (L x l x H) : 190 x 90 x 29 cm (Height includes legs)
- Poids: 23 kilogrammes
- Matériel: Wood (Poplar Slats) and Steel (Frame)
- Couleur: Noir
- Nombre de lattes : 18
- Nombre de pattes : 6
- Dégagement sous le lit : Environ 26cm
- Assemblage requis : Oui
- Conseils d'entretien : Essuyer avec une publicitéamp tissu
- Code à barres : 782942725929
9. Garantie et assistance
Your DEWINNER bed base comes with a standard warranty. For specific warranty details, please refer to the documentation included with your purchase or contact your retailer.
For any questions, missing parts, or support needs, please contact DEWINNER customer service or the seller, HOUMSA, directly. Contact information can typically be found on the product packaging or your purchase receipt.
Vendeur: HOUMSA
Retours : Politique de retour de 30 jours
