1. Introduction
This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your TFCFL CNC 6090 Router. This 4-axis machine is designed for precision engraving and cutting on various materials, including wood, aluminum alloy, acrylic, and plastic. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent damage or injury.
2. Consignes de sécurité
Operating a CNC router involves potential hazards. Adhere to all safety guidelines to prevent accidents and ensure personal safety.
- Portez toujours un équipement de protection individuelle (EPI) approprié, notamment des lunettes de sécurité, une protection auditive et un masque anti-poussière.
- Assurez-vous que la zone de travail est propre, bien éclairée et exempte d’obstructions.
- N'utilisez jamais la machine sous l'influence de drogues ou d'alcool.
- Keep hands and loose clothing away from moving parts and the spindle during operation.
- Coupez l'alimentation électrique avant toute opération de maintenance, de nettoyage ou de changement d'outils.
- Familiarisez-vous avec l'emplacement et le fonctionnement du bouton d'arrêt d'urgence.
- Ensure proper ventilation to manage dust and fumes generated during cutting.
3. Contenu du colis
Verify that all components listed below are present in your package. If any items are missing or damaged, contact customer support immediately.
- 1X Main Unit (Frame)
- 1X Main Unit (Working Base)
- 2X Fence Baffle
- 1X Control Box
- 1X A-axis Rotary Attachment
- 1X Signal Cable for A-axis
- 1X Water Pump
- 1 câble USB
- 2X Cutter (2*6mm)
- 2X Cutter (3*6mm)
- 10X Round Head Screws (4*7mm)
- 6X Black Inner Six Angle Screws with Nut (4*10mm)
- 8X Black Inner Six Angle Screws (5*20mm)
- 4X Flat Philip's Head Screws with Nut and Gasket (5*8mm)
- 8X Black Flat Inner Six Angle Screws (6*24mm)
- 12X Aluminum Fasteners
- 1X Wrench (13-15#)
- 1X Wrench (14-17#)
- 2X Hex Wrenches (3mm)
- 2X Hex Wrenches (4mm)
- 1X Teflon Tape
- 2X Fuses (5A)
- 1X câble d'alimentation
- 1X Manual (this document)
- 1X Tools Setting Auto-Check Instrument for CNC
Figure 3.1 : Accessoires et composants inclus.
4. Installation
4.1 Assemblage
Assemble the main unit frame and working base according to the provided diagrams. Secure all components using the appropriate screws and wrenches. Ensure all connections are tight and stable.

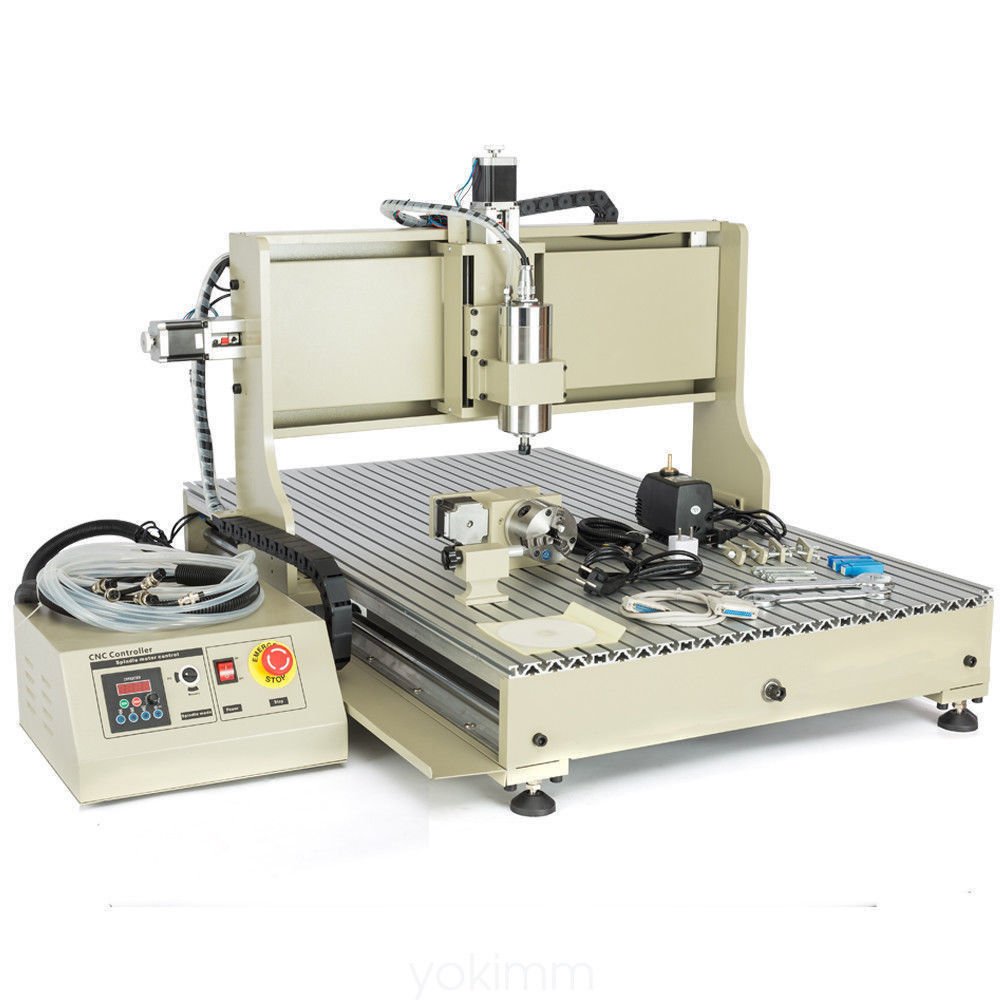

Figure 4.1: Fully assembled TFCFL CNC 6090 Router.
Figure 4.2 : Côté view of the CNC router, highlighting structural components.
4.2 Connexions électriques
- Connect the main unit to the control box.
- Connect the A-axis rotary attachment to its designated port on the control box using the signal cable.
- Connect the water pump to the spindle for cooling. Ensure the pump is submerged in a suitable water reservoir.
- Connectez le câble USB du boîtier de commande à votre ordinateur.
- Plug the power cable into the control box and then into a grounded electrical outlet.
Figure 4.3: Rear panel of the control box with connection ports.
4.3 Installation du logiciel
The machine communicates via a USB port. Install the necessary control software on your computer. This machine is compatible with the following operating systems:
- Windows XP (32-bit)
- Windows 7 (32 bits)
- Windows XP (64-bit)
- Windows 7 (64 bits)
Ensure your computer meets these requirements for proper operation.
5. Mode d'emploi
5.1 Mise sous tension et vérifications initiales
- Assurez-vous que toutes les connexions sont sécurisées.
- Turn on the main power switch on the control box.
- Verify that the water pump is operating and providing cooling to the spindle.
Figure 5.1: Control box front panel.
5.2 Tool Setting
Use the included Tools Setting Auto-Check Instrument to accurately set the Z-axis zero point for your cutting tools. This ensures precise engraving depth.
Figure 5.2: Tool setting instrument and collets.
5.3 Compatibilité des matériaux
The TFCFL CNC 6090 Router is suitable for engraving and cutting a variety of materials, including:
- Bois
- Alliage d'aluminium
- Acrylique
- Plastique
Always use appropriate cutting parameters (spindle speed, feed rate, depth of cut) for the specific material being processed.
Figure 5.3: Working base with T-slots.
6. Entretien
Un entretien régulier garantit la longévité et les performances optimales de votre routeur CNC.
- Nettoyage: Regularly clean the machine, especially the guide rails, ball screws, and working surface, to remove dust and debris. Use a soft cloth and appropriate cleaning agents.
- Lubrification: Apply lubricant to the guide rails and ball screws periodically as recommended by the manufacturer to ensure smooth movement and prevent wear.
- Spindle Cooling: Ensure the water cooling system for the spindle is always functioning correctly. Check water levels and cleanliness of the reservoir.
- Connexions électriques : Vérifiez régulièrement le serrage de toutes les connexions électriques et recherchez les signes d'usure ou de dommages.
- Inspection des outils : Inspect cutting tools before each use for sharpness and damage. Replace dull or damaged tools to maintain cut quality and prevent machine strain.
7. Dépannage
Cette section aborde les problèmes courants que vous pourriez rencontrer. Pour tout autre problème, veuillez contacter le service client.
| Problème | Cause possible | Solution |
|---|---|---|
| La machine ne s'allume pas. | Power cable disconnected, fuse blown, emergency stop engaged. | Check power cable, replace fuse (use 5A fuse), disengage emergency stop button. |
| La broche ne tourne pas. | VFD not powered, water pump not running, spindle cable loose. | Ensure VFD is powered, check water pump operation, verify spindle cable connection. |
| La machine ne répond pas aux commandes du logiciel. | USB cable disconnected, incorrect software settings, incompatible operating system. | Check USB connection, verify software configuration, ensure OS compatibility (Win XP/7 32/64-bit). |
| Mauvaise qualité de gravure. | Dull cutting tool, incorrect cutting parameters, loose material clamping. | Replace cutting tool, adjust spindle speed/feed rate, ensure material is securely clampéd. |
8. Spécifications
- Modèle: CNC 6090 Router
- Axes : 4 axes
- Moteur de broche : 2.2KW Water-Cooled VFD
- Spindle Precision: Radial runout ≤0.03mm
- Système d'entraînement : Accurate Ball Screws
- Interface de communication : Port USB
- Systèmes d'exploitation compatibles : Windows XP (32/64-bit), Windows 7 (32/64-bit)
- Applications : Woodworking, advertising industries (sculpture, round carving, handicraft processing, logo making, cutting acrylic, plastic molding)
- Fabricant: Football Club de la Ligue Française de Football
- ASIN: B088RCC7PF
9. Garantie et assistance
For warranty information, technical support, or service inquiries, please refer to the documentation provided at the time of purchase or contact your vendor. Keep your purchase receipt as proof of purchase.
