Introduction
This manual provides essential instructions for the safe assembly, operation, maintenance, and troubleshooting of your TOOLPORT 2.4 x 3.6 m PE 450 N Storage Shelter. Please read all instructions carefully before use and retain this manual for future reference.
Consignes de sécurité
Le non-respect de ces consignes de sécurité peut entraîner des blessures ou endommager le produit.
- Securely anchor the shelter to the ground using the provided guy ropes and anchors to ensure stability, especially in windy conditions.
- Avoid placing the shelter near heat sources or open flames.
- Do not use the shelter in strong winds, heavy snow, or other unfavorable weather conditions. Disassemble or reinforce the structure if severe weather is anticipated.
- Ensure proper ventilation to prevent moisture buildup inside the shelter.
- Always perform a complete inventory of all parts before beginning assembly.
- Assembly typically requires at least two people for safety and ease.
Instructions d'installation
Follow these steps for the correct assembly of your storage shelter.
- Préparer le site : Choose a stable, level, and well-drained area for installation. Clear any debris or sharp objects that could damage the tarp.
- Déballer et vérifier les pièces : Carefully unpack all components and compare them against the parts list provided in your package. Ensure all bolts, nuts, frame tubes, and tarp sections are present.
- Assemblez le cadre : Connect the steel frame tubes according to the included assembly diagram. Use the provided bolts and connectors to secure each joint. Ensure all connections are tight but do not overtighten to avoid damaging components.

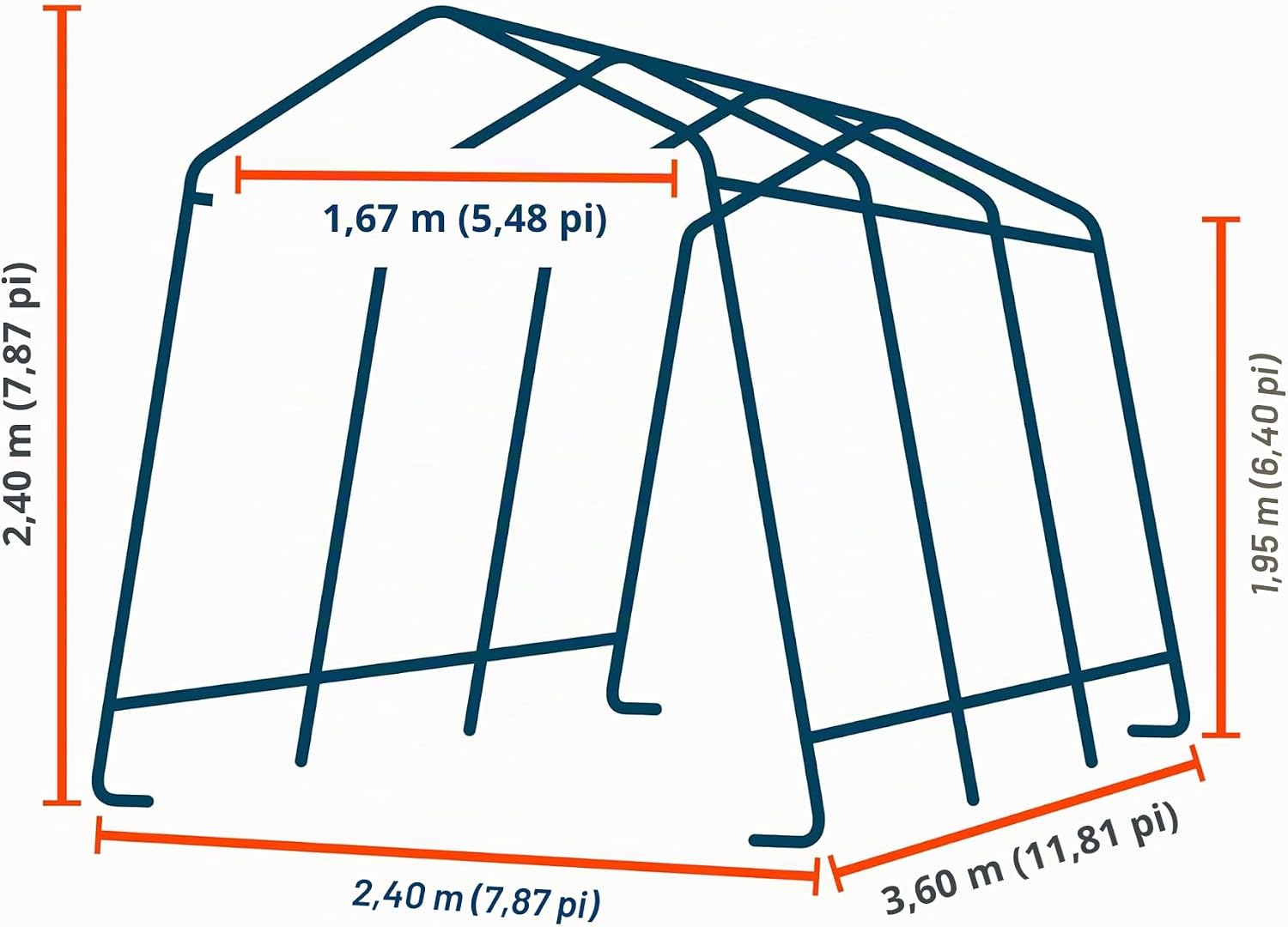

Figure 1: Frame dimensions and structure overview. The shelter measures approximately 3.6 meters (11.81 ft) in length, 2.4 meters (7.87 ft) in width, and 2.4 meters (7.87 ft) in height at its peak.
- Install the Tarp: Carefully drape the PE 450 N tarp over the assembled frame. The roof section is a single piece for enhanced stability. Ensure the tarp is centered and aligned correctly.
Figure 2: Detail of the robust steel frame construction, showing bolted connections for stability.
Figure 3: The high-quality PE 450 N tarp material, designed for UV resistance and waterproofing.
- Secure the Tarp: Attach the tarp to the frame using the special tensioning system, including guy ropes and robust anchors. Ensure the tarp is pulled taut to prevent flapping and water pooling.
Figure 4 : Example of a ratchet strap used to firmly secure the tarp to the ground anchor, ensuring tension and stability.
- Ancrer l'abri : Use the provided ground anchors to firmly secure the entire structure to the ground. This is crucial for stability, especially in adverse weather.
Figure 5: Detail of the shelter's base plate and robust ground anchor, designed to secure the structure to the terrain.
- Vérifiez la ventilation : Ensure the integrated ventilation flaps are functional to allow optimal air circulation and reduce moisture.
Figure 6: Integrated ventilation window, designed to promote air circulation and minimize condensation inside the shelter.
Mode d'emploi
The TOOLPORT Storage Shelter is designed for professional protection of vehicles (cars, bicycles, motorcycles) and for temporary outdoor storage.
- Accéder: The shelter features a strong zipper system at the entrance for quick and easy opening and closing.
- Protection: The PE 450 N tarp provides high UV protection and is 100% waterproof, safeguarding your stored items from the elements.
- Ventilation: Utilize the integrated ventilation flaps to maintain optimal air circulation and reduce humidity inside the shelter, preventing condensation and mold.
Figure 7: The TOOLPORT storage shelter fully enclosed, demonstrating its protective capabilities.
Figure 8: Shelter storing a lawnmower.
Figure 9: Shelter storing a bicycle.
Entretien
Regular maintenance will extend the lifespan of your TOOLPORT storage shelter.
- Tarp Cleaning: Clean the tarp periodically with mild soap and water. Avoid harsh chemicals or abrasive brushes that could damage the PE coating. Rinse thoroughly and allow to air dry completely before closing the shelter for extended periods.
- Inspection du cadre : Regularly inspect the steel frame for any signs of rust, bending, or damage. Ensure all bolts and connections remain tight. Replace any damaged components immediately.
- Anchor Check: Periodically check the ground anchors and guy ropes to ensure they are still firmly secured and taut. Re-tension or re-anchor as needed, especially after strong winds.
- Tarp Condition: Inspect the tarp for tears, punctures, or excessive wear, particularly on the roof and areas exposed to direct sunlight. While the tarp is UV resistant, prolonged intense sun exposure can degrade materials over time. Repair small damages promptly to prevent them from worsening.
- Ventilation: Keep the ventilation flaps clear of obstructions to ensure continuous airflow.
Dépannage
| Problème | Cause possible | Solution |
|---|---|---|
| Shelter instability / Bending frame in wind | Insufficient anchoring; loose connections; extreme weather conditions. | Ensure all ground anchors are deeply and securely set. Tighten all frame bolts. Do not use in strong winds; disassemble if necessary. Consider additional anchoring for very windy areas. |
| Water pooling on roof / Tarp flapping | Tarp not sufficiently taut; incorrect assembly. | Re-tension the tarp using the tensioning system. Ensure the frame is assembled correctly and the tarp is evenly distributed. |
| Moisture/Condensation inside | Mauvaise ventilation ; humidité élevée. | Ensure ventilation flaps are open and unobstructed. If possible, open the main entrance periodically to air out the shelter. |
| Pièces manquantes lors de l'assemblage | Erreur d'emballage ; article perdu lors du déballage. | Perform a thorough inventory upon receipt. Contact TOOLPORT customer support or your retailer for replacement parts. |
| Tarp damage (tears, holes) | Wear and tear; sharp objects; extreme weather. | Patch small tears with appropriate tarp repair kits. For significant damage, consider replacing the tarp. Regular inspection can prevent small issues from becoming large ones. |
Caractéristiques
| Fonctionnalité | Détail |
|---|---|
| Marque | PORT D'OUTILS |
| Numéro de modèle | 7821 |
| Dimensions du produit (L x l x H) | 3.6L x 2.4W x 2.4H meters |
| Surface au sol | 8.64 mètres carrés |
| Couleur | Vert foncé |
| Matériau du cadre | Metal (Alloy Steel poles) |
| Matériau de couverture | Polyethylene (PE) 450 N |
| Protection UV | Oui |
| Niveau de résistance à l'eau | Étanche |
| Assemblage requis | Oui |
| Pays d'origine | Allemagne |
| Utilisation recommandée | Professional protection for cars, bicycles, motorcycles, and temporary field storage. |
Garantie et assistance
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Warranty terms may vary depending on the region and point of sale.
For technical support, missing parts, or further assistance, please contact TOOLPORT customer service through their official weble site ou le détaillant auprès duquel vous avez acheté le produit.
