XTRONS PF71RVTS 7-inch 2 DIN Car Radio User Manual

1. Introduction

Thank you for choosing the XTRONS PF71RVTS 7-inch 2 DIN Car Radio. This manual provides essential information for the proper installation, operation, and maintenance of your new car multimedia system. Please read this manual thoroughly before using the product to ensure safe and optimal performance. Keep this manual for future reference.

2. Produit terminéview et fonctionnalités

The XTRONS PF71RVTS is a versatile 7-inch 2 DIN car radio designed to enhance your in-car entertainment and navigation experience. It integrates multiple functionalities into a single unit.

Caractéristiques principales :

• Écran tactile de 7 pouces : Intuitive control and clear visuals.
• 2 DIN Standard Size : Compatible avec une large gamme de véhicules.
• Lecture multimédia : Supports DVD/CD, USB, and AUX inputs.
• Connectivité Bluetooth : Pour les appels mains libres et la diffusion audio.
• Navigation GPS intégrée : Reliable route guidance.
• Connectivité Wi-Fi : For internet access and online features.
• Système d'exploitation Android : Access to various applications.
• Fonction de duplication d'écran : Display content from compatible smartphones.
• Prise en charge des commandes au volant : Pour une utilisation pratique.
• Processeur puissant : Equipped with an 800MHz Cortex A7 Processor for smooth performance.

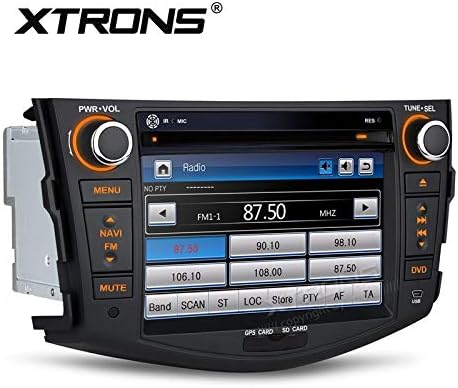

The XTRONS PF71RVTS unit features a 7-inch touchscreen display, physical control knobs for power/volume and tuning/selection, and dedicated buttons for menu, navigation, mute, and DVD access. The radio interface is shown on the screen.

This image shows the main menu of the XTRONS PF71RVTS car radio, providing access to Radio, Navigation, DVD, and Applications. The date and time are visible at the top.

3. Configuration et installation

Proper installation is crucial for the performance and safety of your car radio. It is recommended that installation be performed by a qualified professional.

Compatibilité:

This car radio is compatible with various vehicle models. Please verify the dimensions and shape of your vehicle's center console before purchase and installation.

• Toyota RAV4 : Modèles 2006-2012.
• VW Caravelle T5: 03/2003 - 08/2009 models.
• VW Multivan T5: 03/2003 - 08/2009 models.
• VW Touareg (4L): 10/2002 - 04/2010 models.
• VW Transporter T5: 03/2003 - 08/2009 models.

Dimensions:

Ensure the unit's dimensions fit your vehicle's dashboard opening.

The image illustrates the XTRONS PF71RVTS unit seamlessly integrated into a Toyota RAV4 (2006-2012) dashboard. Key dimensions for the face panel are provided: 245mm width and 155mm height, with a 220mm width for the main unit.

This image provides a detailed diagram of the XTRONS PF71RVTS unit's dimensions, including its depth (178mm), height (155mm), and width (220mm). Below, the included accessories are shown: 1 x ISO Wiring Harness, 1 x GPS Antenna, and 1 x User Manual.

Accessoires inclus :

• 1 x faisceau de câblage ISO
• 1 x antenne GPS
• 1 x Manuel d'utilisation (anglais)
• Clés de suppression
• Microphone pour les appels téléphoniques
• SD Card for navigation

4. Mode d'emploi

Fonctionnement de base :

• Marche/Arrêt : Press the PWR-VOL knob to turn the unit on or off.
• Contrôle du volume : Rotate the PWR-VOL knob to adjust the volume.
• Navigation dans les menus : Use the touchscreen or the 'MENU' button to access different functions.

Fonctionnement de la radio :

Select the 'Radio' icon from the main menu. Use the TUNE-SEL knob or touchscreen controls to scan for stations, save presets, and switch between FM/AM bands.

Lecture DVD/CD :

Insert a DVD or CD into the disc slot. The unit will automatically detect and begin playback. Use the on-screen controls for play, pause, skip, and menu navigation.

Entrée USB/AUX :

Connect a USB device or an external audio source via the AUX input. Select the corresponding source from the main menu to access media files.

Fonctionnalité Bluetooth :

1. Activez le Bluetooth sur votre smartphone.
2. On the car radio, go to the Bluetooth menu and search for available devices.
3. Sélectionnez votre téléphone dans la liste et associez les appareils.
4. Once paired, you can make/receive hands-free calls and stream audio.

Navigation GPS:

Access the navigation system by selecting the 'NAVI' button or the 'Navigation' icon. Ensure the GPS antenna is properly installed for optimal signal reception. Follow the on-screen instructions for route planning and guidance.

The image shows the GPS navigation interface of the XTRONS PF71RVTS, providing clear route guidance with map details, current location, and navigation controls.

Fonction de duplication d'écran :

This function allows you to mirror the screen of a compatible Android smartphone onto the car radio's display. Connect your smartphone via USB and follow the on-screen prompts to activate screen mirroring. This enables two-way control of your smartphone applications from the head unit.

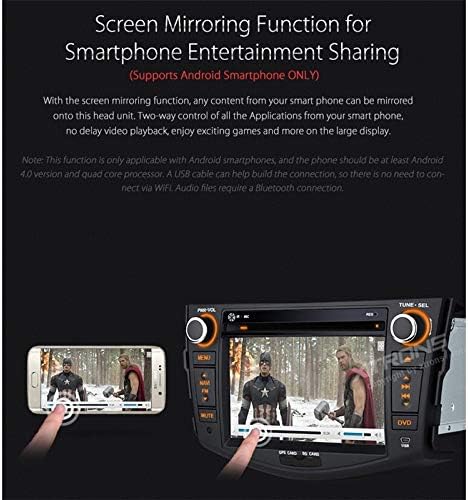

This image highlights the Screen Mirroring function, allowing content from a compatible Android smartphone to be displayed and controlled on the car radio's large screen. This enables sharing entertainment from your phone.

Commande au volant :

If your vehicle supports steering wheel controls, the unit can be configured to respond to these controls. Refer to the detailed wiring diagram in the full user manual for connection instructions and the system settings for programming the controls.

5. Entretien

Nettoyage de l'unité :

Use a soft, dry cloth to clean the display and exterior of the unit. For stubborn marks, dampen the cloth slightly with water. Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the surface.

Mises à jour logicielles :

Vérifiez périodiquement les instructions du fabricant. website for any available software updates. Updates can improve performance, add new features, or fix bugs. Follow the provided instructions carefully when performing any software update.

6. Dépannage

If you encounter issues with your XTRONS PF71RVTS unit, refer to the following common problems and solutions:

• Pas d'alimentation :
  Vérifiez toutes les connexions électriques et les fusibles. Assurez-vous que le contact est mis.
• Pas de son :
  Vérifiez les connexions des haut-parleurs. Contrôlez le volume et la fonction muet. Assurez-vous que la source audio sélectionnée est correcte.
• Problèmes de connexion Bluetooth :
  Ensure Bluetooth is enabled on both devices. Delete previous pairings and try re-pairing. Move devices closer to each other.
• Perte du signal GPS :
  Assurez-vous que l'antenne GPS est correctement installée et qu'elle est dégagée. view of the sky. Move to an open area if in a tunnel or underground parking.
• Écran tactile non réactif :
  Essayez de redémarrer l'appareil. Si le problème persiste, une réinitialisation d'usine peut être nécessaire (attention : cette opération effacera toutes les données utilisateur).
• Disc Read Error:
  Assurez-vous que le disque est propre et sans rayures. Essayez un autre disque.

For more complex issues, please consult a qualified technician or contact XTRONS customer support.

7. Spécifications

8. Garantie et assistance

XTRONS products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official XTRONS website. For technical support, troubleshooting assistance, or service inquiries, please contact XTRONS customer support through their official channels.
