Samsonite 3 Dial Travel Sentry Combination Lock

Introduction

This manual provides instructions for the proper setup, operation, and maintenance of your Samsonite 3 Dial Travel Sentry Combination Lock. This lock is designed to secure your luggage while allowing security authorities, such as the TSA, to inspect your bags without damaging the lock.

Caractéristiques du produit

• Construction durable : Constructed of sturdy zinc alloy to withstand the rigors of baggage handling.
• Accepté par la TSA : Each lock has an indicator ring to allow the TSA to open the lock for luggage inspection and then re-lock it to avoid destroying the lock.
• Customizable Combination: Triple-dial mechanism sets and re-sets with hundreds of possible combinations for added convenience and protection.
• Identification facile : Distinct design and color make luggage easier to identify.

Configuration : Définir votre combinaison

Your lock is preset to open at 0-0-0Suivez ces étapes pour définir votre combinaison personnelle :

1. Set the dials to the factory default combination 0-0-0.
2. Locate the reset button. This is typically a small button or lever on the side or bottom of the lock. Use a pen or a pointed object to press and hold this button.
3. Tout en maintenant le bouton de réinitialisation enfoncé, tournez les molettes jusqu'à la combinaison à 3 chiffres souhaitée. Choisissez un numéro facile à retenir.
4. Relâchez le bouton de réinitialisation. Votre nouvelle combinaison est maintenant définie.
5. Scramble the dials to lock the mechanism. Test your new combination by entering it and ensuring the lock opens.

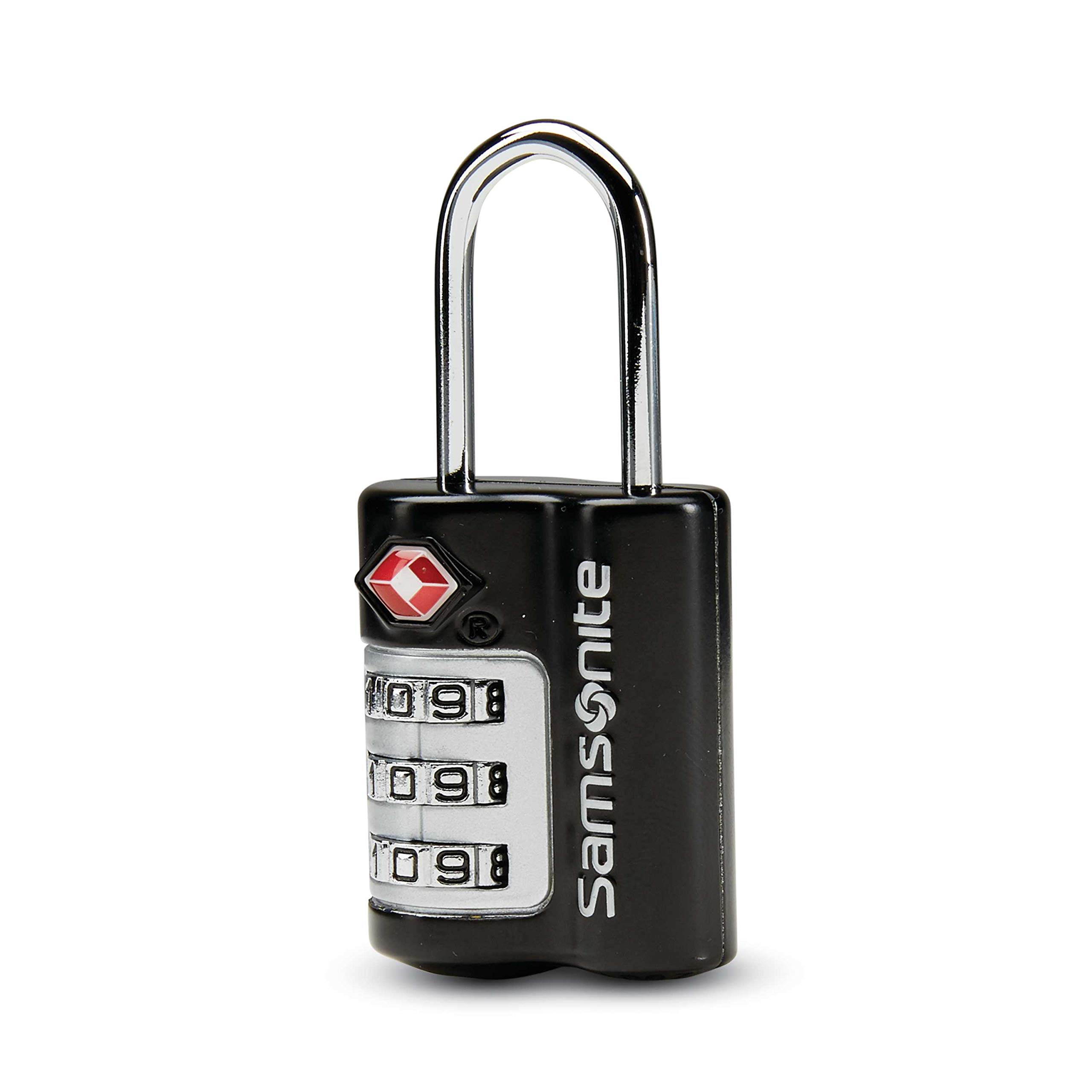

Image: Samsonite 3 Dial Travel Sentry Combination Lock. This image displays the lock's front view, highlighting the three numerical dials and the shackle mechanism. The lock is black and made of zinc alloy.

Important: Remember your combination. There is no master key or backdoor to reset the combination if forgotten without knowing the current one.

Fonctionnement de la serrure

1. Pour ouvrir : Rotate the dials to your personal 3-digit combination. The shackle will release.
2. Pour fermer et verrouiller : Insert the shackle into the lock body and scramble the dials to a random set of numbers. This secures the lock.

Entretien

• Keep the lock clean and dry. Wipe with a soft, damp chiffon si nécessaire.
• Évitez d'utiliser des produits chimiques agressifs ou des nettoyants abrasifs, car ils peuvent endommager la finition.
• Do not force the dials or shackle. If the lock feels stiff, a small amount of graphite lubricant can be applied to the moving parts.

Dépannage

• Lock will not open with my combination:
  • Ensure each dial is precisely aligned with your combination.
  • Double-check that you are using the correct combination.
  • If the lock was recently reset, ensure you are using the newly set combination.
• Les molettes sont dures ou difficiles à tourner :
  • Nettoyez toute saleté ou débris autour des boutons.
  • Apply a small amount of graphite lubricant to the dial mechanism.
• Shackle does not fully engage or disengage:
  • Ensure the combination is correctly set before attempting to open or close.
  • Check for any obstructions preventing the shackle from moving freely.

Caractéristiques

Garantie et assistance

For warranty information, product support, or to contact customer service, please visit the official Samsonite website or refer to the documentation included with your purchase. Specific warranty details are not provided within this manual.
