BAFANG USB Programming Cable Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the BAFANG USB Programming Cable, designed for Bafang mid-drive motors. This cable facilitates connection between your personal computer and the Bafang mid-drive motor controller, enabling adjustment of user-level parameters. It is compatible with Bafang BBS01, BBS02, BBSHD, and UART protocol motors (M315, M500, M600, M420, M200). The cable allows for customization of settings such as speed limits, pedal assist levels, and throttle response to optimize your e-bike's performance according to your preferences. This cable does not allow for firmware changes.

2. Produit terminéview

The BAFANG USB Programming Cable is an essential tool for customizing your Bafang mid-drive e-bike system. It features a USB Type-A connector for your computer and a 5-pin female waterproof connector for your motor controller. The cable is available in two lengths: 590mm (23.2 inches) and 1090mm (42.9 inches).

Figure 2.1: BAFANG USB Programming Cable with icons indicating its functions: adjusting speed limitation, pedal assist levels, and other parameters.

Figure 2.2: Universal Compatibility of the BAFANG USB Programming Cable with various Bafang mid-drive motors.

Figure 2.3 : Détaillé view of the cable's components: USB port, IP65 waterproof cable, and 5-pin female connector.

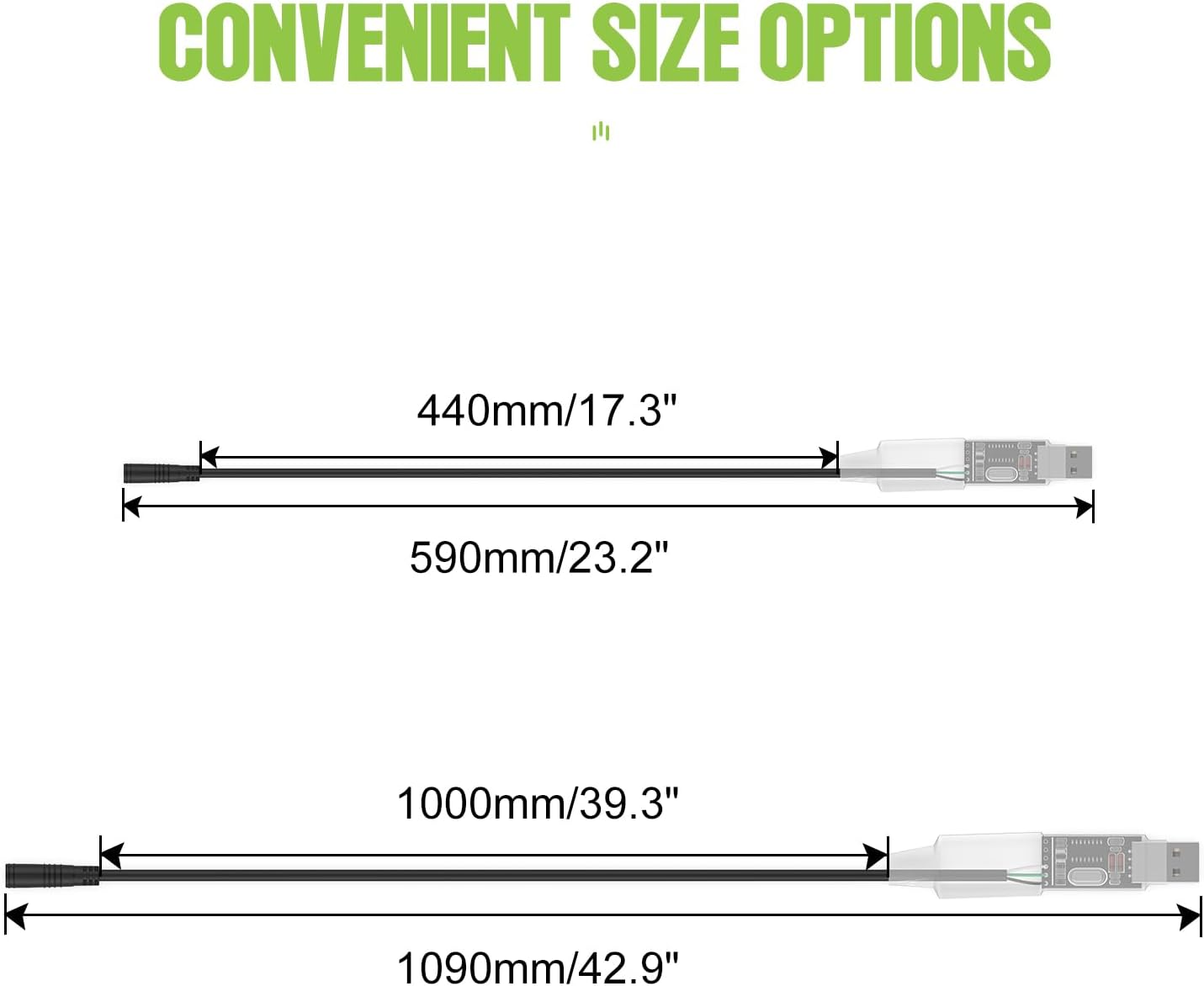

Figure 2.4: Available cable lengths for the BAFANG USB Programming Cable.

3. Installation

To set up your BAFANG USB Programming Cable and begin customizing your motor's parameters, follow these steps:

1. Acquisition de logiciels : The programming software is not included physically. You will need to download it. A QR code is often provided with the product or can be found on the manufacturer's website.
2. Configuration requise : The software is primarily compatible with Windows 7, 8, 8.1, and 10 operating systems. While some Windows 10 systems are compatible, older Windows versions are generally more reliable.
3. Installation: Once downloaded, ensure you run the programming software as an administrator to prevent permission issues.
4. Câble de connexion: Connect the USB Type-A end of the programming cable to an available USB port on your computer.
5. Connexion du moteur: Connect the 5-pin female waterproof connector to the corresponding port on your Bafang mid-drive motor controller. This port is typically where the display unit connects.

Figure 3.1: Wiring Diagram for connecting the programming cable to your e-bike system.

4. Mode d'emploi

Once the cable is connected and the software is installed, you can proceed with adjusting your motor's parameters. Exercise caution when modifying settings, as incorrect values can affect motor performance or safety.

1. Lancer le logiciel : Open the BafangConfigTool software on your computer, ensuring it is run with administrator privileges.
2. Se connecter au contrôleur : Within the software, locate the option to connect to the motor controller. The software should detect the connected cable and motor.
3. Paramètres de lecture : Before making any changes, it is recommended to read the current parameters from the motor controller and save them as a backup file. This allows you to revert to original settings if needed.
4. Ajuster les paramètres : Navigate through the software interface to access various adjustable parameters. These typically include:
   • Limitation de vitesse: Adjust the maximum speed at which the motor provides assistance.
   • Niveaux d'assistance au pédalage (PAS) : Customize the power output for each pedal assist level. This can make the throttle smoother or allow full throttle acceleration in PAS staget.
   • Réponse de l'accélérateur : Modify how the throttle responds, for example, to make it less like an on/off switch and more gradual.
   • Limite actuelle: Adjust the maximum current draw (e.g., from 25 amps à 18 amps) to potentially extend battery and motor lifespan without significant performance loss.
5. Write Parameters: After making desired adjustments, use the 'Write' or 'Program' function within the software to apply the new settings to the motor controller.
6. Vérifier les modifications : Disconnect the cable and test your e-bike to ensure the changes have been applied correctly and the motor operates as expected.

Figure 4.1: Step-by-step guide for software access and initial setup.

Important Safety Note: Modifying motor parameters can impact the safety and legality of your e-bike. Always understand the implications of any changes before applying them. Consult online resources and community forums for detailed guidance on specific parameter adjustments.

5. Entretien

Proper care of your BAFANG USB Programming Cable will ensure its longevity and reliable performance.

• Stockage: Rangez le câble dans un endroit sec et frais, à l'abri de la lumière directe du soleil et des températures extrêmes.
• Nettoyage: If the cable becomes dirty, wipe it gently with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
• Manutention: While the connector is waterproof (IP65 rated), avoid unnecessary exposure to water or moisture. Do not bend the cable sharply or apply excessive force to the connectors.
• Inspection: Inspectez régulièrement le câble afin de détecter tout signe de dommage, comme des fils effilochés ou des broches tordues. N’utilisez pas un câble endommagé.

6. Dépannage

If you encounter issues while using the BAFANG USB Programming Cable, consider the following troubleshooting steps:

• Câble non détecté :
  • Ensure the USB cable is fully inserted into both the computer and the motor controller.
  • Essayez un autre port USB sur votre ordinateur.
  • Verify that the motor controller is powered on (e.g., e-bike battery connected and turned on).
  • Check your computer's Device Manager for any unrecognized USB devices or driver issues. You may need to manually install a USB driver if not automatically detected.
• Problèmes de compatibilité logicielle :
  • If using Windows 10 and experiencing problems, try running the software in compatibility mode for Windows 7 or 8.
  • Ensure the software is always run as an administrator.
  • Download the latest version of the programming software from a reliable source.
• Parameters Not Applying:
  • Confirm that you clicked the 'Write' or 'Program' button in the software after making changes.
  • Ensure there are no error messages displayed in the software during the writing process.
  • Double-check that the motor controller is properly connected and powered throughout the process.
• Motor Not Responding After Programming:
  • If you saved a backup of your original settings, try loading and writing those parameters back to the controller.
  • Review the changes you made for any extreme or illogical values.

For further assistance, refer to online communities and forums dedicated to Bafang mid-drive motors, as they often provide detailed guides and solutions for common programming issues.

7. Spécifications

8. Informations sur la garantie

Specific warranty details for the BAFANG USB Programming Cable are not provided in the product information. Please refer to the retailer or BAFANG's official webConsultez le site pour connaître les conditions générales de garantie en vigueur.

9. Assistance

For technical support, software updates, or further inquiries regarding the BAFANG USB Programming Cable, please visit the official BAFANG website or contact their customer service department. Online communities and forums dedicated to Bafang mid-drive motors are also valuable resources for user-generated solutions and advice.
